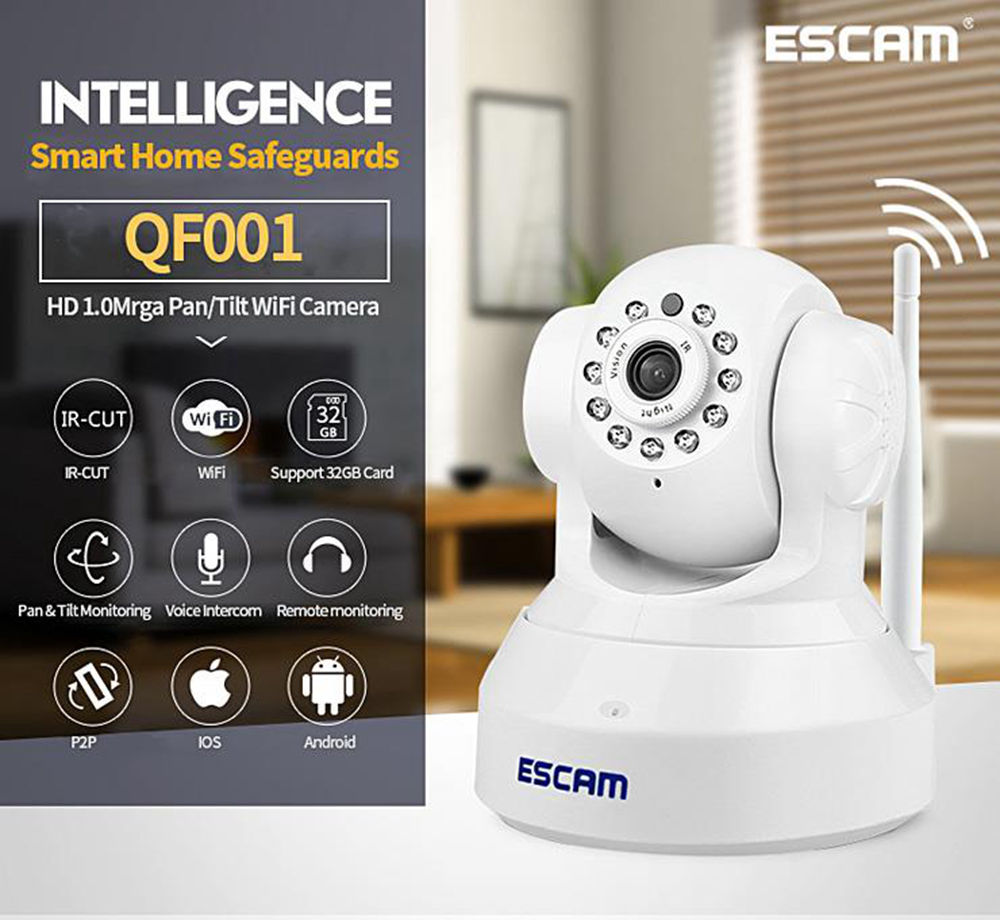

Highlights
Smart home safeguard

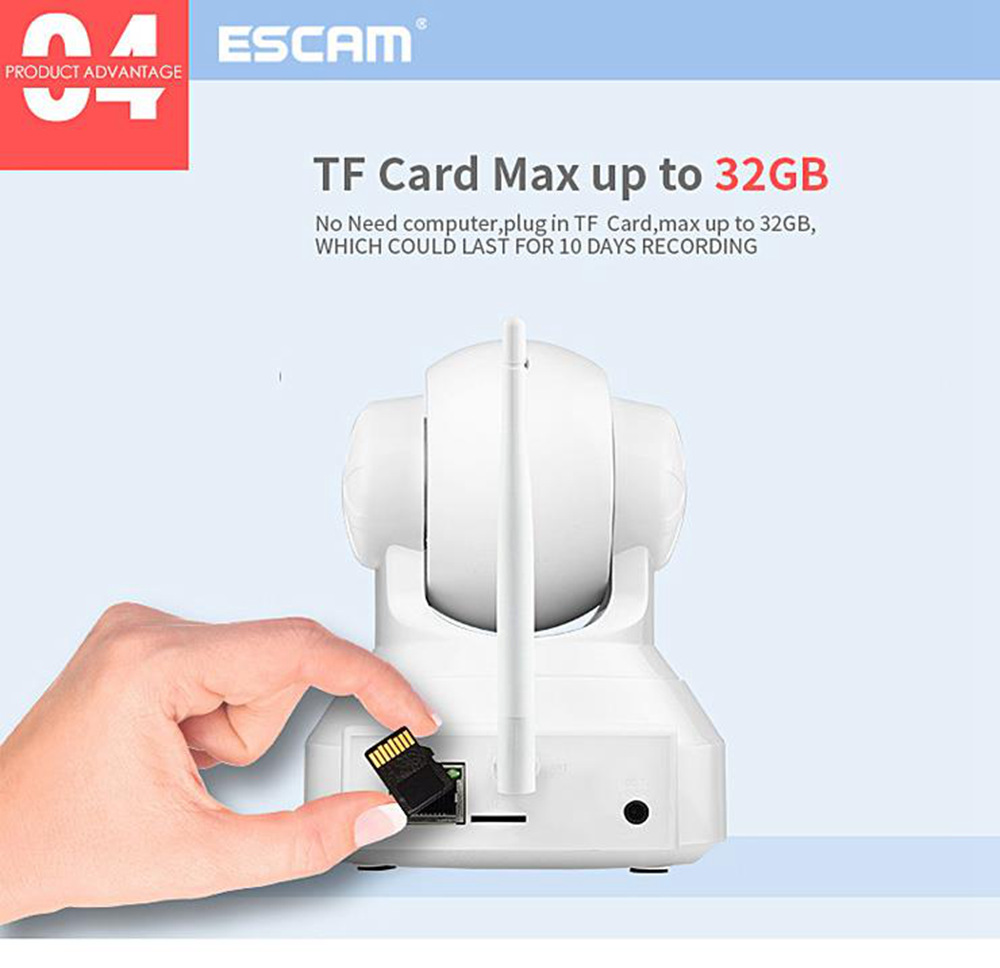

Support up to 32G TF card ,24-hour loop recording
Remote control and real- time monitoring
Two way Audio function
HD Picture and Resolution 720P

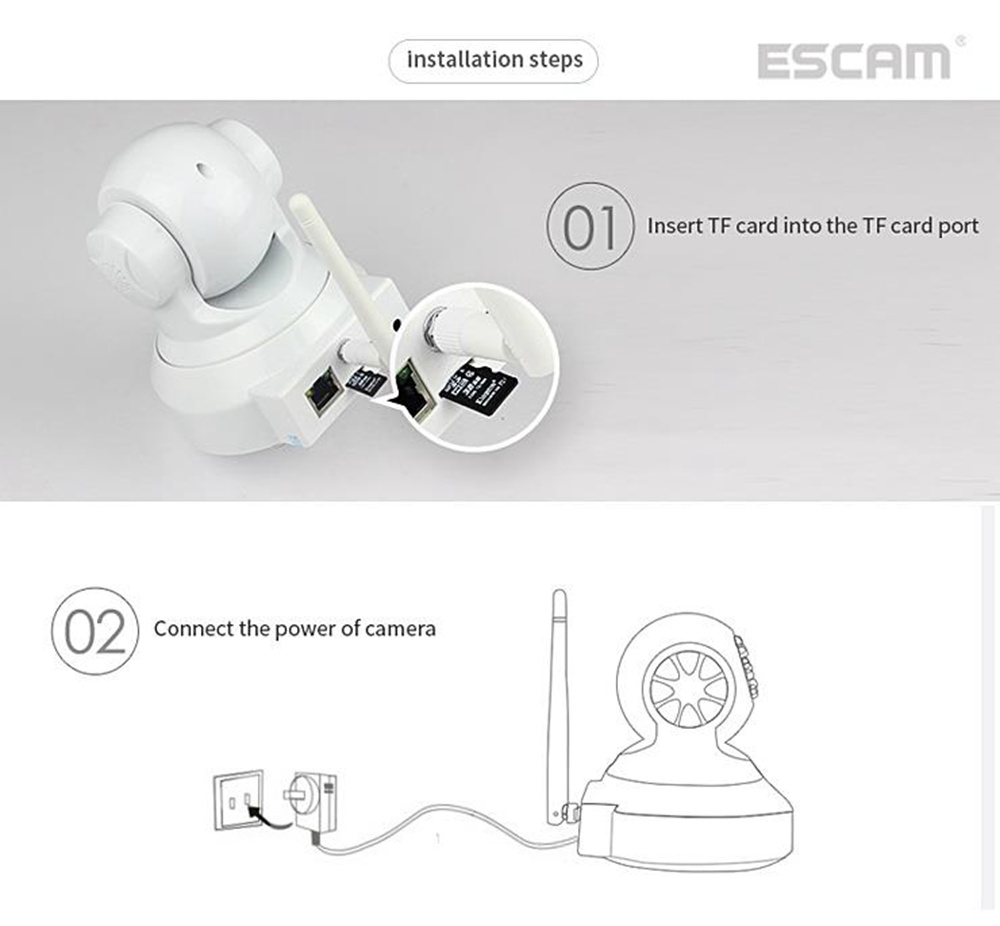

Easy to install and operate
Motion detection recording function

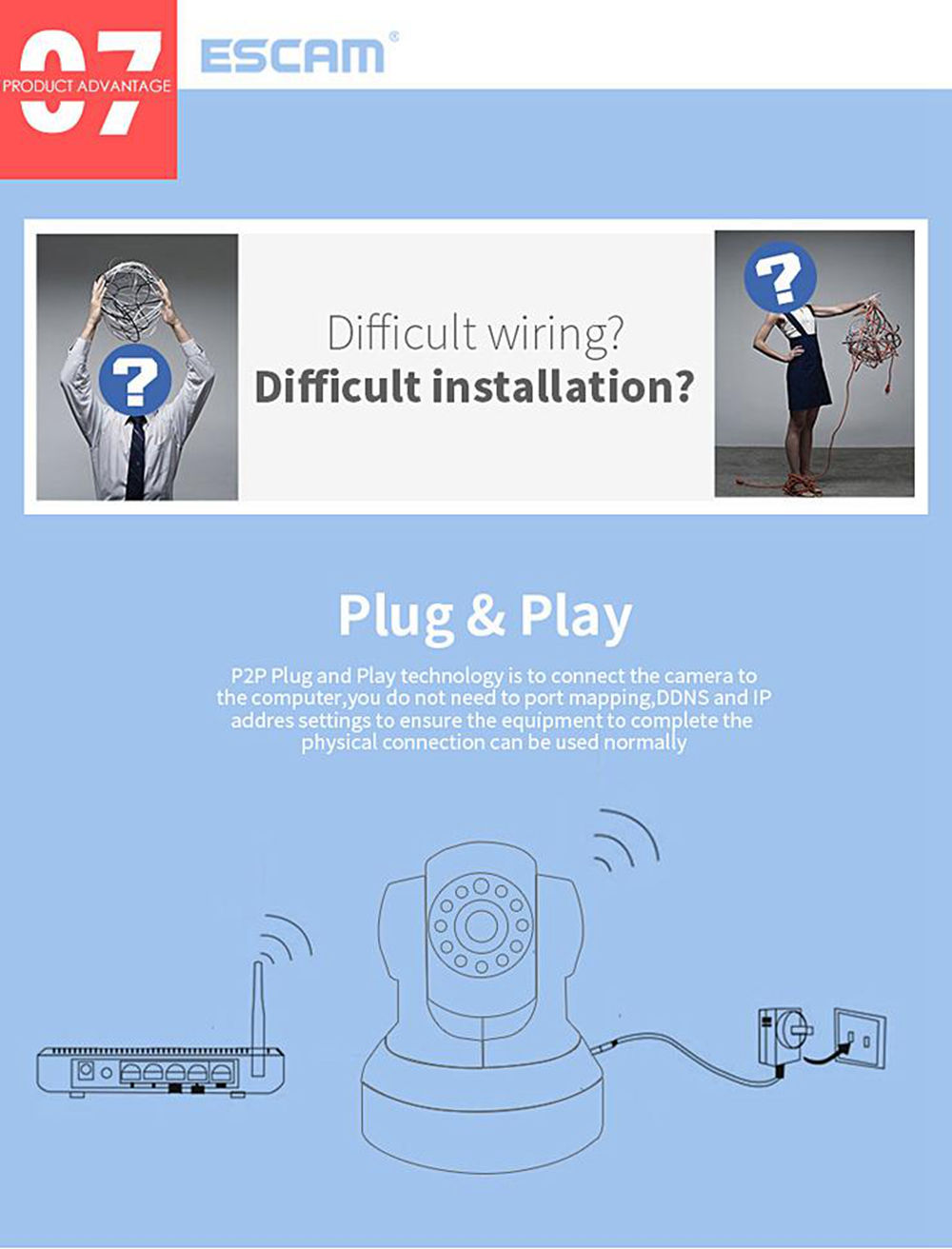

P2p plug and play technology
Support multi-user online
Specification
| General | |
|---|---|
| Brand | ESCAM |
| Model | QF001 |
| Quantity | 1 Piece |
| Color | White |
| Specification | |
| System security | Account, password management |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3, Android OS 2.3 above) |
| Local Storage | Support up to 32G TF card ,24-hour loop recording |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view |
| UID Technology | UID scan technology applied, easy to operate, and highly confidential |
| Video coding | Multi stream:720P/25fps+D1/25fps+CIF/25fps |
| Bit Rate | CBR/VBR, output bit rate range:48~3072kbps |
| Compression Format | H.264 baseline profile |
| Frame rate | NTSC:30fps/PAL:25fps(720p) |
| Resolution | 720P(1280*720),D1(704*576), CIF(352*288) |
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. |
| Sensor | 1/4 720p Progressive CMOS sensor |
| Minimum illumination | Color: 0. 1Lux, B/W: 0.01Lux |
| SNR | >39dB |
| IR control | Auto |
| Electronic shutter | 1/50s(1/60s)-1/100, 000s |
| CMOS | Support AWB, AGC, BLC |

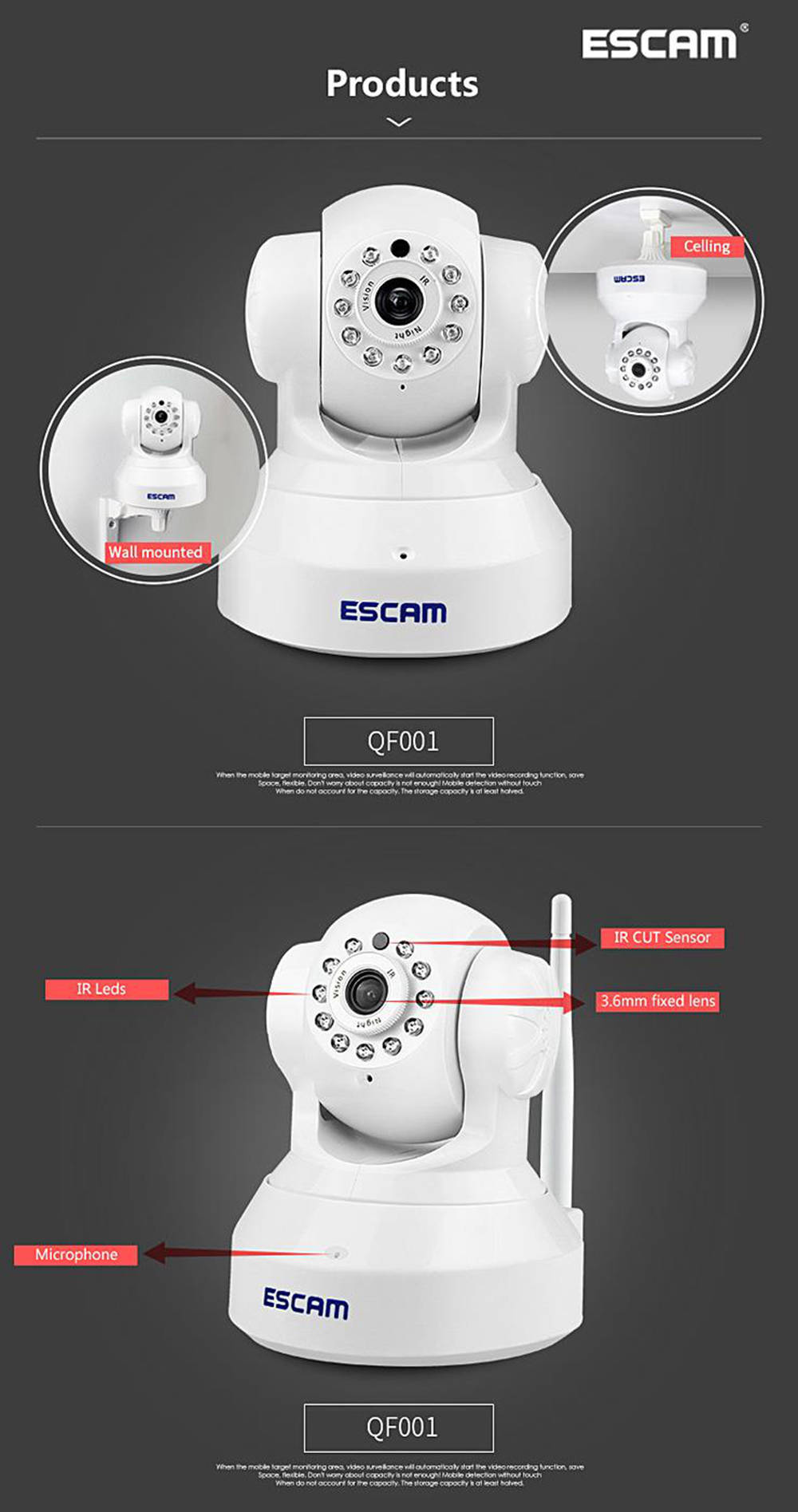

| Lens/viewing angle | 3.6mm @F1.4/62.2º |

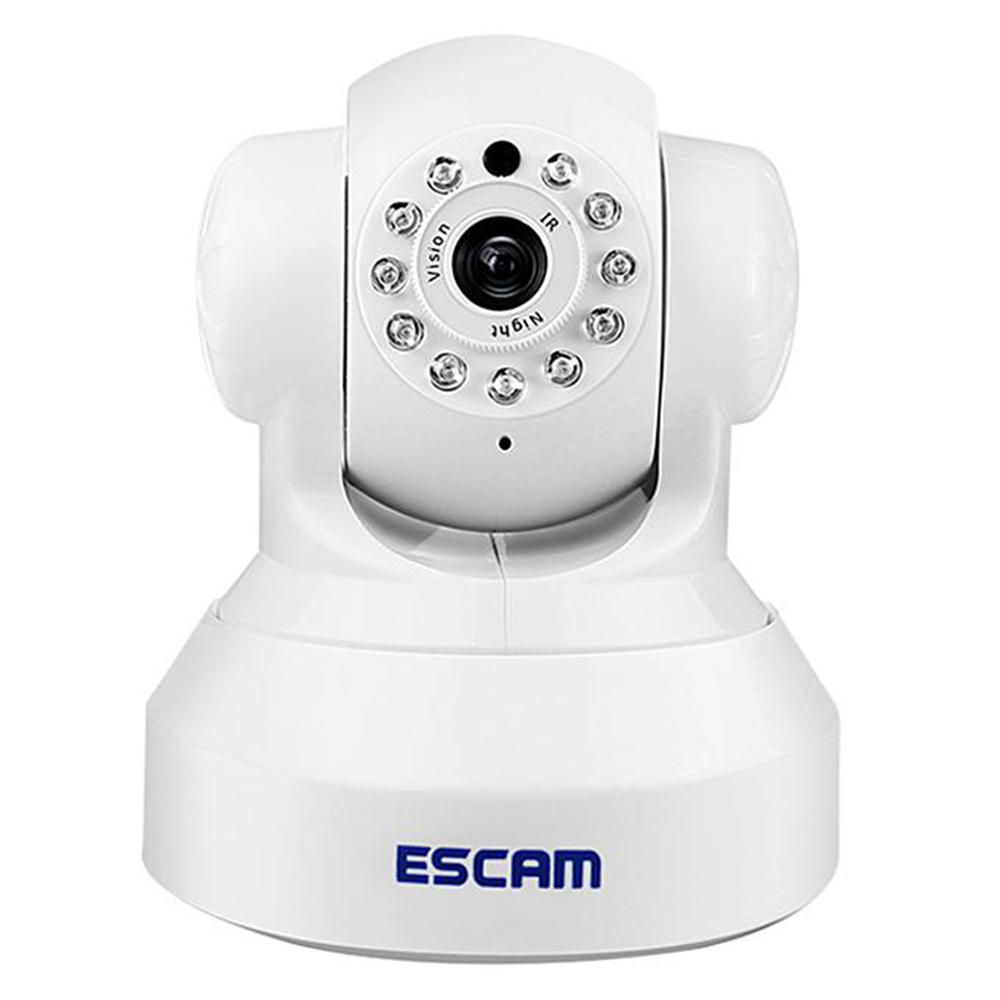

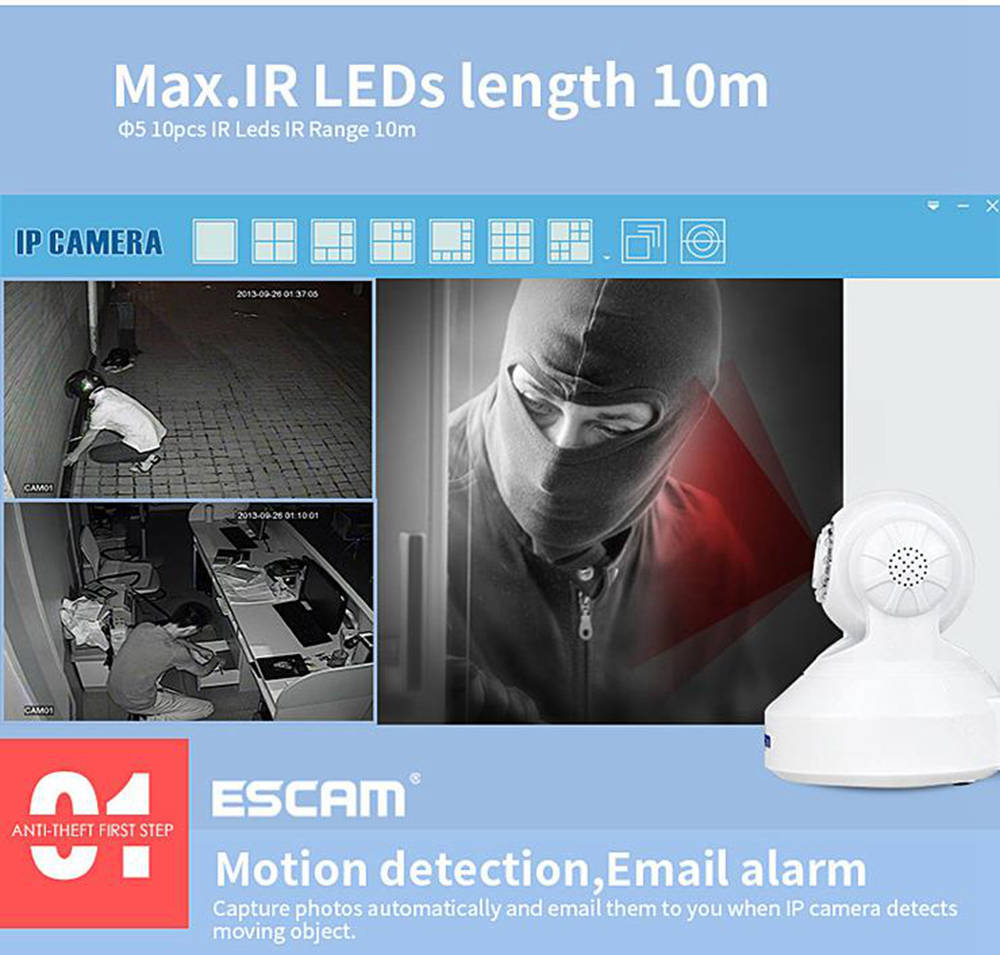

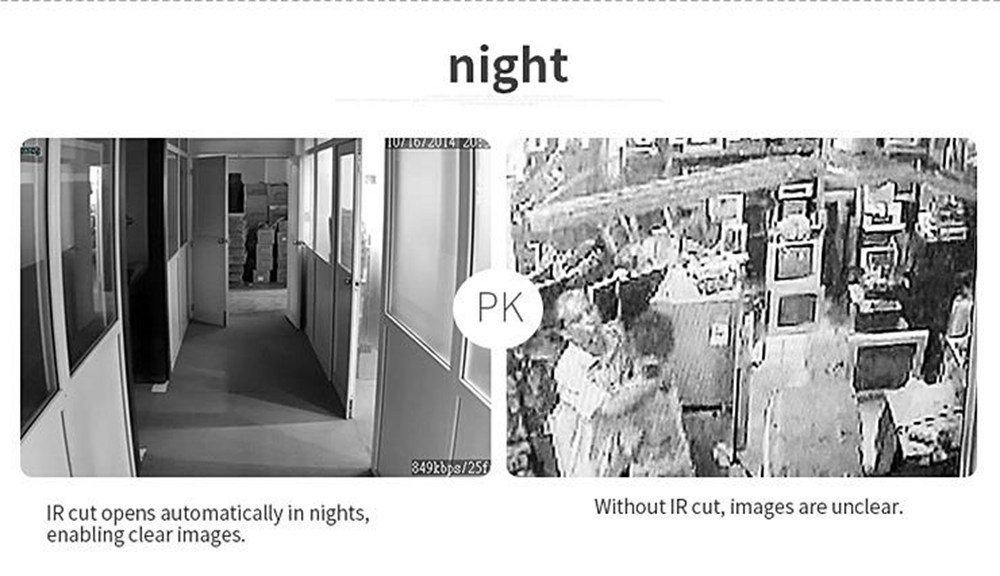

| Night vision | Dual IR-CUT Filter auto switch, 11pcs 850nmΦ5mm LED,10m IR distance |
| Compression | G.711A |
| Input | 1 Channel Line in -48dB Microphone |
| Output | 1 Channel Buit in speaker(8Ω1W) |
| P/T | Pan:355º,Tilt:120º |

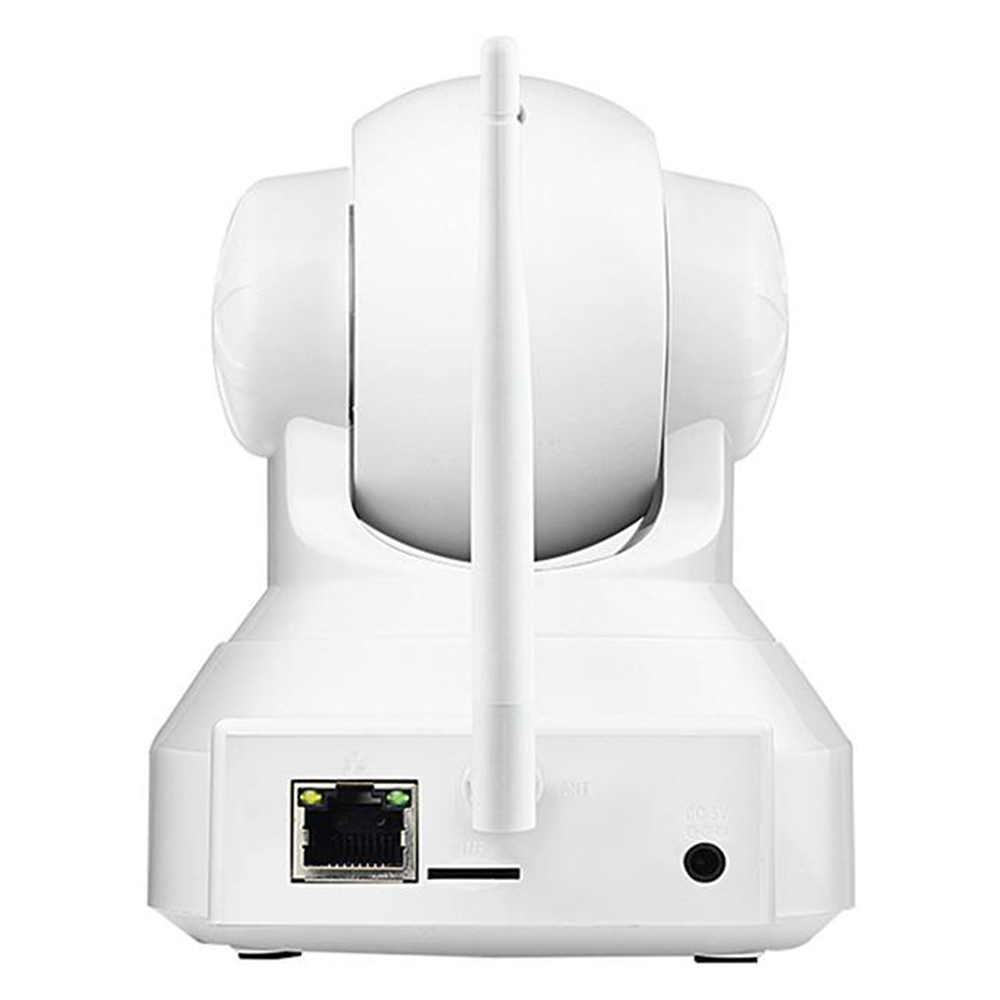

| Network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. |
| Online visitor | Support 4 online visitors simutaneoursly |
| IP address | Dynamic IP and static IP address |

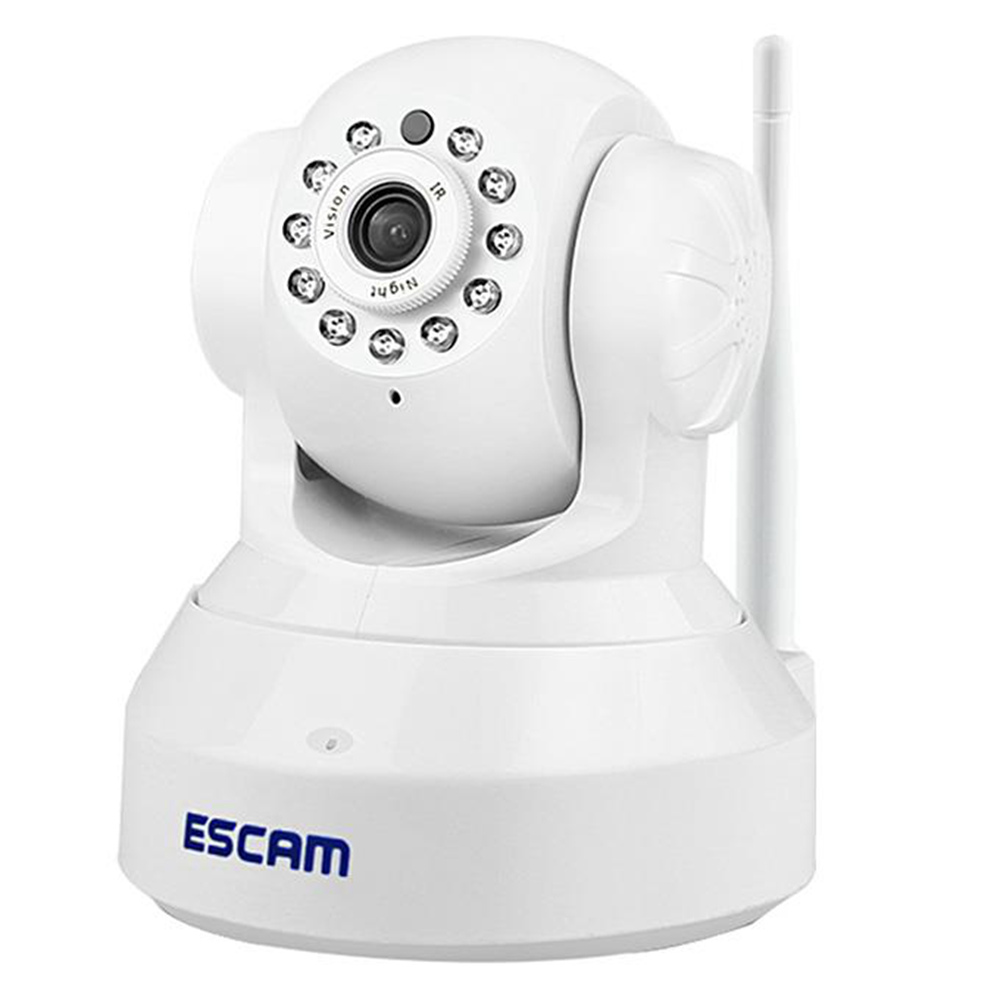

| WIFI | WIFI 802.11 b/g/n |
| Application environment | Indoor |
| Rated Voltage | DC5±0.3V |
| Temperature | -10-50 degree |
| Power consumption | rated power:3.5W(IR opening )/maximum power:7W(P/T working |
| Dimensions & Weight (Main Product) | |

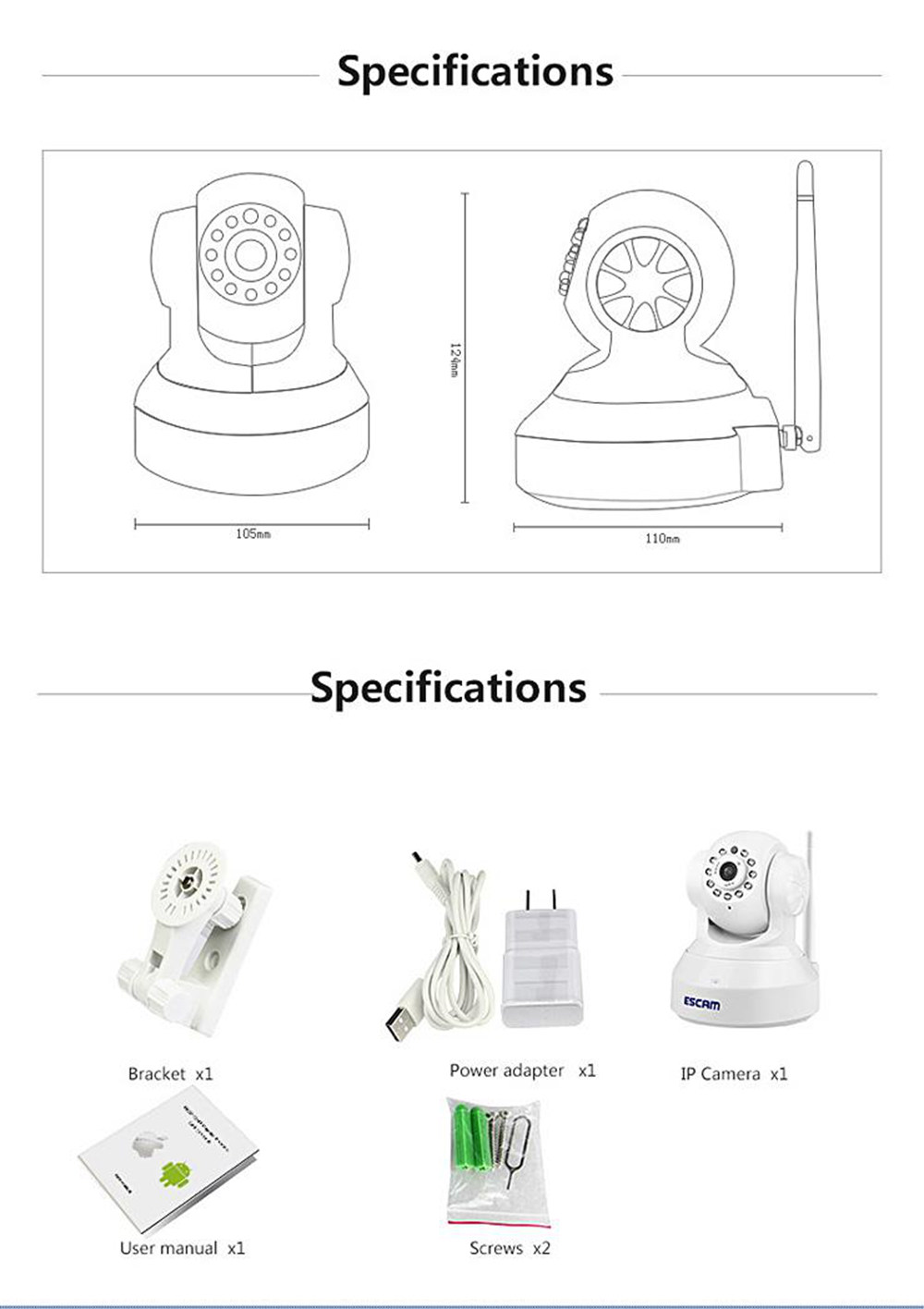

| Dimension | 195x150x120mm (L×W×H) |
| Gross Weight | 480g |

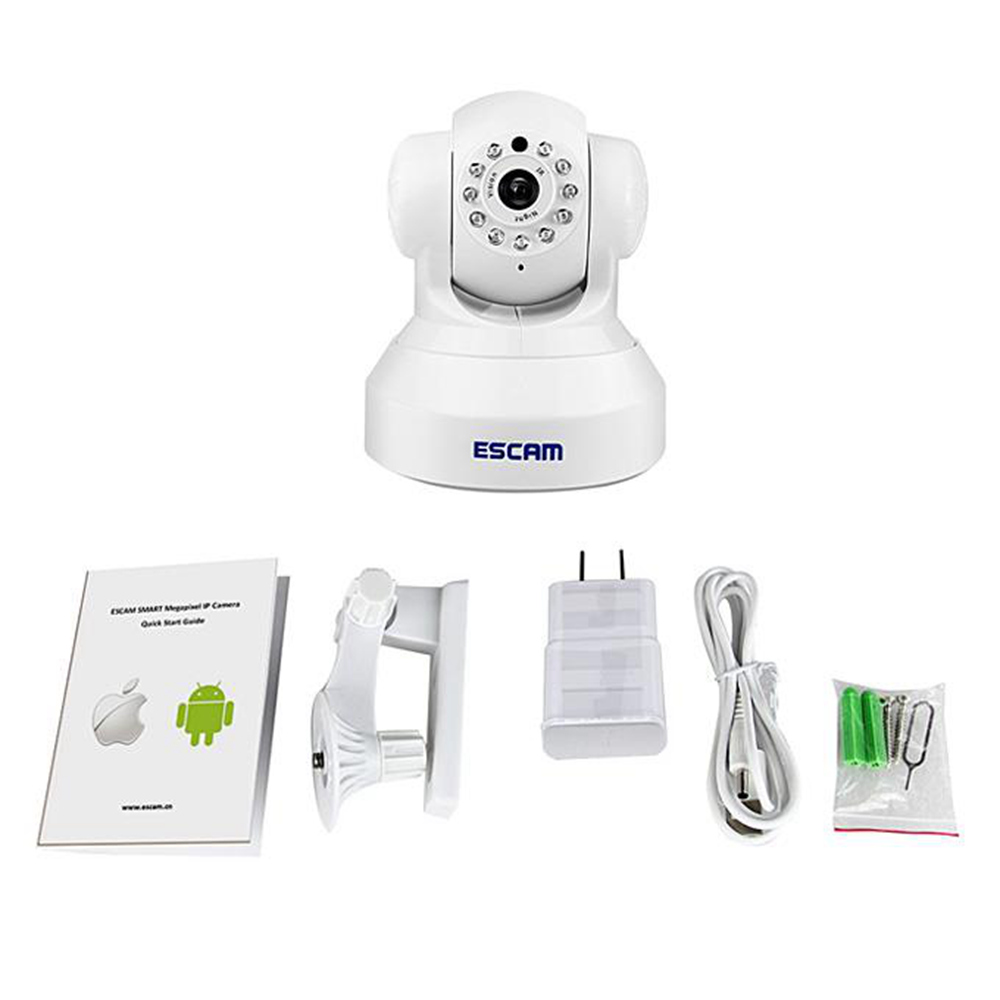

| Package Contents | |
| 1 x IP camera | |
| 1 x Mounting bracket | |
| 1 x Install the screw | |
| 1 x usb cable | |
| 1 x user manual | |
