Engine Timing Tool Kit for Ford Mazda Volvo 1.6L 2.0L T4 T5

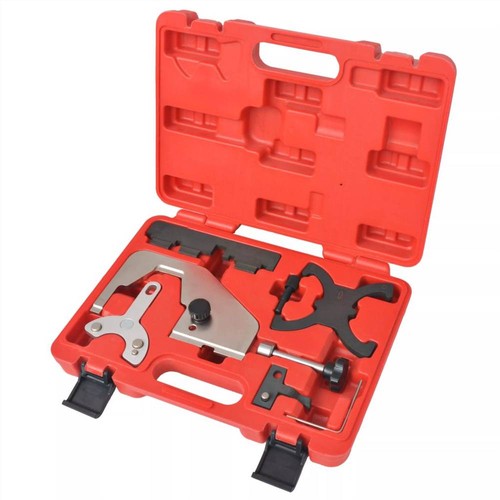

This comprehensive camshaft setting and locking set is suitable for 1.6L and 2.0L engines in vehicles such as Ford, Volvo, Mazda, etc. It contains a time-saving tool to correctly align the timing cover on Ford and Volvo engines and the crankshaft pulley holder for Mazda vehicles. This timing tool set is made from high-strength carbon steel for sturdiness and durability. All pieces are organised in a blow-moulded case for easy storage and transportation.

• Material: Carbon steel
• Case dimensions: 35 x 27 x 8 cm (L x W x H)
• Delivered in a blow-moulded case
• Suitable car models (for example):
• Ford:
• Ford Fiesta (08-15)
• Ford B-Max (12-15)
• Ford C-Max (03-07)
• Ford C-Max (07-10)
• Ford C-Max (10-15)
• Ford Focus (04-11)
• Ford Focus (11-15)
• Ford Grand C-Max (10-15)
• Ford Tourneo Connect (13-15)
• Ford Grand Tourneo Connect (13-15)
• Ford S-Max (10-15)
• Ford Galaxy (10-15)
• Ford Kuga (13-15)
• Ford Transit Connect (13-15)
• Volvo:
• Volvo S80 (09-14)
• Volvo V40 (09-14)
• Volvo V40 Cross Country (10-14)
• Volvo XC60 (09-14)
• Volvo S80 (09-14)
• Volvo V60 (10-14)
• Volvo V70 (09-14)
• Volvo S60 (11-11)
• Mazda:
• Mazda 5 (CW) (10-15)
• Mazda 6 (GH) (10-13)
• 1.6L engine code:
• B4164T, B4164T2, B4164T3, HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQJA, JQDA, JQDB, JQGA, JQMA, JQMB, JTDA, JTDB, JTJA, JTMA, JTWB, MUDA, PNDA, RVJA, SIDA, U5JA and XTDA
• 2.0L engine code:
• B4204T6, B4204T7, B4204T7 (MZRDIDSI), MGDA, MZR 2.0 (LF), R9DA, TNBA, TNBB, TNWA, TNWA, TPBA, TPWA and ZQDA
• A. Camshaft alignment Plate >05-11: Ford 303-1565
• B. Camshaft alignment plate >05-11: Ford 303-1504, Volvo 999-7405 and Mazda 303-1061
• C. Crank sensor alignment tool: Ford 303-1521 and Volvo 999-7416
• D. Crankshaft timing pin: Ford 303-748, Volvo 999-7406 and Mazda 303-507
• E. Tensioner pin (2 mm in diameter): Ford 303-1054
• F. Camshaft sprocket alignment plate: Ford 303-1097 and Volvo 999-7429
• G. Crankshaft pulley alignment plate: Ford 303-1550 and Volvo 999-7431
• H. Crankshaft pulley alignment plate: Mazda 205-072
• I. Crankshaft pulley alignment tool: Volvo 999-7415
