Highlights
- 1/4 1Megapixel progressive scan CMOS

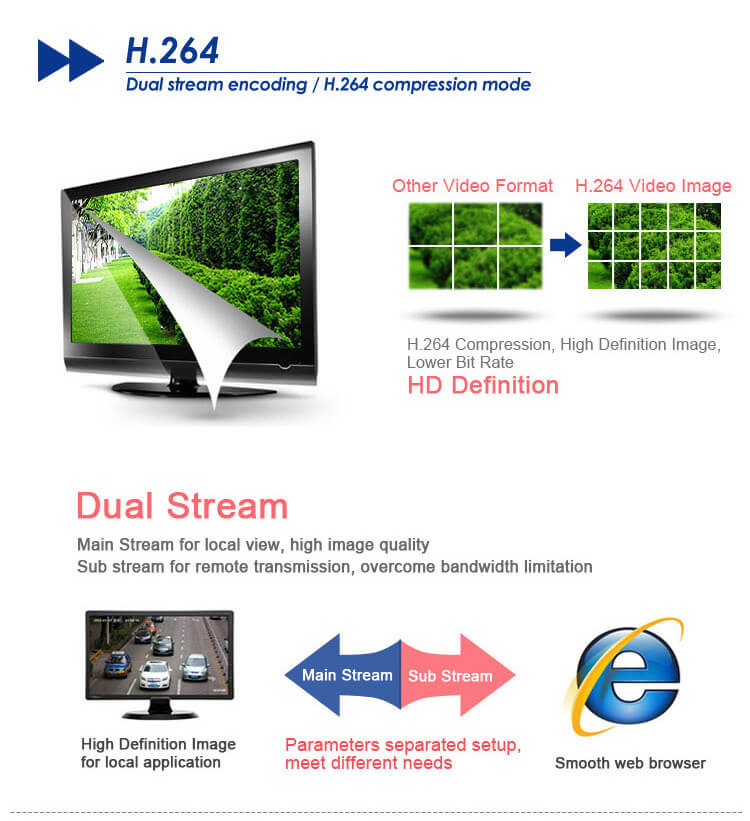

- H.264 dual-stream encoding

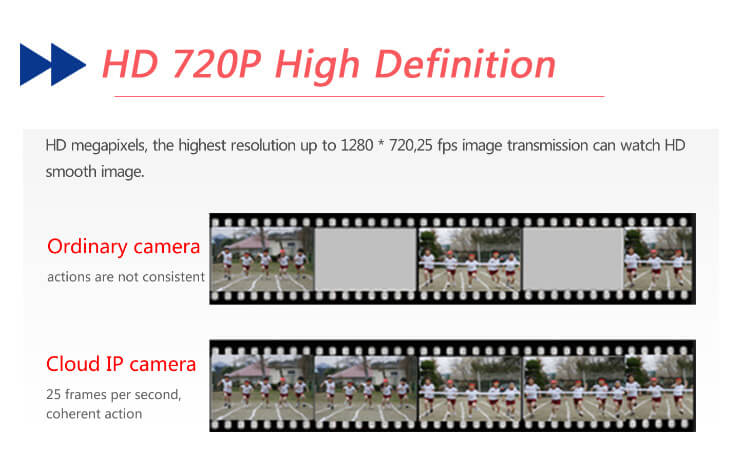

- Max 25/30fps@720P(1280×720)
- Day/Night(ICR), 2DNR, AWB, AGC, BLC

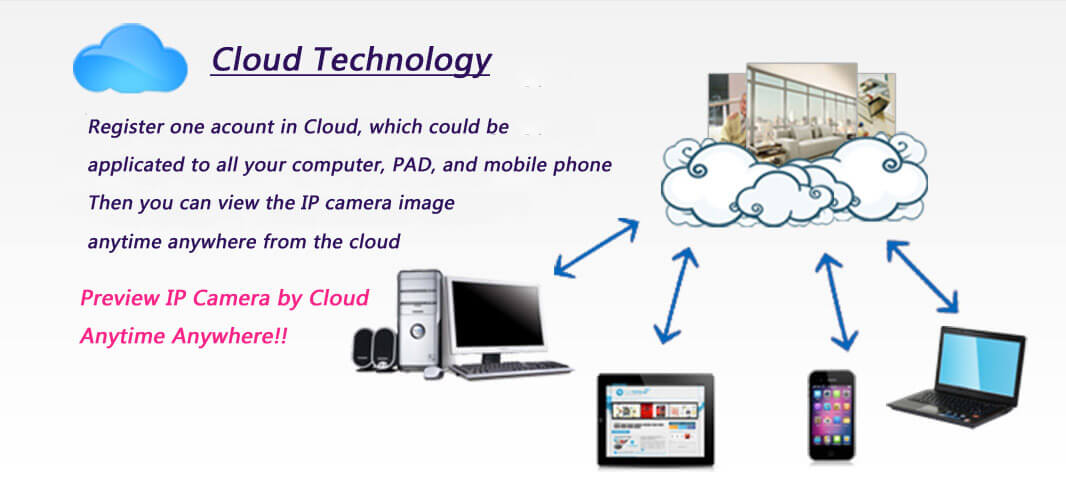

- Multiple network monitoring: Web viewer, CMS
- 3.6mm fixed lens
- Max. IR LEDs Length 10m
- DC12V 1A
Specification
| General | |
|---|---|
| Brand | Escam |
| Model | QD520 |
| Quantity | 1 Piece |
| Color | White |
| Specification | |
| Certification | CE FCC RoHS |
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS |
| Effective Pixels | 1280(H)x720(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 |
| Min. Illumination Color | 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) |
| S/N Ratio | More than 50dB |
| Video Output | N/A |
| Max. IR LEDs Length | 10m |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Focal Length | 3.6mm |
| Max Aperture | F1.8(F2.0/F1.8) |
| Focus Control | Manual |
| Angle of View H | 70°(114°/46°/) |
| Lens Type | Fixed lens |
| Mount Type | Board-in Type |
| Compression | H.264 |
| Resolution | 720P(1280×720)/ D1 (704×576/704×480) /CIF(352×288/352×240) |
| Frame Rate | Main Stream 720P(1 ~ 25fps) Sub Stream D1/CIF(1 ~ 25fps) |
| Bit Rate | H.264: 16K ~ 4096Kbps |
| Compression | N/A |
| Interface | N/A |
| Network | Ethernet RJ-45 (10/100Base-T) |
| WiFI | N/A |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP ONVIF ONVIF Profile S |
| Max. User Access | 10 users |

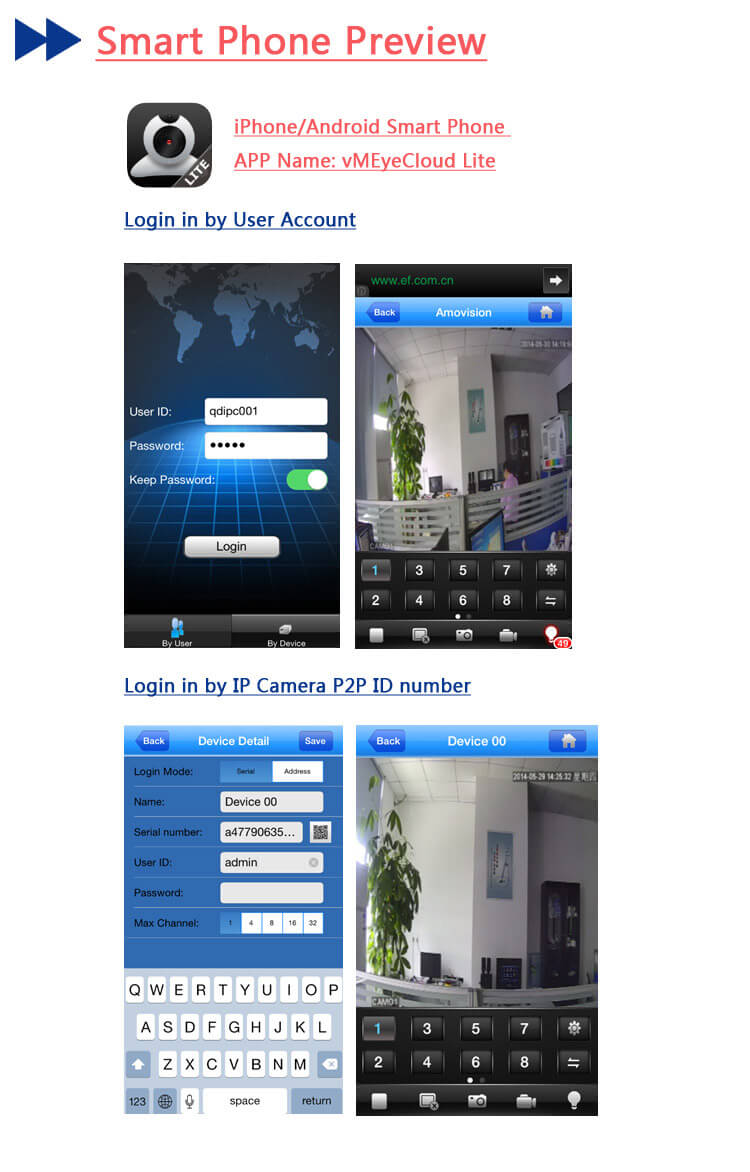

| Smart Phone | iPhone, iPad, Android, P2P iPhone, Android Mobile App |
| Auxiliary Interface | N/A |
| Power Supply | DC12V 1A |
| Power Consumption | <4W |
| Working Environment | -30°C~+60°C, Less than 95%RH |
| Ingress Protection | IP66 |
| Vandal Resistance | N/A |
| Dimensions & Weight (Main Product) | |
| Product Dimension | 90mm x90mm |
| Product Weight | 0.25Kg |

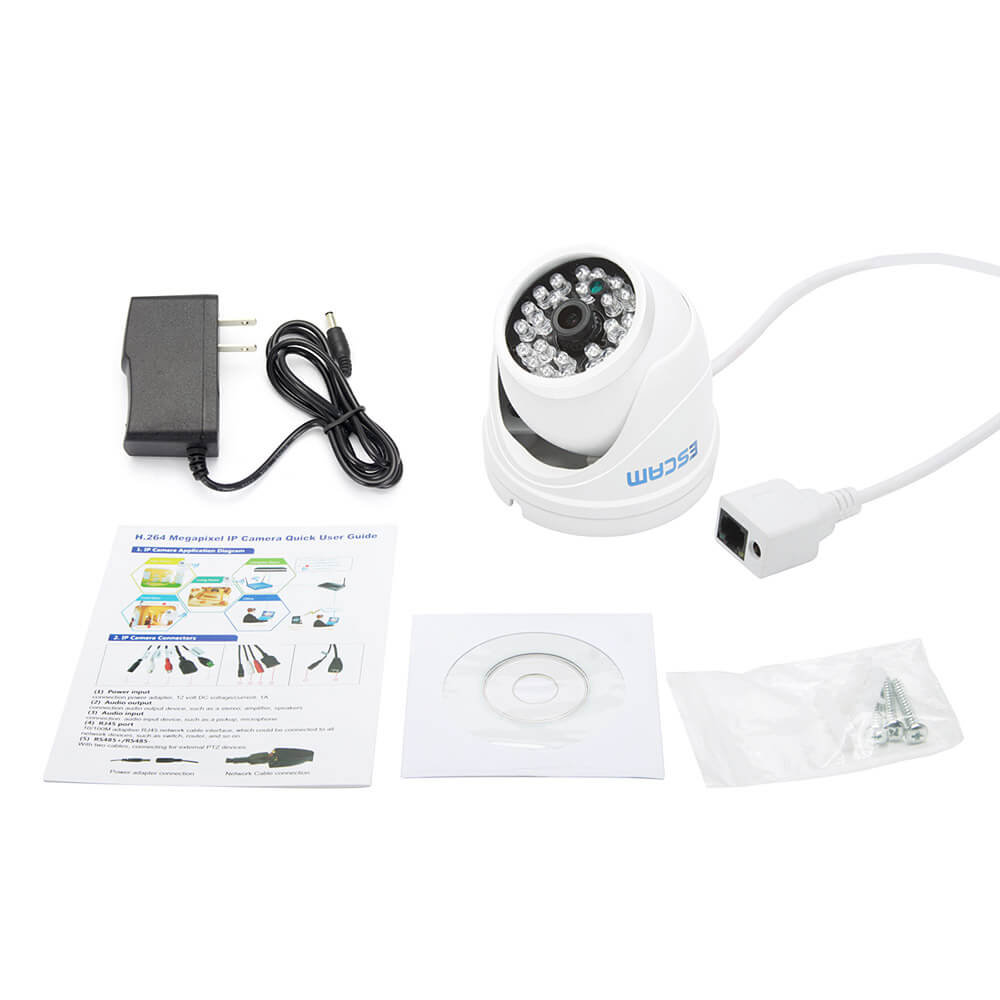

| Package Contents | |
| 1 x ESCAM Security Camera | |
| 1 x Power Supply | |
| 1 x English Manual | |
| 1 x Pack of screws | |
