Emax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESC

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

The heart of the flight control systems is a powerful STM32F303 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady flight stability. The integrated 5v/3A voltage regulator means clean power for all the FC/OSD components and other attached boards such as VTX, RX and FPV Camera. Betaflight OSD with easily customizable layout of vital flight information and ability to change FC flight parameters. On board buzzer for battery level warning or lost model finder functions.

4 in 1 Main Board - F3 FC + Betaflight OSD + 5v Regulator + Buzzer

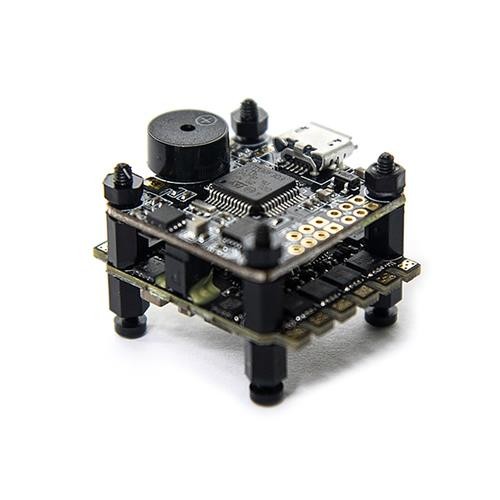

Designed for high performance Micro FPV racers, the F3 Magnum Mini packs in a F3 processor, Betaflight OSD and 12A 4 in 1 ESC that can handle up to 4s batteries. MPU6000 gyro is a proven performer for stable flight and resistance to vibration noise.

The FC and ESC with neatly stack together with pinned interconnects that make your build easy to assemble and cleaner looking. This tightly pre-assembled package will fit any frame that has 20 x 20mm mounting hole spacing.

The F3 Magnum Mini is the fastest way go from starting a new micro build to FPV Flight.

Specification

Emax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESCEmax F3 Magnum Mini Fly Tower 20x20mm System F3 OSD 3-4S 12A 4 In 1 BLheli_S ESC

General

Brand: Emax
Item Name: ESC + F3 Flight Controller

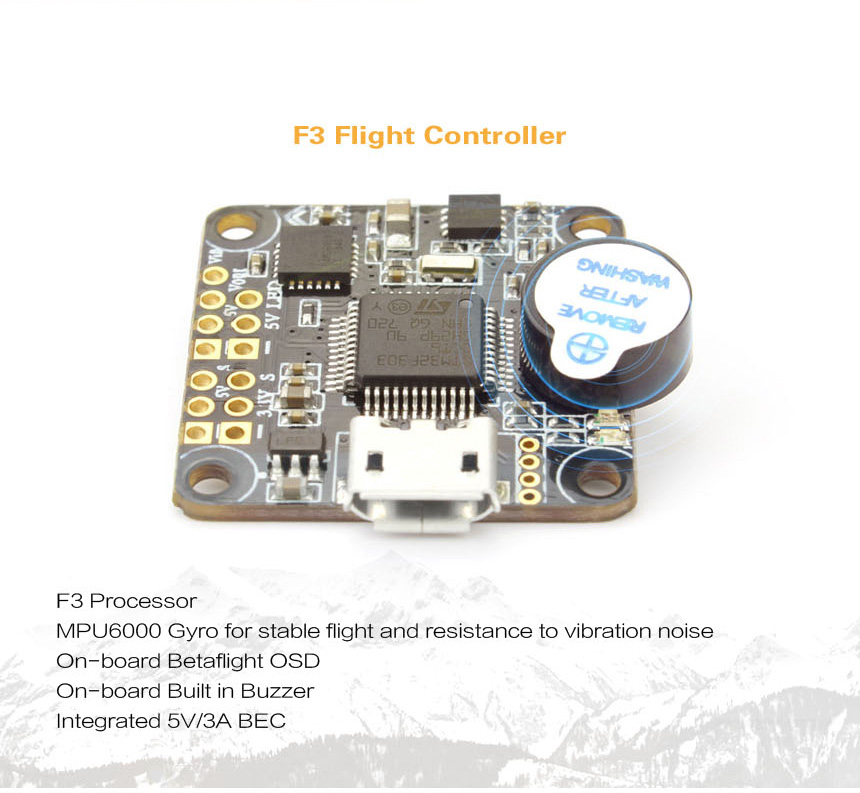

F3 Flight Controller
Firmware: OMNIBUSF3 Betaflight Target
MCU: STM32F303
Accelerometer/gyro: MPU6000 accelerometer/gyro(Connected via SPI)
OSD: On-Board
Buzzer: On-Board
BEC: 5V/3A Integrated
LED Pad: Addressable
Receiver: PPM/SBUS/SPEKTRUM DSM
Hole Spacing: 20 x 20mm
Mounting Holes: M2
Board Size: 24 x 24mm
Weight: 3.32g

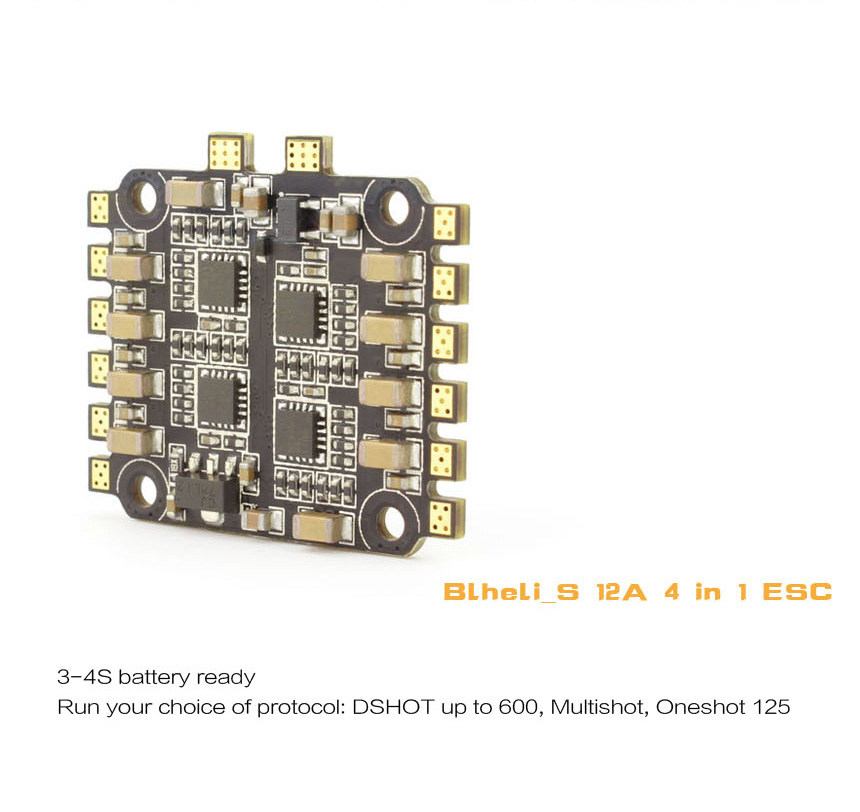

3-4S 12A 4 In 1 BLheli_S ESC
Continuous Current: 12A
Bust Current: 15A(With 10 Seconds)
Suooly Voltage: 3-4S Li-Po
Firmware: BLheli_S
Choice Of Protocol: DSHOT Up To 600,Multishot,Oneshot 125
PCB Board: 3oz High TG PCB Board
Hole Spacing: 20 x 20mm
Mounting Holes: M2
Board Size: 24 x 25mm
Weight: 4.4g

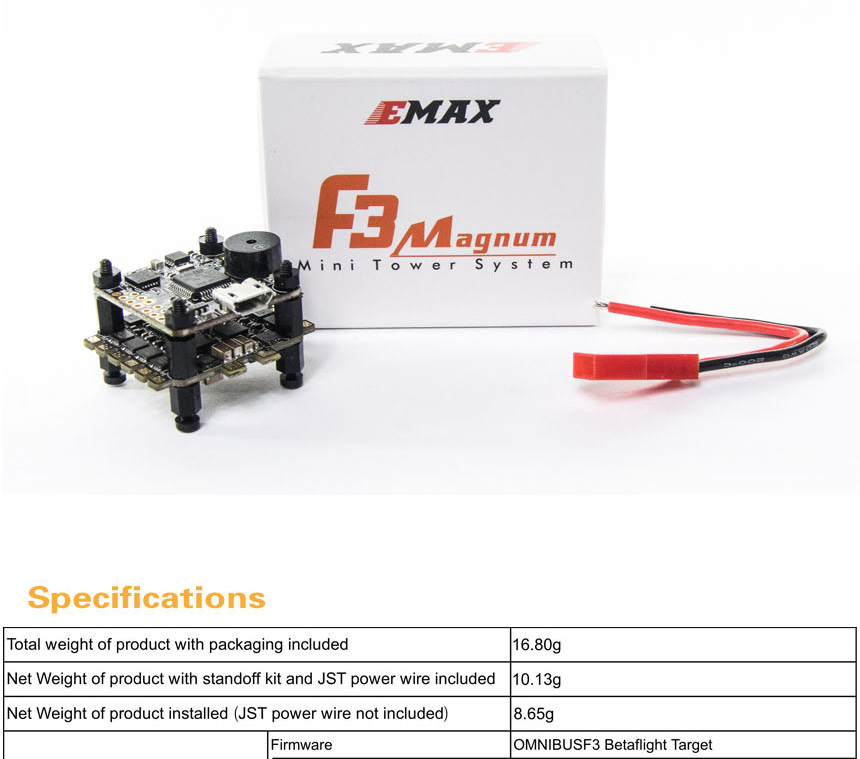

Package Contents

1 x F3 flight controller
1 x BLheli_S Bullet 12A 4 In 1 ESC
1 x JST power wire with connector
4 x M2 nylon nut
4 x M2 x 6mm nylon post
4 x M2 x 5mm nylon post
4 x M2 x 5mm nylon screw
