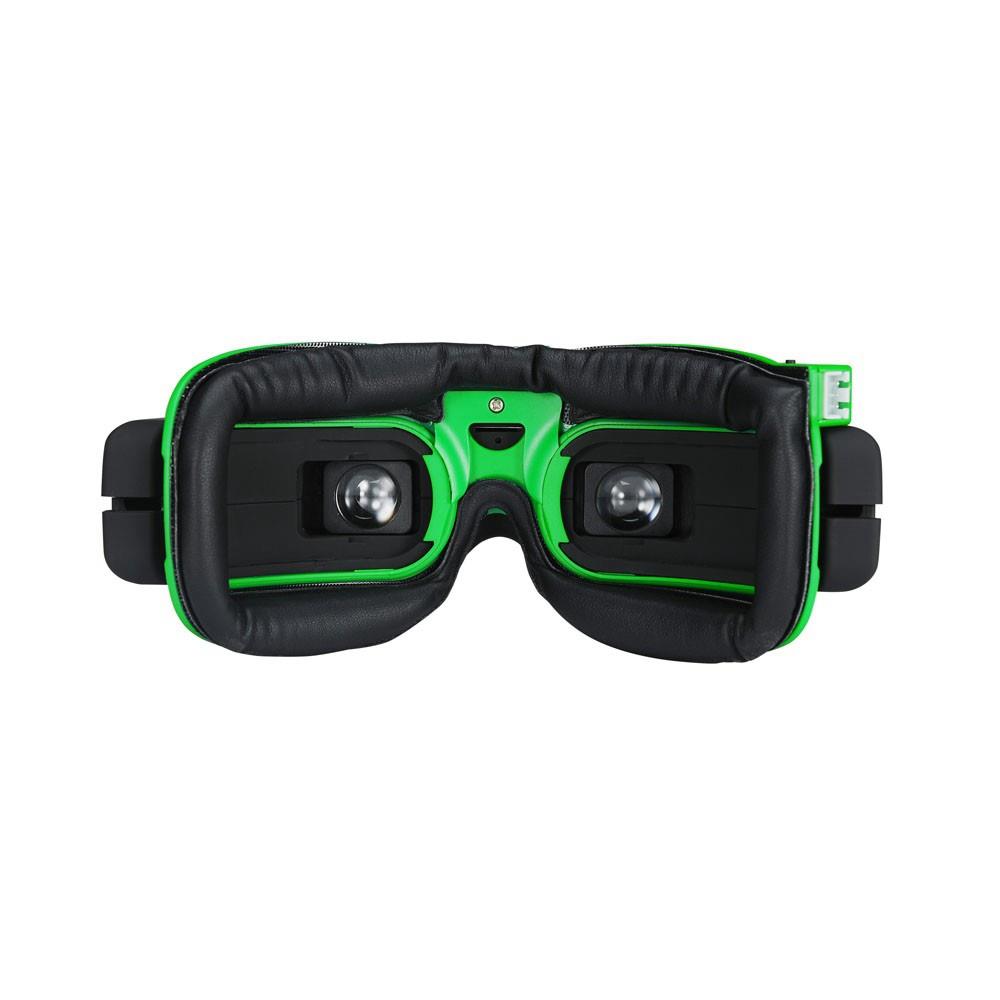

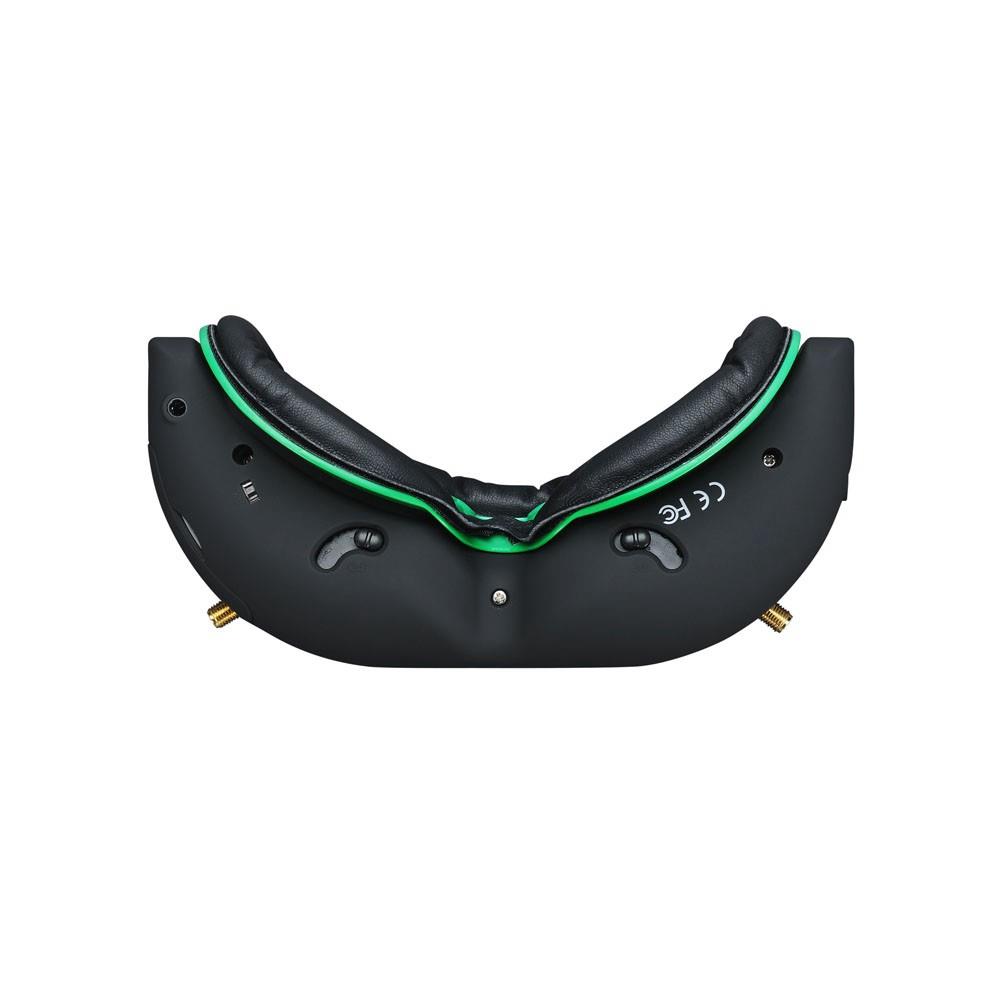

Fat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and Black

Brand: Fatshark 0Answered Questions Item Code:417196
Price:
Ship from:
QTY:
Shipping:
Sold Out
Add to Wishlist(12)
Payment:
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
  • Description
  • Reviews
  • Q&A
  • Support & Firmware
  • Sold Out

Highlights

640 x 400 OLED Resolution Display

NTSC/PAL video formats with auto selection

Support to 32GB SD card

Built-in anti-fogging mini fan

IPD 59-69mm Adjustable

3 Interfaces: DC Power port, AV in/out port, Earphone Jack

Available for diopter lens slot(lens purchased separately)

Fat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and BlackFat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and BlackFat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and BlackFat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and BlackFat Shark Attitude V5 OLED 4:3 640 X 400 Display Headset FPV Goggles For FPV Racing RC Drone - Green and Black

Specification

General

Brand: Fat Shark
Item Name: Attitude V5
Item No.: FSV1049
Quantity: 1Set
Color: Green and Black

Specification

Headset
Dimensions: 168 x 83 x 71mm
Weight: 193g
Optic Engine:
Field of View (FOV): 30°
Inter-pupillary Distance (IPD): 59 - 69mm (adjustable)
Diopter Lens Slot: Available (lens purchased separately)
Display: Resolution 640 x 400 OLED
Video formats: NTSC/PAL auto selection

Electrical:
DVR: Analog video recording
         SD card support to 32GB (AVI file)
         Support playback recording file
         Firmware upgrade via SD card
         Auto save recording file when power off
Wireless Receiver: True Diversity Receivers with OLED display
                                (Auto Scan Channel / Spectrum Analyzer)
Interfaces: DC Power port
                  AV in/out port
                  Earphone Jack
Fan Plate: Face foam and velcro sticker (easy replacement)
                  Anti-fogging mini fan

Module:
OLED display: Frequency group, channel, frequency / antenna selection indication / RSSI
Button: Select Frequency group/channel/source mode
Power Supply: 3.3~5 V
Sensitivity: ≤ -90 dB
RF Signal level: -90 dBm~+5 dBm
Video format: NTSC/PAL(Auto select)
Operational environment : -10~65 °C

Channel table as below:
Code      Name           CH1        CH2       CH3       CH4       CH5       CH6        CH7        CH8
  F         Band F          5740       5760      5780       5800      5820      5840       5860       5880
  R         Band R         5658       5695      5732       5769      5806      5843       5880       5917
  A         Band A          5865       5845      5825       5805      5785      5765       5745       5827
  E         Band E         5705       5685       5665       5645      5885      5905       5925       5945
  L         Band L          5362       5399       5436       5473      5510      5547       5584       5621
AV in   AV in mode    closed    closed     closed    closed    closed    closed    closed    closed

Weight & Dimensions

Product weight: 193g
Product size (L x W x H): 168 x 83 x 71mm
Package size (L x W x H): 21.5 X 13.6 X 8.7cm

Package Contents

1 x Attitude V5 OLED Headset
1 x 5.8G diversity receiver with OLED display
1 x 5.8GHz SpiroNET Circular Polarized antenna
1 x 5.8GHz FS RHCP patch antenna
1 x 18650 Li-ion Battery Case
1 x Zipper case for carrying
