Highlights
- FPV headset with integrated NexwaveRF receiver technology, simultaneously recording onboard HD footage via the included "PilotHD" camera
- Complete kit: 250mW 5.8Ghz transmitter, 25 degrees FOV headset (largest QVGA display available), brand new “PilotHD” camera with live AV out and all the cables, antennas and connectors required
- Full color Kopin Cyber Display
- Perfect for those looking to get started in FPV!
Specification
| General | |
|---|---|
| Type | RTF FPV Kit |
| Model | Teleprter V3 |
| Quantity | 1 Piece |
| FOV | 24 degrees diagonal |
| Interpupillary (IPD) Distance | 63.5mm (fixed) |

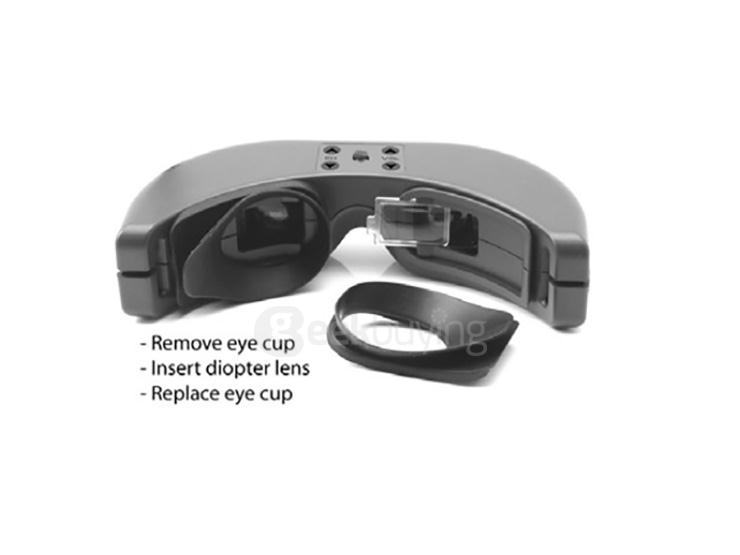

| Optional Diopter Lens Inserts | -2, -4, -6 dpt |
| Image | 38" @ 7' |
| Audio | Stereo |
|

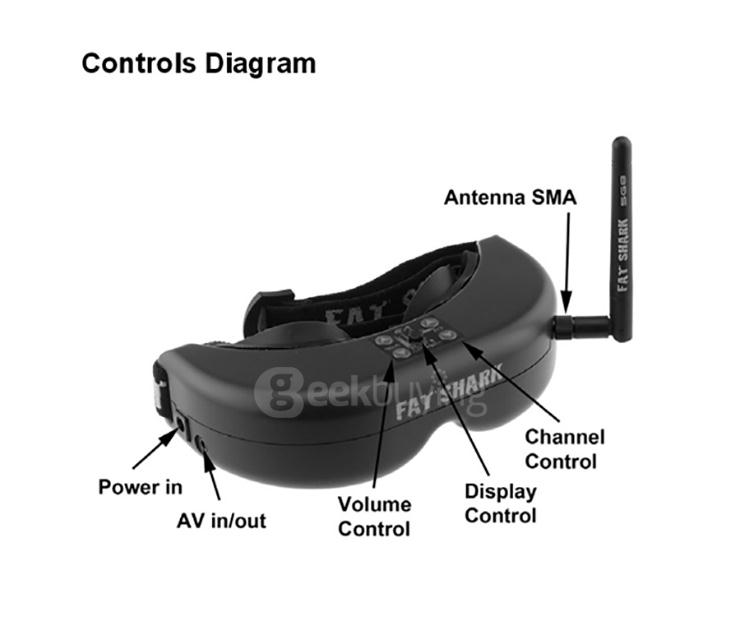

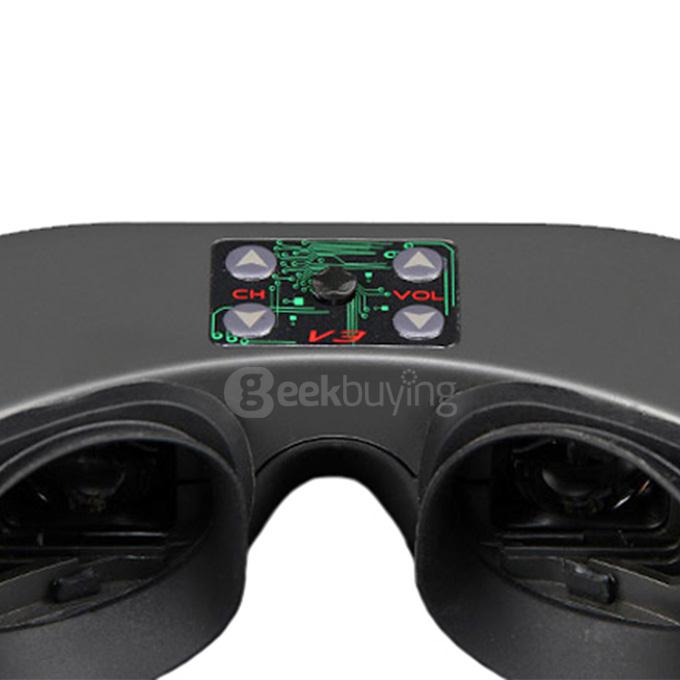

User Controls |
Channel selection;Volume control;Mode selection (wired/wireless);Contrast/ brightness control;Zoom mode (in/out to crop HD black bars) |
| Power supply | 7 - 13 V (2S/3S supply) |
| Power Consumption (@7.4V nominal) | 300mA wireless mode;160mA direct mode (receiver off) |
| Antennae | External 3dBi linear dipole |

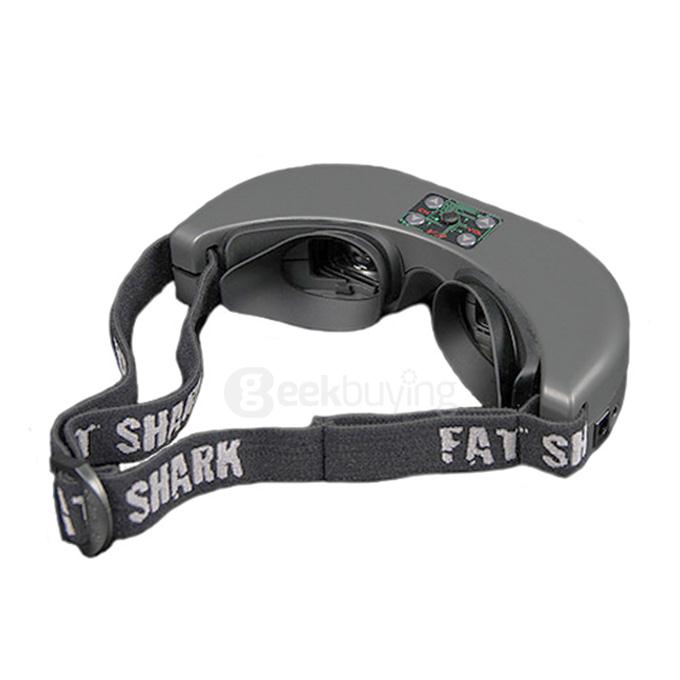

| Mechanical | Ergonomic molded headset w/ adjustable headband;Secured rubber eye cups for ambient light reduction |
| Display | Full color Kopin Cyber Display;230,000 pixels binocular display (320 X 240 QVGA);NTCS/PAL auto selecting |
| Head Tracker | None (available for OEM orders) |
|
Battery |

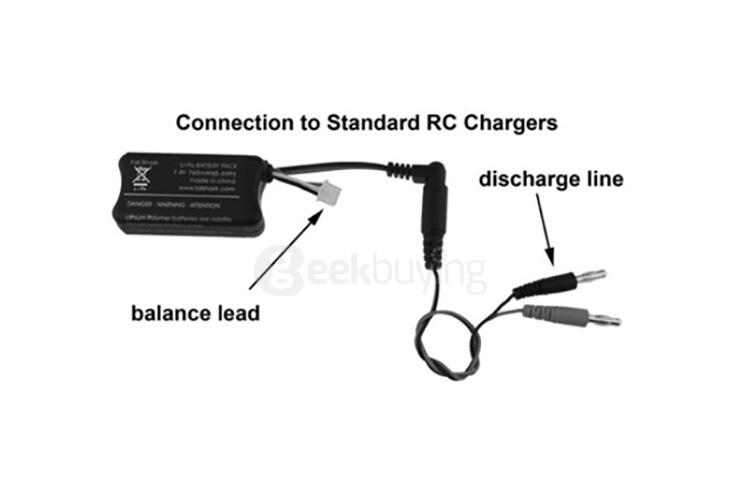

7.4V 760mAh (7.4Wh),balance lead and discharge lead for charging via RC chargers |

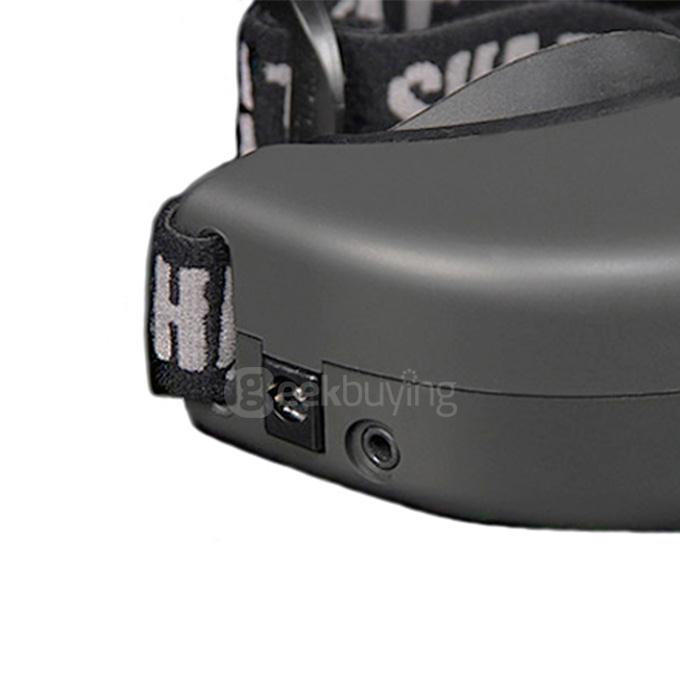

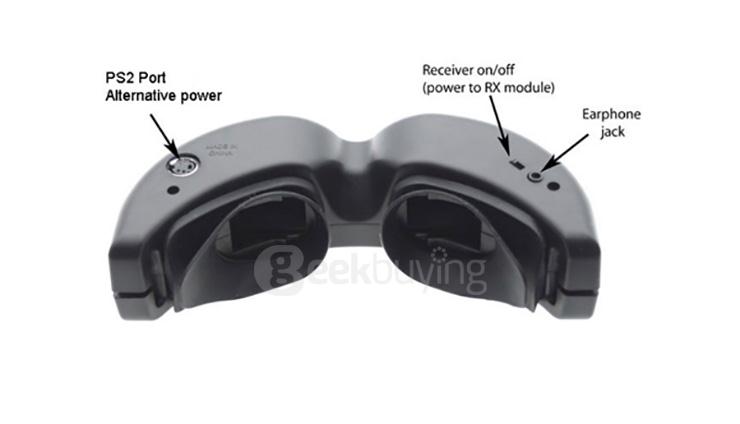

| Interface | 3.5mm AV in/out port;Power in port;3.5mm 3p earphone port;PS/2 MIN DIN additional power port |
| Operating Frequencies | 5.8 Ghz Module,5740MHz/5760Mhz/5780MHz/5800Mhz/5820MHz/5840Mhz/5860Mhz |
|
Weight |
150g |
| Note | Fat Shark headsets use NexWave brand RF modules.Compatibility is only guaranteed with Fat Shark and ImmersionRC transmitters. |

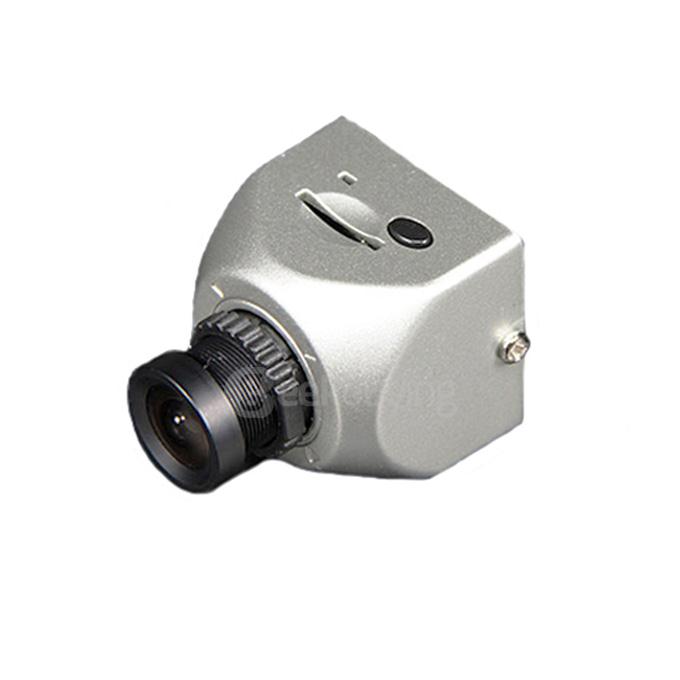

| HD Camera Specifications |

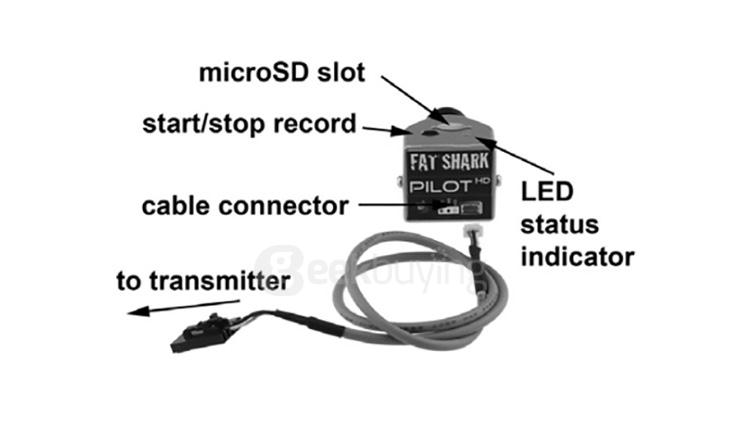

Power supply: 5V (powered off TX) Power: 200mA @5V) Imager: 1/2.5” 5M pixel digital CMOS AV out: NTSC (16:9) Record: 720p (1280x720), 30 fps, 15Mbps File type: AVI file (MJPG compression) Card type: MicroSD (support to 32Gb card) FOV: 100 Degrees diagonal (ideal for fixed camera) Dimensions: 28 W X 26 H X 23 L mm Weight: 25g |
|

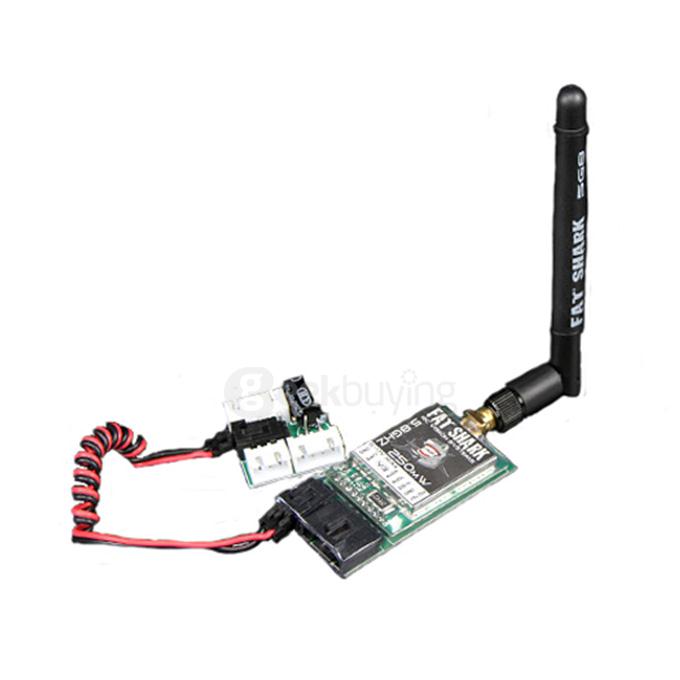

Transmitter Specifications (250mW 5G8 V3) |
Power supply: 7 - 16V (2S-4S supply) Power consumption 330mA @7.4V Transmitting power: 250mW Frequency: 5G8 (see above frequency chart) Antennae:3dBi linear dipole Mechanical:55 X 26 X 12 mm Weight: 23g (with antenna). |
| Combined Onboard FPV Components (TX, HD camera, filtered power adapter) |
Power supply: 7 - 16V (2S-4S) Power consumption 580mA @7.4V Powered via battery balance lead Total weight: 56g (with antenna). |

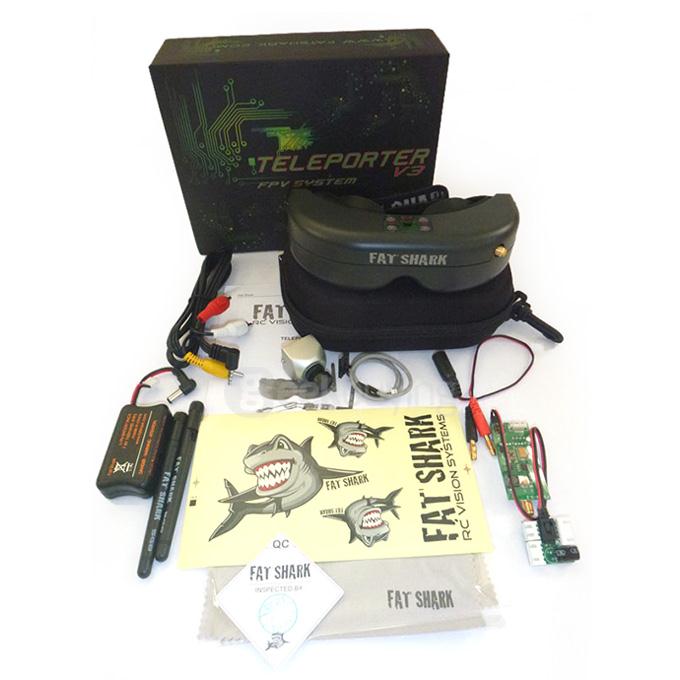

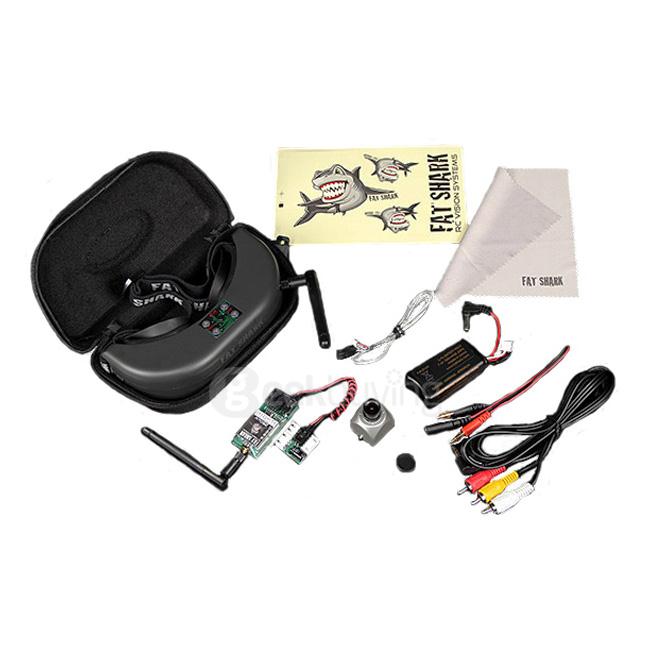

| Package Contents | |
| 1 x Teleporter QVGA (320x240) headset with integrated 5G8 receiver (no head tracking). | |
| 1 x Zipper carry case, lens cleaning cloth, Fat Shark stickers | |
| 1 x 720p Pilot HD camera | |
| 1 x 250mW, 7ch 5G8 transmitter | |

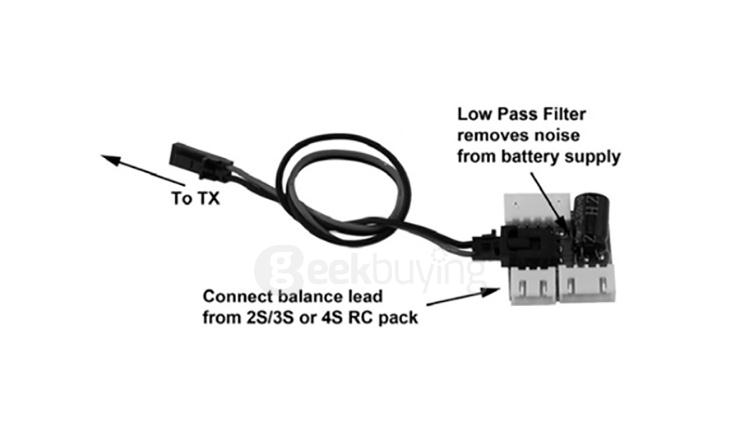

| 1 x Filtered balance lead TX power supply | |

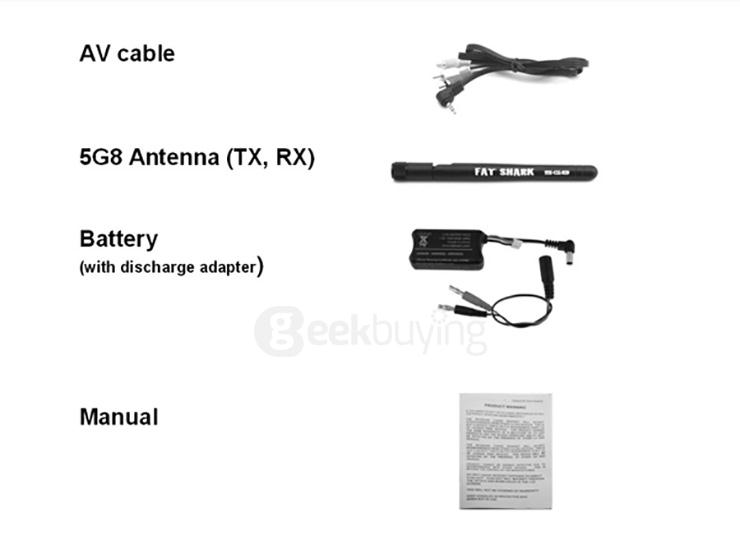

| 1 x AV cable (for connected to external AV devices) | |
| 1 x 2X 5G8 3dBi dipole antenna (transmitter and headset) | |
| 1 x 760 mAh 7V4 battery pack with banana RC discharge adapter | |
| 1 x Manual | |
