Feiyu Tech A1000 3-Axis Handled Gimbal Stabilizer for Mirrorless DSLR Camera - Double Handheld

Brand: Feiyu Tech
Item No.: A1000
Weight: 857g (not inclusive of battery, camera, lens and so forth)

Compatible Cameras
SONY A7s(16~35mm lens) , SONY 5100 , SONY RX100 Series (DSC-RX100M5 , DSC-RX100M4 , DSC-RX100M3) , SONY a6500(28-70mm lens), Gopro HERO5/4, Yi 4K Action Camera , Panasonic LUMIX GH4 Camera and other similar size cameras of the total weight less than 1700g (including lens, microphones and other accessories)
Note: Since action cameras (such as Gopro HERO5/4 )don’t have 1/4 inch thread hole, please mount it together with Gopro adapter.

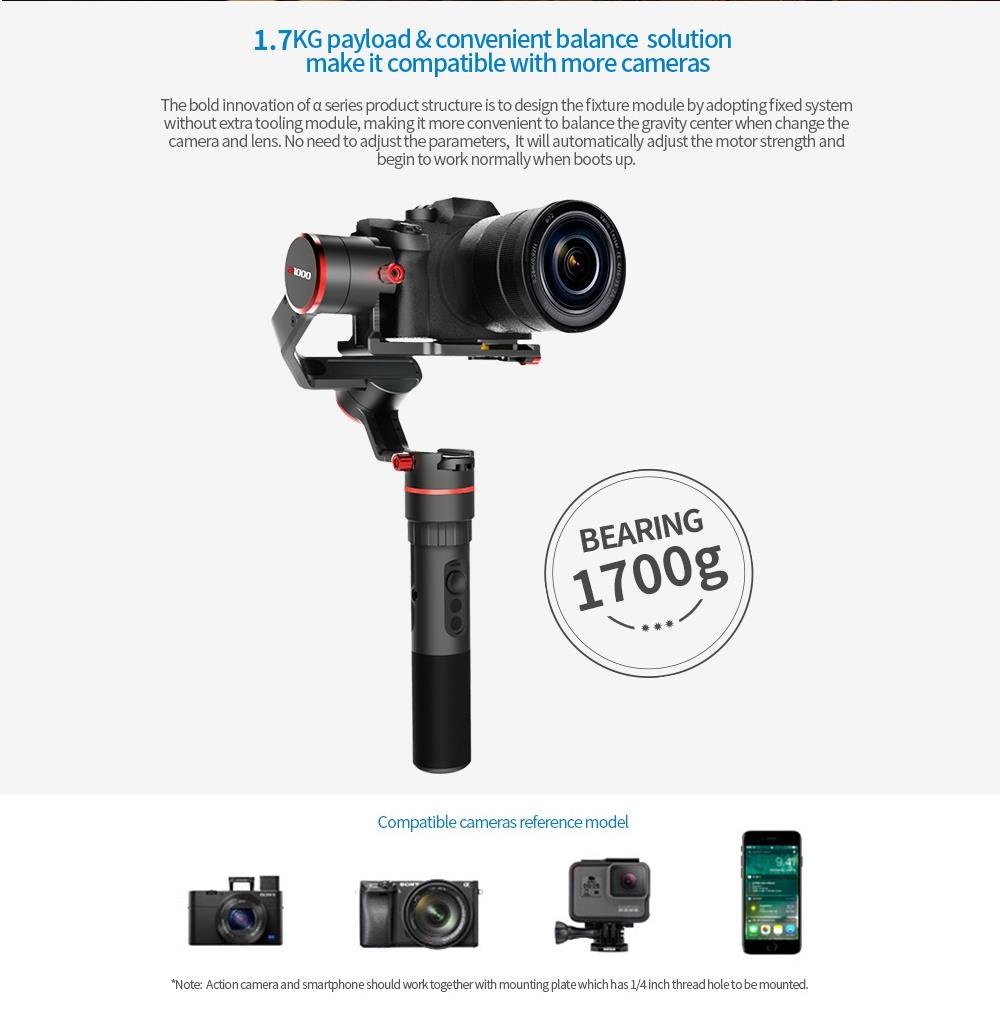

Payload : 150g--1700g (Including lens, microphones or other accessories, the upgraded payload (1700gram) is applied for the new structure and the new firmware A1000_V1.0.2.6 or above)

Compatible Smartphones
iPhone 6 , iPhone 6s , iPhone 7 , iPhone 6 Plus , iPhone 6s Plus , iPhone 7 Plus.Android Smartphone 4.7 inch~5.7 inch (working together with Smartphone mounting plate,which has 1/4 inch thread hole to be mounted)

Tips: When a Series gimbal working with action camera or smartphone, Bluetooth shutter on the handle can't take control of focusing and picture.

Tilting Angle: 360° (Unlimited)
Rolling Angle: 360° (Unlimited)
Panning Angle: 360° (Unlimited)
Tilting Increments: 2°/s ~ 75°/s
Panning Increments: 3°/s ~ 150°/s

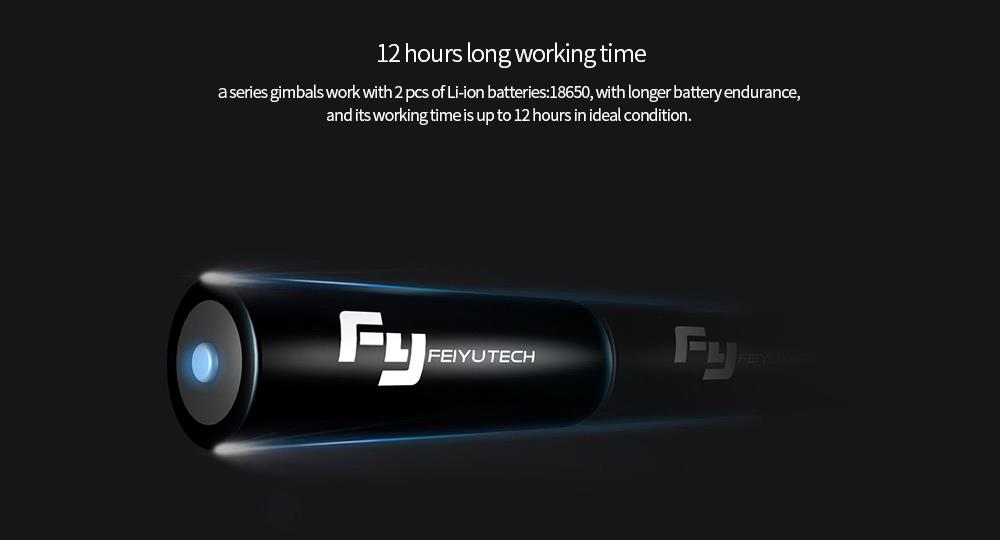

Battery
Battery model: 18650, 2200mAh, 3.7V. (one positive side upward and the other negative side upward)
Battery could be charged from external power sources by Micro USB port (It is fully charged when the LED changes from solid red to solid blue), or charged by smart charger (LED in solid red indicates the battery is charging, LED in solid blue indicates battery is fully charged).
Usage time About 12 Hours.

Installation
Camera could be placed on the left or right side by moving tilt axis to the left or right. When moving the lens forward, we suggest placing the camera on the left side so that you can use interfaces for HDMI, shutter control, headphone, microphone and so on.

Charging time
≥5 hours, recommending using smart charger for charging the battery(Do not use quick charger), 5V/1A input.

Balance Way
Moving quick plate back and forth to balance tilt axis in horizontal direction.
Sliding the arms of three axis to balance the center of gravity of camera, and then tighten the lock screws for three axis.

Adjusting Motor Strength

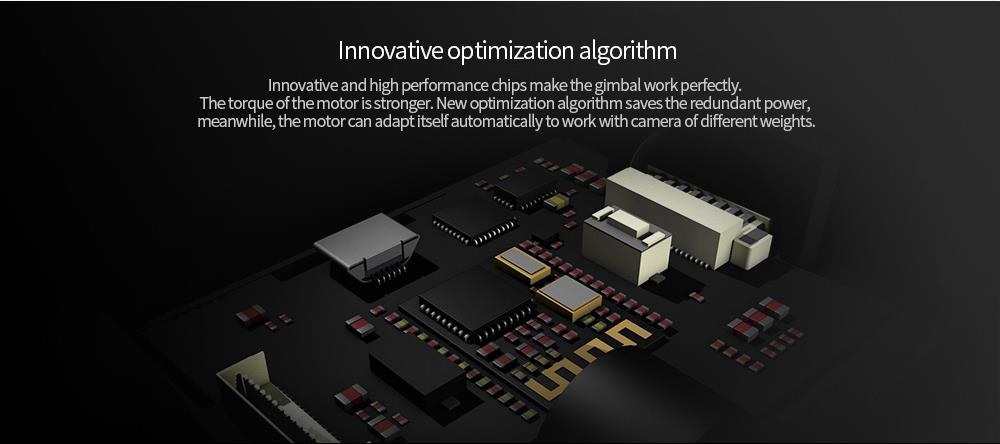

Automatic identification algorithm to detect weights of different cameras and produce right motor strength to match with them , so that the gimbal will automatically be in the best performance without adjusting the motor strength.

Extended Interface
There are three 1/4 inch screw holes for single handheld version of a2000 (one on the panning axis, one on the socket connector, and one on the bottom of the handle)

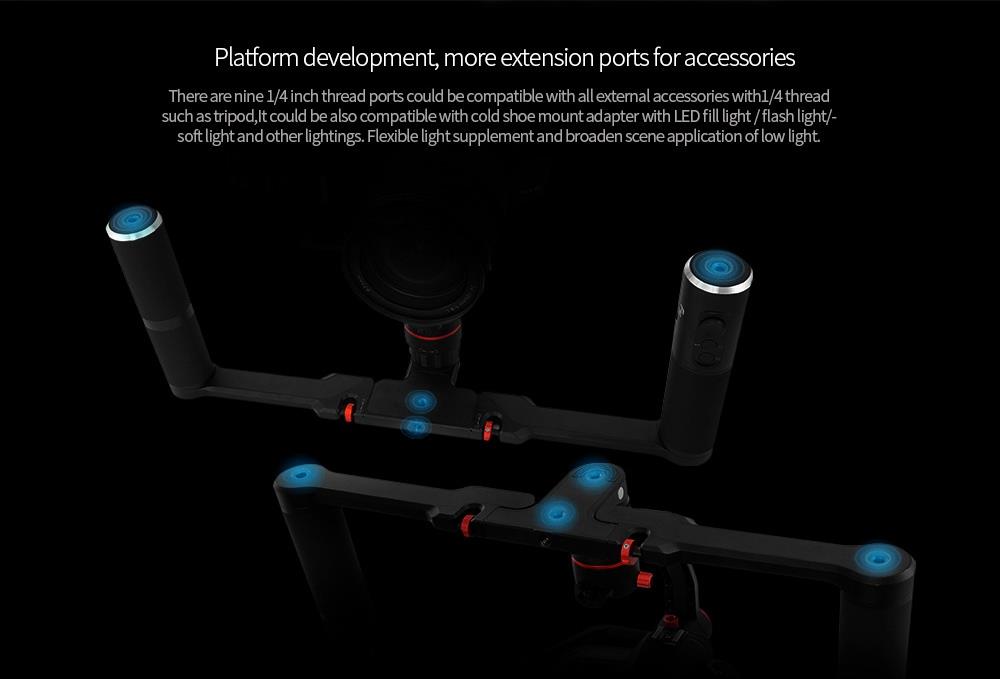

There are nine 1/4 inch thread holes could be found on a2000 with dual grip handle kit: four in the middle part of foldable arm, four on the two handles, the other one is on the socket connector.

1 x A1000 Gimbal
1 x USB Cable
4 x 18650 Battery
1 x Smart Charger
1 x Thumbscrew
1 x Screw For Camera Support Frame
1 x Camera Support Frame
1 x Adjusting Clamping Plate

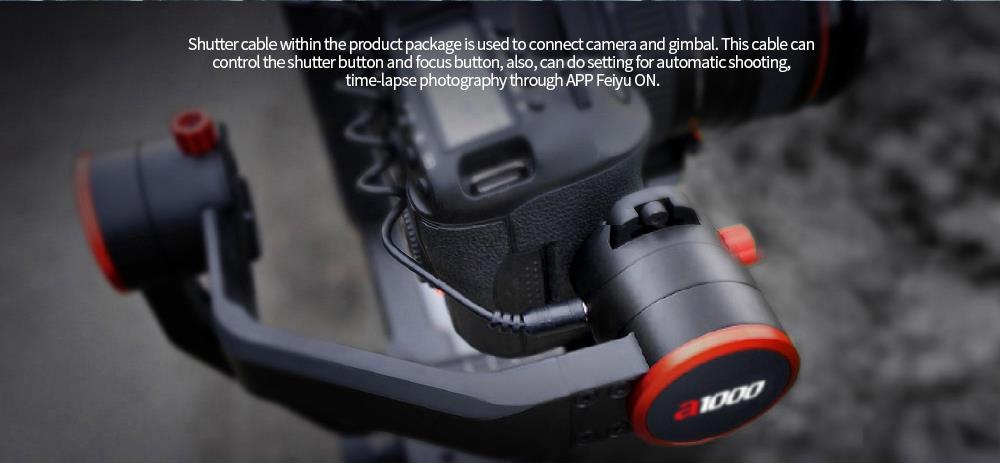

1 x Sony Shutter Release
1 x Manual
1 x Bag
