Feiyu Tech A1000 3-Axis Handled Gimbal Stabilizer for Mirrorless DSLR Camera - Single Handheld

Brand: Feiyu Tech
Item No.: A1000

Compatible Cameras
SONY A7s(16~35mm lens) , SONY 5100 , SONY RX100 Series (DSC-RX100M5 , DSC-RX100M4 , DSC-RX100M3) , α6000 , Gopro HERO5/4, Yi 4K Action Camera , Panasonic LUMIX GH4 Camera and other similar size cameras of the total weight less than 1700g (including lens and other accessories)
Note: Since action cameras (such as Gopro HERO5/4 )don’t have 1/4 inch thread hole, please mount it together with Gopro adapter.

Compatible Smartphones
iPhone 6 , iPhone 6s , iPhone 7 , iPhone 6 Plus , iPhone 6s Plus , iPhone 7 Plus.Android Smartphone 4.7 inch~5.7 inch (working together with Smartphone mounting plate,which has 1/4 inch thread hole to be mounted)

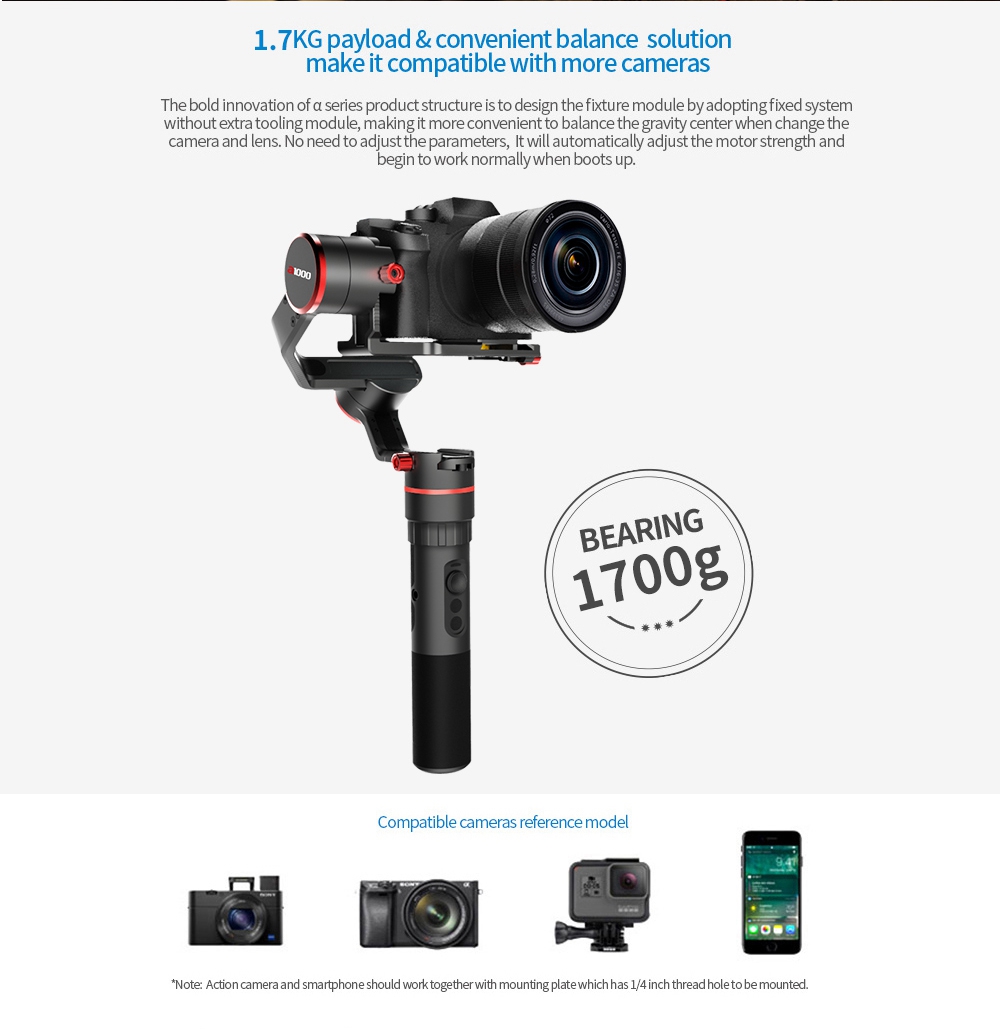

Payload : 150g--1700g (Including the accessories of batteries)

Battery

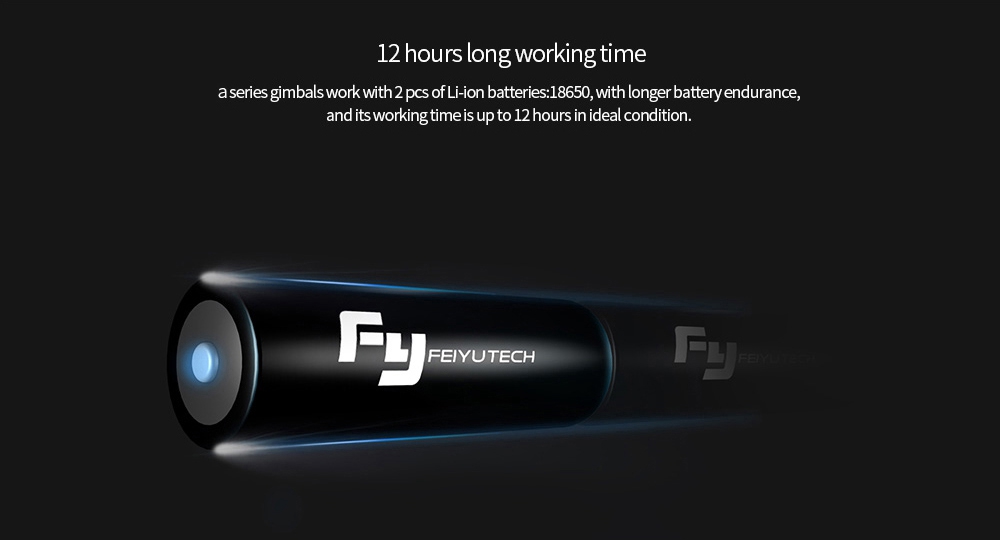

Battery model:18650, 2200mAh, 3.7V. (one positive side upward and the other negative side upward)
Battery could be charged from external power sources by Micro USB port (It is fully charged when the LED changes from solid red to solid blue), or charged by smart charger (LED in solid red indicates the battery is charging, LED in solid blue indicates battery is fully charged).

Usage Time: About 12 Hours
Charging Time: ≥5 hours, recommending using smart charger for charging the battery, 5V/1A input.

Controllable Range
Tilting: 360°(Unlimited)
Roll: 360°(Unlimited)
panning: 360°(Unlimited)

Installation
Camera could be placed on the left or right side by moving tilt axis to the left or right. When moving the lens forward, we suggest placing the camera on the left side so that you can use interfaces for HDMI, shutter control, headphone, microphone and so on.

Balance Way
Moving quick plate back and forth to balance tilt axis in horizontal direction.
Sliding the arms of three axis to balance the center of gravity of camera, and then tighten the lock screws for three axis.

Adjusting Motor Strength

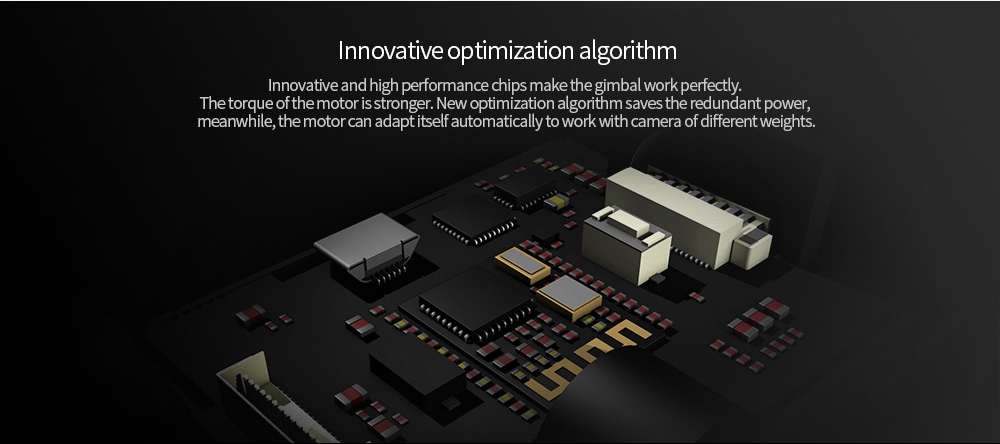

Automatic identification algorithm to detect weights of different cameras and produce right motor strength to match with them , so that the gimbal will automatically be in the best performance without adjusting the motor strength.

Extended Interface
There are three 1/4 inch screw holes for single handheld version of a2000 (one on the panning axis, one on the socket connector, and one on the bottom of the handle)

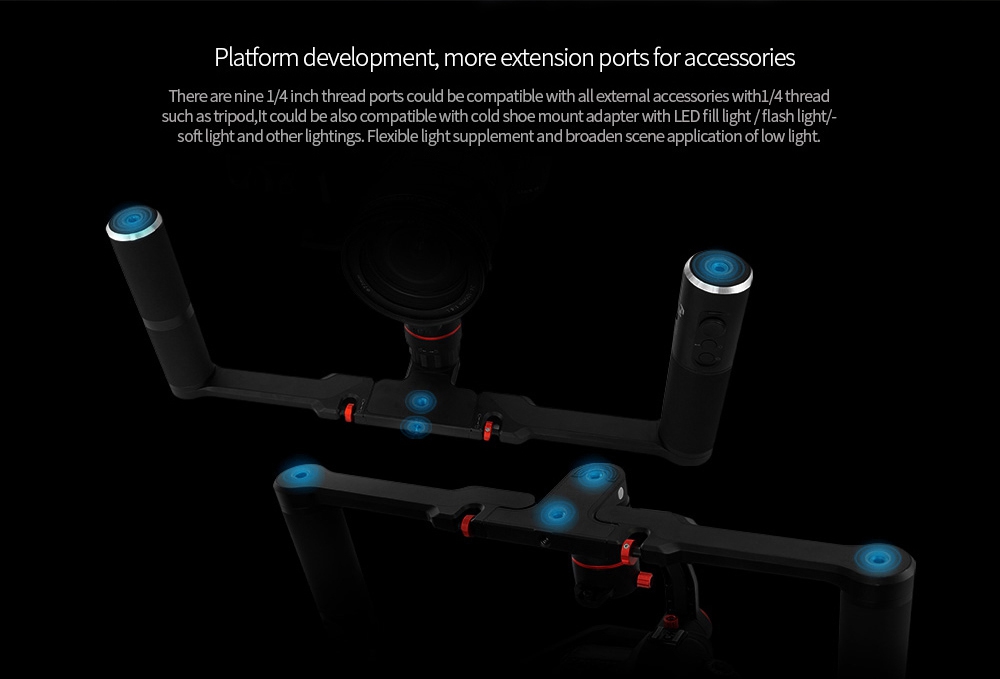

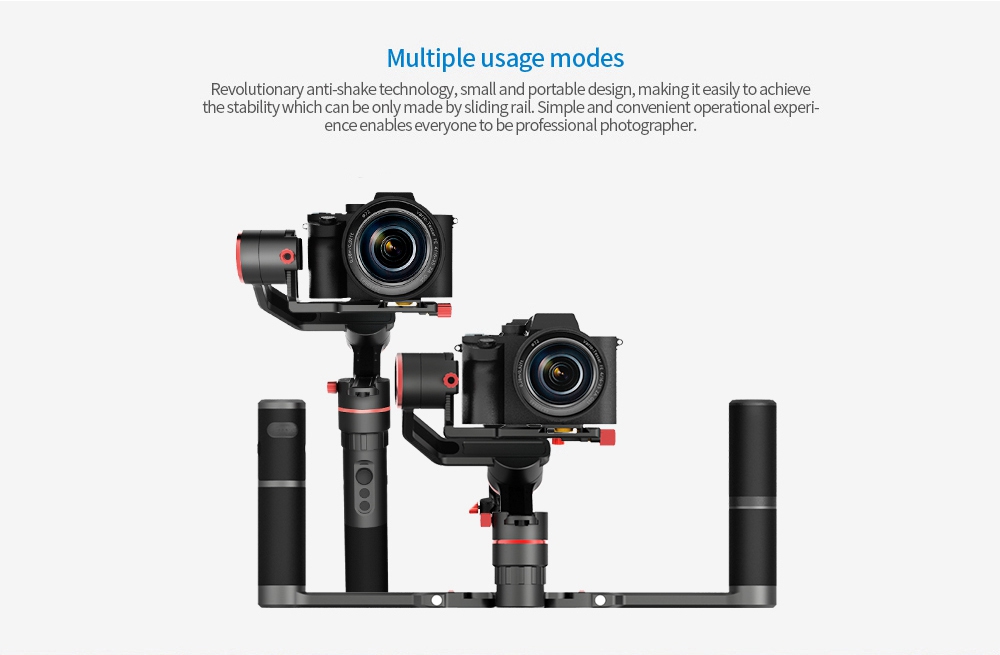

There are nine 1/4 inch thread holes could be found on a2000 with dual grip handle kit: four in the middle part of foldable arm, four on the two handles, the other one is on the socket connector.

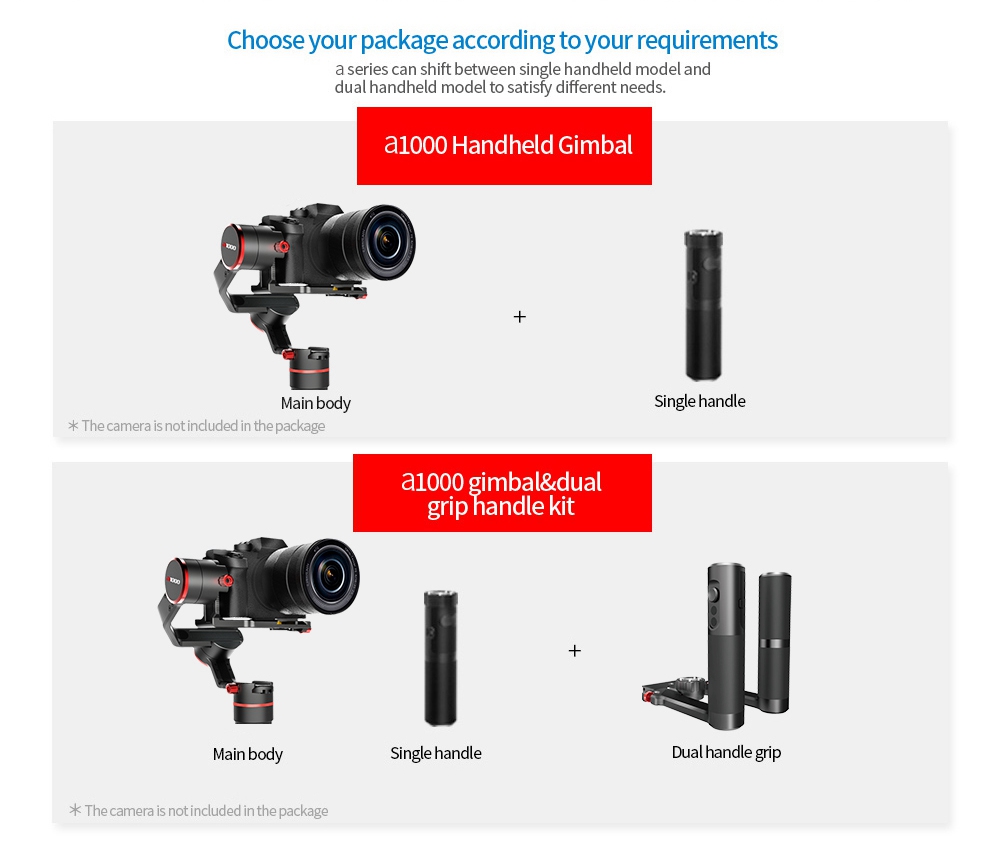

1 x FeiyuTech A1000 Handheld Gimbal
1 x Gimbal storage case
1 x USB cable
4 x 18650 battery
1 x Smart charger
1 x Mini tripod

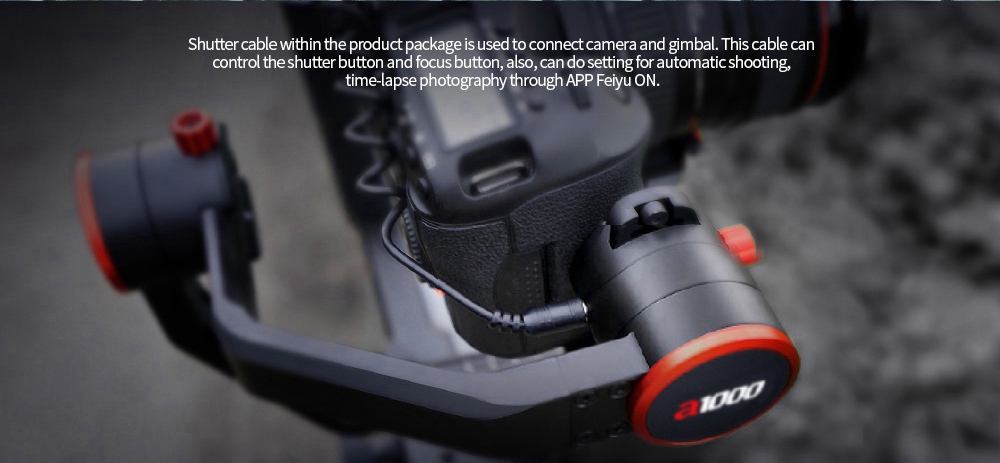

1 x Shutter release cable for Sony cameras (3.5mm to multi port)
1 x Thumbscrew
1 x User manual (English & Chinese)
