Highlights
To be designed for RF performance and stability with strong anti-interference capabilities with a focus on competitive use.The casing high quality, metal parts used, a color screen and bearing gimbals. Replaceable high frequency module and support for other RF modules.
18 Channels Support
Up to 18 channels of output (depending on the receiver)
Built-in AFHDS 3
Internal AFHDS 3 for 2.4GHz Protocol
3.5"TFT Color Touch Screen
With HVGA 3.5-inch TFT color screen, 320 * 480 dot matrix,LCD white backlight, capacitive touch screen (TBD)
Strong Anti-interference Capabilities
Stability with strong anti-interference capabilities with a focus on competitive use
Micro USB Port
Micro USB Port added for convienince and simulator use.
RF Module Support
Support for other companies RF modules
Note:The product price and parameters has not been finalized and will continue to be updated.
Specification

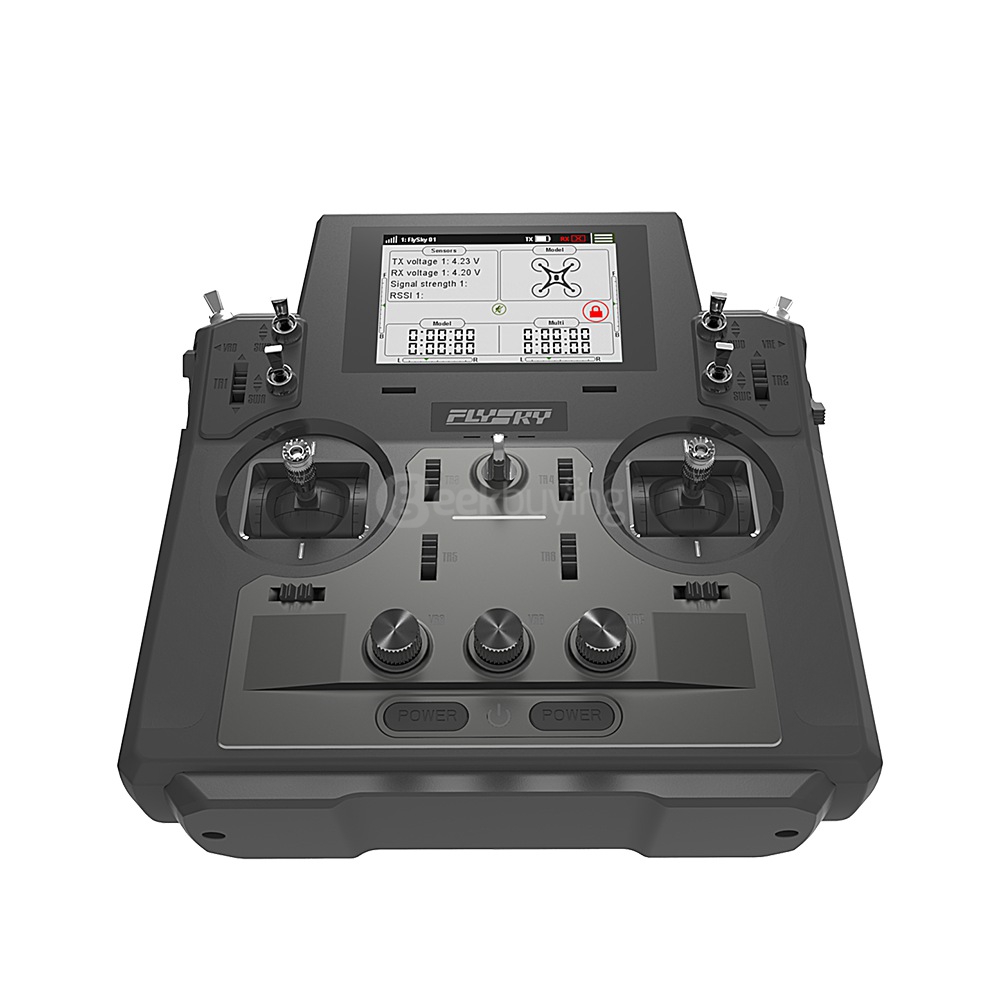

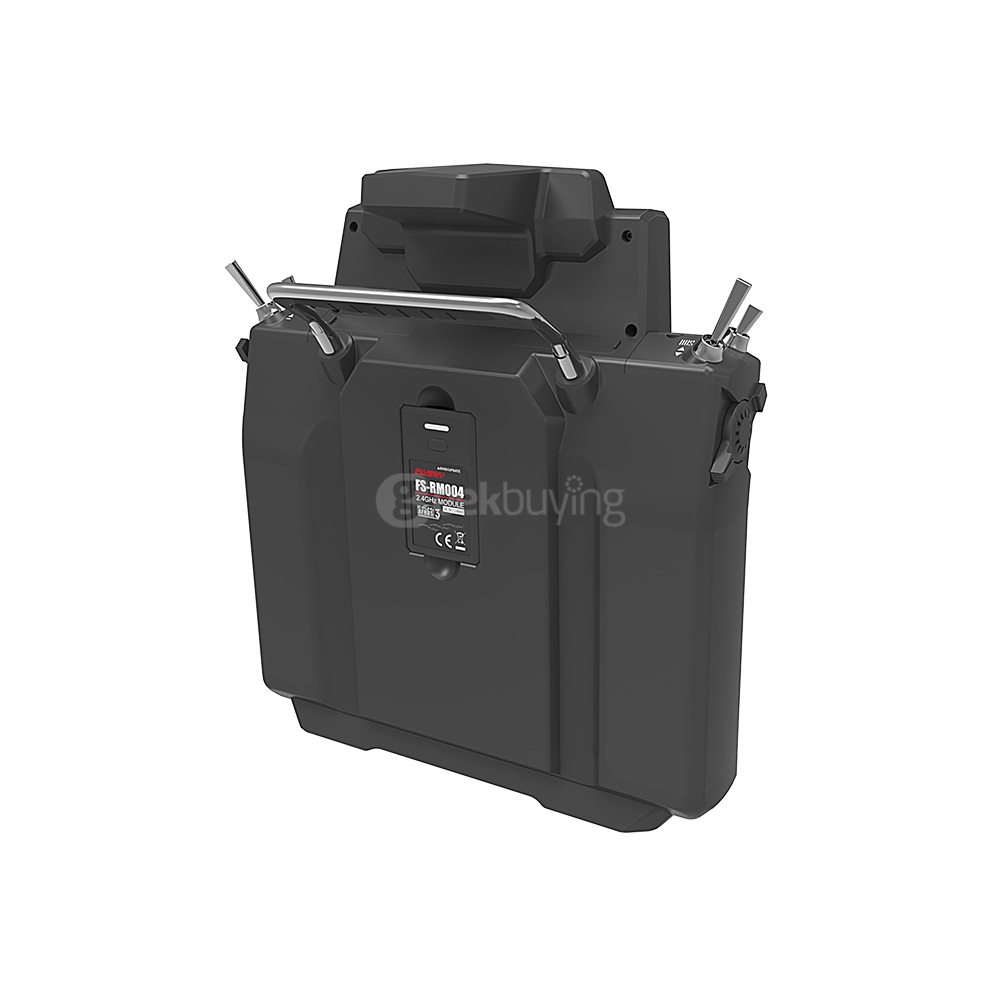

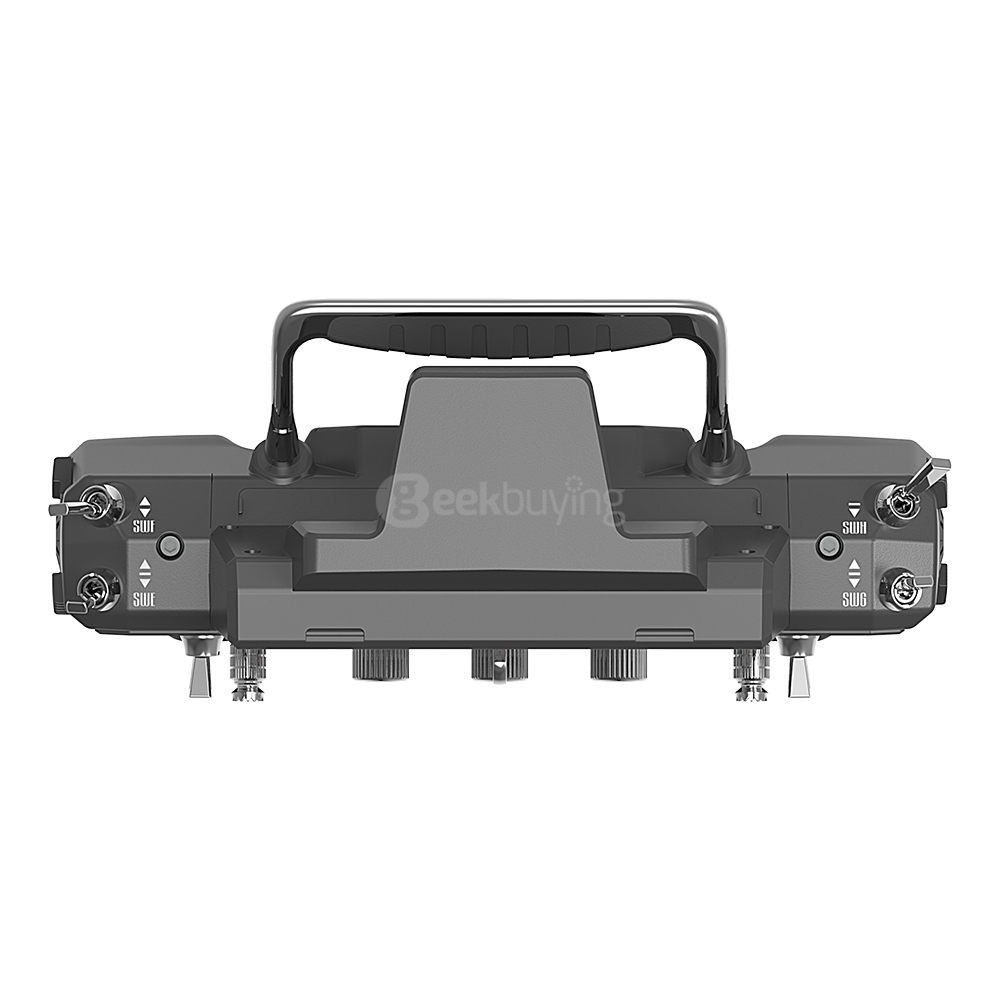

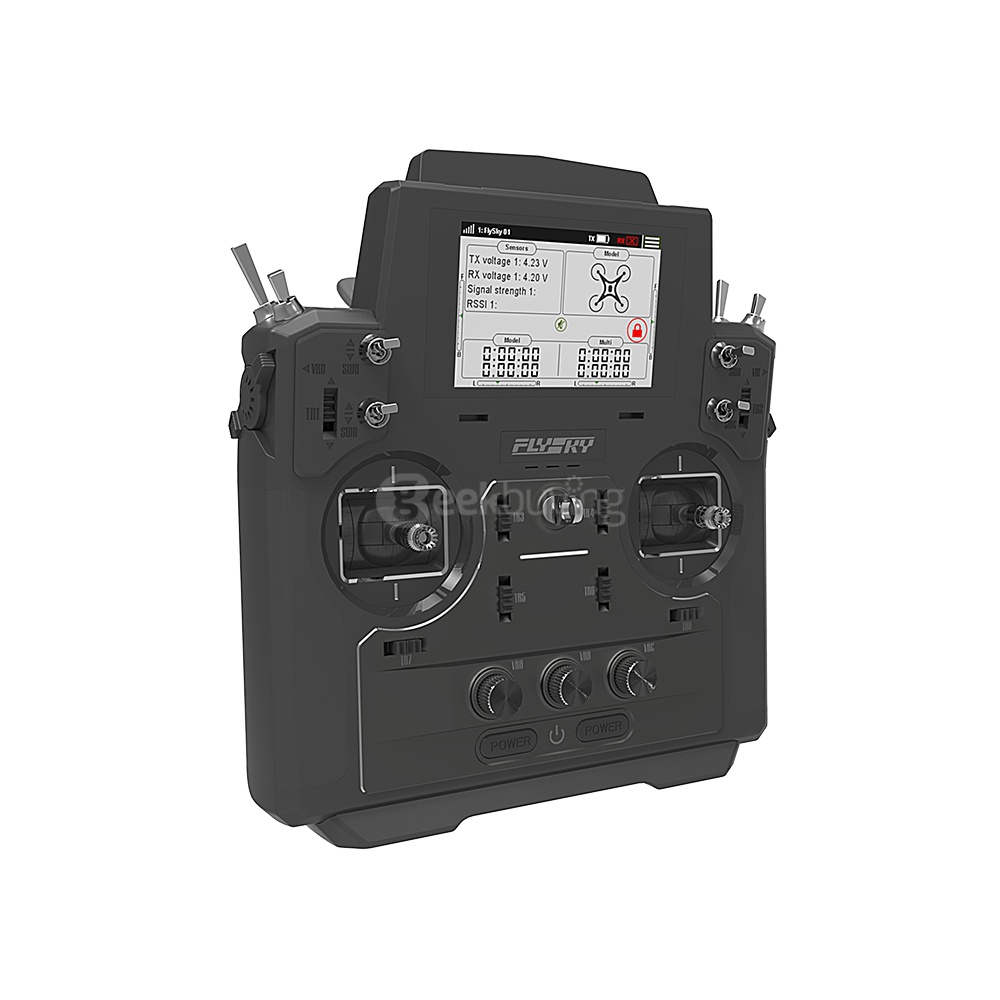

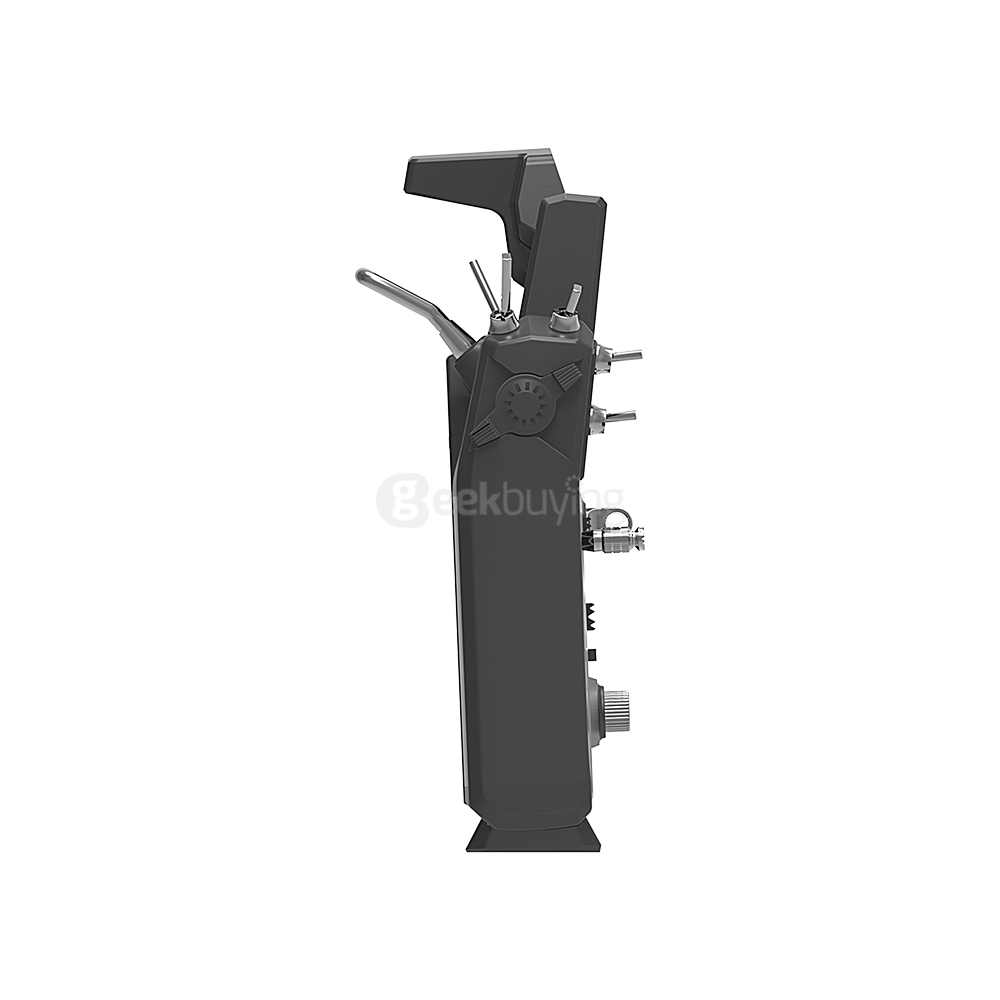

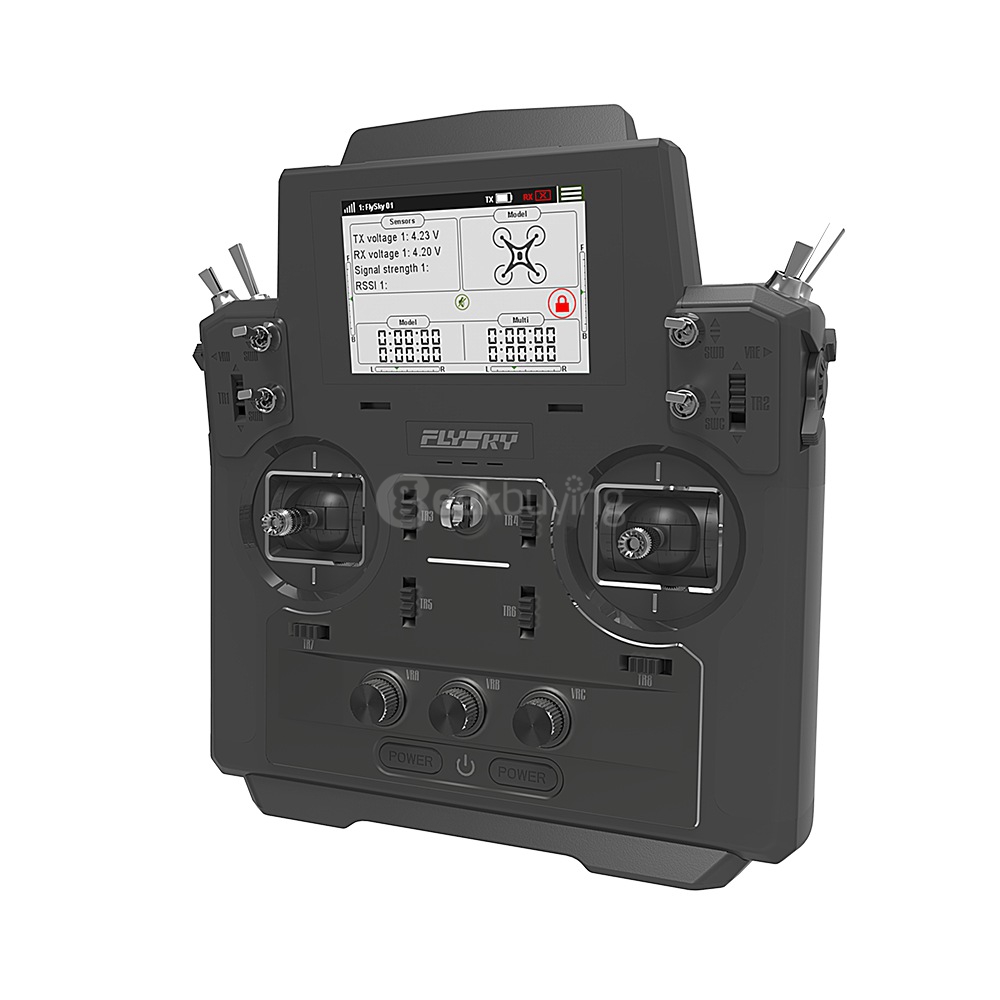

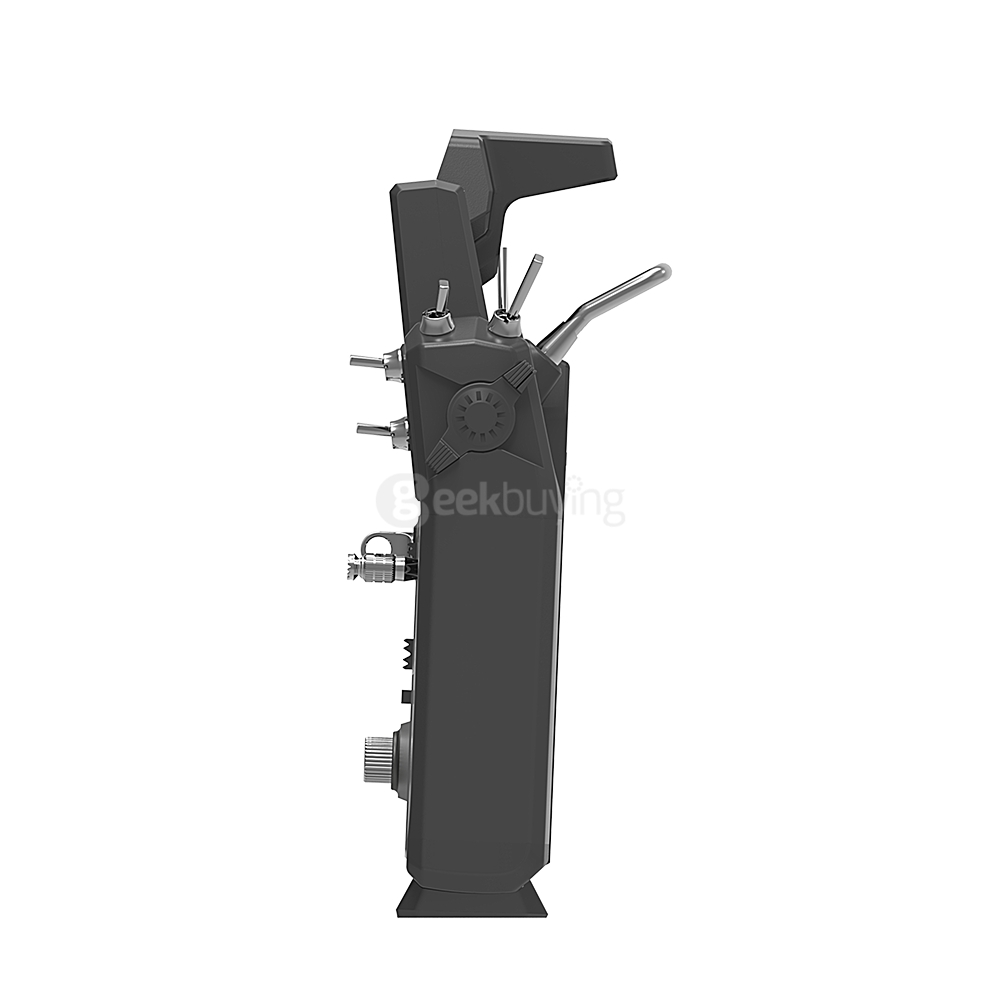

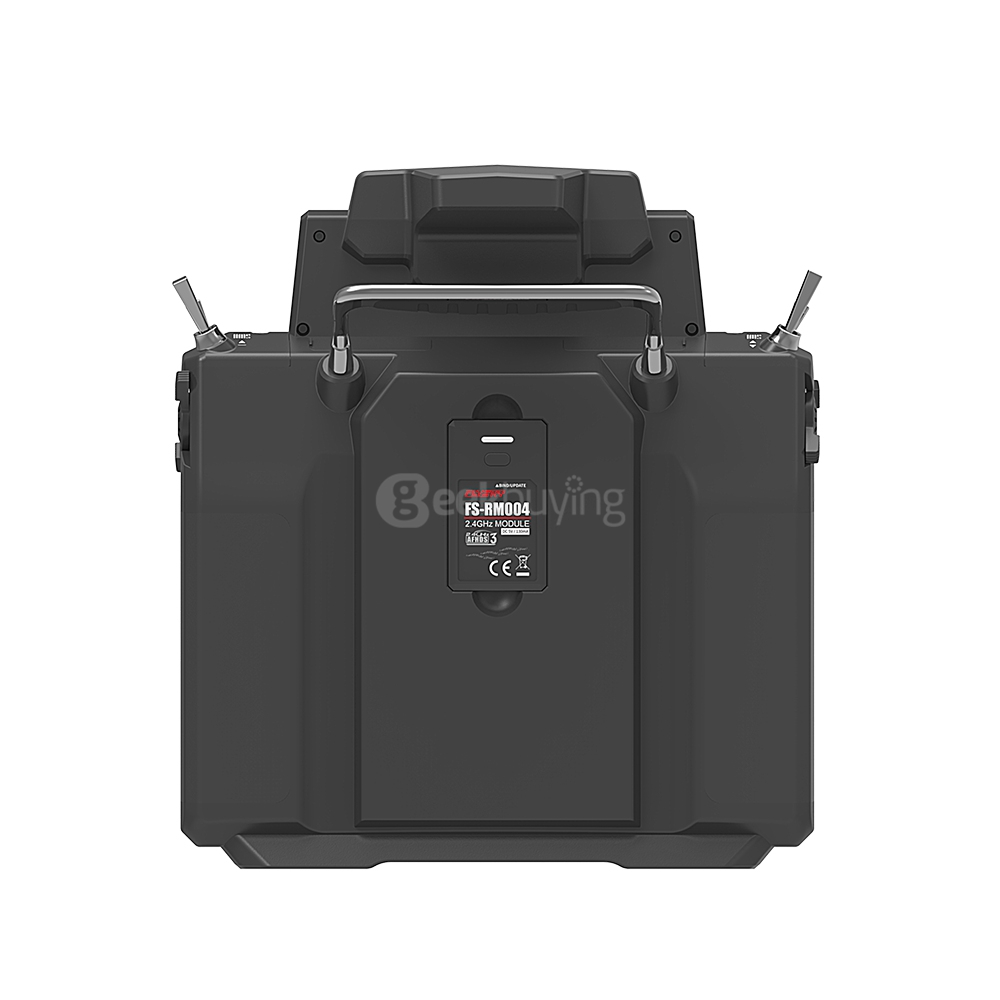

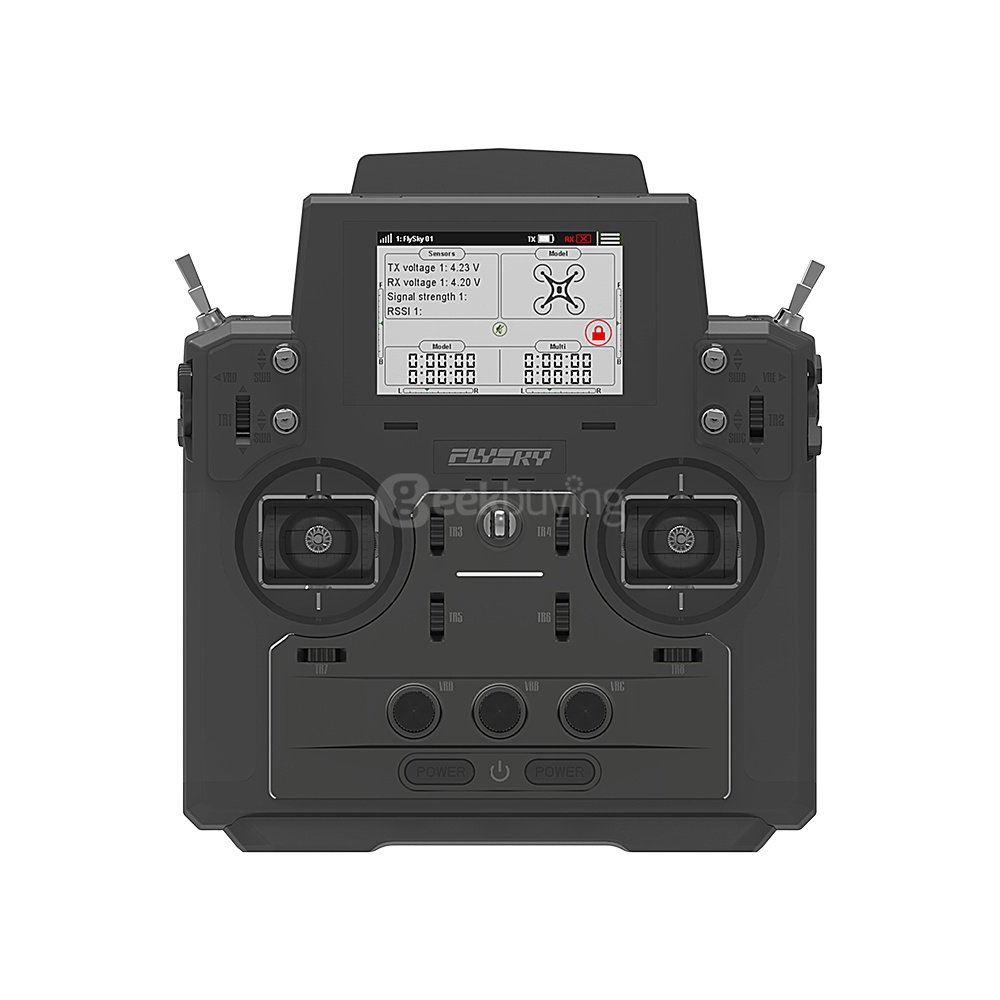

| General | Brand: Flysky Item No.: FS-PL18 Item Name: Paladin |
| Transmitter | Standard Receiver: FR10 Channel: 18CH Data Output: Micro-USB Frequency Range: 2.400-2.483 GHz Transmission Power: no more than 20 dBm Receiving Sensitivity: <-105dBm 2.4GHz Protocol: AFHDS 3 Modulation Type: GFSK /LORA Transfer Method: FHSS(Frequency Hopping), DSSS(Spread Spectrum) Channel Resolution: 4096 Low Voltage Alarm: < 3.7V Charging Interface: Yes Antenna Type: Dual Antenna Battery: 1S 3.7V 4300mAh Display: HVGA 3.5-inch TFT screen, 320 x 480 dot matrix, LCD white backlight, capacitive touch screen Online Update: Yes Range without interference from the ground distance (both transmitter and receiver 1 meter from the ground): More than 500 meters Safety Certifications: CE,FCC |
| Package Contents | 1 x Flysky FS-PL18 Paladin Transmitter Paladin Transmitter 1 x Manual |
