Highlights
Full touchscreen interface,more convenient to control
- Bidirectional Communication
- Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
- This systems bandwidth ranges from 2.4055GHz to 2.475GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
- The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.
Unique ID Recognition System
- Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.
Low Power Consumption
- The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.

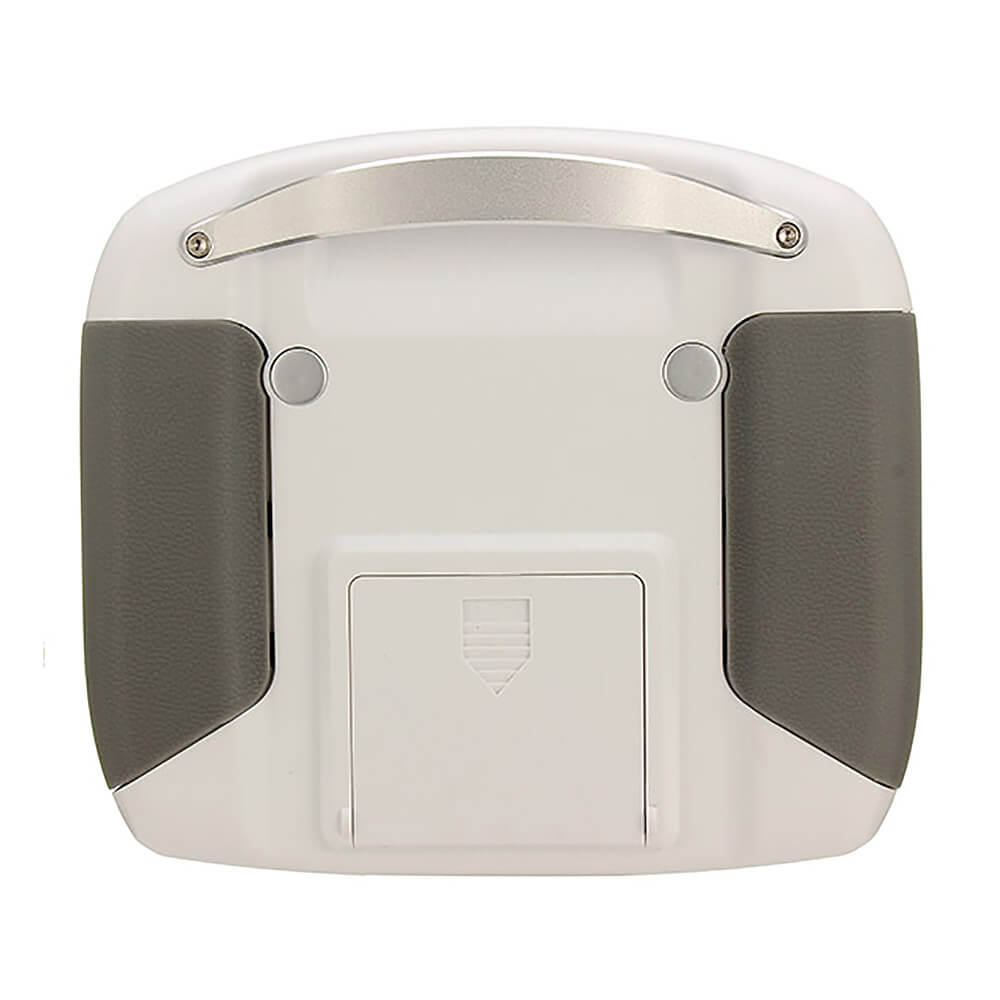

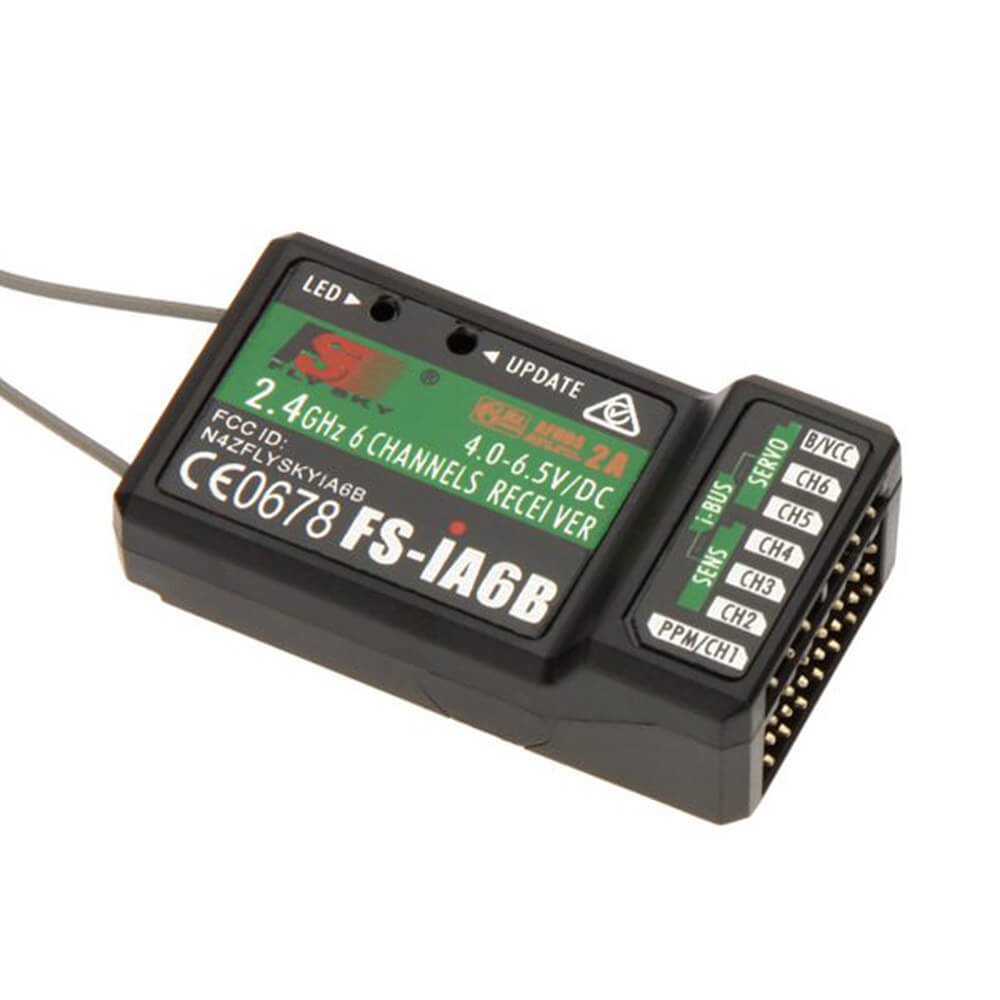

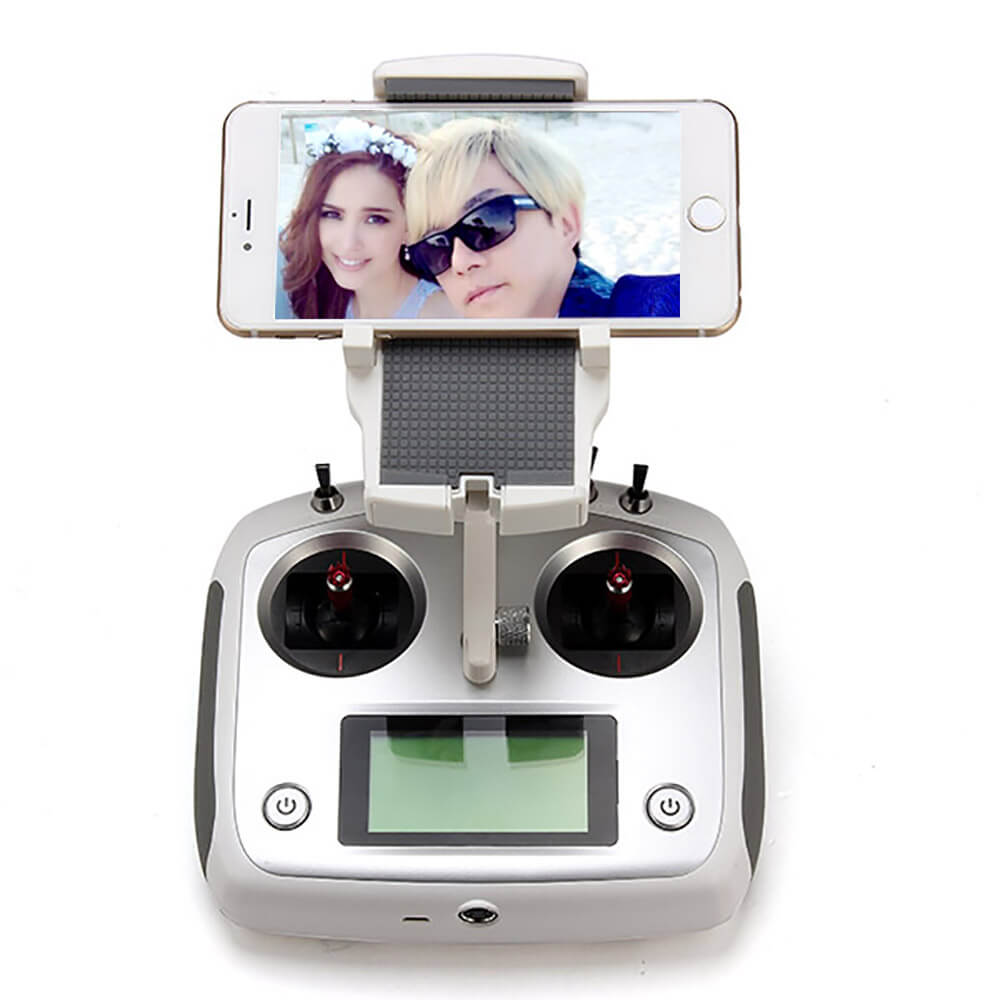

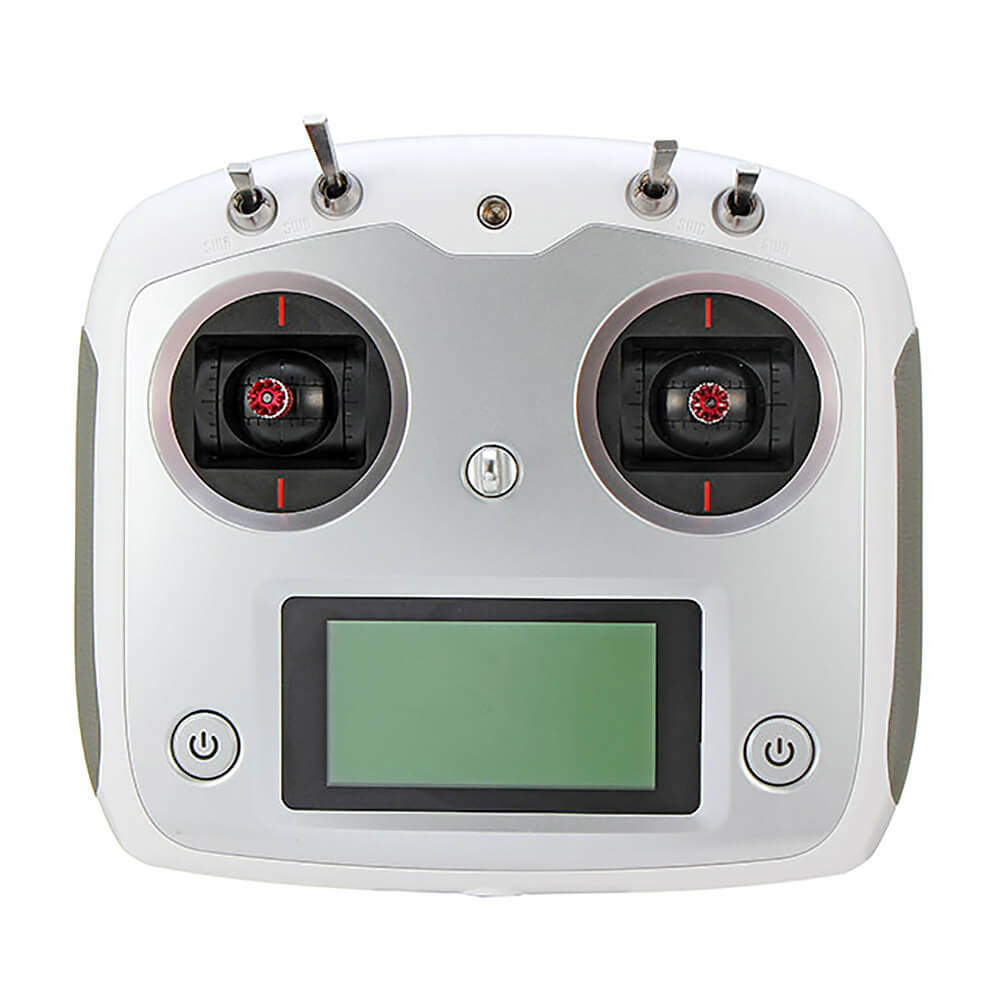

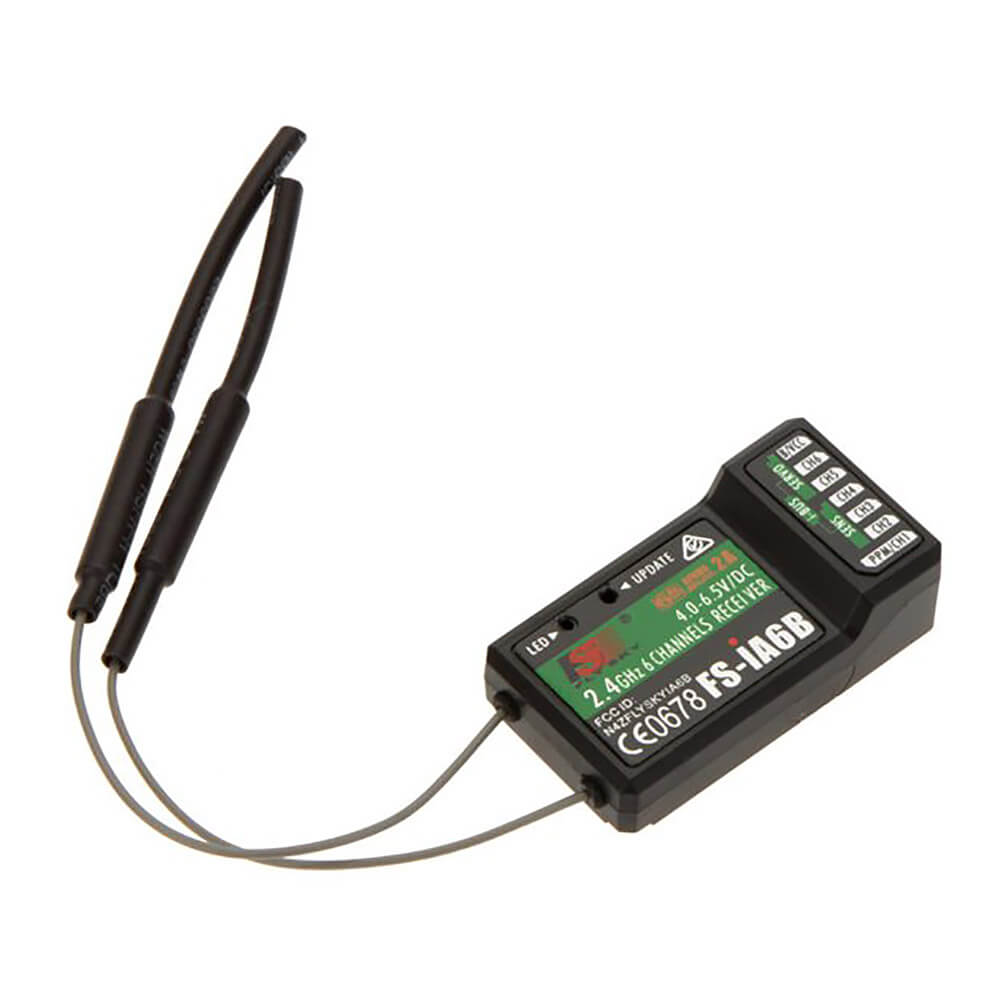

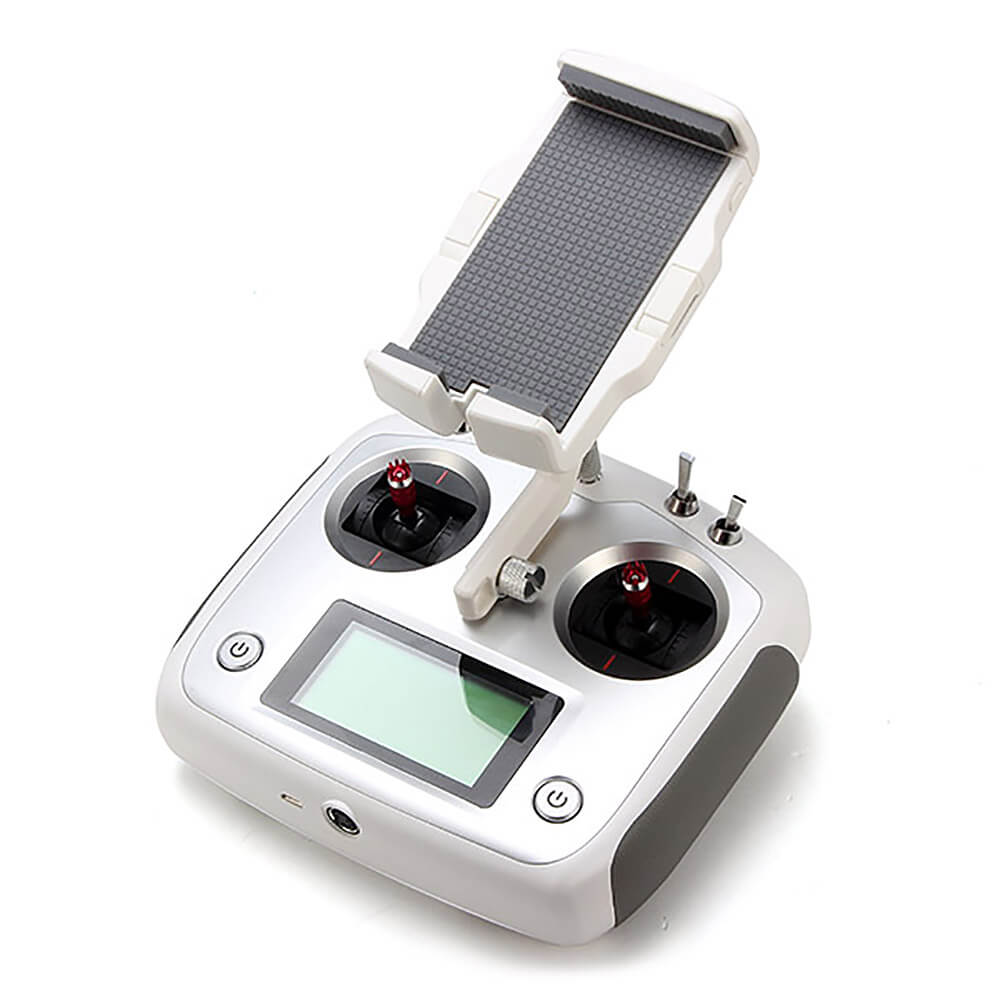

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.
Specification
| General | |
|---|---|
| Type | Transmitter |
| Model | Flysky FS-i6S |
| Channel | 6 |
| Frequency | 2.4055 - 2.475GHz |
| Band Width | 500KHz |
| Band Number | 140 |
| Transmitting Power | <20dbm |
| Receiver Sensitivity | -105dbm |
| 2.4G Mode | AFHDS |
| Modulation System | GFSK |
| Joystick Resolution | 4096 |
| Low-Voltage Alarm | <4.2V |
| Charging Port | Yes (USB) |
| Input Voltage |
4.2V-6.0V 4.0V-6.5V DC |
| Antenna Length | 26mm (dual antenna) 26mm (dual antenna) |
| Dimension/Weight | Weight:410g 14.9g Dimension:179*81*161mm 47*26.2*15mm |
| Mode Mode Switch | Self Centering Throttle |
| Package Contents | |
| 1x Flysky FS-i6S Transmitter | |
| 1x Flysky FS-iA6B Receiver | |
| 1x Micro USB cable | |
| 1x User Manula | |
