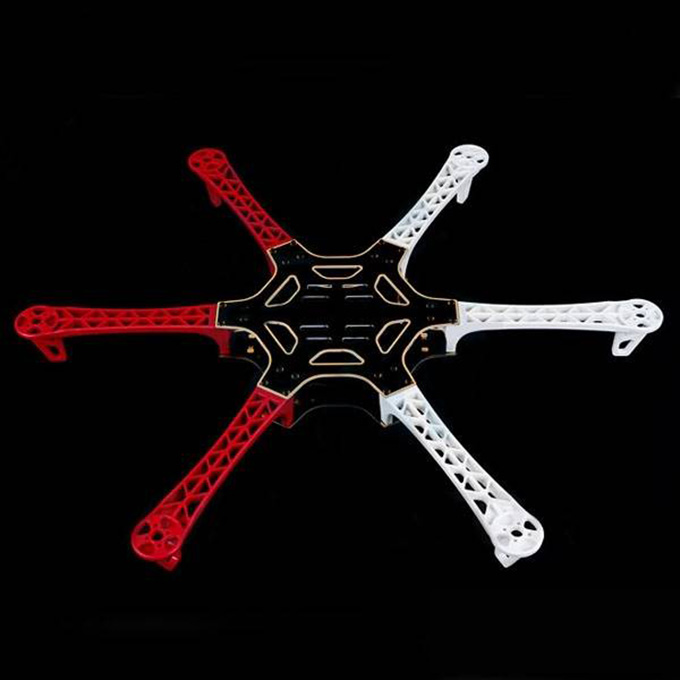

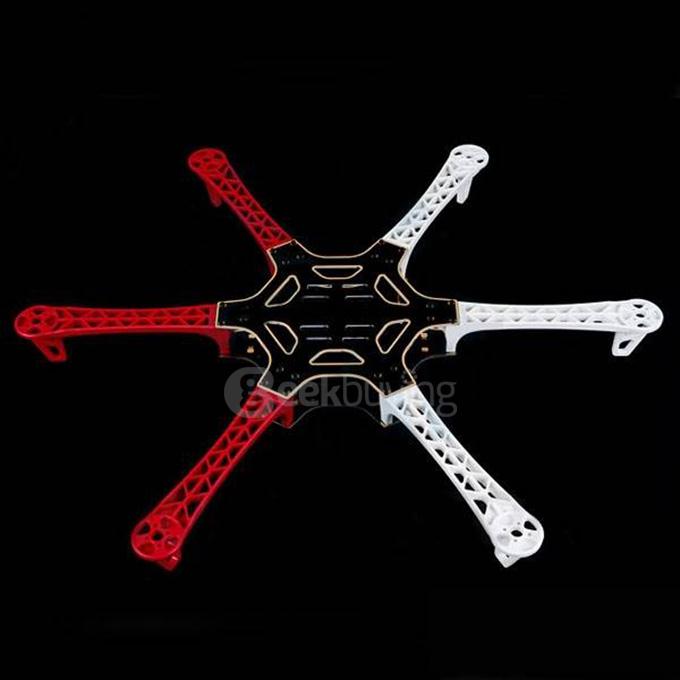

Frame Kit 550mm Spare Part For Diatone H550 Hex 550 V3 PCB Hexcopter

Highlights

• Built from high quality glass fiber and ultra durable polyamide nylon

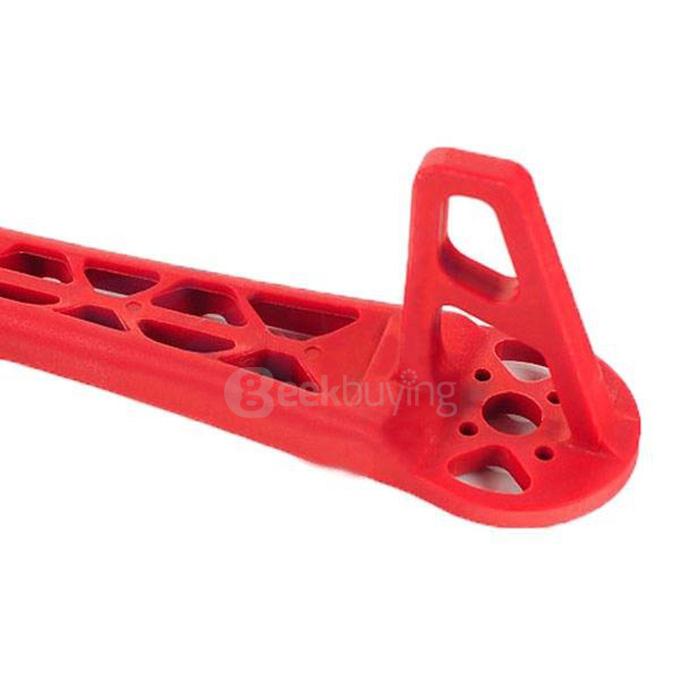

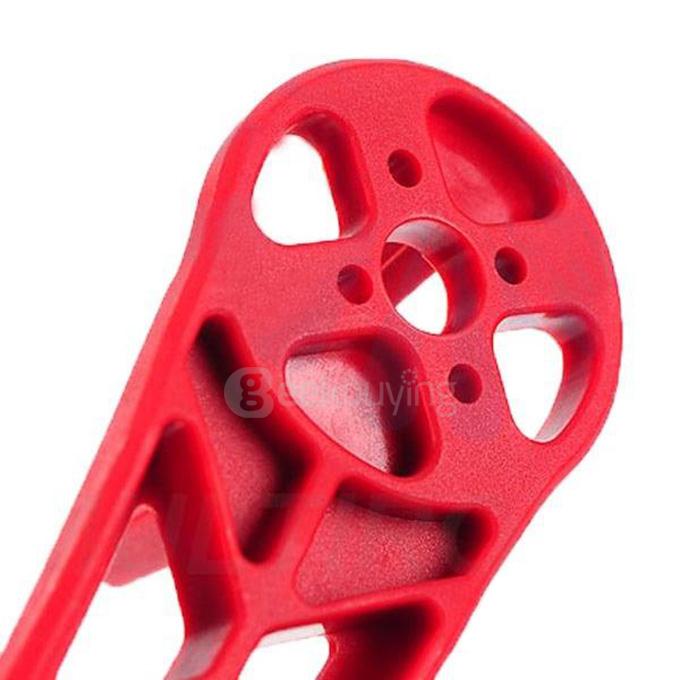

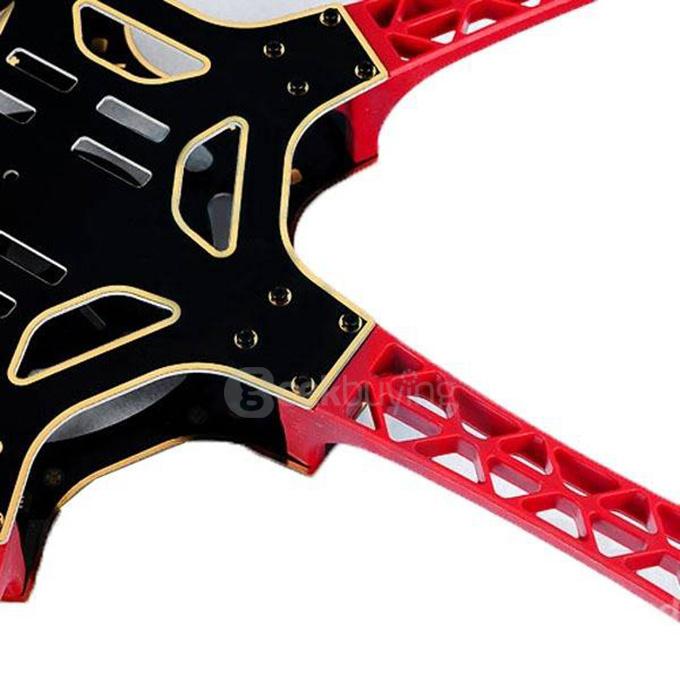

• Arms are reinforced and much more stronger to prevent and reduce breakage
• Integrated PCB connections for direct soldering your ESCs
• Colored arms for orientation to keep you flying in the right direction
• Ideal for carrying larger payloads such as camera systems and other electronic components
• Large mounting tabs on main frame bottom plate for easy camera or other accessories mounting
• Pre-threaded brass sleeves for all of the frame bolts
• Easy assembly
• Made from high quality and ultra durable materials, V3 is our upgraded series. TThe main frame board is composed of high quality glass fiber while the arms ultra durable polyamide nylon, so as to be reinforced and much more stronger, succeeding in preventing and reducing arm breakage.

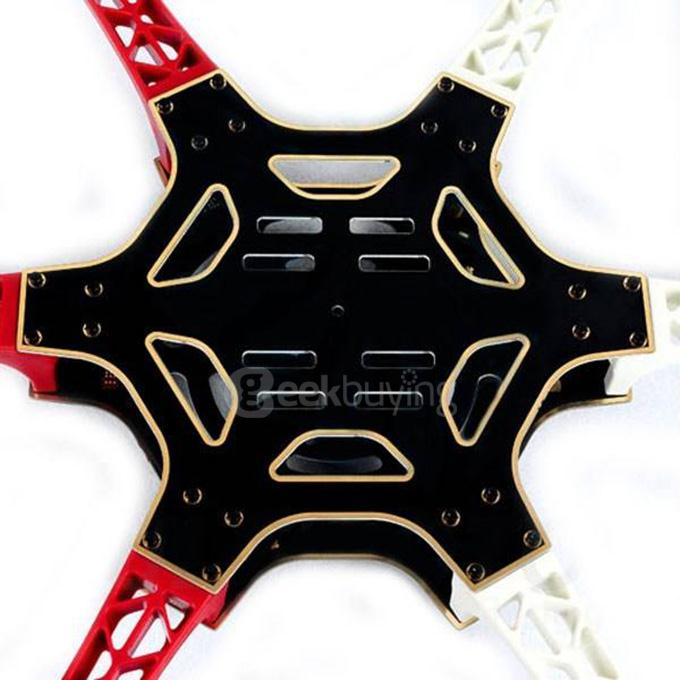

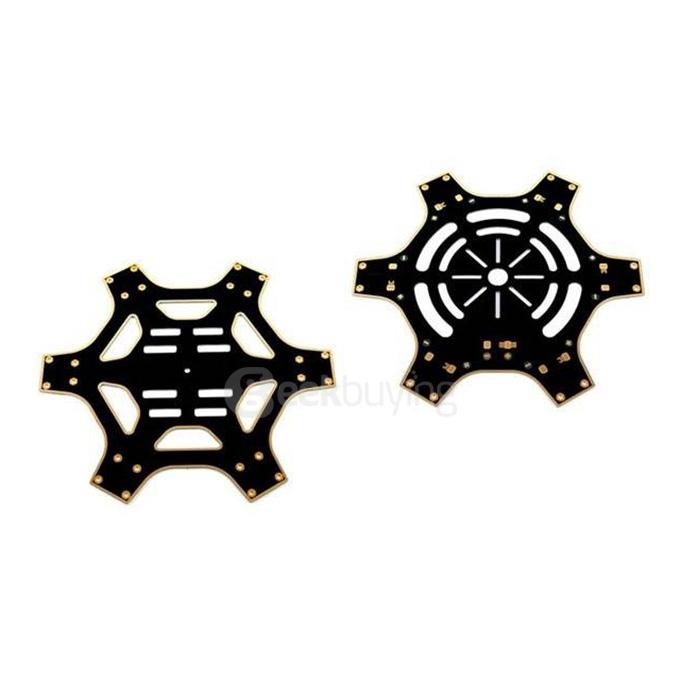

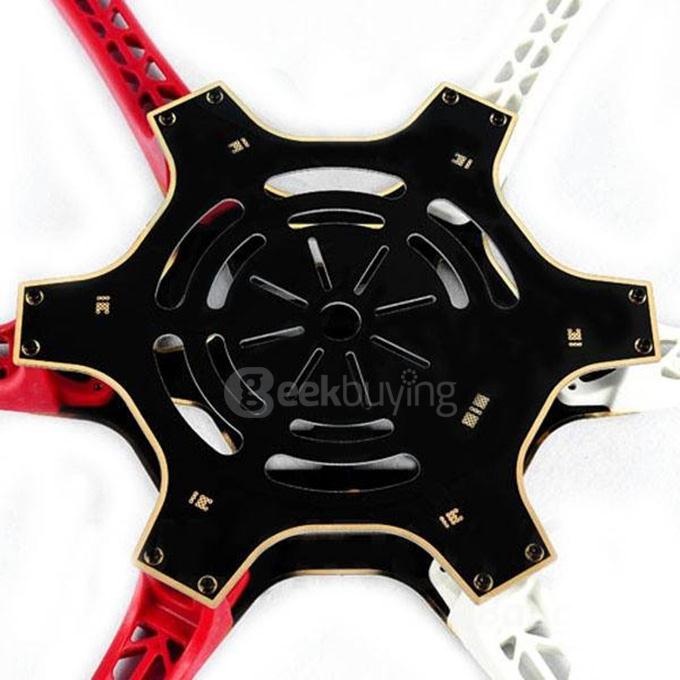

• Since version 3 of the H550 features integrated PCB connections, direct soldering the ESCs is practicable, which eliminates the need for a power distribution board or messy multi-connectors keeping you electronics layout very neat and tidy.
• The H550 also features colored arms (3 white and 3 red) which are great for orientation. It helps to keep you flying the right direction without the need of different colored propellers.
• A great feature of this frame is the added lift capacity of a hex configuration making this frame ideal for carrying larger payloads such as camera systems and other electronic components. Moreover, the large mounting tabs on main frame bottom plate for easy camera mounting shows us a great way to take aerial video or fly FPV without the use of any additional mounting brackets.
• Assembly is a piece of cake with all of the required hardware included. With pre-threaded brass sleeves for all of the frame bolts, no lock-nuts are required any more. It utilizes one size of bolt for the whole build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.

Specification

General
Type	Frame Kit
Model	H550 V3
Size	Width: 550mm Height: 55mm
Weight	495g(without electronics)
Required Components (excluded in package )	6 x 22~28mm 800~1200kv (or similar size/kv) 6 x 15~30 Amp ESC (Recommend 30A OPTO) 6 x 8x4~10x4.5 Prop (3CW & 3CCW) 1 x Multi-Rotor Control Board (Recommend KK2.1) 1 x 1500~2200mAh 3s 11.1v Lipoly battery
Compatible	For Diatone H550 Hex 550 V3 PCB Hexcopter
Package Contents
1 x H550 Frame Kit
