Highlights

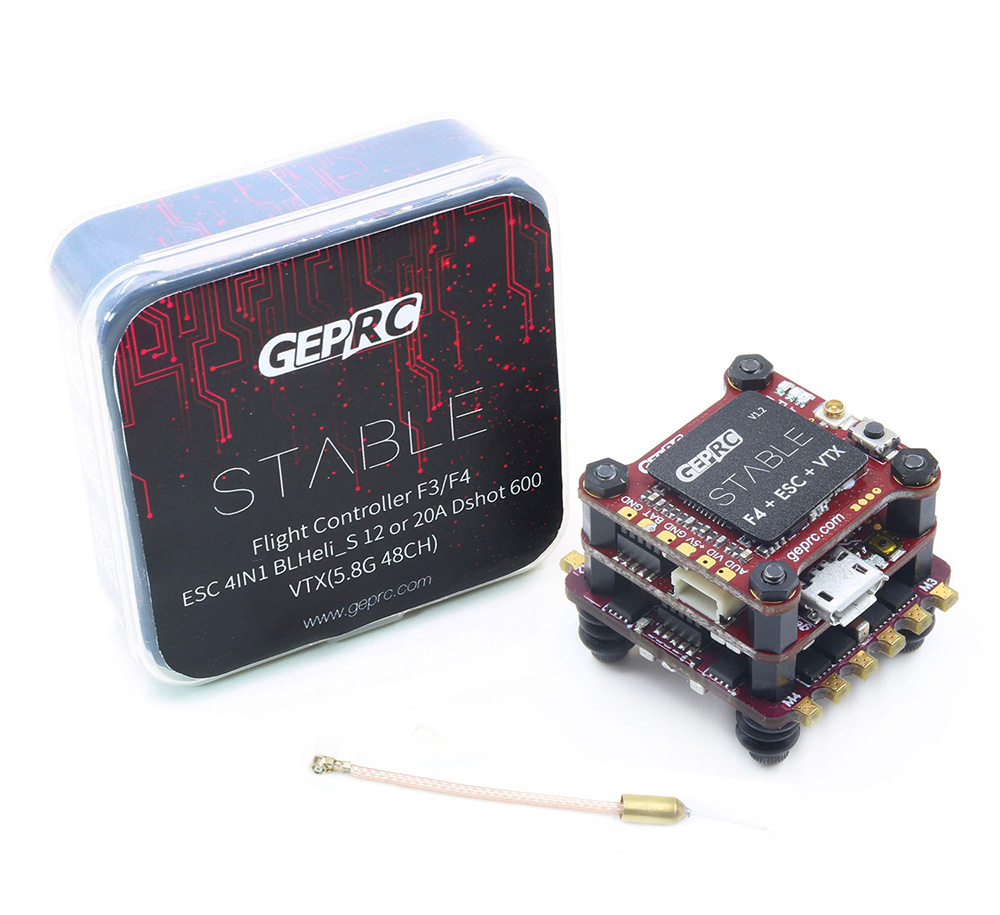

Stable F4 MiniTower is the solution of the tower structure specially for the micro drone FPV, Integrated flight control, esc, VTX.It has been updated to V1.2, very stable. The firmware is relatively mature based on the flight control design of OMNIBUS/ OMNIBUSf4SD (Betaflight). The Stable Mounting Hole is 20*20mm, which is suitable for most racks.

Adopt the current popular tower structure solution, simple installation.

Fast installation, and very stable.

Reasonable structure size: 25x25x20mm (Length x Width x Height).

Mounting Hole 20*20mm, suitable for most racks.

STM32 F405 MCU.

BLHeli_S firmware,Support(Oneshot 125/42 and Dshot 150/300/600).

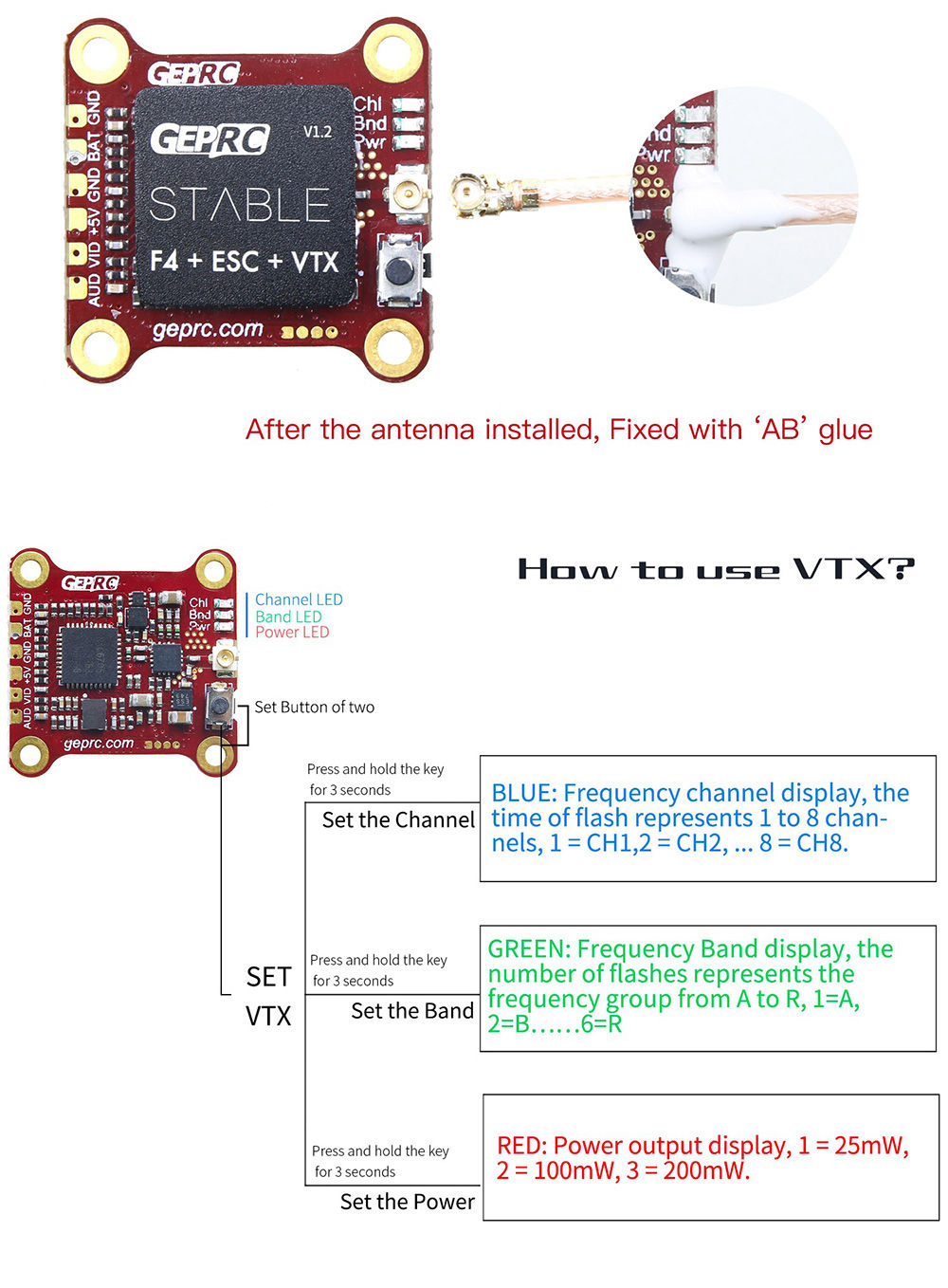

VTX have 48 channel,The power of VTX can choice OFF/25/100/200mW.

Support DSMX,SBUS and PPM Receiver.

GEPRC Stable F4 MiniTower Omnibus F4 OSD 20A 2-4S 4 In 1 BLHeli_S ESC 48CH 25/100/200mW Switchable VTX

Specification

General

Brand: GEPRC
Item No: GEP-F4-BS20A-VTX58200-M
Item Name: Stable F4 MiniTower
Size: 25 x 25mm
Installation height: 20mm
Screws: M2 x 25mm
Mounting Hole: 20 x 20mm
Recommended the plate thickness: 2-4mm
Weight: 9.5g

Product Details

Omnibus F4 Flight Controller
Firmware: Betaflight 3.2.1(OMNIBUSF4SD)
OSD Firmware: Betaflight OSD
Video Camera Voltage: 5V only
Support Voltage monitor, buzzer and LED
Support DSMX , SBUS and PPM Receiver
Board Size: 25 x 25mm
Weight: 2.3g

20A 4 IN 1 BLHeli_S ESC
PDB: Integrated
Battery Monitoring: Integrated
FC Power: Integrated
Input Voltage: 2-4S(12A)
Con. Current: 20A
Peak Current: 30A(5s)
Oneshot 125/42: YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30/L_H_0)
Board Size: 27×27mm
Weight: 3.3g(20A)

GEP-VTX58200-M VTX
Channel Output: 48CH
VTX Power input: 2-6S(using VTX layer alone)
Video Camera Voltage: 5V
VTX Power: OFF/25/100/200mW
Size: 25 x 25 x 4.5mm
Mounting Holes Dimension:20 x 20mm
Weight: 3.5g

Package Contents

1 x Omnibus F4 Flight Controller
1 x 20A BLHeli_S 4 In 1 ESC
1 x 48CH 25/100/200mW VTX
1 x Bag of Screws and Standoffs
1 x Capacitor
1 x Antenna
3 x Cable
