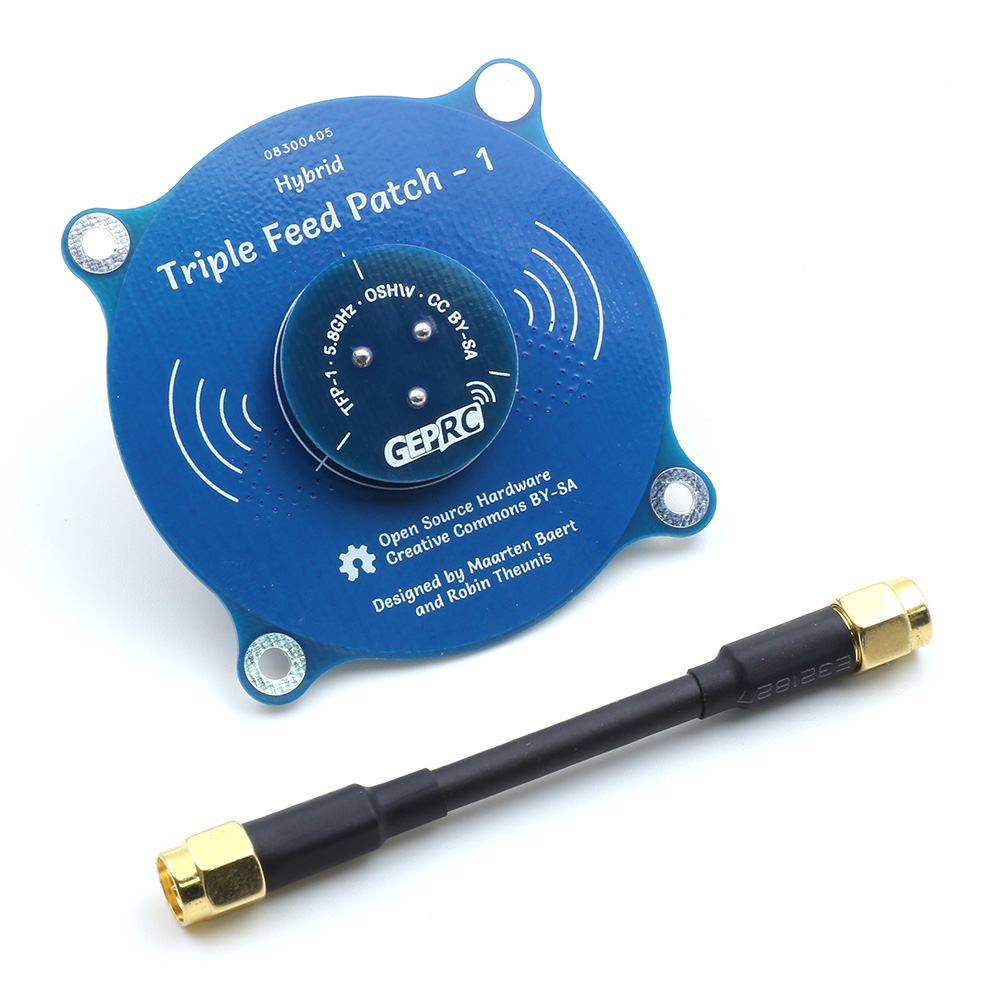

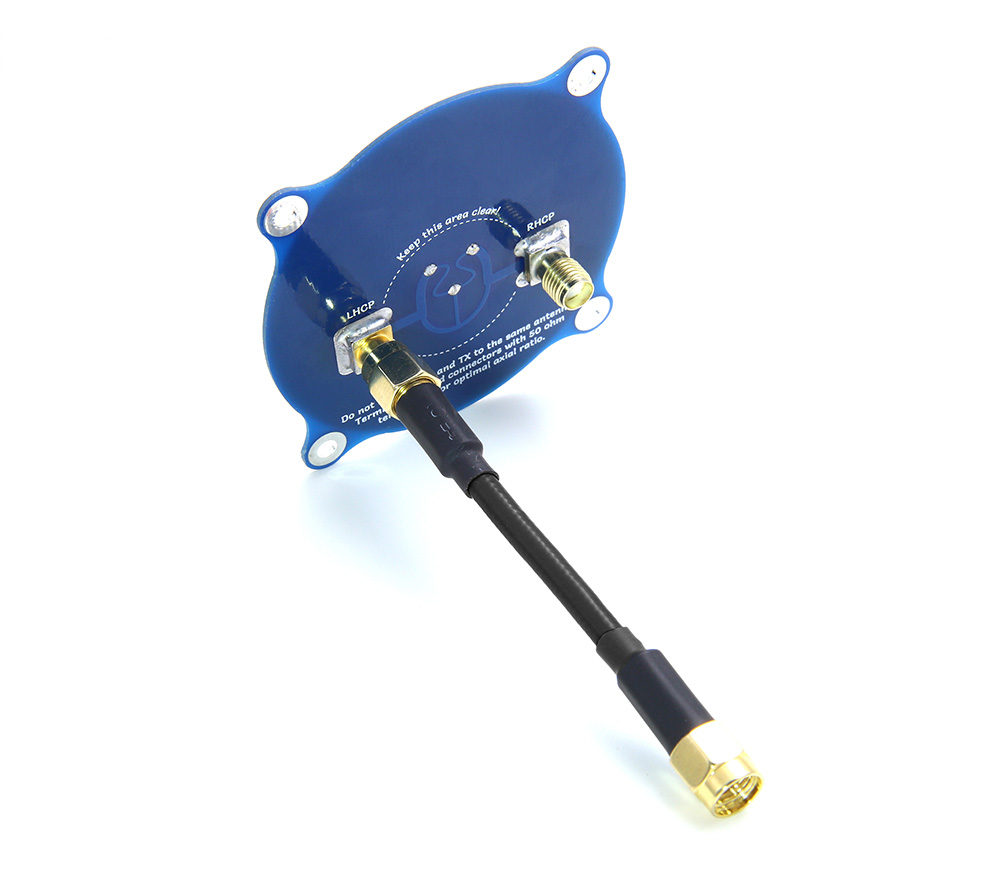

    GEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA Male

    Ship to:
    Hungary
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

    Trusted Shipping Partners: and more

    0 item(s) added
    View CartContinue Shopping

    Highlights

    Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.

    Good axial ratio, not just directly perpendicular to the patch but also off-center.

    Cheap and easy to manufacture with high accuracy, even for a hobbyist.

    GEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA MaleGEPRC Triple Feed Patch-1 5.8GHz 9.4dBi RHCP/LHCP FPV Pagoda Antenna for Transmitter Receiver - SMA Male

    Specification

    General

    Brand: GEPRC
    Item Name: Pagoda Antenna
    Frequency: 5.8 GHz
    Gain: 9.4dBi
    Bandwidth: 660 MHZ (5.47-6.13ghz)

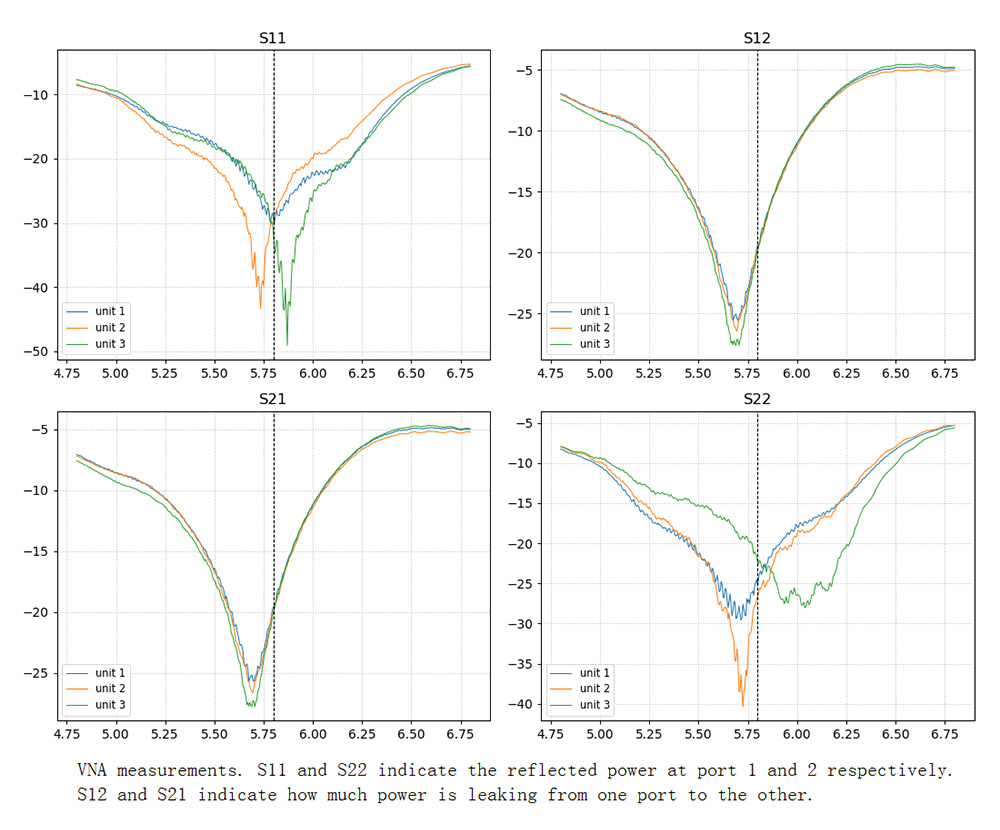

    Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)

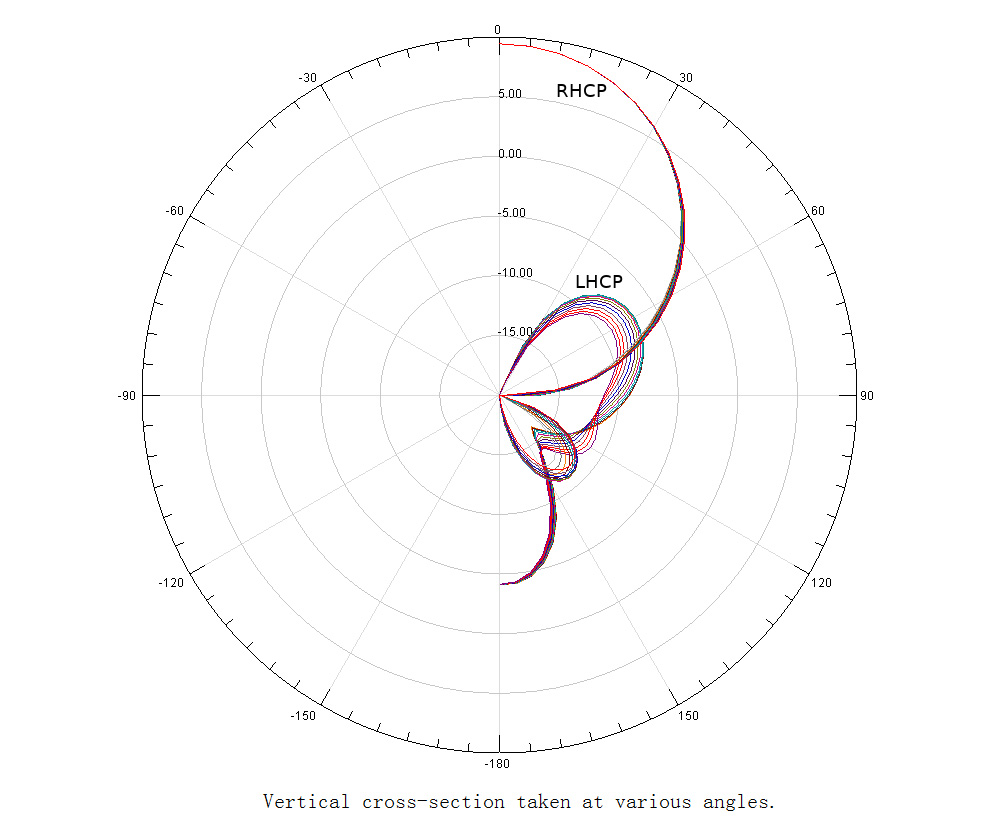

    Axial ratio: < 1.3

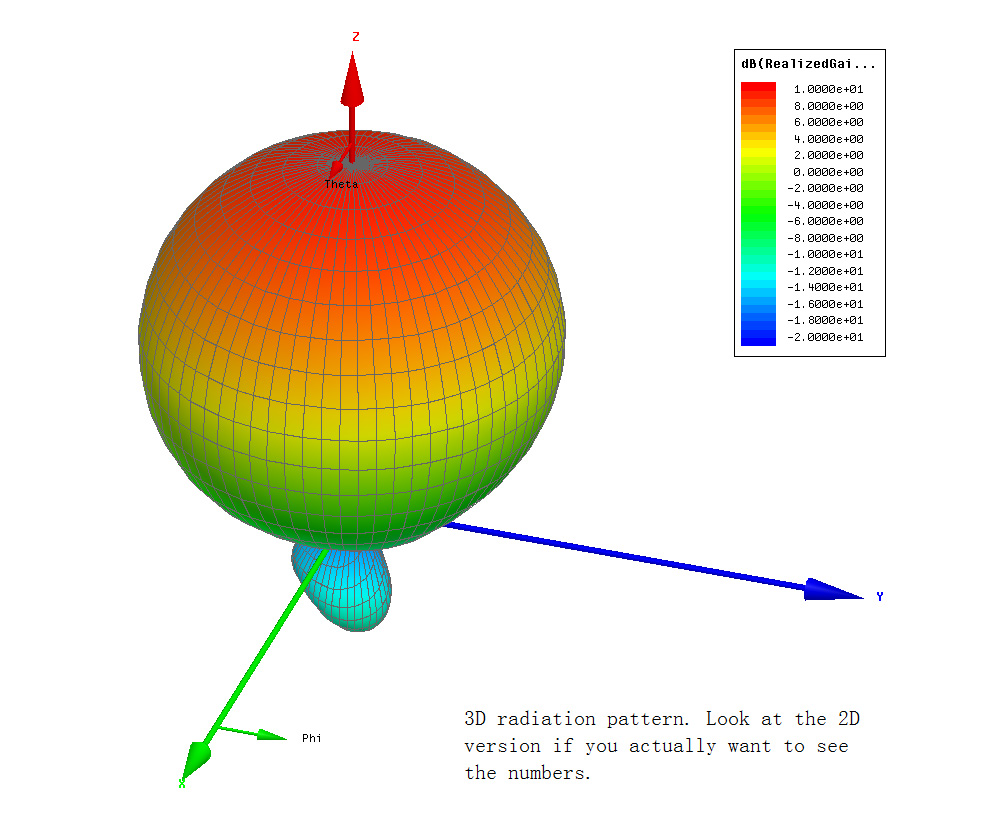

    Half power beam width: 55 ° (horizontal and vertical)
    Radiation efficiency: 83.5%
    Package Contents

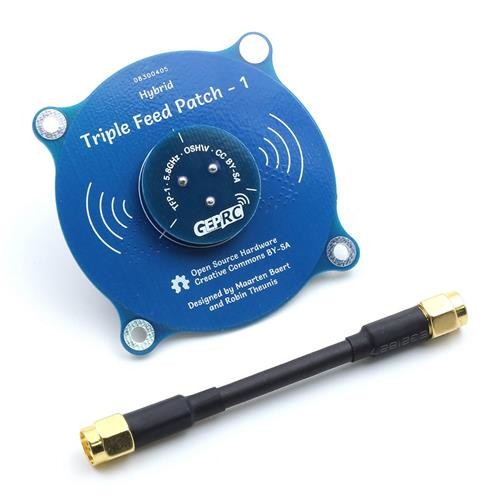

    1 x GEPRC Triple Feed Patch-1 Antenna
