Highlights
- GPS Tracking System Support SMS/GPRS/LBS
- GSM base locating LBS
- Real time tracking
- Portable,easy to install
- GPS Tracker TK 102 can locate accurately and be used in guarding Vehicle against theft, Protecting child / Elderly / disabled / pet, Managing personnel and Tracking criminals secretly.
Specification
It is Upgraded version of the TK102,which has big built-in memory and support TF card memory,When the tracker devices lost GSM signals or fall offline from GPRS, tracker will store the tracking position and alerts automatically in the flash upon the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the monitoring platform (server), but the stored tracking data should be loaded to the monitoring platform via SMS command.
The Max Storage of the memory can store 16,000 tracking locations, and can be copy to computers directly through the USB cable.
Trackers now support both GPS locating and GSM locating. When there is GPS signal available, it will use GPS signal to locate your tracking target. Once there is NO GPS signal such as in the garage, BUT there is GSM signal received from a GSM modem nearby, you can send the tracker SMS to get its location and coordinates. This GSM locating maynot that accurate as GPS locating. It depends mainly on the density of GSM modem around.
Working Based on existing GSM/GPRS(850/900/1800/1900MHZ)network and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA.
Technology parameter:
| Model | TK102B |
| Color | Deep grey + coffee |
| Quantity | 1 |
| GPS Chip | Mstar |
| Network | GSM / GPRS |
| Band | 850 / 900 / 1800 / 1900MHz |
| GPS Sensitivity | 159 dBm |
| GPS Accuracy | 5 meter |
| Warm Start Time | 35s |
| Cold Start Time | 45s |
| Hot Start Time | 1s |
| Pre-loaded Map | Yes |
| Maps Included | Google map |
| Working Time | 3 Days |
| Standby Time | 5 Days |
| PC Interface Supported | N/A |
| GPS System Features | When there is no GSM signal, it will store GPS data on TF card |
| Storage Temperature | -40'C to +85'C |
| Humidity | 5%~95% |
| Altitude Limit | 18000 |
| Memory | 1MB GB |
| Memory Card Type | TF |
| Max Extended Capacity | 16GB |
| Power Supply | EU plug / 100~240V, 0.2A |
| Other Features | Supports GSM and GPS double location; Supports Single positioning and GPRS real-time continuous tracking location; Supports vibration alarm, electronic fence, movement alert, speed alarm, SOS emergency alarm and monitoring function |
HOW IT WORKS:
Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example google earth) which will show where exactly the unit is located

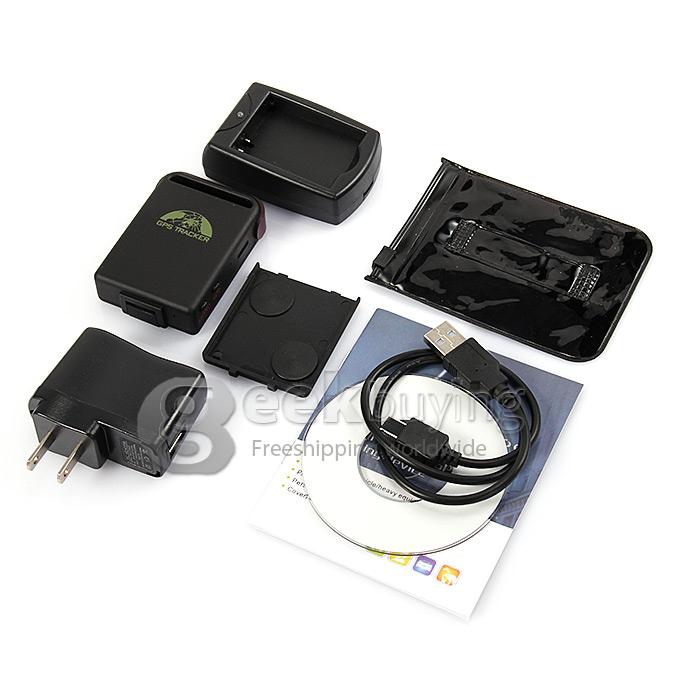

What's in the box?
- 1 x GPS Tracker(TK102B)
- 1 x Desktop Charger
- 2 x Rechargeable Battery
- 1 x User manual
- 1 x USB cable
- 1 x Power adapter
- 1 x Back cover
- 1 x Small pouch
- 1 x CD
