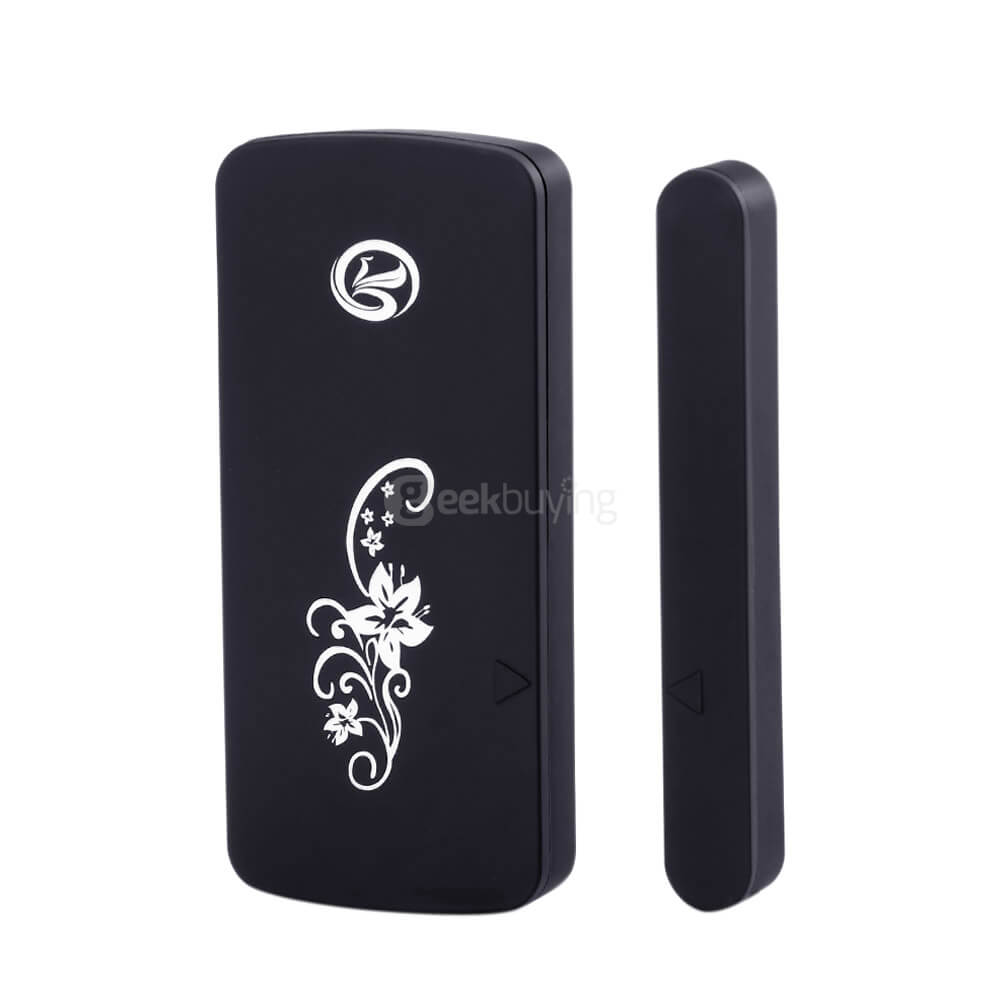

GSM A11 Intelligent Wireless Magnetic Sensor & Voice Trigger Door Alarm Home Security Door LBS Alarm System - Black

Highlights

• Binding the number firstly to make sure you can receive the alarm calling.
• Four frequency global apply, no distance limit.
• Has voice monitoring and infrared induction two prominent functions.
• Provide free remote location function to make sure keep your valuables safe anytime and anywhere.
• Small size, clear voice, long standby time, simple operation, stable performance, exempt driver, wireless, remote control etc.

Specification

Usage:

• Household anti-theft.
• Company anti-theft.
• Factory anti-theft.
• Warehouse anti-theft.
• Car anti-theft.
• Drawer anti-theft.
• Safe box anti-theft.

How to use:
1.Binding the phone number.
2.Calling the GSM intelligent alarm to test whether connected.
3.Setting corresponding function according to your own requirements.

Specific use conditions:

1. Usage:

• Open the house’s rear cover to insert a SIM card as instructed. A quick flash of the blue indicator light one time and flash 3 times about 30 seconds later, the GSM host is ready for work

2. Switch language

• Send LAG1 change the language to Chinese.
• Send LAG2 change the language to English.
• Send LAG3 change the language to Russian.

3. Binding for automatically calling:

• For the first phone, please sending message“00000”to initialize , then sending “111” to the SIM card.(it will reply you with a message if binding succeed).each device can be binded by 5 pcs of phone, so if you want to bind the second phone, you can send message”222”to the SIM card. Following by recycling. (If you just want to bind one phone, just need send one message”111”to the SIM card).

4. Function Settings:

• Send 0005 start magnetic sensor alarm, when the door was opened or closed, the alarm report to the sender by SMS or call.
• Send 0006 stop magnetic sensor alarm.
• Send 0001 start voice sensor alarm, when sound around ,the alarm will report the sender by SMS or call .
• Send 0002 stop voice control.
• Send 777** set the time interval of the voice sensor alarm, sent 77705 the alarm will not report for voice sensor alarm 5 minutes within the previous one.
• Send LBS report the alarm location map link.
• Send 8881 the alarm mode will change as send SMS first, and then call.
• Send 8882 the alarm mode will change as only call.
• Send 8883 the alarm mode will change as send SMS only.
• Send 999 can inquire the current state. (when you forget to the function of the alarm system Settings, you can send the instructions to confirm)
• Restore the factory Settings: send 0000


Technical Data:

• Size:8.2*3.8*1.0cm
• Battery: Lithium polymer 500mA.
• Operating frequency: 850/900/1800/1900MHz.
• Standby time:7-15days(according to the strength of local network signal)

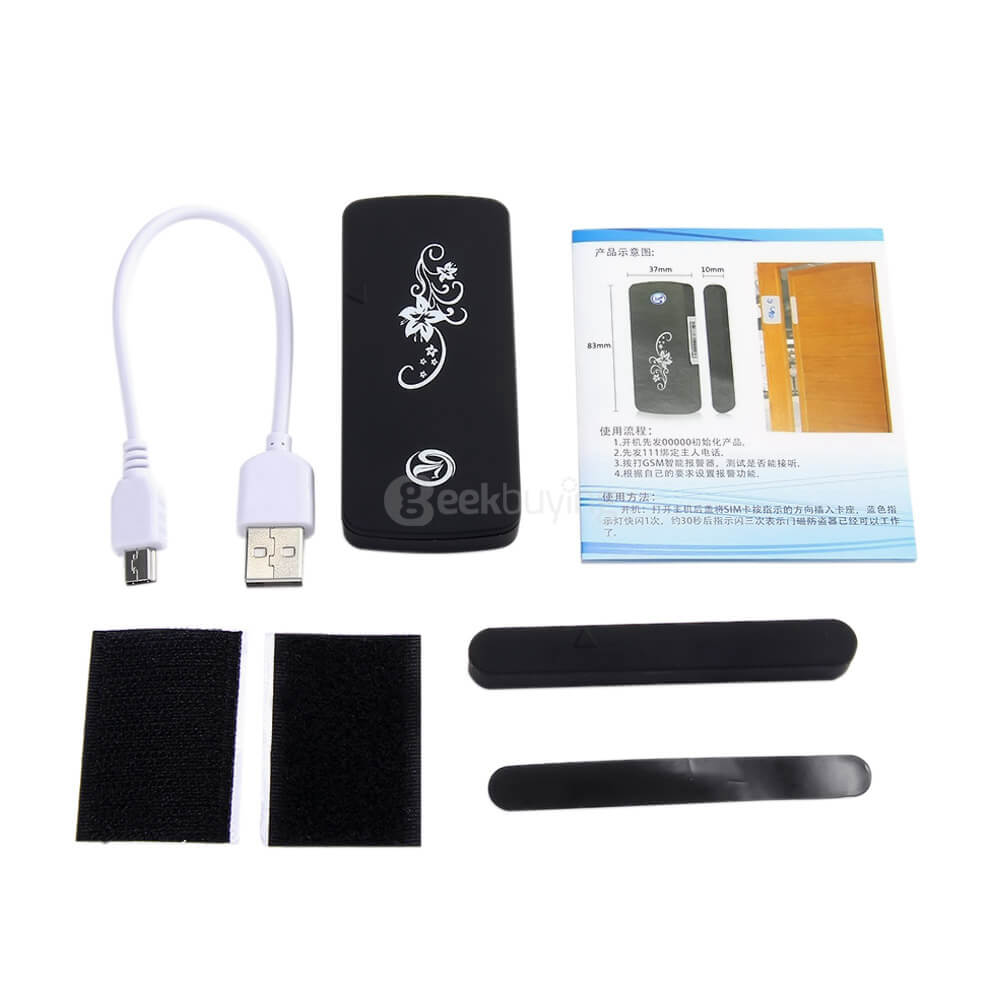

What's in the box?

• 1 x Host
• 1 x Magnet box
• 1 x USB Charging Cable
• 1 x User Manual
