GTMEDIA GTT2 DVB-T/T2/Cable(J83.A/B/C)/ISDBT Amlogic S905D 4K Android TV Box 2GB/8GB WiFi LAN HDMI LED Display

Highlights

Amlogic S905D

Powered by an Amlogic S905D 64-bit Octa-core ARM Cortex-A53 CPU, it is running at up to 1.5GHz. On the graphics front, GTMEDIA GTT2 sports a Penta Mali-450 for vivid and clear image display.

DDR3 1GB RAM + eMMC 8GB

It uses a DDR3 1GB RAM and an eMMC 8GB for better performance, security and reliability.

802.11b/g/n 2.4G WiFi

It carries 802.11 b/g/n WiFi. With support for 2.4Ghz, it can transmit higher amounts of data.

True 4K Media Player

While your average media box might only accept 1080P video playback, this gadget plays just about any 4K source.

Other Features

XBMC Addons pre-installed. (KODI 15.2)

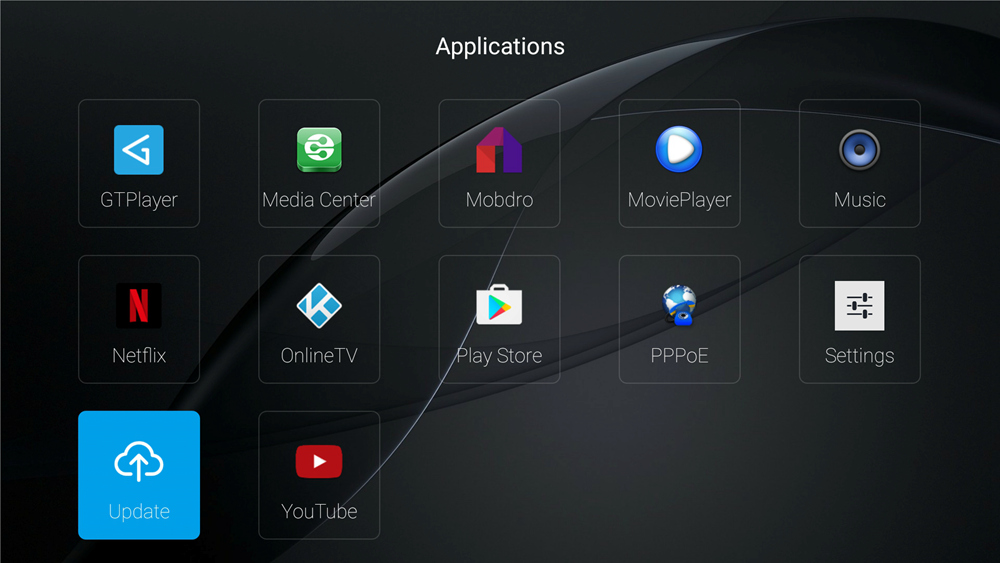

Support Netflix, Skype, chatting, Picasa, Youtube, Flicker, Facebook, Online movies etc.

Specification

General	Brand: GTMEDIA Model: GTT2 Type: TV Box
Hardware	OS: Android 6.0 CPU: Amlogic S905D Quad-core ARM Cortex-A53 GPU: Penta-core ARM Mali-450, up to 750MHz+(DVFS) RAM: 2GB DDR3 ROM:8GB eMMC
Communication	WiFi: 2.4GWiFi LAN: 100M
Media	3D Graphics: OpenGL ES 1.1/2.0 and Open VG 1.1 support Video Decode: UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264 Audio Decode: MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, EAC-3, Dolby+ Panel display: 4-digit LED display
Interface	RF IN( EC-type IEC169-2 Female) AV OUT(4-pin 3.5 mm jack) HDMI 2.0 (V1.3/V1.4) 2*USB HOST 1*TF CARD 1*SPDIF 1*RJ45 Power(DC 5V/2A)
DVB-T2	DVB-T/T2 system standard: ETSIEN 302 755 Support MPLP Demodulation: QPSK,16QAM,64QAM or 256QAM Forward error correction rate 1/2,2/3,3/4,3/5,5/6 Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 Bandwidth: 6/7/8MHz Input range:54--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female
DVB-C	IEC 169-24 female 75Ω for input Demodulation: 16QAM,32QAM,64QAM,128QAM,256QAM Input Frange range:50--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female
ISDBT	ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DivX FFT Mode: 2K/ 8K/32K Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK Forward error correction rate 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic Guard interval: 1/4,1/8,1/16,1/32 Bandwidth: 6/7/8MHz Input range:VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz Input Signal level: -83 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female
Other Features	IR: Exit IR for 38KHz, Infra Remote control

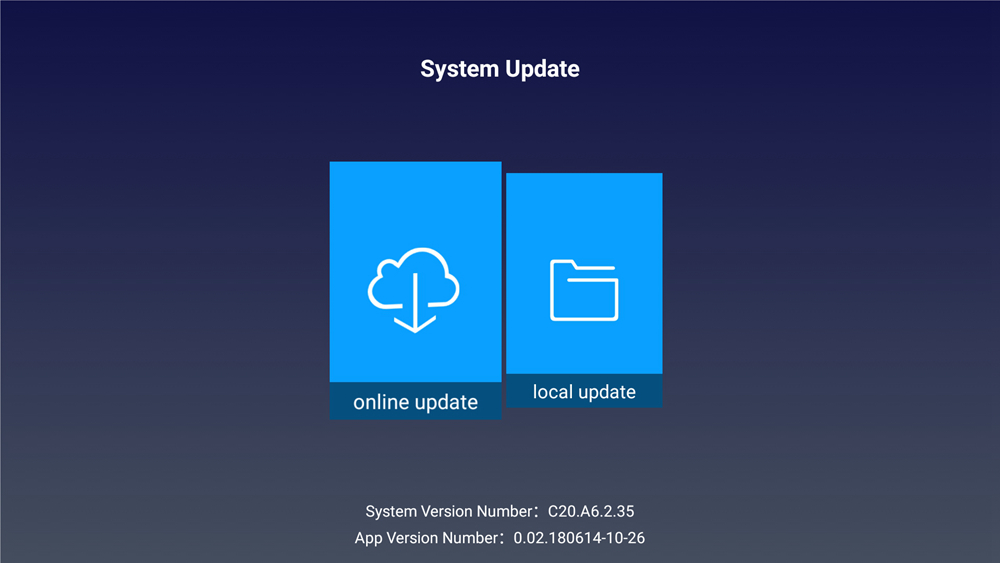

Software	Standard: Fully comply with DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard Channels Number: 10000 channels TV and Radio programmable Favorites: 16 different favorite groups selection OSD Language: OSD Multi-language for options(Arabic, Catalan, Czech, Dansk, Deutsch, Espanol, English, Euskara, Farsi, French, Finnish, Galego, Greek, Hrvatska, Italian, Magyar, Nederlands, Polska,Spanish,Slovakian,Svenska,Portuguese,Russian, Ukrainian, Turkish, Thai and etc.) EPG: Fully support to 7 days Electronic Program Guide(EPG) OSD Color: 256 color/16bit On Screen Display Picture: JPEG, BMP, PNG, GIF Supported Channel Search: Supports NIT Search, Automatic network search for newly added transponders Channel Edit: Various channel editing function(favorite,move,lock,skip, delete,rename,find,sort) Parental Ctrl: Parental control for channels Easy Menu: Plug and Play installation, with an easy to use Menu System PAL/NTSC: Automatic PAL/NTSC conversion SoftUpgrade: Software upgrades through USB port, Support OTA and HTTP/FTP upgrade. Channel: Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) Subtitle: support DVB EN300743 and EBU Teletext: support DVB ETS300472 by VBI and OSD Time Set: Time set by GMT offset automatic and manual, Summer Time support Timer: 5 event timers, off/Once/Daily/Weekly Mode USB 2.0:Support FAT/FAT32/NTFS big capacity hard disk PVR Option: USB 2.0 for PVR,TIMESHIFT,media files playback Media Codec: TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a) Photo Codec: JPEG, BMP, PNG
LED Indicator	Power ON: Green; Standby: Red
Dimensions&Weight	Product Size: 110*130*30mm Packaged Size: 215*145*60mm Product Weight: 0.45 Kg
Package Contents	1x GTTS TV Box 1x IR Remote control 1x HDMI cable 1x Power adapter 1x User manual
