Wheelbase: 75mm
Size: 106 x 98 x 53mm
Weight: 46g(Without Battery)
Weight: 76g(With Original 4s 260mah Lipo Battery)
FC & ESC System

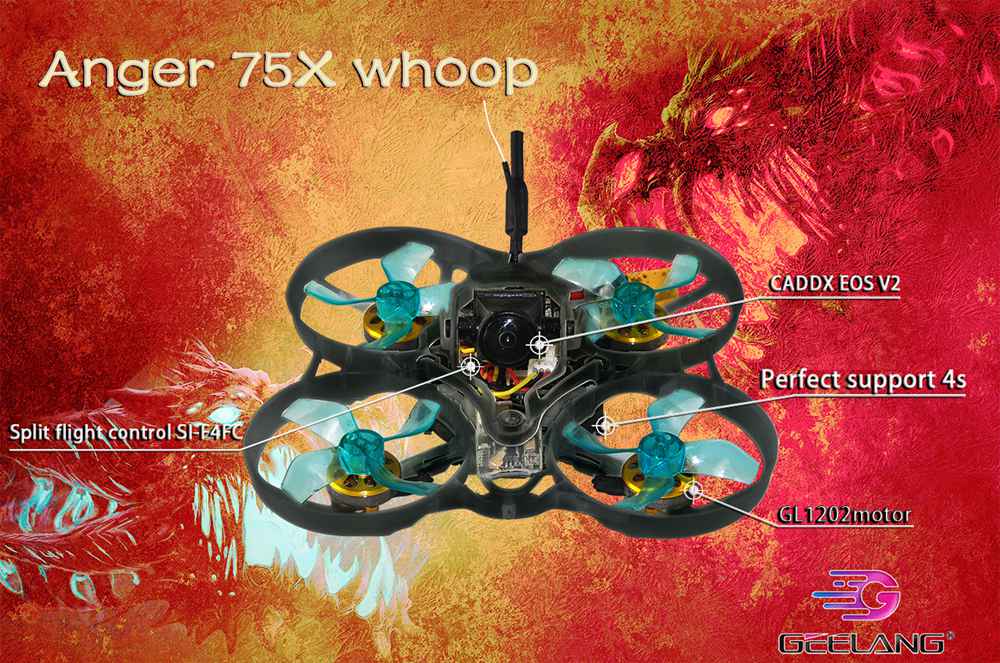

Flight Controller: SI-F4FC Three-in-one tower
Version: MATEKF411
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board Size: 21 X 21mm
Power Supply: 2-4S battery input (DC 7-17V)
Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power Supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 13A (5 seconds)
Support BLHeliSuite programmable
Factory Firmware: G_H_30_REV16_7.HEX
Default Protocol: DSHOT600
Receiver
Compatible Frsky (ac900)SPI receiver
Frsky D16 switchable
GL1202 KV6900 Motor
Motor Mode: GL1202 KV6900
Stator Specifications: D12 * H2 0.2mm Kawasaki
Configu-ration: 9N12P
Stator Diamter: 12mm
Stator Length: 2mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len): Φ13.8mm*15.5mm
Magent Specifications: N52H
Shift Specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
Winding Specifications: 180Celsius Class Multiple oxygen-free copper
Weight(g):3.7g
No.of Cells(Lipo): 3S-4S

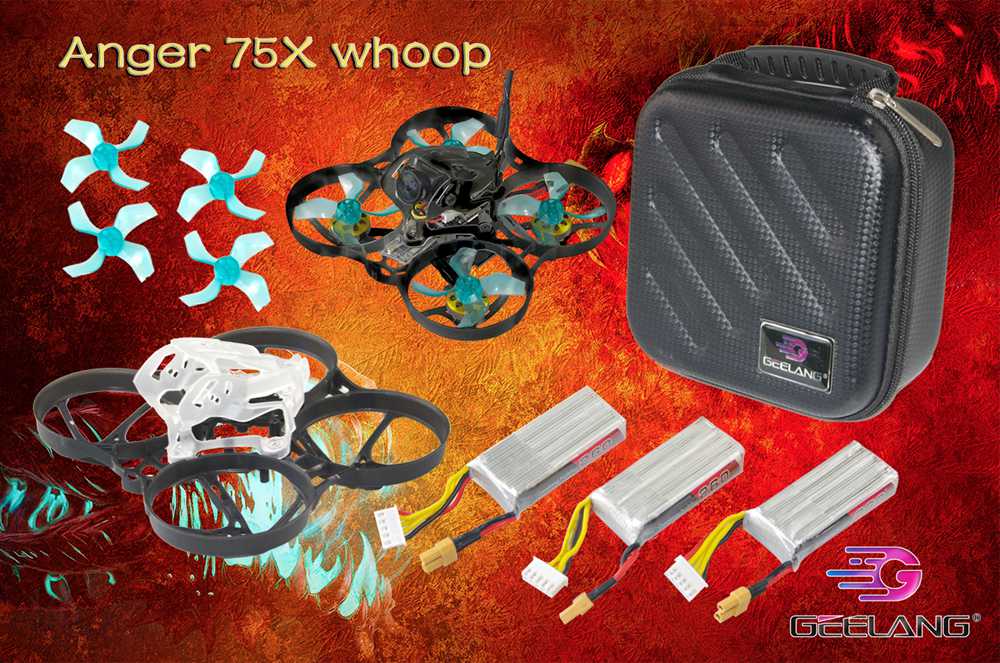

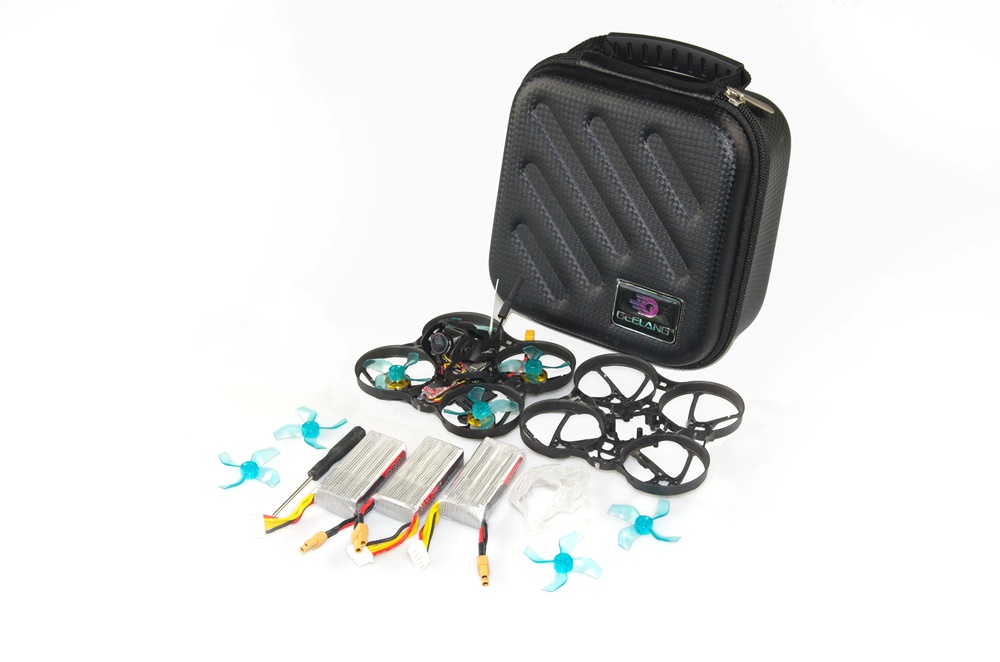

Lipo Battery(Included)
Type: Lipo 4S
Capacity: 260mAh
Voltage: 15.2V
Continuous Discharge Rate: 40C
Instantaneous Discharge Rate: 80C
Size: 52mm x 25mm x 12mm
Weight: 31g
Connector: XT30
VTX
VTX Output Power: 25 - 200mw switchable
Frequency: 40CH
Input Voltage: 3.2V- 5.2V
Current Consumption: 320mA(type)
Power Switching: third gear(25MW,100MW,200MW)
Antenna: RG178s antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight: 1.7g
Caddx EOS V2 Cam
Image Sensor: 1/3 COMS sensor
Horizontal: 1200TVL
TV System: PAL 4:3 non-changeable
Power Input: DC 5-12V
FOV: F2.1
Weight: 3.5g
|
