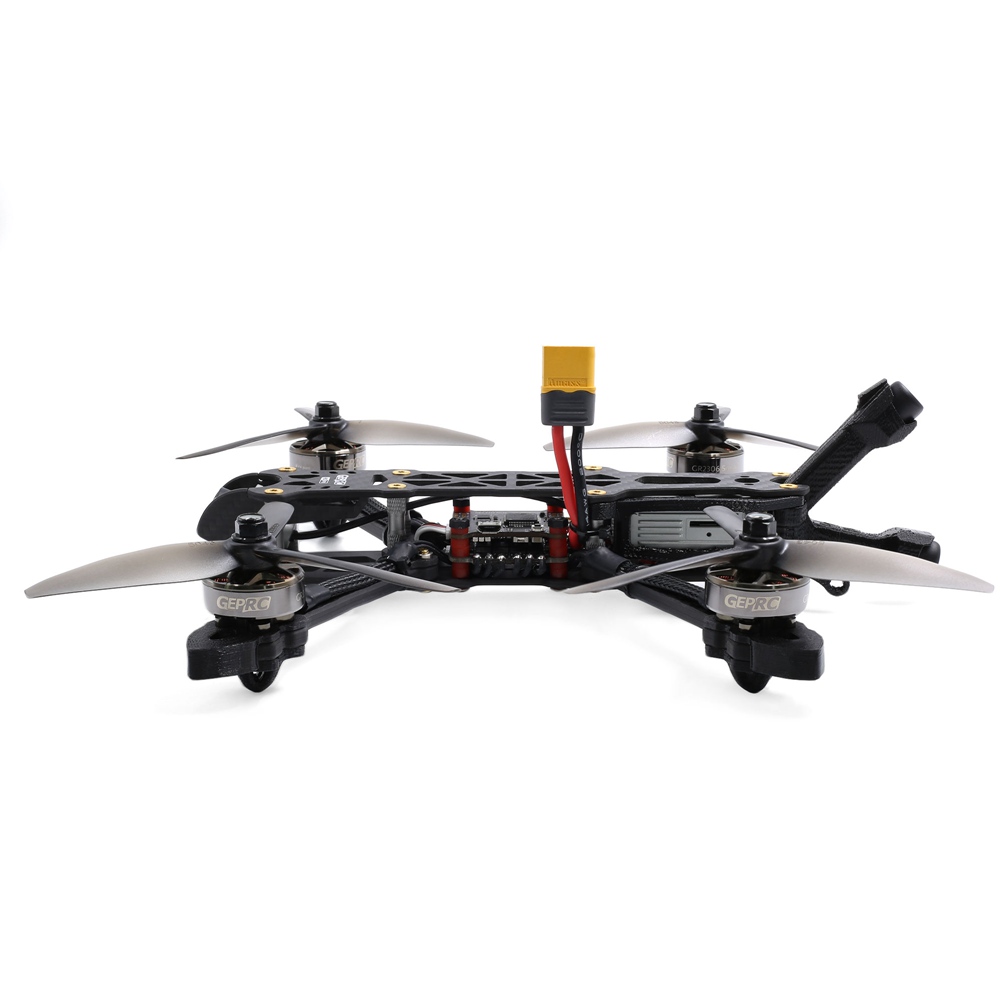

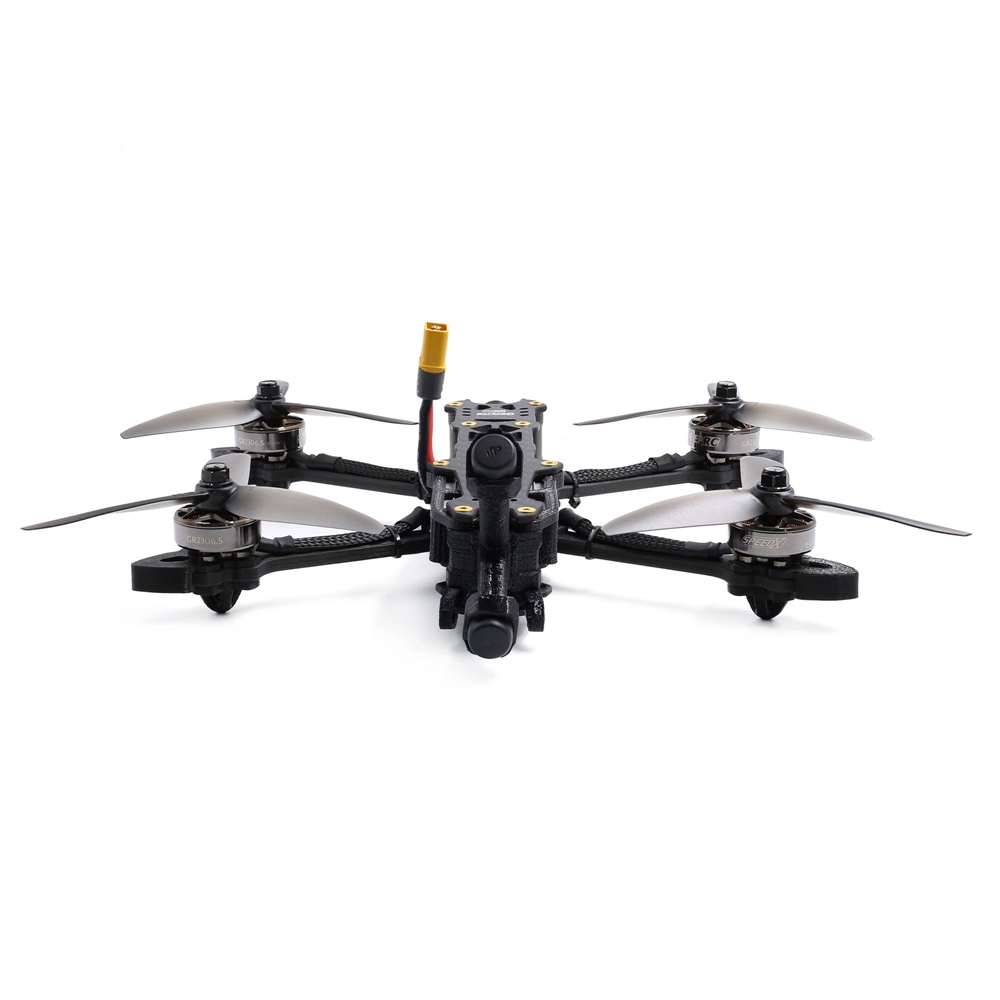

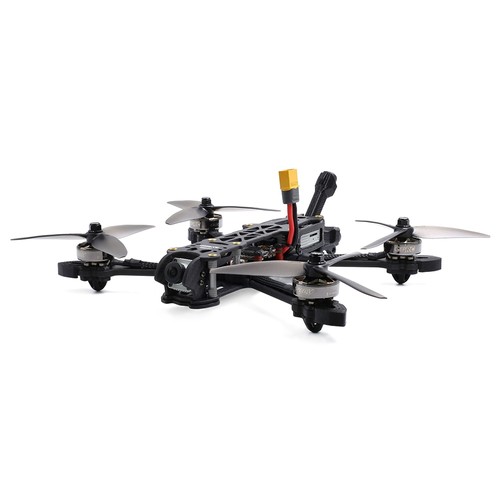

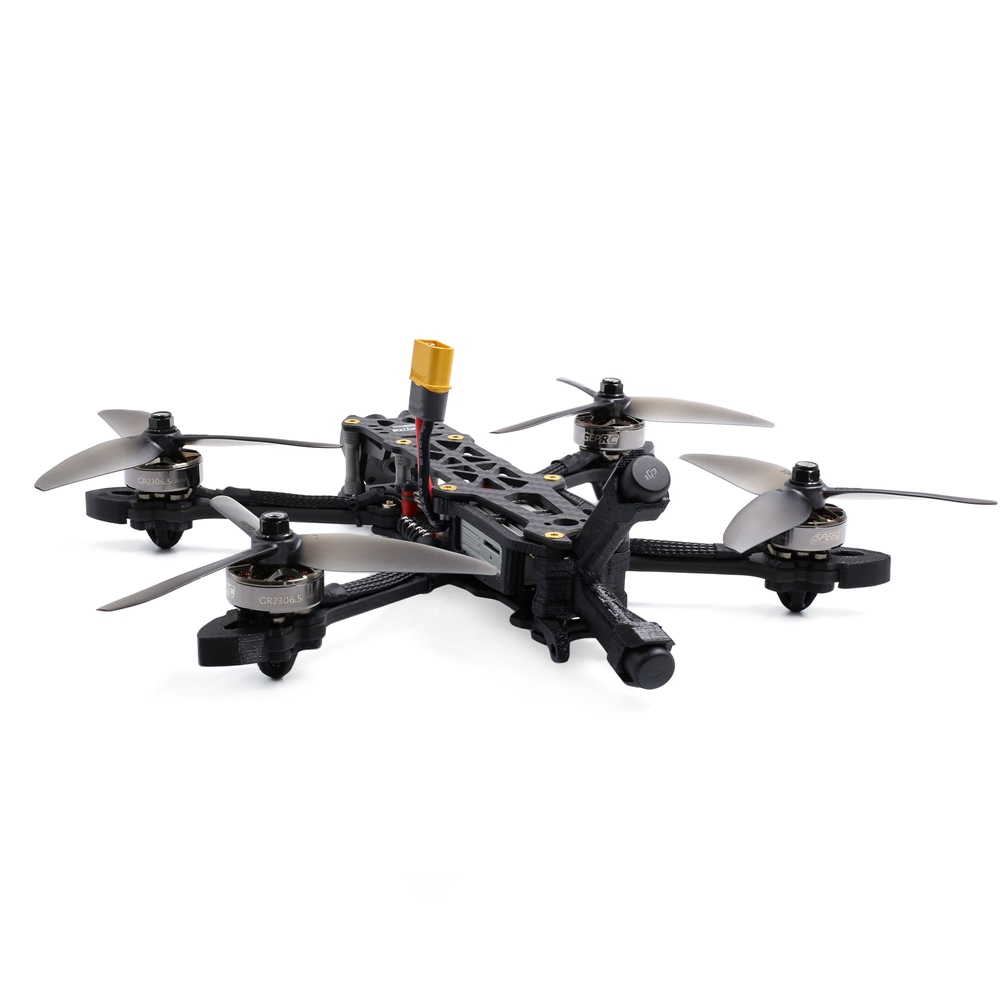

Geprc MARK4 HD5 4S Version 5 Inch FPV Racing Drone With F7 Dual IMU BLheli_32 50A w/DJI Digital FPV System Air Unit PNP Version

General

Brand: Geprc
Item Name: MARK4 HD5
Version: PNP(Without Receiver)

Specification

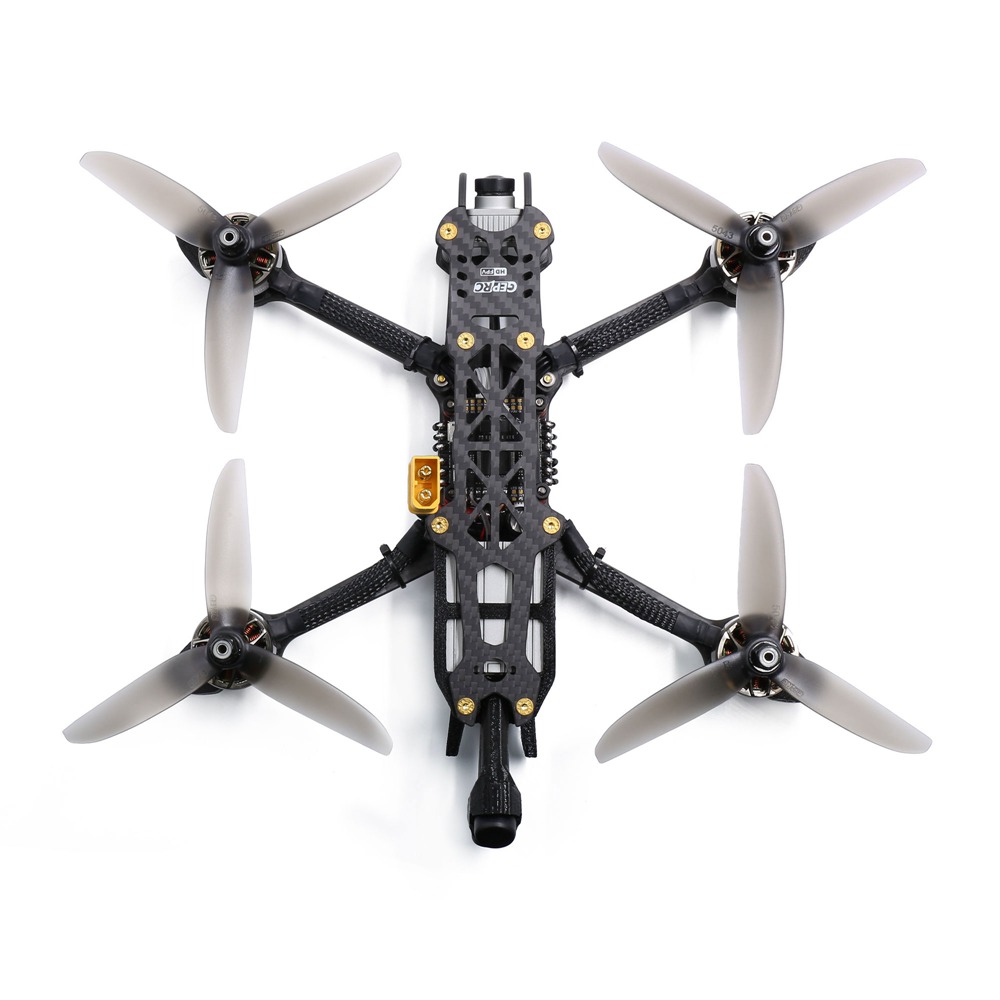

Frame: MARK4 HD5 Frame kits
Full 3K Carbon Fiber
Motor to motor: 224mm
Size: 138*176mm
Mounting Holes: 30.5*30.5mm/20*20mm
Arms plate: 5mm
Side plate: 2.5mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Protect plate: 2mm

FPV SYSTEM: DJI FPV Air Unit
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W

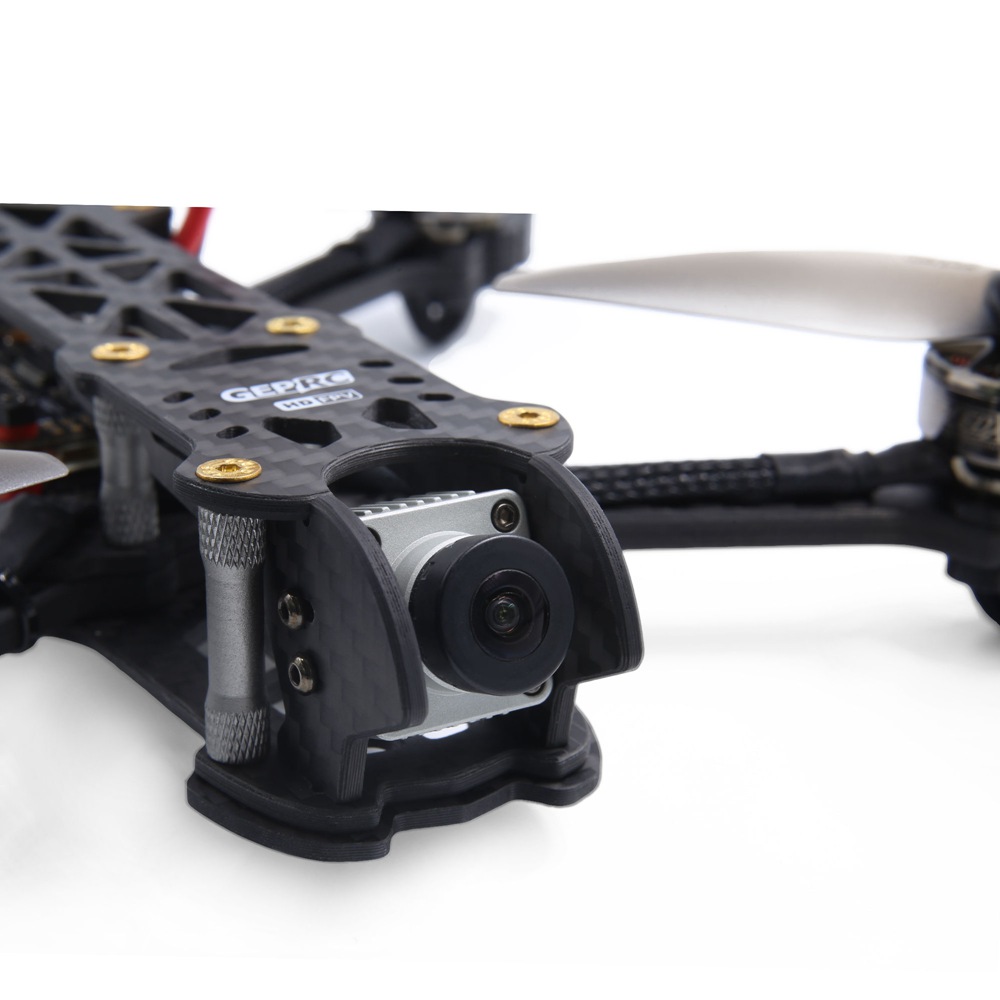

Sensor: 1/3.2” CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm

Power System:

4S Battery:

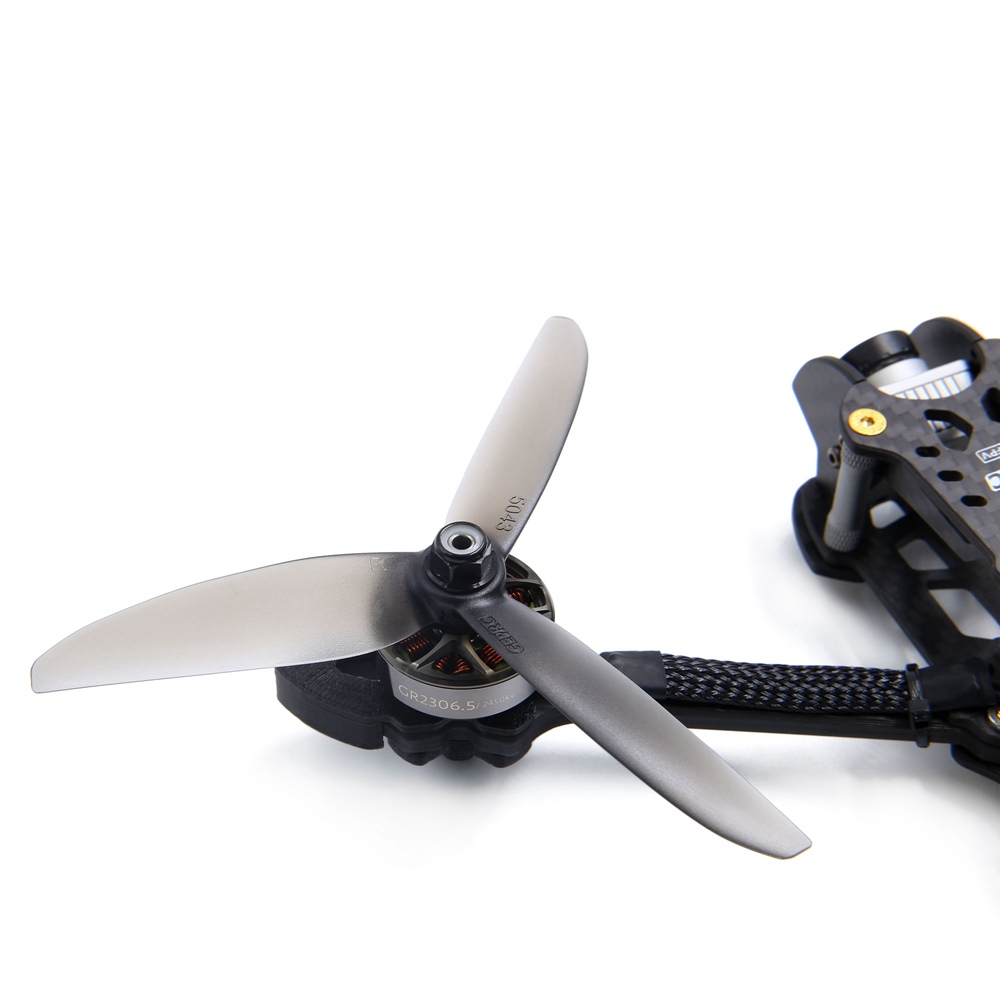

Motors: GR2306.5 2450KV
Battery: 4S 1300~1550mAh(Not Included)

6S Battery:

Motors: GR2306.5 1850KV
Battery: 6S 1050~1300mAh

F722 DUAL ICM20689 Flight Controller:

MCU: STM32F722RET6
IMU: 2x ICM20689(SPI)
Build-In: BlueTooth wireless adapter (SpeedyBee APP)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro: BMP280
BEC Output: 5V@2A / 9V@2A
Integrated LC Filter
Firmware target: EXF722DUAL
Size: 36x36mm board, φ4mm with Grommets φ3mm
Power input: 3-6S LiPo
5x UART
8x Motor outputs

BLheli_32 50A ESC 4IN1:

MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry: Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
Firmware Version:GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo

Weight & Dimensions

Package Weight: 0.8kg

Package Size (L x W x H): 28 x 28 x 18cm

Package Contents

1 x Mark4 HD5 Racing Drone
