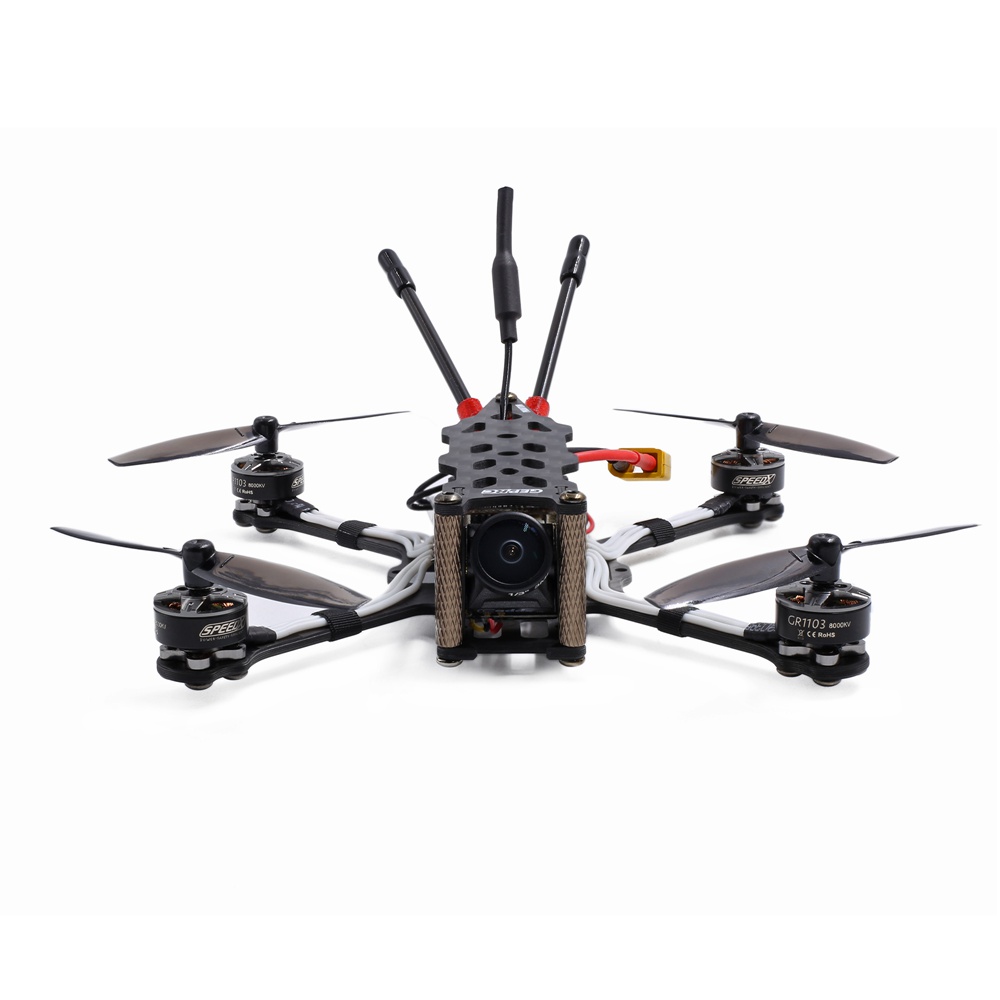

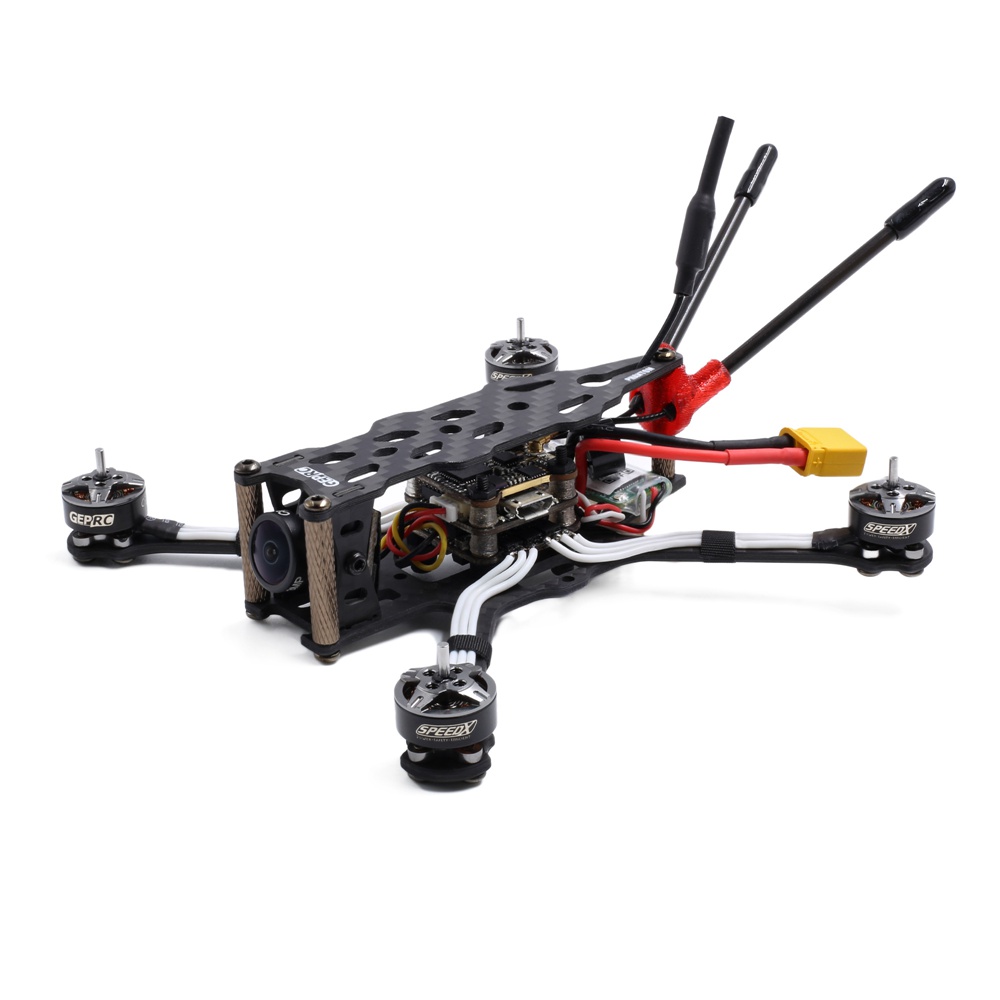

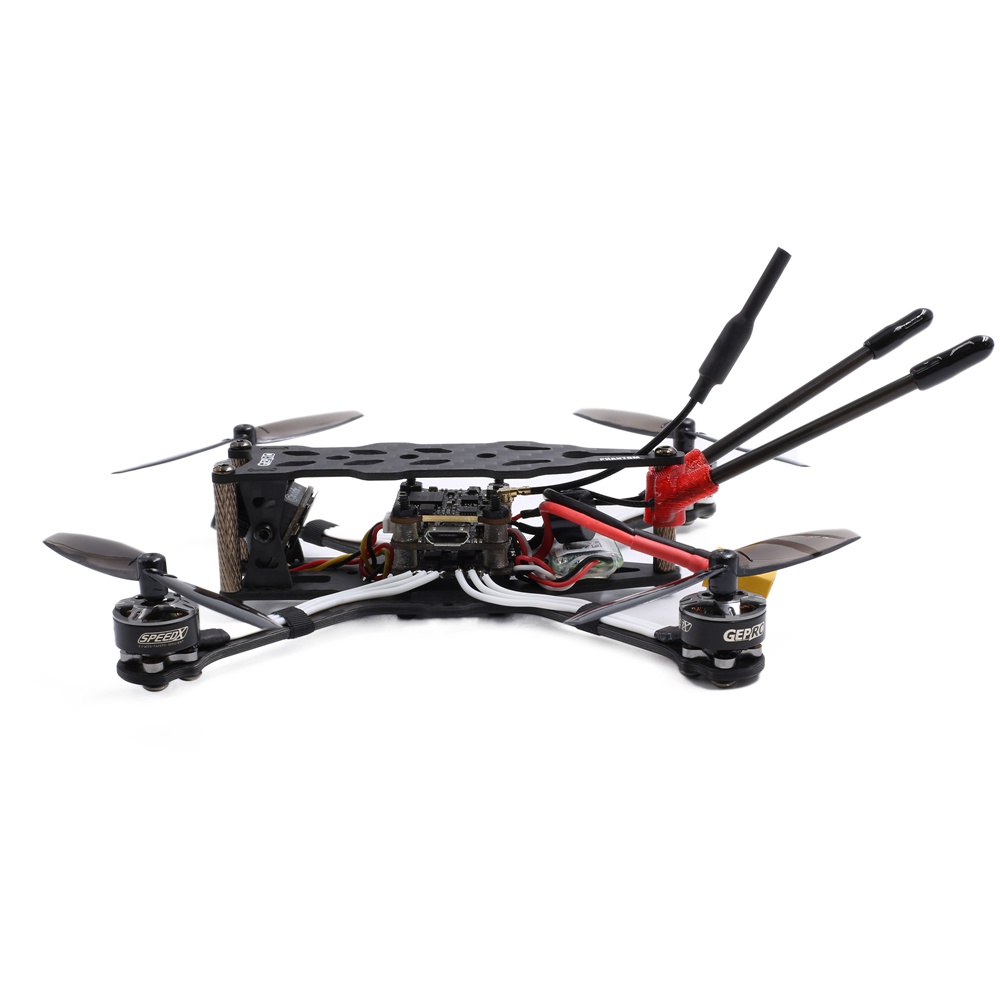

Geprc Phantom Toothpick 125mm 2-3S FPV Racing Drone With AIO F4 12A FC 5.8g 200mW VTX PNP - Without Receiver

General

Brand: GEPRC

Name: Phantom
Type: Toothpick
Version: PNP(Without Receiver)

Specification

Wheelbase: 125mm
Weight: 51g (without battery)
FC: STM32F411
ESC: 12A(BLheli_S)

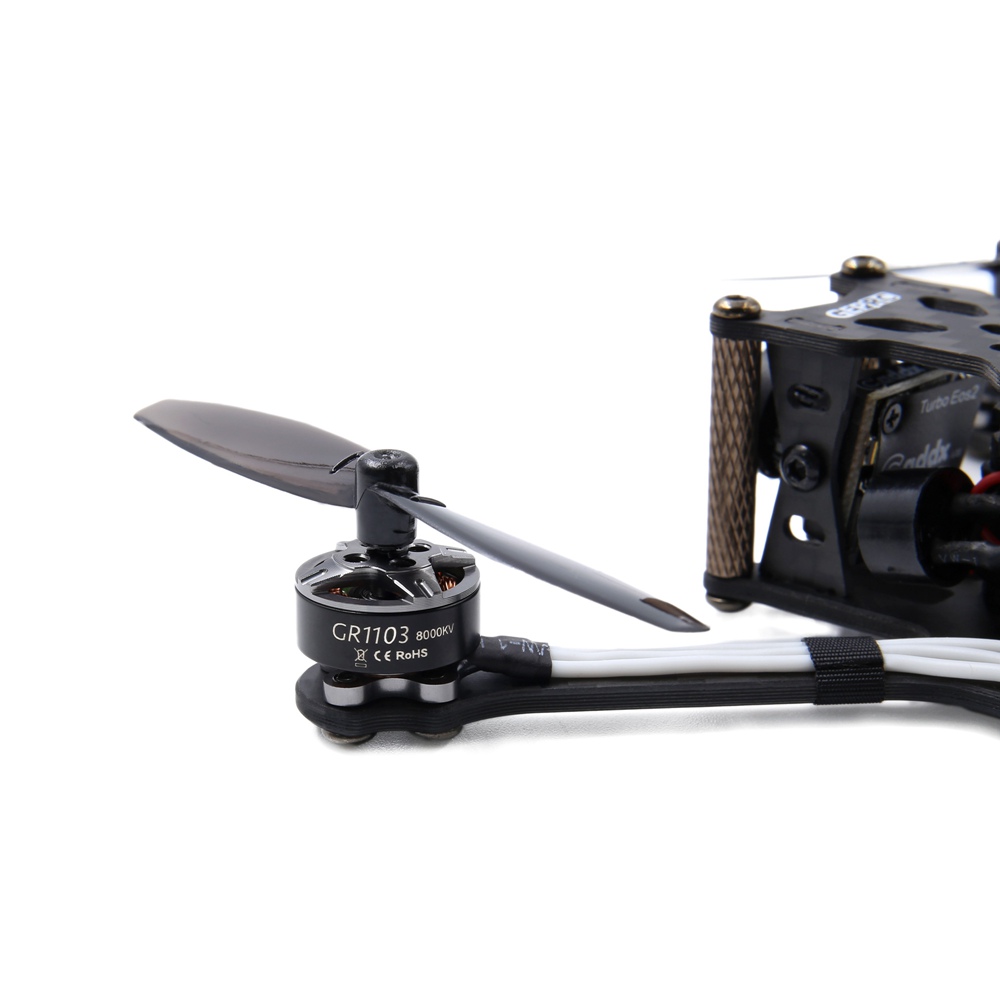

Motor: GEPRC GEP-GR1103 8000KV(3S 300mAh)

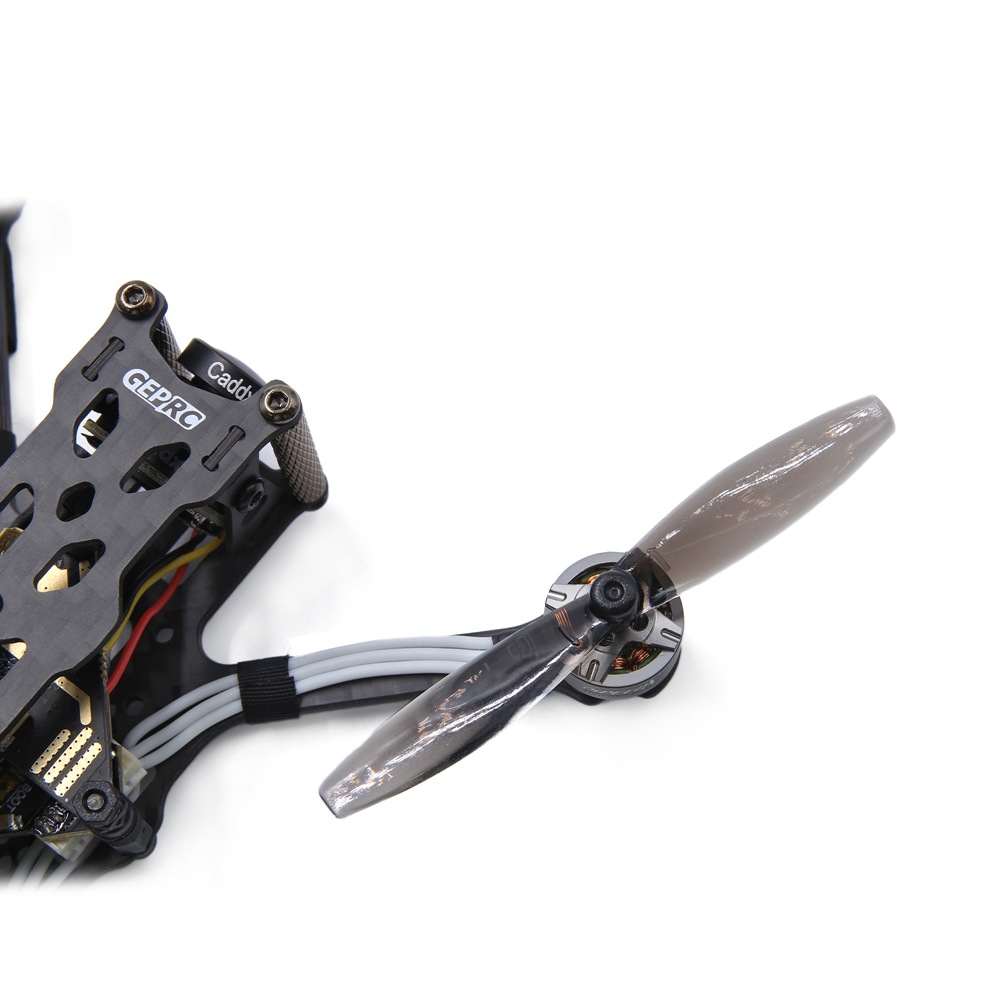

Propeller: 65mm or 2.5inch
VTX: 5.8g 200mW
Camera: Caddx EOS2

STABLE F411 Micro System:

STABLE F411 Flight Controller(16*16mm)
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@2A
Size: 21mm*21mm
Mounting holes: 16mm*16mm
Integrated LC Filter
Input voltage 2-4S LIPO
Firmware target: MATEKF411
Weight: 2.5g

STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)

MCU: BB21F16G
Continuous current: 12A
Input voltage : 2-4S LIPO
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Firmware target: Blheli_S G_H_30
Current meter: 210
Weight: 2.7g

STABLE F411 VTX 5.8G 200mW(16*16mm)

Power: PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Integrated LC Filter
Weight: 1.6g

Weight & Dimensions

Package Contents

1 x Phantom Racing Drone (PNP Version)
