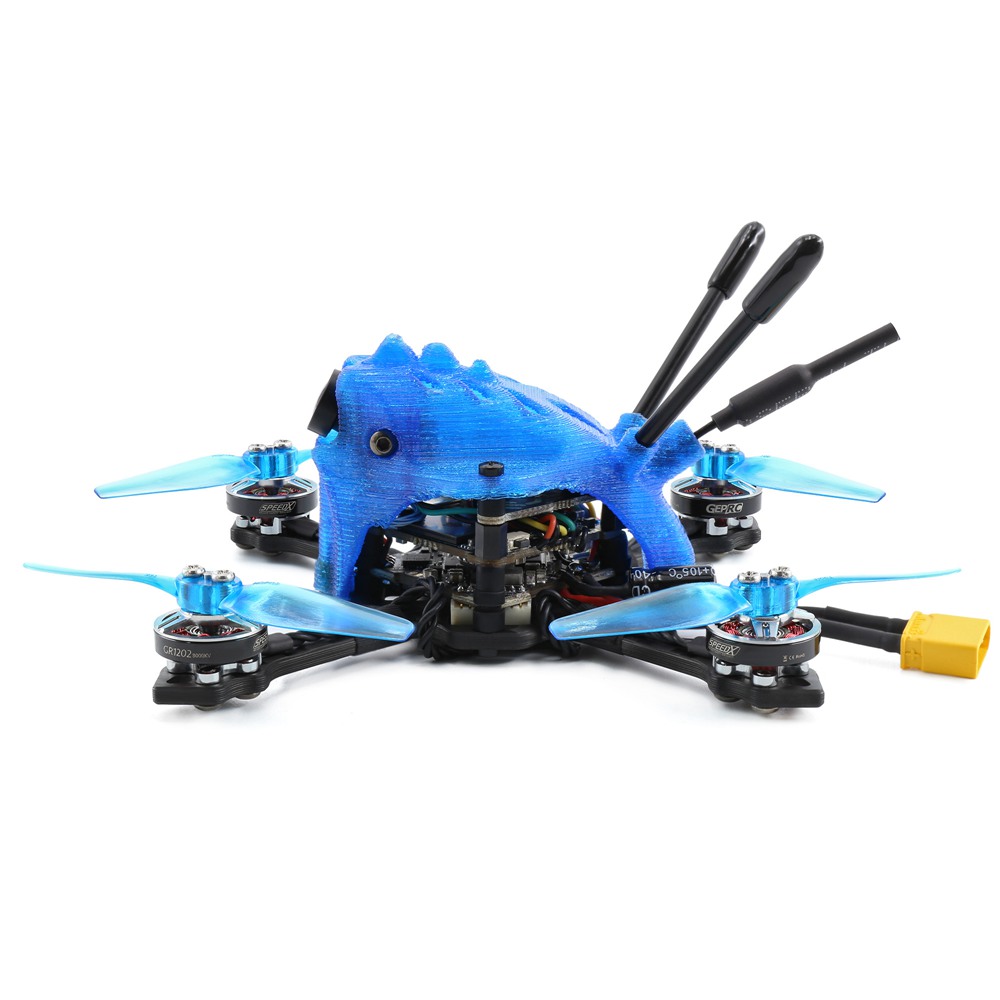

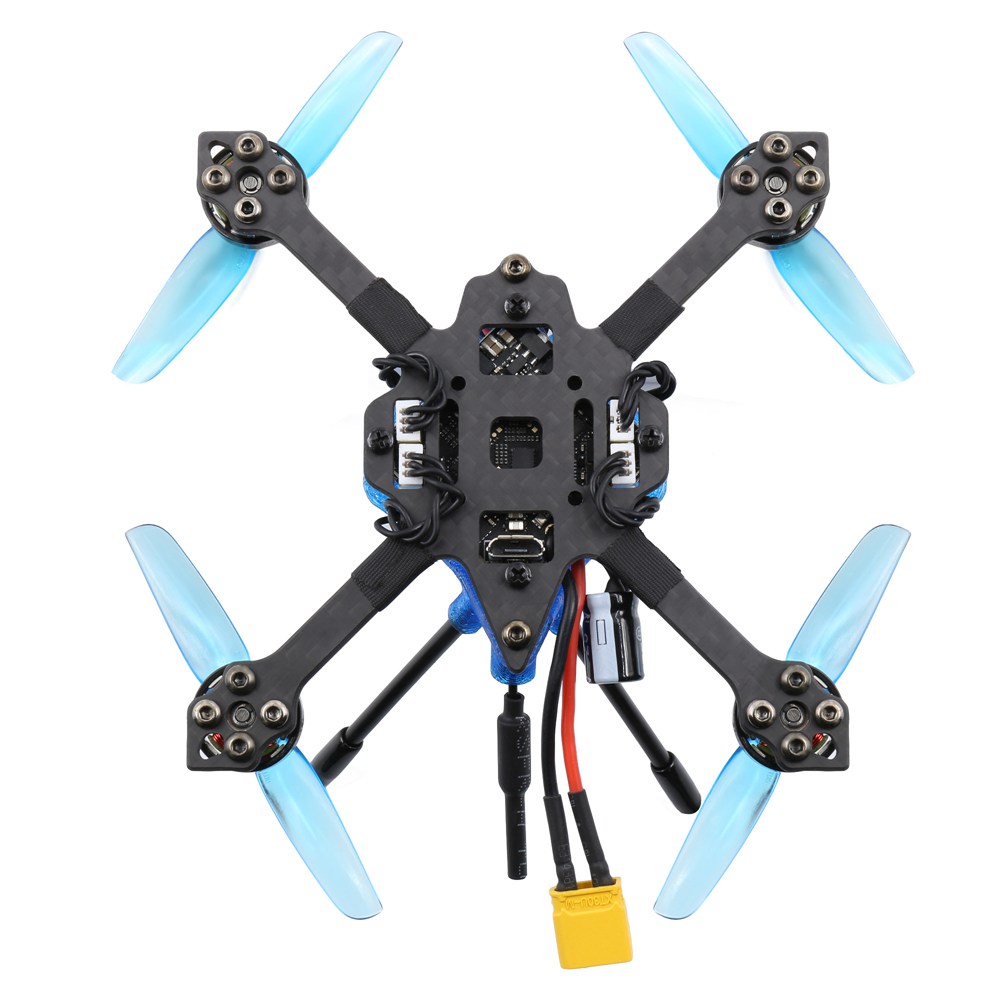

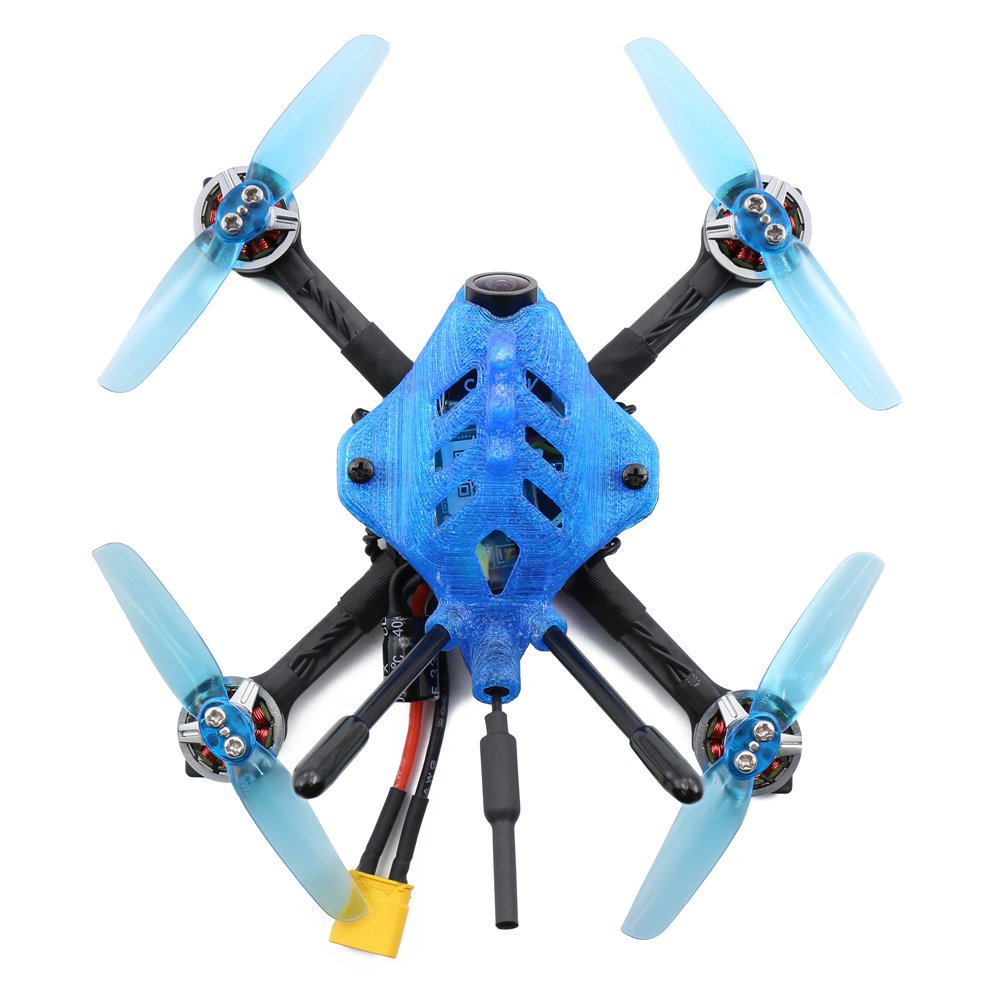

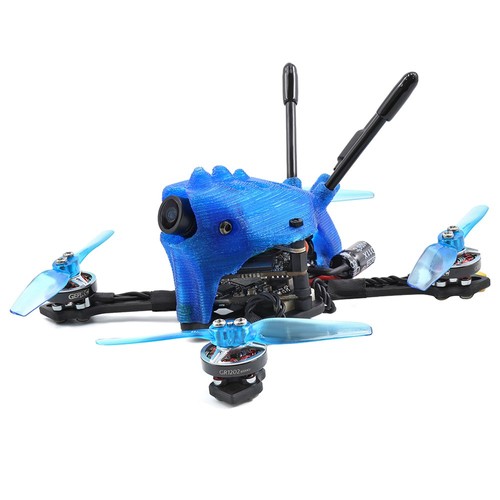

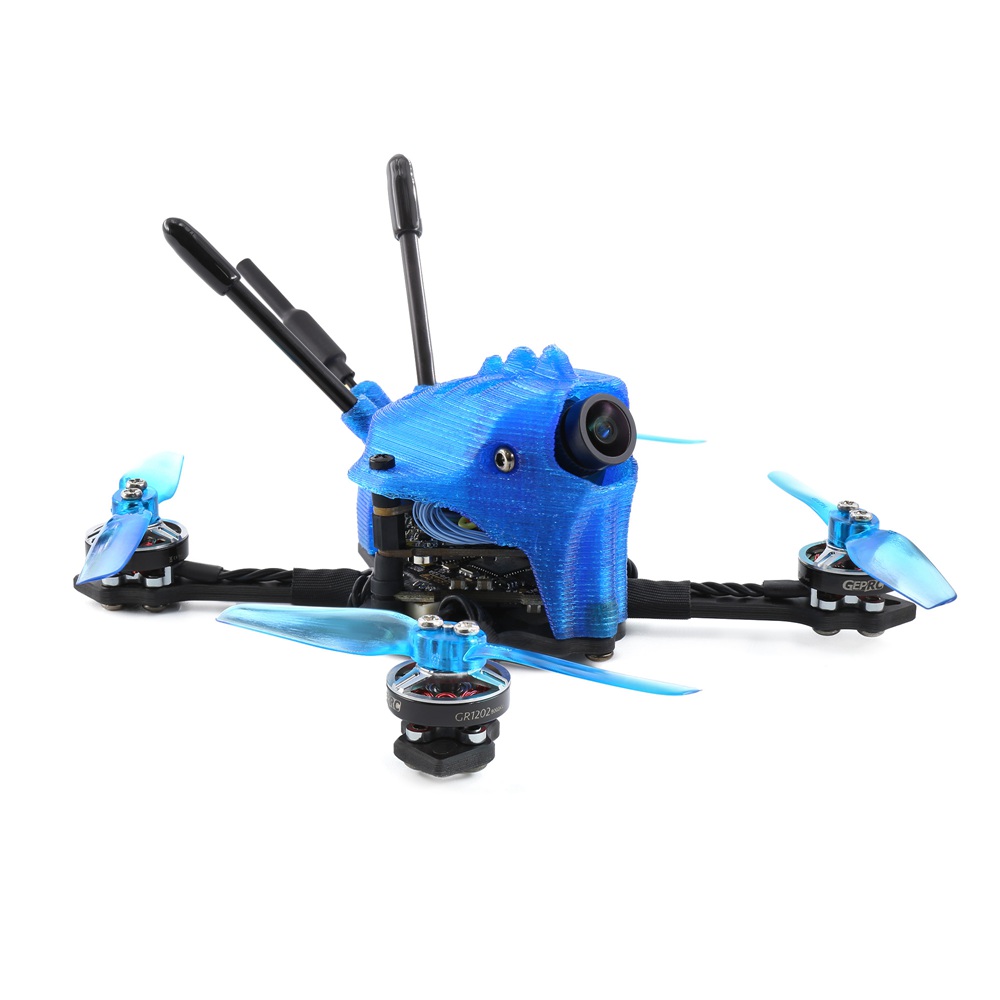

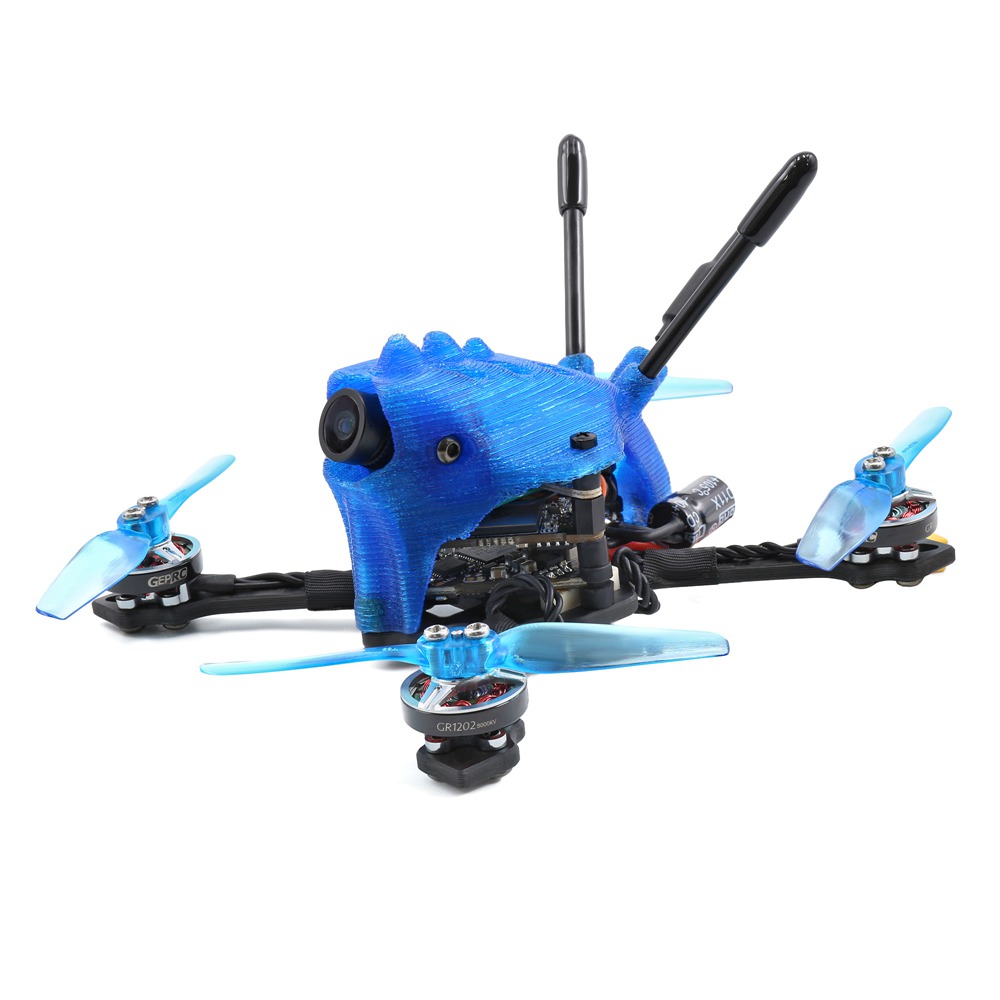

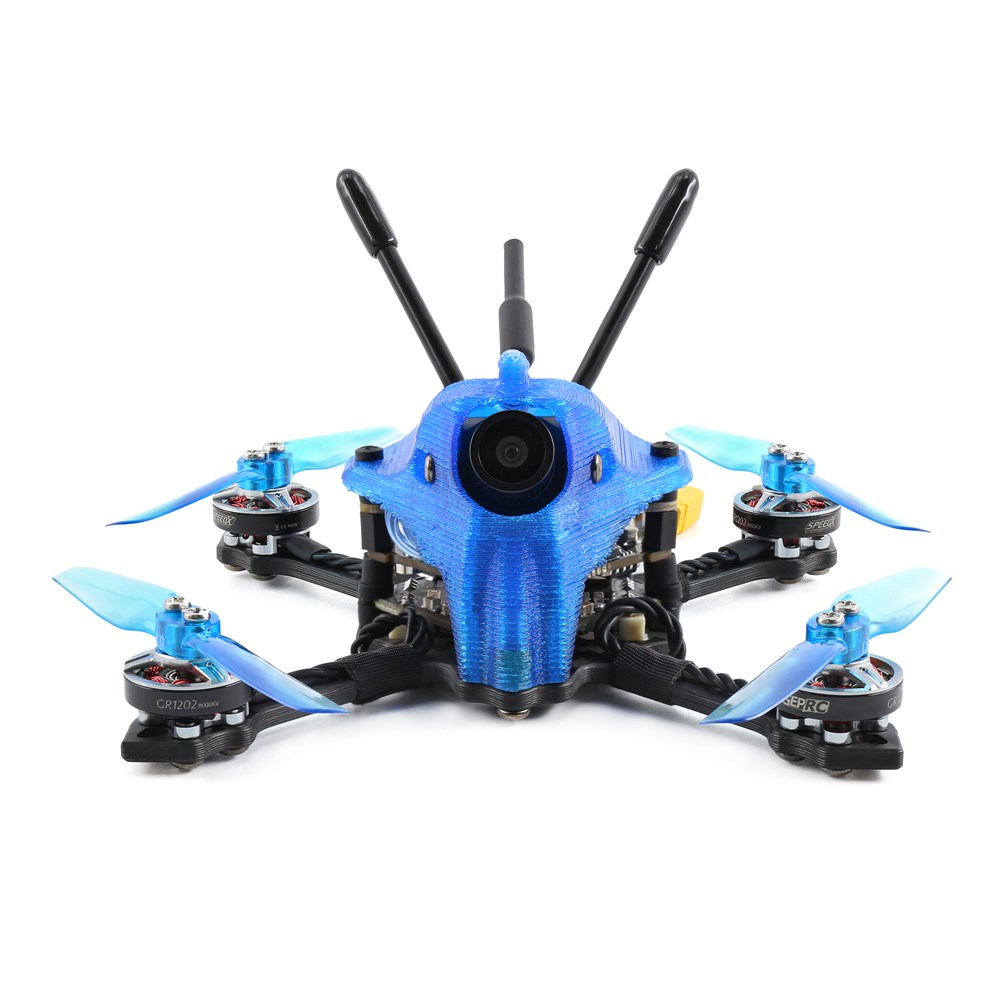

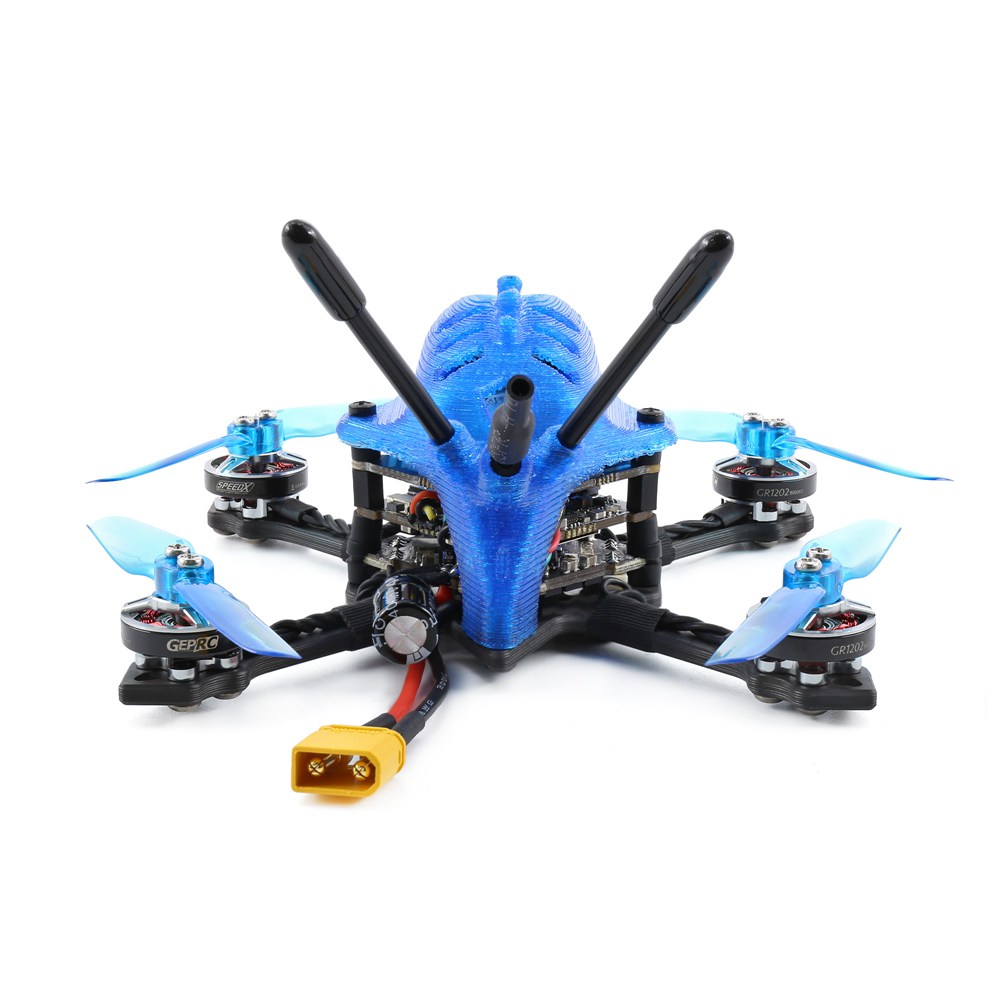

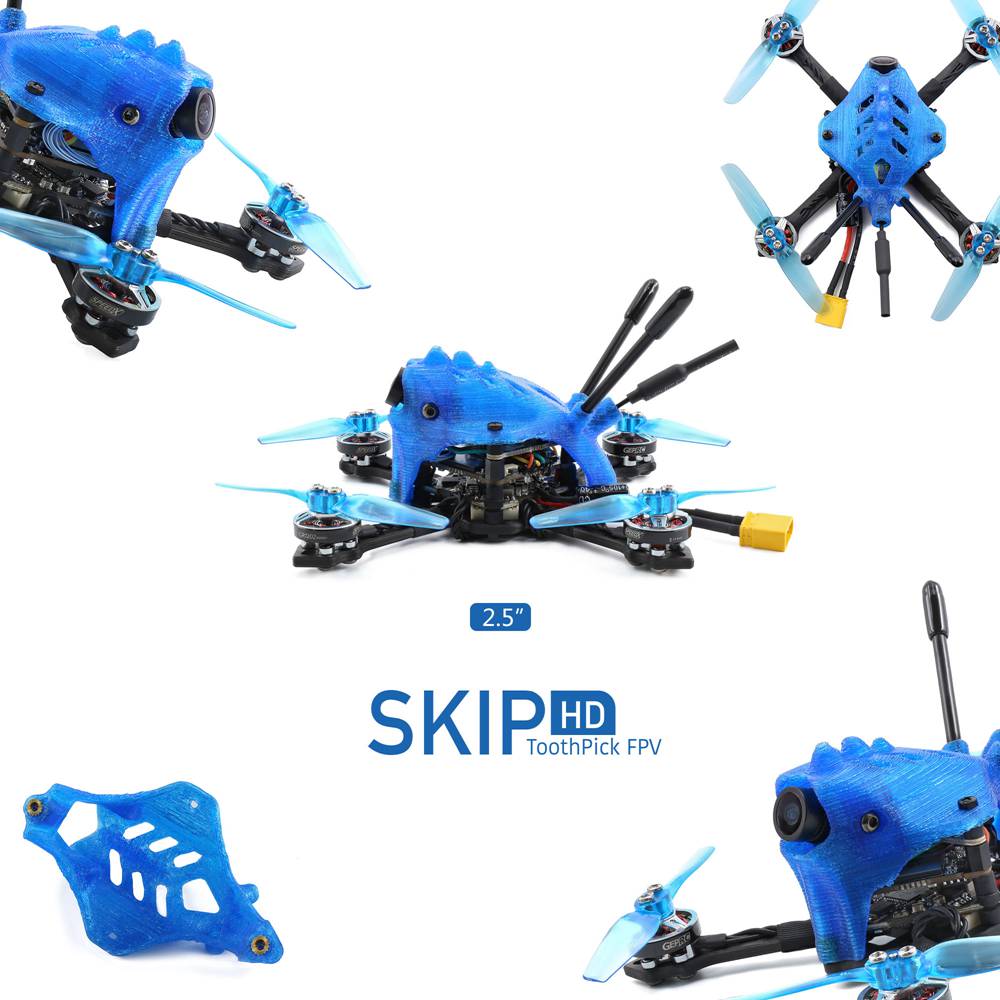

Geprc Skip HD 2.5 Inch 3S Toothpick FPV Racing Drone With GEP-12A-F4 5.8G 200mW VTX Caddx Baby Turtle V2 Cam PNP - Without Receiver

General

Brand: Geprc
Item Name: SKIP HD 2.5″
Color: Blue
Version: PNP
Receiver: None

Specification

Wheelbase: 105mm
Weight: 63g (Without Battery)
Frame: GEP-SP2.5
Bottom Plate Thickness: 2.5mm
FC & ESC: GEP-12A-F4
ESC: 12A(BLheli_S)
Motor: GEPRC GEP-GR1202 8000KV(3S 450mAh)
Propeller: 2.5inch
VTX: 5.8g 200mW
Camera: Caddx baby turtle V2
Battery: 450mAh 3S Lipo (Not included)
Flight Time: Almost 5mins in a smooth flight

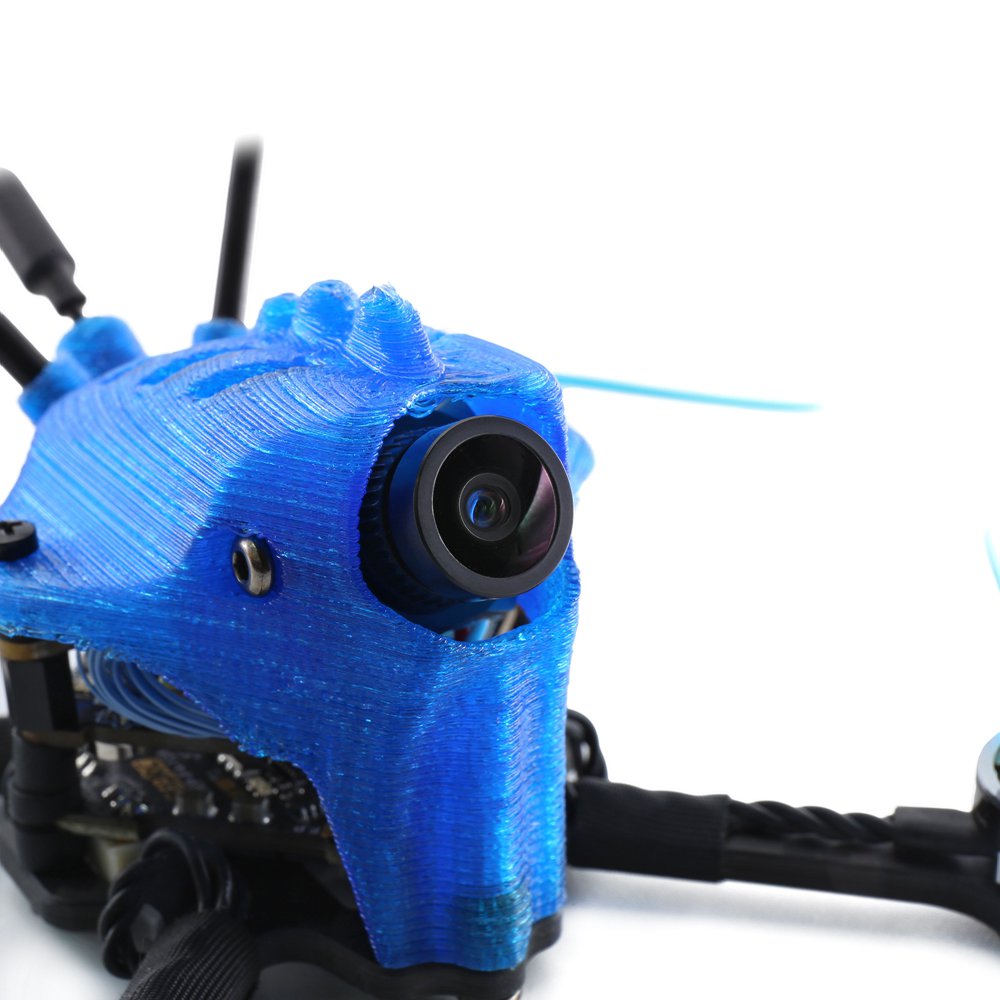

Caddx baby turtle V2 Cam

Image Sensor:1/2.7Inch Cmos sensor
Recording: 1080P/60fps,1080P/60fps
Lens: 108mm lens
FPV FOV/Recording FOV: 170
TV System: NTSC/PAL changeable with OSD

GEP-12A-F4 System:
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@2A
Mounting Holes: 25.5mm*25.5mm
Input voltage 2-4S LIPO
FC Firmware Target: MATEKF411
Continuous Current: 12A
ESC Protocol: pwm,oneshot125,multishot,dshot150,300,600,etc.
ESC Firmware Target: Blheli_S G_H_30
Current Meter: 210

5.8G 200mW VTX:
Power: PIT/25/100/200mW
Antenna Interface : IPEX (UFL)
Telemetry: IRC Tramp
Integrated LC Filter

Weight & Dimensions

Package Weight: 0.19kg

Package Size (L x W x H): 18 x 18 x 7cm

Package Contents

1 x Skip HD 2.5inch Toothpick FPV Racing Drone
