Highlights

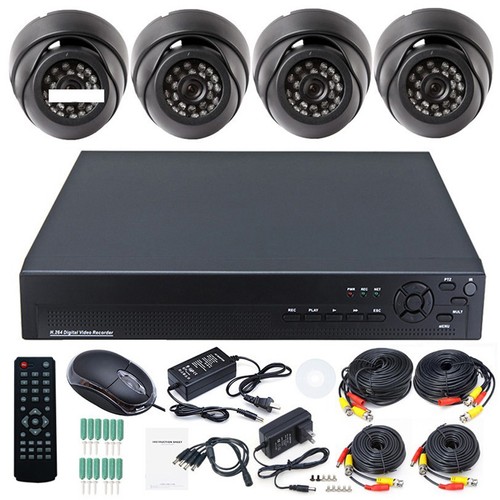

- StandAlone DVR:
- Adopt high performance H.264 video compression, high definition and good image quality.
- Embeded Linux operating system, stable performance.
- Allow live display, record, playback, backup and network operation at the same time.
- Support D1, HD1, CIF recording resolution.
- Recording modes: Continuous / Time Schedule / Motion Detection.
- Display resolution: NTSC: D1(704 x 480) / PAL: D1(704 x 576).
- 4CH playback simultaneously, playback modes support Normal Play, Fast Forward, Fast Rewind, Frame by Frame.
- Support VGA output and BNC video output at the same time.
- File backup via USB flash drive, USB hard disk, USB CD/RM and Network.
- Built-in a SATA interface, support up to 2TB hard disk. (HDD is not included).
- Support dual-stream design.
- Supports PTZ control through RS-485.
- Support Remote Access: LAN, Internet Browser and smart mobile phone(Windows Mobile, iPhone, Android and BlackBerry).
- Multiple control methods: front panel, IR remote controller and USB mouse.
- Plug and Play, easy to operate.
- CCTV Camera:
- High-sensitivity 1/4" Color CMOS.
- With 24 IR LEDs , the night visual range is up to 20m.
- 3.6mm camera Lens.
- Horizontal Definition is 420TV Lines.
- Low illumination, high quality image.
|
StandAlone DVR |
||
|
Operating System |
Linux Based |
|
|
Video Compression |
H.264 |
|
|
Video System |
NTSC/ PAL |
|
|
Video Input/Output |
BNC 4-Channel Input/BNC 1-Channel Output |
|
|
Other Video/Output |
VGA |
|
|
Audio Compression |
G711A |
|
|
Audio Input/Output |
RCA 1-Channel Input / RCA 1-Channel Output |
|
|
Record |
Resolution |
NTSC: D1(704 * 480); HD1(704 * 240); CIF(352 * 240) |
|
PAL: D1(704 * 576); HD1(704 * 288); CIF(352 * 288) |
||
|
Frame Rate |
NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF |
|
|
Modes |
Continuous / Time Schedule / Motion Detection |
|
|
Pack Time |
15/30/45/60 mins Selectable |
|
|
Display |
Resolution |
NTSC: D1(704 x 480) / PAL: D1(704 x 576) |
|
Frame Rate |
NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
|
|
HDD Interface |
SATA, support up to 2TB |
|
|
Playback Search |
Time & Date / Event List |
|
|
Playback Modes |
Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
|
|
Backup |
Via USB flash drive, USB hard disk, USB CD/RM and Network |
|
|
USB |
USB Backup / USB 2.0 |
|
|
PTZ Control |
RS-485 |
|
|
Network Interface |
RJ45, 10M/100M |
|
|
Network Protocol |
TCP/IP, PPPoE, DHCP and DDNS |
|
|
Remote Access |
LAN or Internet Browsing |
|
|
Alarm |
No |
|
|
Remote Control |
IR Remote Control |
|
|
Power Supply |
Input: 100-240V AC 50/ 60Hz; Output: 12V |
|
|
Casing Material |
Metal |
|
|
Language |
English, French, Greek, Hebrew, Italian, Portuguese, Russian, Spanish, Thai, Turkish, Japanese, Korean, Persian, Polish, Arabic, German, Simplified Chinese, Traditional Chinese, etc. |
|
|
Support System |
Microsoft Windows XP, Apple's operating system, Windows7, Android |
|
|
Operation Temperature |
0°C ~ 55°C |
|
|
DVR Dimension |
25.5 * 23.3 * 4.7cm / 10 * 9.2 * 1.8in |
|
|
DVR weight |
895g / 1.97Lb |
|
|
IR Security Camera |
||
|
Image Sensor |
1/4" CMOS |
|
|
Lens |
3.6mm |
|
|
TV System |
PAL |
|
|
Effective Pixels |
752 (H) * 582 (V) |
|
|
Horizontal Resolution |
420 TV Lines |
|
|
IR Distance |
15-20m |
|
|
Minimum Illumination |
0.2 Lux |
|
|
White Balance |
Automatic |
|
|
Backlight Compensation |
Automatic |
|
|
Automatic Gain Control |
On/Off |
|
|
Number of IR LEDs |
24 pcs |
|
|
S/N Ratio |
48dB |
|
|
Video Output |
1.0Vp - p/75Ω |
|
|
Material |
Plastic |
|
|
Operation Temperature |
-20centidegree~50centidegree |
|
|
Power Supply |
