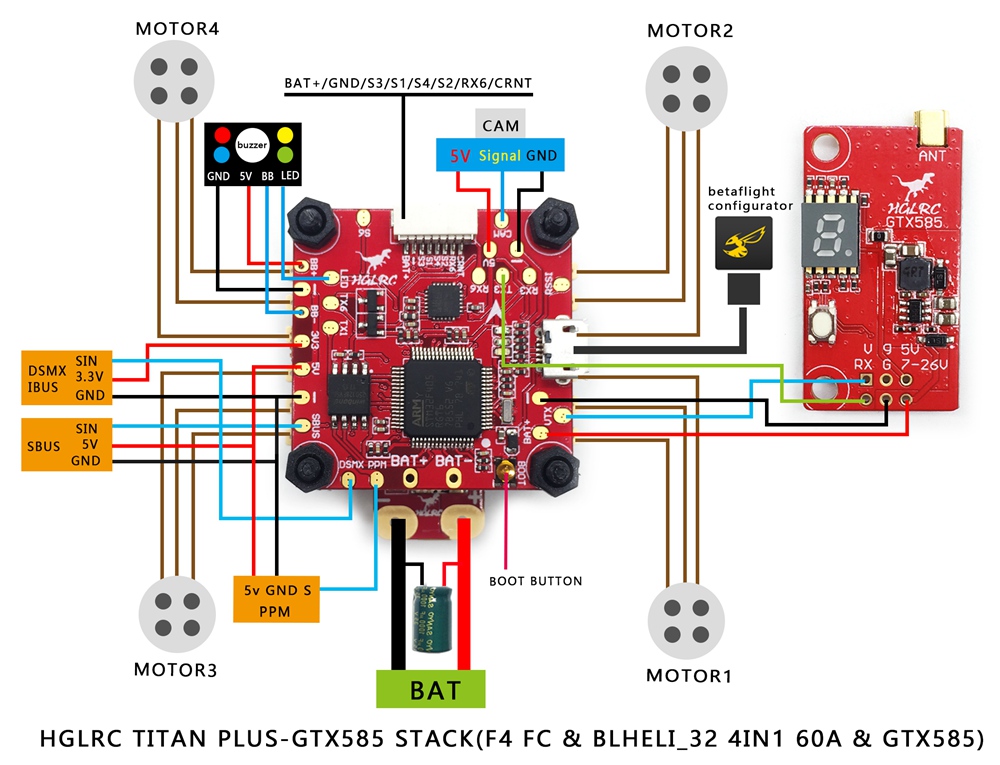

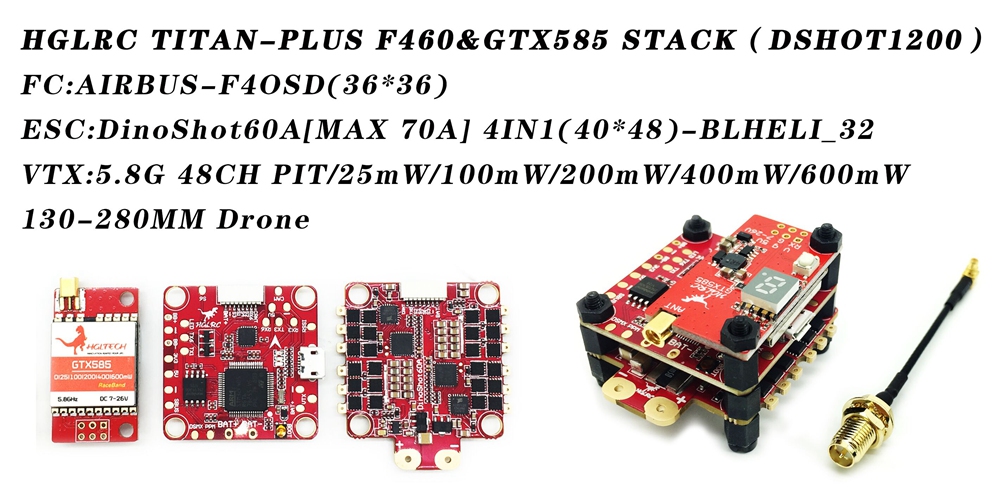

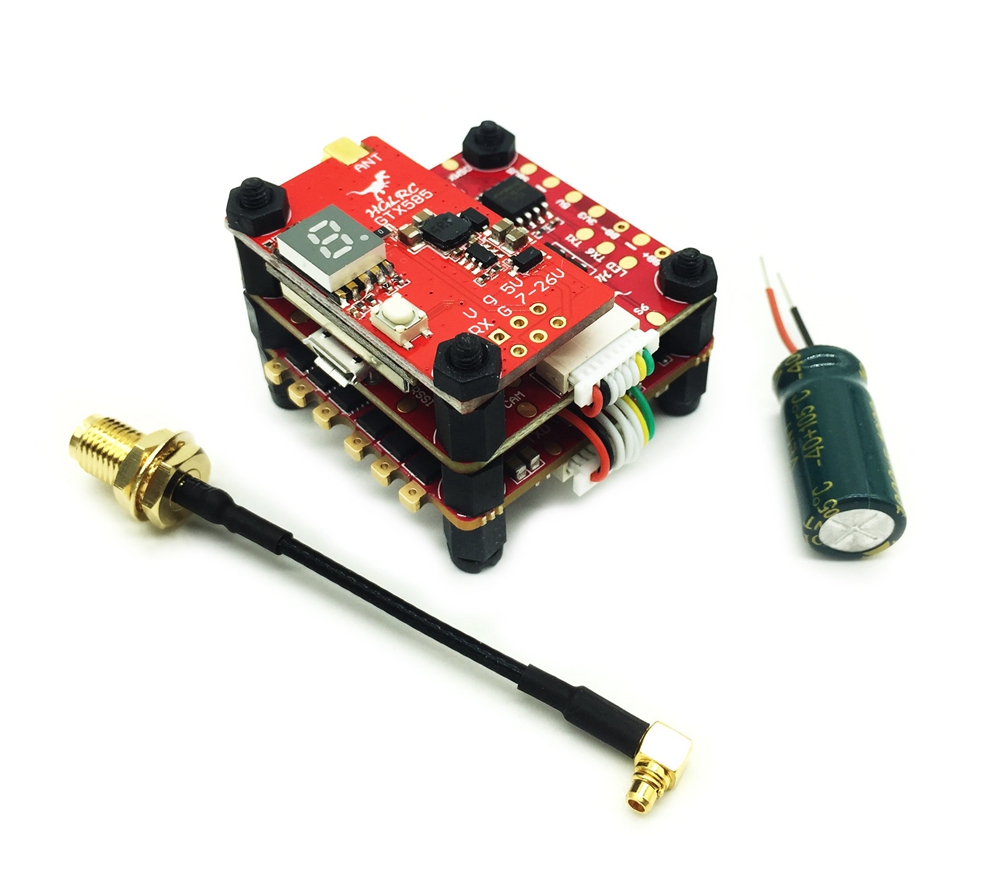

HGLRC TITAN PLUS F460-GTX585 AIO Fly Tower System AIRBUS F4 OSD + Dinoshot 60A Blheli_32 ESC + GTX585 VTX - RP-SMA Male

Brand: HGLRC
Item Name: TITAN PLUS
Item No.: F460-GTX585
Weight: 31.2g
Usage: for 130mm-280mm Frame Kit

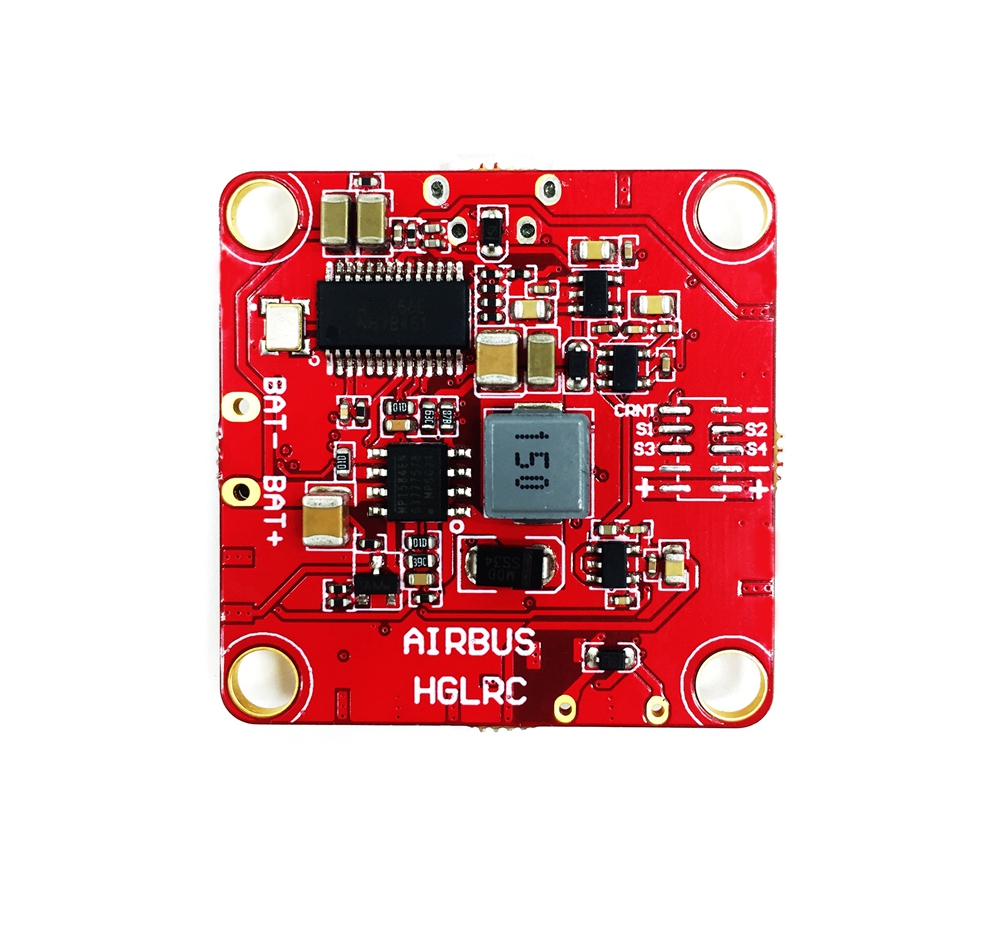

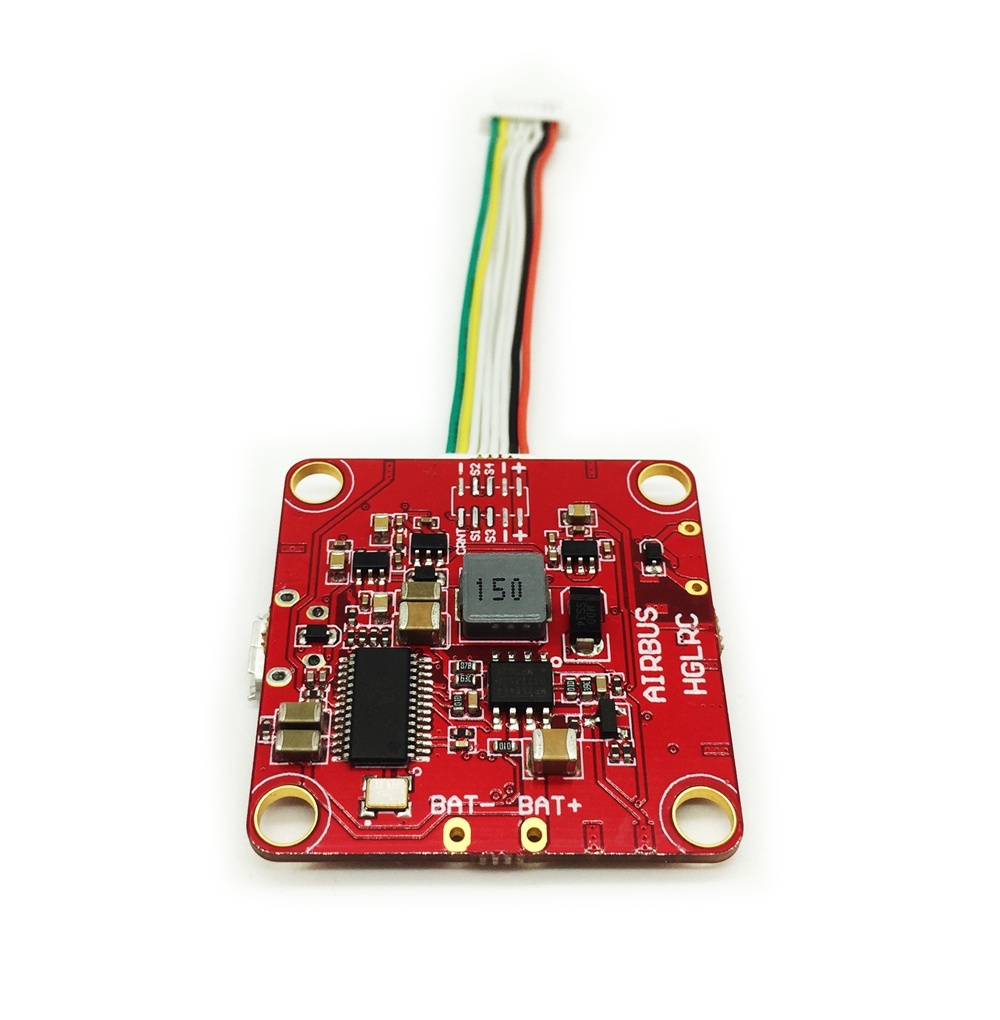

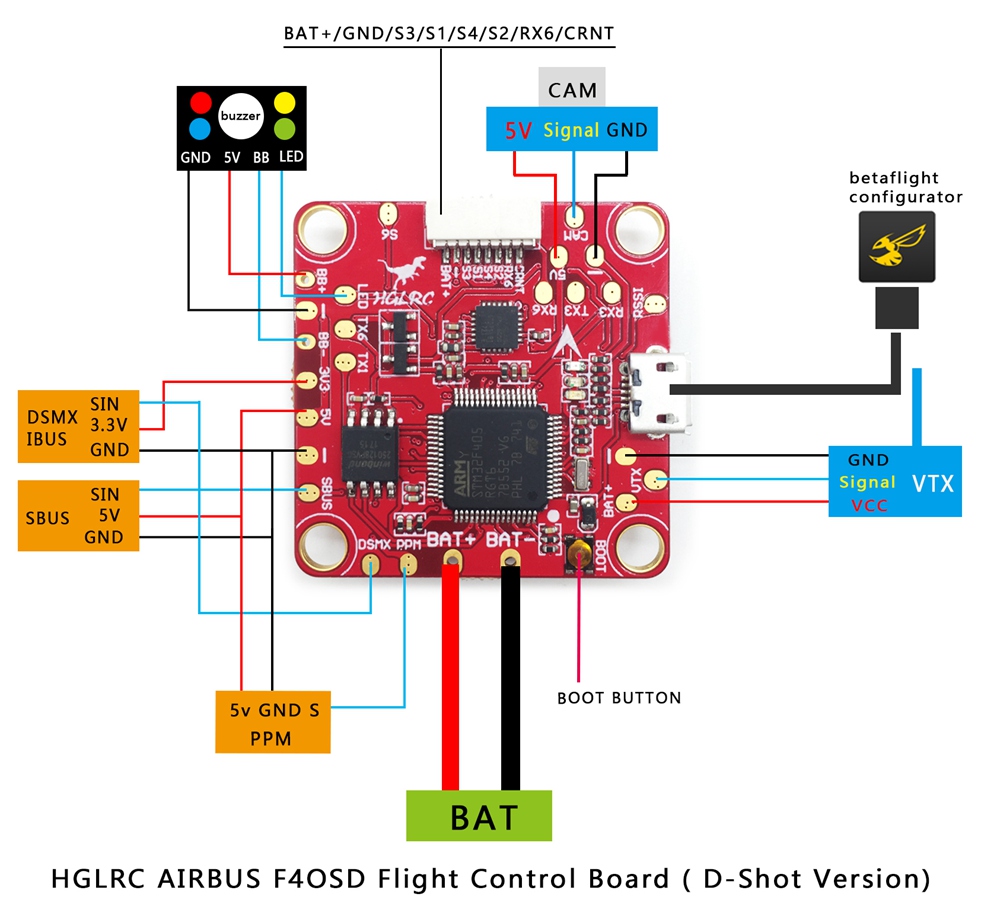

AIRBUS F4OSD Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, Dual 8K.
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36x36mm board, 30.5mm mounting holes (M3)
Weight:8.3g
Support Subs/PPM/DSMX receiver

DinoShot60A 3-6S 4-in-1 ESC BLHeli_32
Input Voltage: 3-6S Lipo battery
Constant Current: 60A
Peak Current: 70A
BEC Ouput: NO
Firmware:32bit ESC with BLHELI_32 firmware
Size: 36x36mm (main board)
      40x48mm (including pad)
Installing Hole:30.5x30.5mm,M3
Weight: 12.9g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped mode

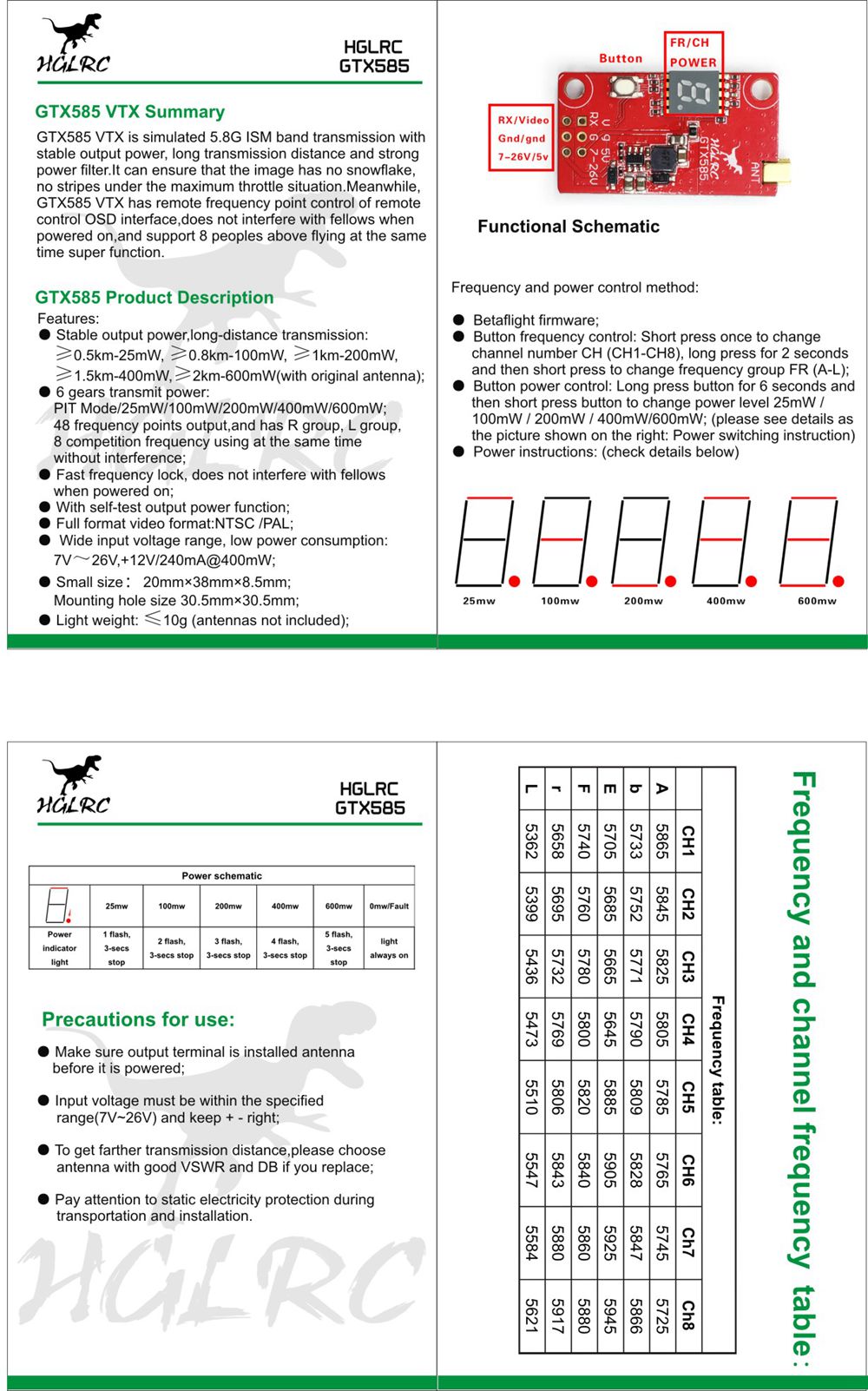

HGLRC GTX585 VTX FPV Transmitter
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA----400mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 20*38mm(L*W),Hole:30.5*30.5mm
Weight: 10g

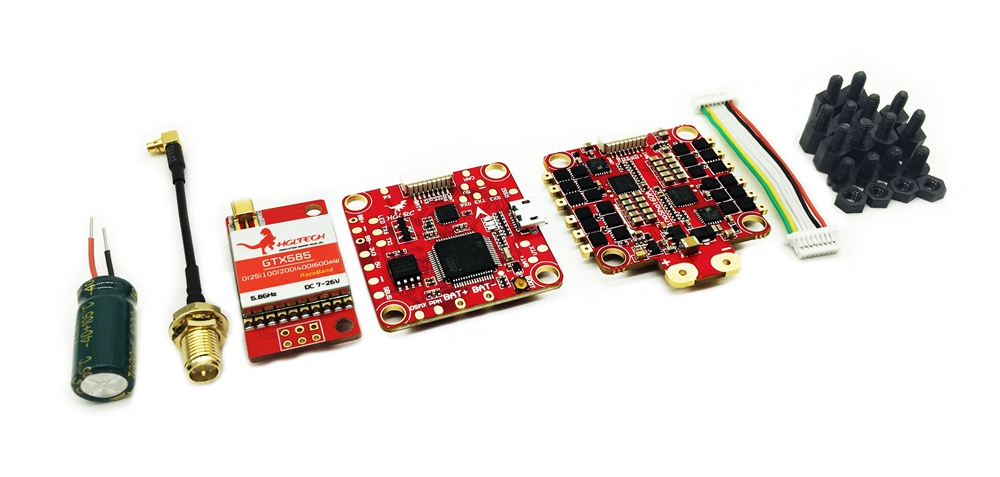

1 x HGLRC AIRBUS F4OSD Flight Control Board
1 x HGLRC DinoShot60A 3-6S 4-in-1 ESC BLHeli_32
1 x HGLRC GTX585 VTX FPV Transmitter
1 x SH1.0 8PIN 60mm cable
