Brand Name: HGLRC
Item Name: 145mm Carbon Fiber Frame Kit
Model: VX145
Wheelbase: 145mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm
Material: Carbon Fiber

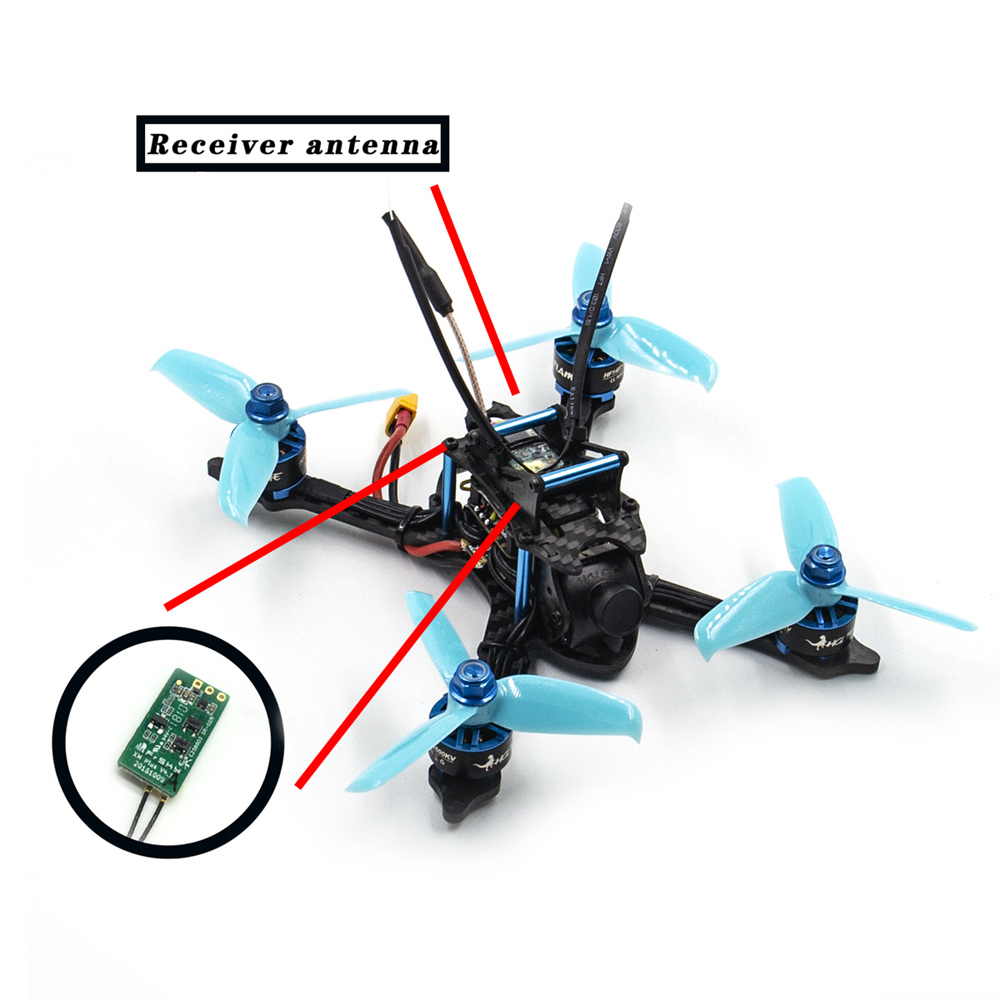

FRSKY XM+ Receiver
Weight: 29g
Model: HGLRC XJB F428-TX20.V2-ELF CAMERA
Weight: 6.5g
Usage: for 65mm-250mm Frame Kit
Micro F4 V2 Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:2.3g
Support Subs/PPM/DSMX receiver
28A 2-4S Blheli_S BB2 4 in 1 ESC:
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLheli_S 16.7
Size: 27x27mm (main board)
31x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
HGLRC XJB-TX20.V2 Mini FPV Transmitter
Output power: PIT/25mW/100mW/200mW/350mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA----350mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 24*24mm(L*W),Hole:20*20mm
Weight: 2.4g
Model: HGLRC XJB-ELF CAMERA
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.3mm Lens
FOV: 120 degree(2.3mm)
Signal System: PAL
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.6g
Dimensions: 19mm * 19mm * 19mm
Model: HGLRC HF1407-3600KV
|
