Highlights
As a stand-alone buzzer, it can be used regardless of the form of drones or the battery for main power supply of drones.
Integrated LiPo battery charging circuit. The battery can be recharged at any time by connecting to a powered on drone
It is small, light, and solidly designed with heat shrink tube structure to protect the product.
Operation and Usage Explanation
Press the button and hold on for 1~2 second, a power on alarm is triggered which will sounds like '1-2-3’ with a flashing white led.
If there is no VCC5V0 detected for a certain period of time (about 30 seconds) after the power is turned on, a missing alarm will automatically sound(B-B-B). This situation occurs when a drone is crashed and the main battery supply is lost (so the VCC5V0 output of the FC lost at the same time).
If continuous VCC5V0 is present and detected after a drone crash, then we could trigger the alarm by transmitter Aux channel switch that pre-configured to BEEPER feature.
After use, to turn off the power, press the button and hold on for 1~2 second, then a power-off alarm is triggered which sound like '3-2-1’.
Specification
| General | Brand: Happymodel Item Name: Tracker Finder Buzzer Alarm Item No.: DT-B90 Quantity: 1PCS |
| Specification |
Size: 25X16X15MM Introduction: The DroneTracker Basic Version is a "stand-alone Beeper" that acts as a drone position tracker with built-in VCC_5V voltage sensor designed to be used with the single rechargeable LiPo battery. |

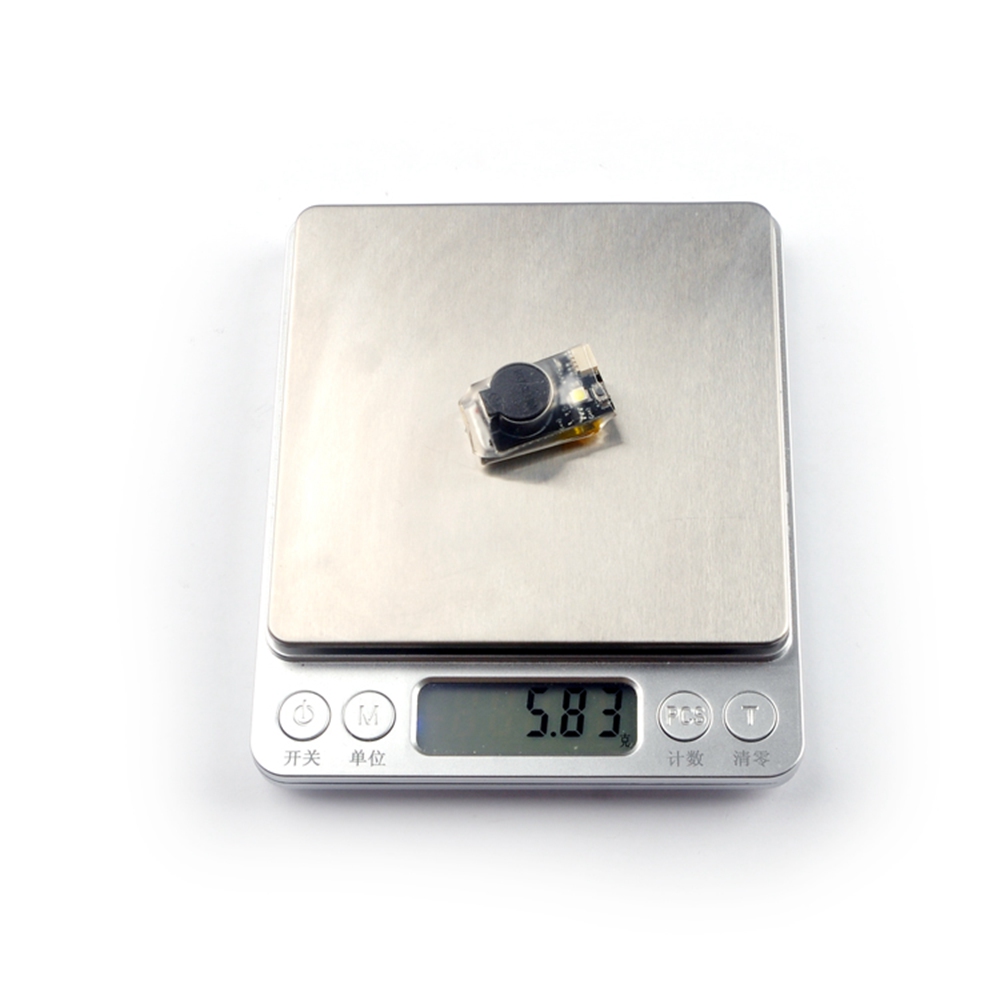

| Weight & Dimensions | Product weight: 5.7g Product size (L x W x H): 25X16X15MM |

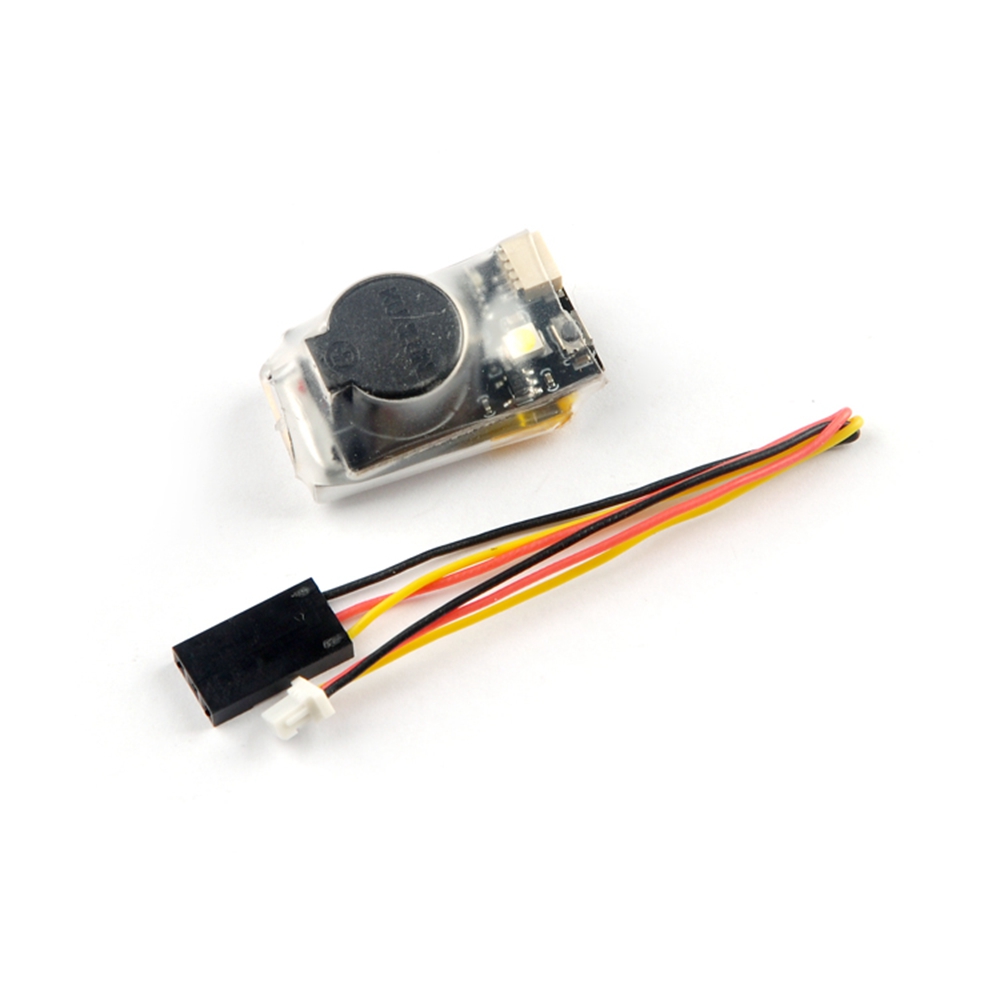

| Package Contents | 1 X DT-B90 1 X Cable |
