Happymodel Mobula6 HD 1S 65mm Brushless HD Whoop FPV Racing Drone with Crazybee F4 Lite 1S Flight Control w/Runcam Nano3 - Compatible Frsky D8 Receiver

Brand: Happymodel 0Answered Questions Item Code:424674
Price:
$108.00Exclusive app price!

Download APP

Add this item to your cart and then purchase it on our app to save $11.00

Ship from:
QTY: In Stock
Shipping:
Buy Now Add to Cart
Add to Wishlist(9)
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
  • Description
  • Reviews
  • Q&A
  • Buy Now Add to Cart

Highlights

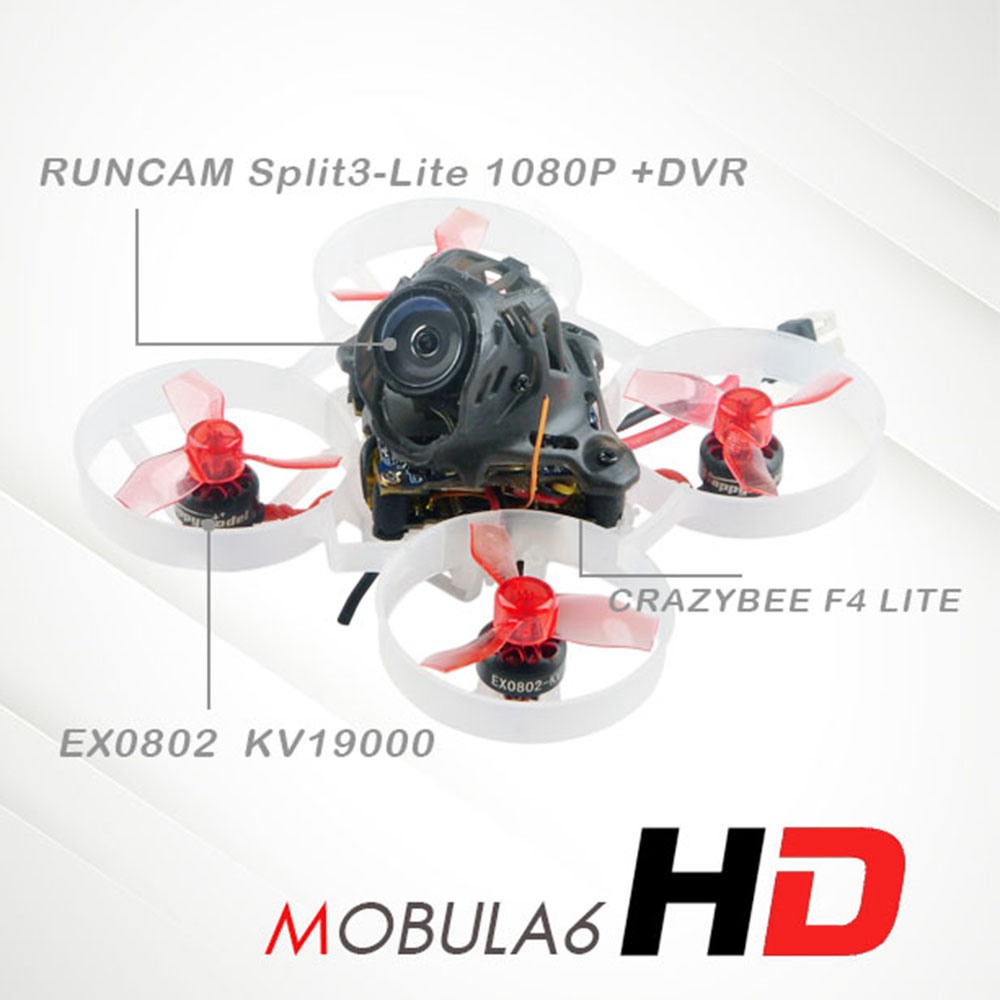

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

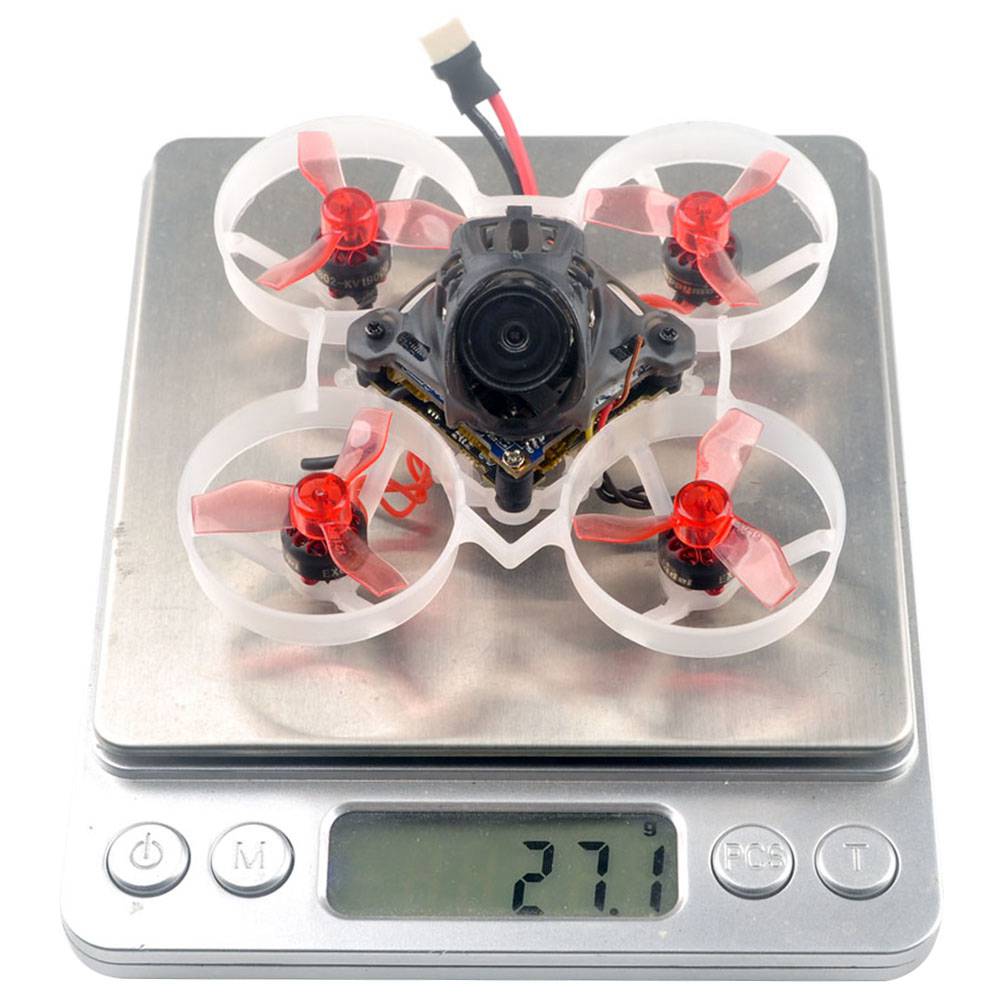

Extreme light 1S 65mm Brushless HD whoop only 27g

Come with Runcam Split3-lite 1080P HD DVR

Smooth and agile

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

Specification

Motor

Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only

Propellers

Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS

(External DSM2/DSMX RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX

(External TBS CRSF NANO RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model

Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard Flysky SPI receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support

External DSMX version

Resolution: 1024/2048
Operating voltage: 3.3V
Working current: 60MA
Size: 15mm*10mm*5mm
Antenna length: 30mm
Protocol: DSM2/DSMX

External TBS CRSF Nano receiver version

Original TBS CROSSFIRE Receiver  ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready

Runcam Nano3

Model: RunCam Split3-Lite

Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)

Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps

Video File Format: MOV

Image Resolution:2 MP

TV Mode: NTSC (720*480)/PAL (720*576) Switchable

Interface: JST 1.25mm / UART and SH 1.0mm

Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)

Hole Distance of Installation: 25.5*25.5mm

PCB Size: 29*29mm

Lens Module Size: 14*14mm

Lens Specs: M9

Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)

Working Current: 450mA @5V

Lipo Battery

Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 55mmx12mmx7mm
Weight: 6.5g

Connector: PH2.0

Package Contents

1 x Mobula6 HD 1S Brushless Whoop
4 x 1S 300mAh 30C Lipo Batteries
1 x 1S Lipo/LIHV USB Charger
1 x Propeller Disassemble Tool
