Highlights

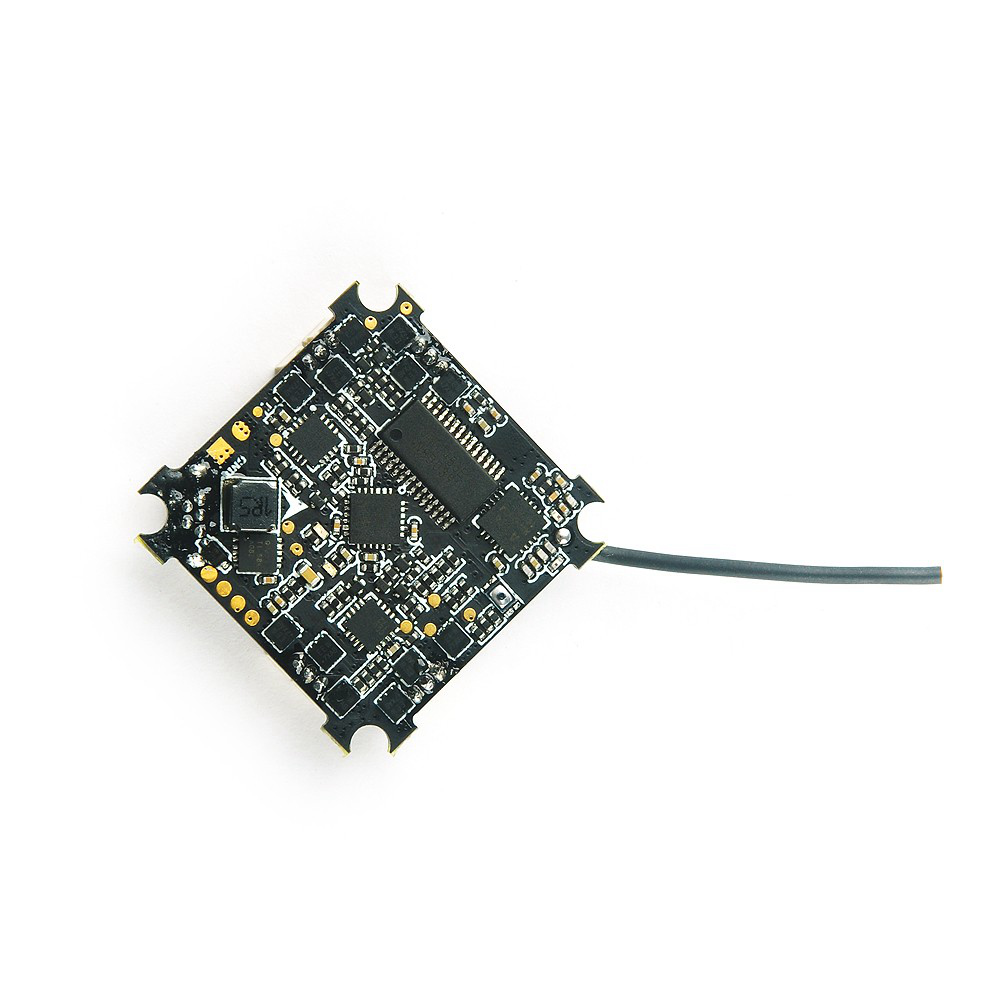

The world first 1-2S Brushless F3 flight controller with internal 4in1 ESC OSD 2.4G receiver Current sensor Buck / Booster is coming. You only need to add a VTX and Camera . It’s a best choice for 2S Brushless tiny whoop.
Specification
General |
Brand: Happymodel |
Flight Controller | MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Weight:4.2g Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Flysky receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A Buck / Boost with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready |
Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 |
Flysky Receiver | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
Package Contents |
1 x Crazybee F3 PRO flight controller |
