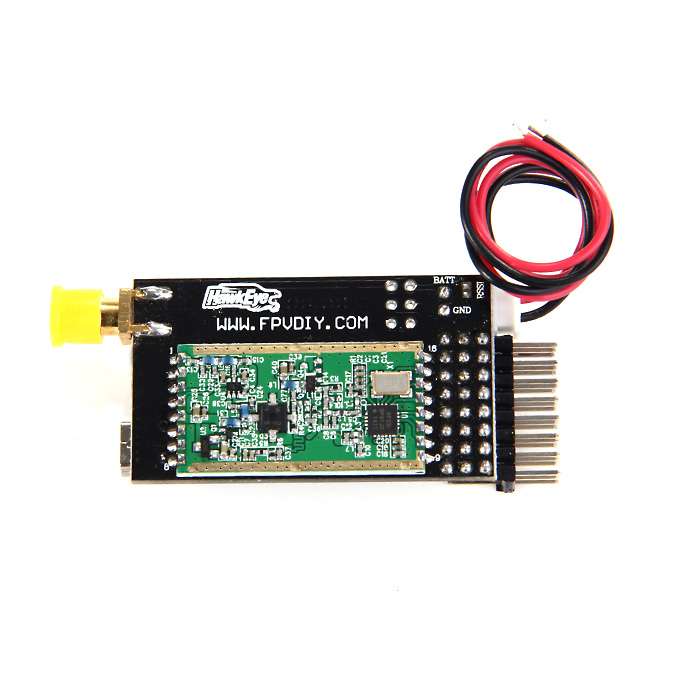

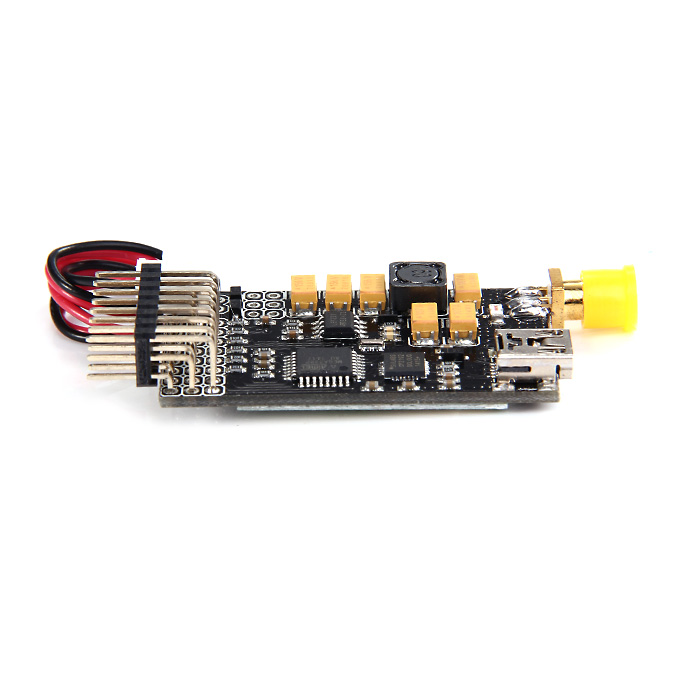

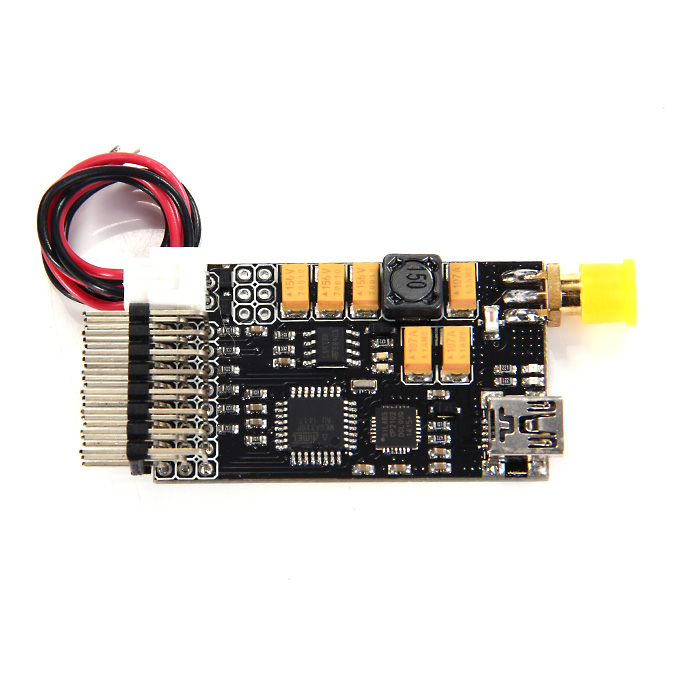

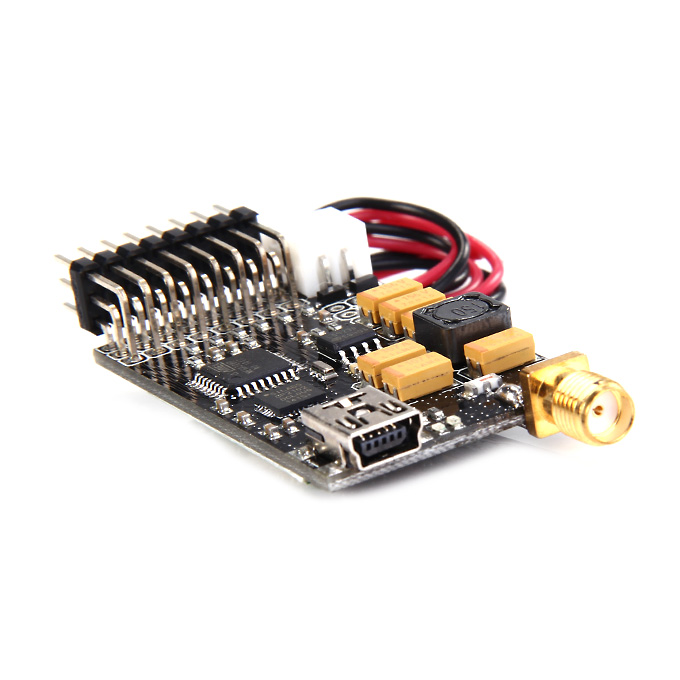

HawkEYE DTF UHF 1Watt Long Range Receiver

Highlights

Lowpass input filter to reduce out-of-band interference

Input voltage is 2-3S

PPM output up to 16 channels (enable in menu)

RSSI output, digital (enable in menu) (can be turned into 3.3v analogue with a solder jumper)

Completely user-settable frequency selections: 413MHz up to 453MHz

Up to 24 hopping channels, user-settable

Custom pin mapping

Adjust settings and bind wirelessly, without digging it out of your aircraft

Can also be used as a transmitter

RFM23BP tranceiver module including Si4432 chip with configurable 0-1000mW output, Frequency hopping capability and hundreds features.

(49x28mm) board size

around 15 grams with SMA connector and servo pins.
