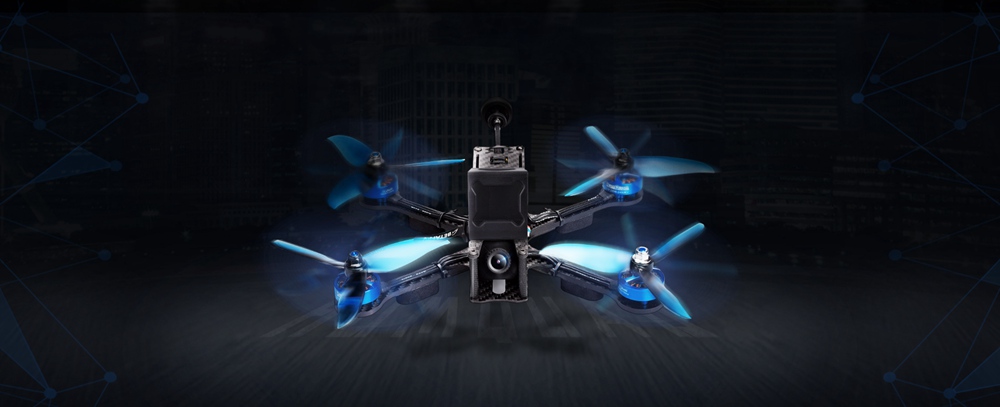

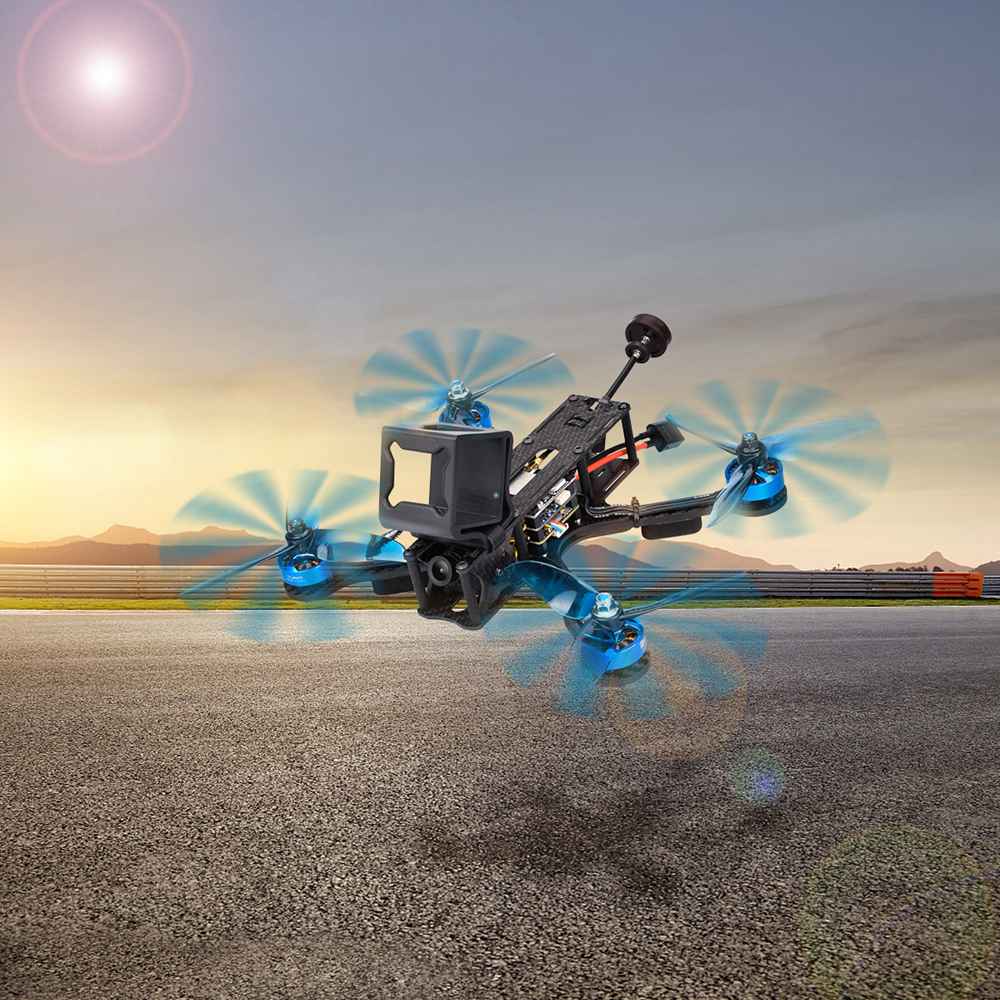

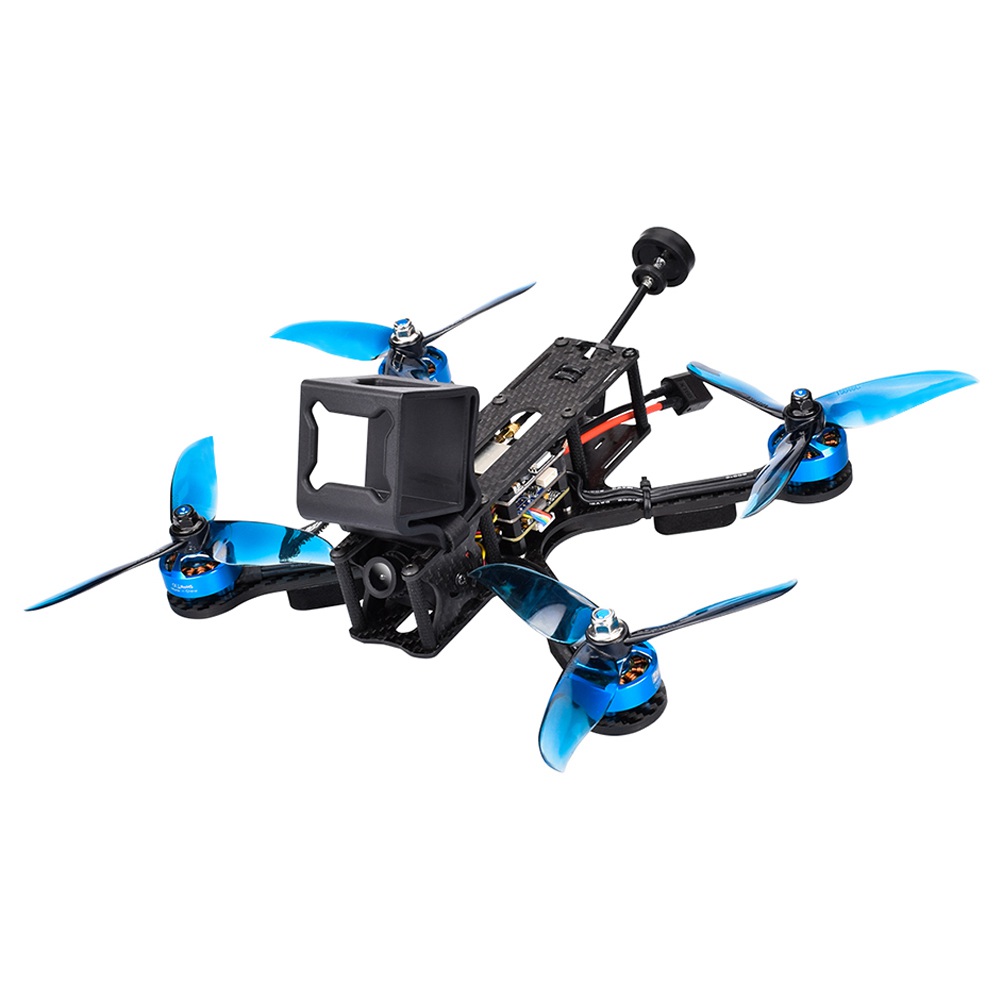

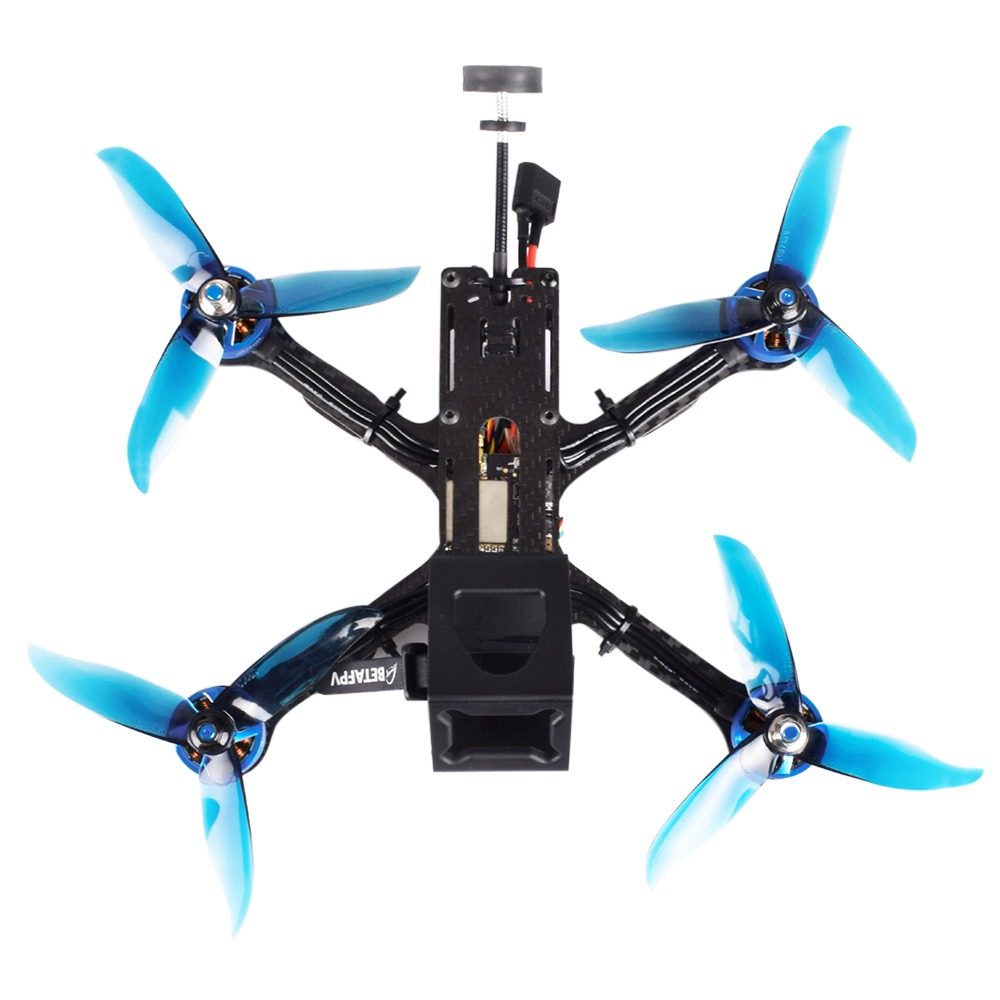

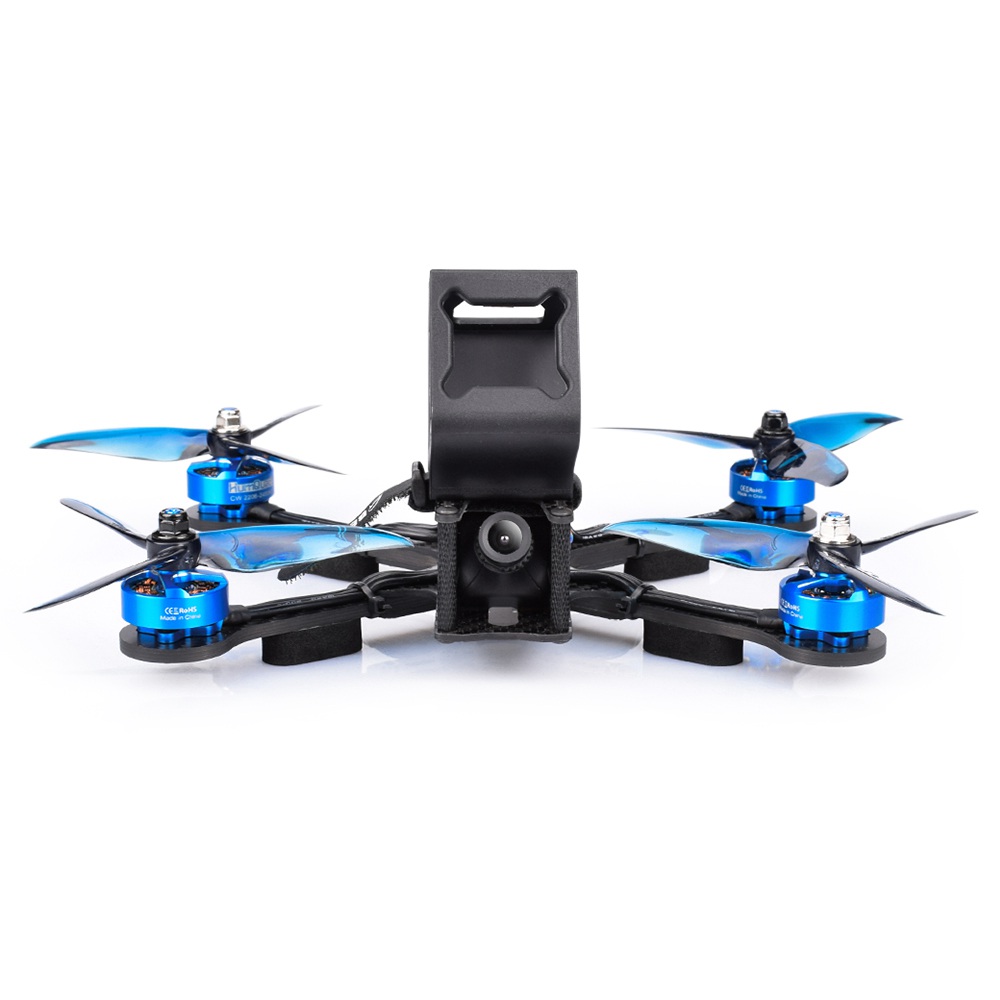

HumQuad HX220 220mm 2-5S FPV Racing Drone F4 V3 FC 4IN1 30A BLHELI_S ESC w/600mW VTX 800TVL Cam BNF - Frsky FCC Receiver

General

Brand: HumQuad
Item No.: HX220
Version: BNF(With Frsky FCC Receiver)

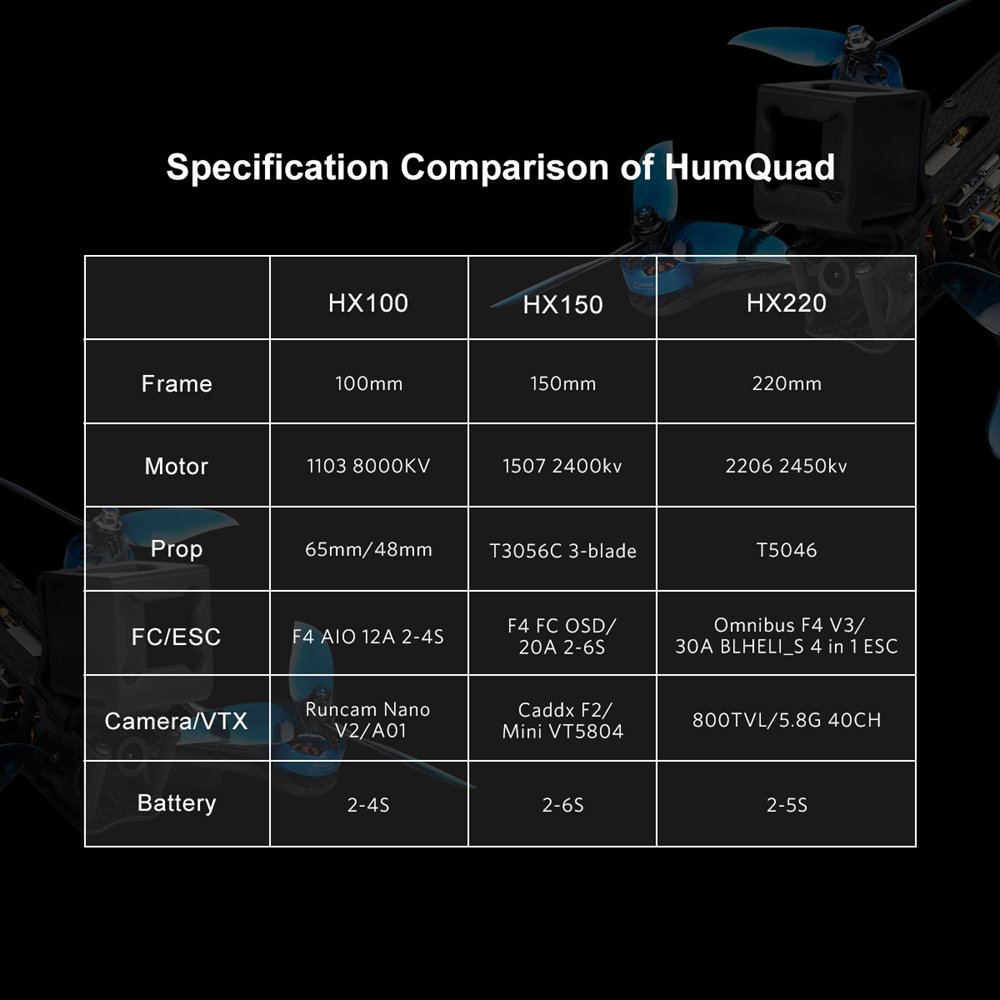

Specification

Wheelbase: 220mm

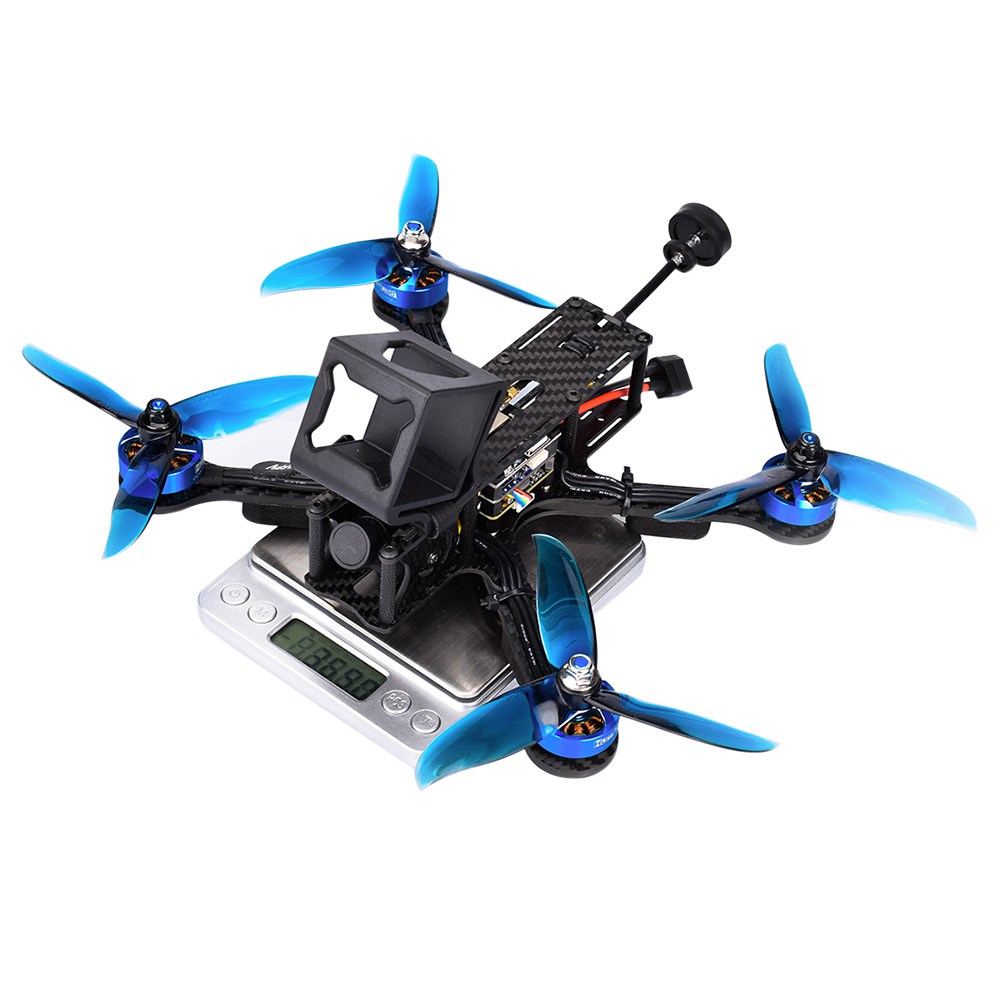

Weight: 356g(Without Battery)
Frame Arm: 4mm(Carbon Fiber)
Motors: 2206 2450KV
Props: 5 inch Props
Camera: 1179 800TVL CCD
VTX: 5.8G 40CH 25MW 200mw 600MW switchable transmitter
Flight Time: 12mins with 450mAh 3S battery (smooth flight in a windless environment)
NO.OF cell: 3-4S

Omnibus F4 V3 Flight Controller:
Size: 36x36mm
Mount holes: 30.5x30.5mm
STM32 F405 MCU,Runs Betaflight 3.5.2 firmware,could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
With barometer
SPI Sensor MPU6000
Included 128Mbit Flash,please always use BEC for the FC.
Supported by BETAFLIGHT and dRonin

HumQuad 30A BLHELI_S 4in1 ESC
Con. current: 30A
Peak current (10S): 35A
Input voltage: 2-5S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 28g
Size: 36*36MM

Camera And VTX
HumQuad 1179 800TVL CCD camera
Color: Purple
Sensor: CCD
Resolution(horizontal center): 800TVL
Shell size: 25mm*25mm
Weight: 11g
Resolution: PAL: 1980H×1080 (2MP)
Format: PAL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00 adjustable,up to 55dB.
AWB: ON/OFF
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: internal synchronization
Lens: standard 2.8mm lens
Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V)
Workig current: 70mA (low power consumption)
Workig temperature: -20--60
Humidity: 0%~98%
Strong backlighting effect

Props
Color: Blue
Quantity: 1pair
Mounting Hole: 5mm

Weight & Dimensions

Package Contents

1 X HumQuad HX220 Racing Drone( BNF Version )
