Highlights
Beastly Performance & Precision Cutting

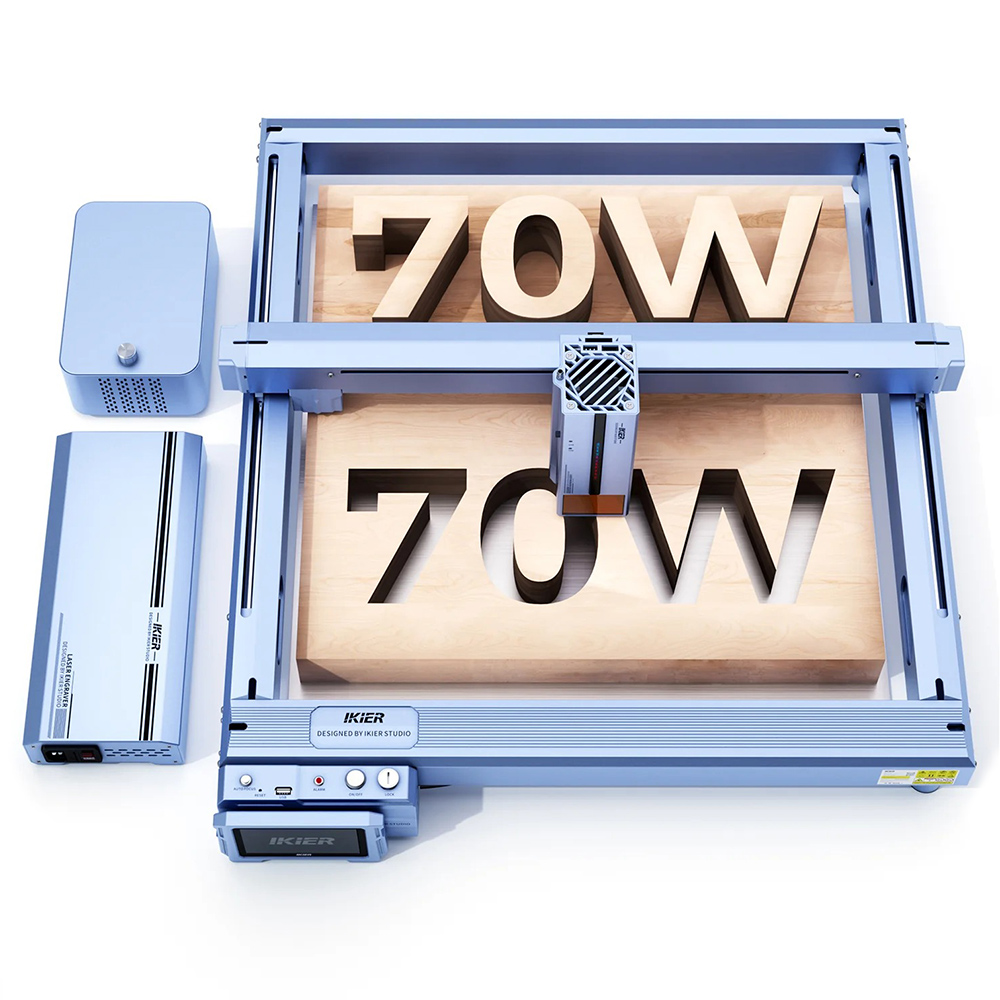

Equipped with the market’s highest-power laser, the IKIER K1 PRO MAX delivers 70–77W optical output, achieving cutting power 90–100% higher than standard 40W machines. It can cut through 25mm plywood, 30mm paulownia wood, 18mm black acrylic, 12mm MDF, 30mm pine board, and even 0.05mm stainless steel in a single pass. Ultra-fine 0.15×0.2mm laser spot ensures high-density, high-precision engraving and cutting, rivaling 120–150W CO2 lasers.
Super-Fast Working Speed & Ultra-High Accuracy
The machine’s optical axis + linear guide motion structure enables up to 900mm/s movement speed while maintaining engraving precision of 0.01mm. High-speed operation significantly boosts workflow efficiency without sacrificing accuracy.
Intelligent Z-Axis & One-Click Autofocus
Exclusive intelligent Z-axis allows both electric and manual adjustments, enabling three-axis control for smarter and more user-friendly operation. Paired with 8-second one-click autofocus, your laser automatically focuses precisely, making setup effortless even for batch jobs.
Auto Sinking Cutting & Upgraded Focus Coupling
The self-developed intelligent motherboard and optimized laser algorithm control automatic laser descent, increasing maximum cutting depth by 30–50% depending on material. Coupled with upgraded focus coupling technology, it ensures deep, clean cuts and sharp engraving across a wide range of materials including mirror-finish stainless steel, ceramics, and black acrylic.
4.3-Inch Intelligent Offline Controller
The large LCD touchscreen controller allows offline operation, freeing the machine from PC dependence. It provides a more convenient, intuitive interface with enhanced control functions for effortless operation.
Comprehensive Safety & Intelligent Air Management
IKIER prioritizes user safety with physical switch key, flame sensor, tilt/gyroscope detection, and other safety protections. Built-in air assistance with dual-layer wind guide automatically adjusts airflow and cooling during operation, ensuring a quiet, efficient, and energy-saving working environment. An LED laser energy indicator provides real-time visual feedback of laser output.
Specification
| Brand | iKier |
| Type | Laser Engraver |
| Model | K1 Pro Max 70W |
| Engraving Size | 410mm × 410mm |
| Electric Power | 360W |
| Laser Power | 70–77W / 35–39W (Dual-Gear) |
| Max. Movement Speed | 900mm/s |
| Spot Size | 0.15mm × 0.2mm (70W); 0.1mm × 0.15mm (35W) |
| Engraving Precision | 0.01mm |
| Laser Wavelength | 455 ± 5nm |
| Focusing Method | Autofocus or Manual, with Infrared Positioning |
| Advanced Z-Axis | Auto Sinking During Cutting |
| Operating Systems | Windows, macOS, Android, iOS |
| Control Software | LightBurn, LaserGRBL |
| Supported File Types | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Connecting Interfaces | USB, Wi-Fi, TF Card |
| Motherboard | 32-Bit Control Board with Wi-Fi |
| Control Terminal | 4.3-inch display |
| Limit Switches | 5 (X-axis 2, Y-axis 2, Z-axis 1) |
| Air Assistance Flow | 0–60 L/min, stepless adjustable |
| Certifications | CE, FCC, RoHS, FDA |
| Recommended Engraving Materials | Wood, Bamboo, Cardboard, Plastic, Leather, PCB Boards, Oxidized Aluminum, Non-reflective Electroplated & Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton, Slate, and more |
| Recommended Cutting Materials | Cardboard, Non-woven Fabrics, Wood, Acrylic, Some Thin Plastic Sheets, Sponges |
| Product Weight | 13kg |
| Package Weight | 14kg |
| Product Size | 683mm × 710mm × 215mm |
| Package Size | 800mm × 700mm × 200mm |
| Package Contents | 1 x X-axis Rail 1 x Laser Module 1 x Control Screen 1 x Power Supply 1 x Machine Frame 1 x User Manual |
