Highlights
- 1/4" Megapixel CMOS, Max image Resolution 1280*720@25fps
- H.264 Main Profile @ level 3.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
- Support Color/BW mode converting, IR-CUT Filter
- Auto-retrieve function and auto-connection network
- Android and iphone mobile client, Easy to remote,Mobile view allows you to realize remote view & anywhere & anytime
- Integrated ONVIF standard, Compatibility with third-party ONVIF platform software
- Support two-dimension barcode(QR code) scanning.
- Support Wireless IEEE 802.11b/g/n
- Support Two Way Audio
Specification
|
Model |
IPCC-H02 |
|
|
Hardware |
||
|
Processor |
HI3518 |
|
|
Sensor |
1/4" Megapixel CMOS |
|
|
Lens |
3.6mm lens |
|
|
IR LED |
12IR LEDs, IR Distance 8~15m |
|
|
Day/Night |
IR-CUT |
|
|
Min. Illumination |
0.1lux; 0 lux with IR on |
|
|
Max S/N Ratio |
50dB |
|
|
Audio |
||
|
Compression |
G.726 |
|
|
Two Way Audio |
support |
|
|
Video |
||
|
Compression |
H.264 |
|
|
Image |
main stream: 1280x720@1-25fps sub stream: 640x360@1-25fps 352x192@1-25fps |
|
|
Bit Rate |
128~4096kbps, Supports CBR/VBR |
|
|
Image Control |
Hue, saturation, brightness, contrast, exposure |
|
|
Auto Image Control |
AE, AWB |
|
|
Network |
||
|
Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
|
|
Compliance |
ONVIF 2.2(1.02 backward compatible) |
|
|
PC Client and Browser |
ISS, IE6.0 and above |
|
|
Mobile phone |
Iphone, ipad, Android |
|
|
Wireless |
Support IEEE 802.11b/g/n |
|
|
WIFI Encryption |
WAP, WAP2 |
|
|
Interface |
||
|
LAN |
1 RJ45 10M/100M Ethernet port |
|
|
General |
||
|
Protection Level |
IP65 Indoor Use |
|
|
Power Supply |
DC 5 V/2A |
|
|
Power Consumption |
Maximum 6w |
|
|
Package size |

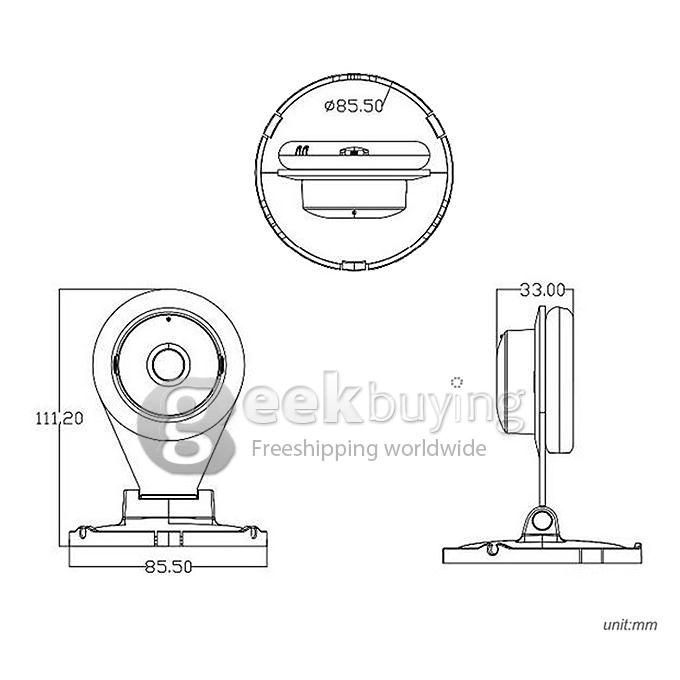

14.5*13.8 * 5.3cm |
|
|
Package Weight |
0.25kg |
|
|
Approvals |
CE , FCC, RoHS |
|

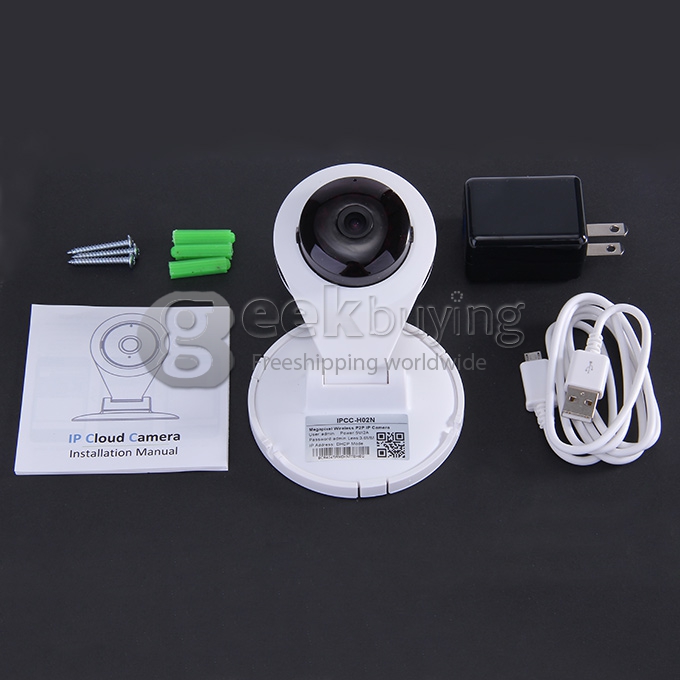

What's in the box?
- 1 x IP Camera
- 1 x Power Adapter(EU Plug)
- 1 x Screws Package
- 1 x CD
