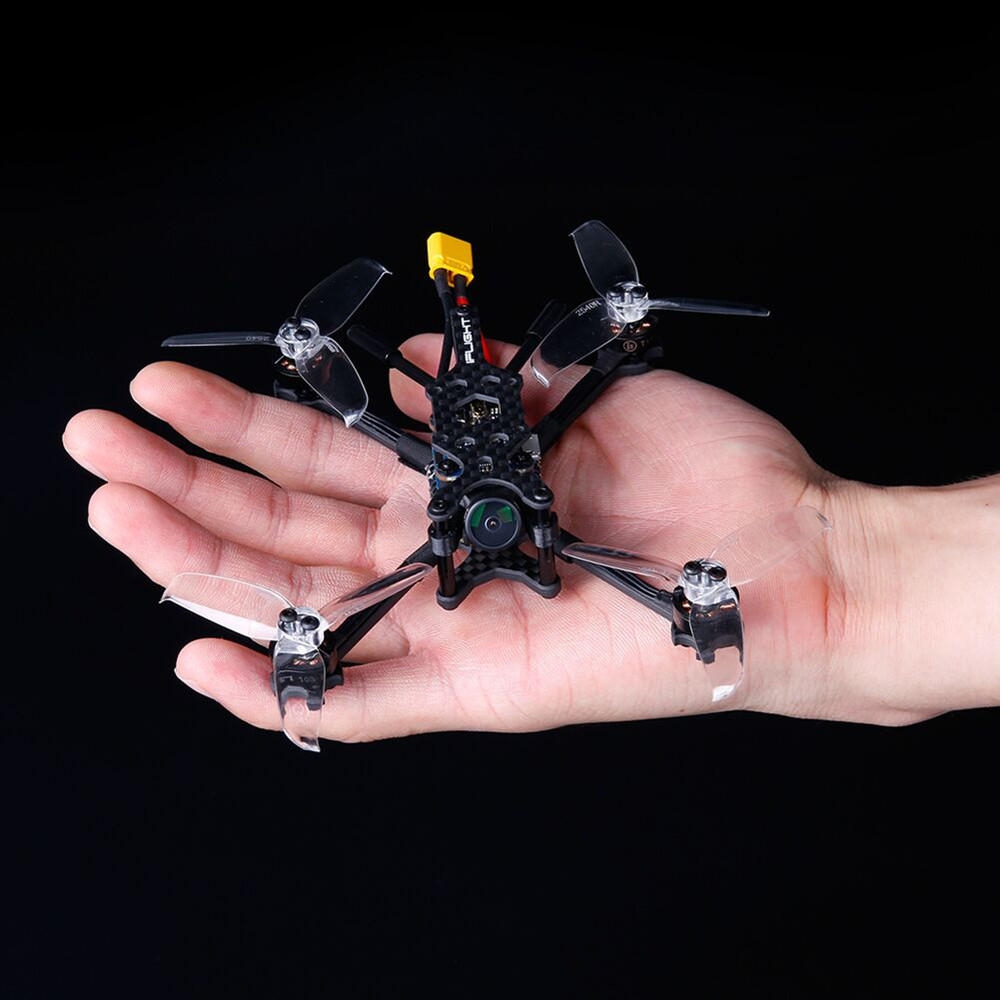

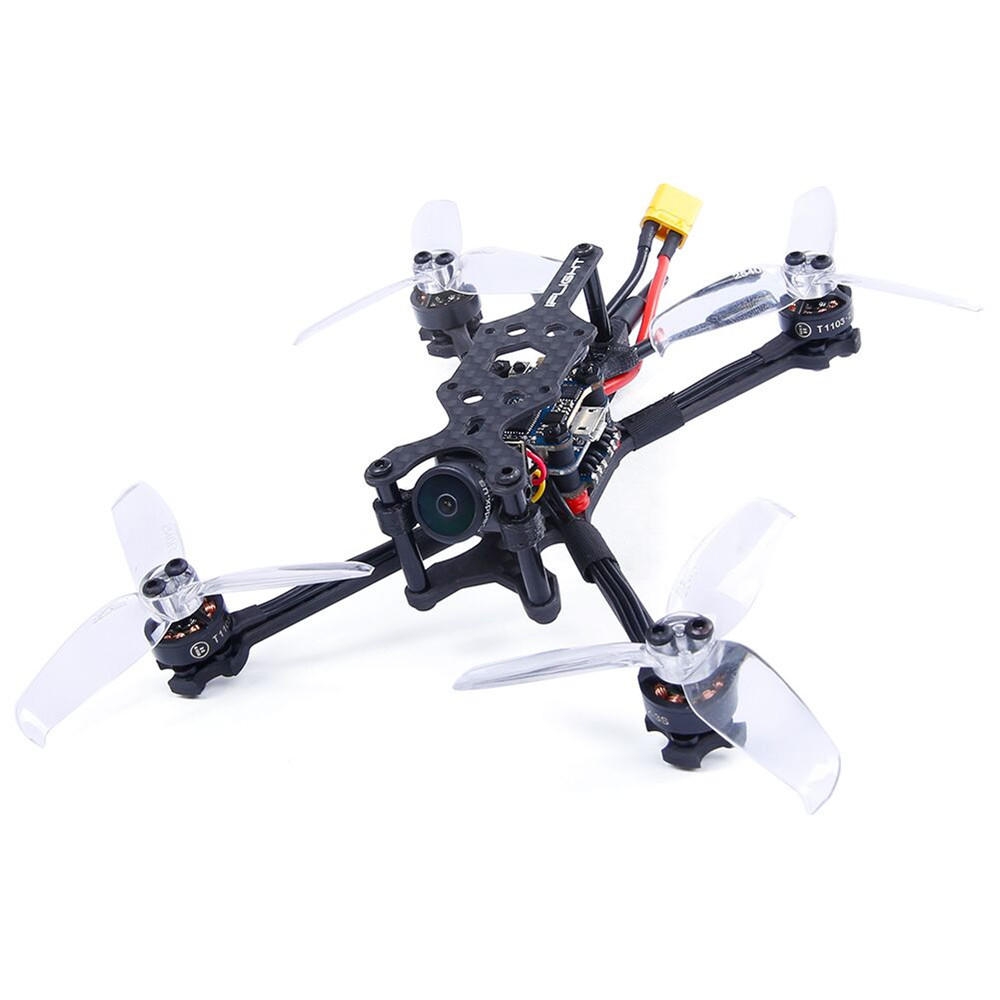

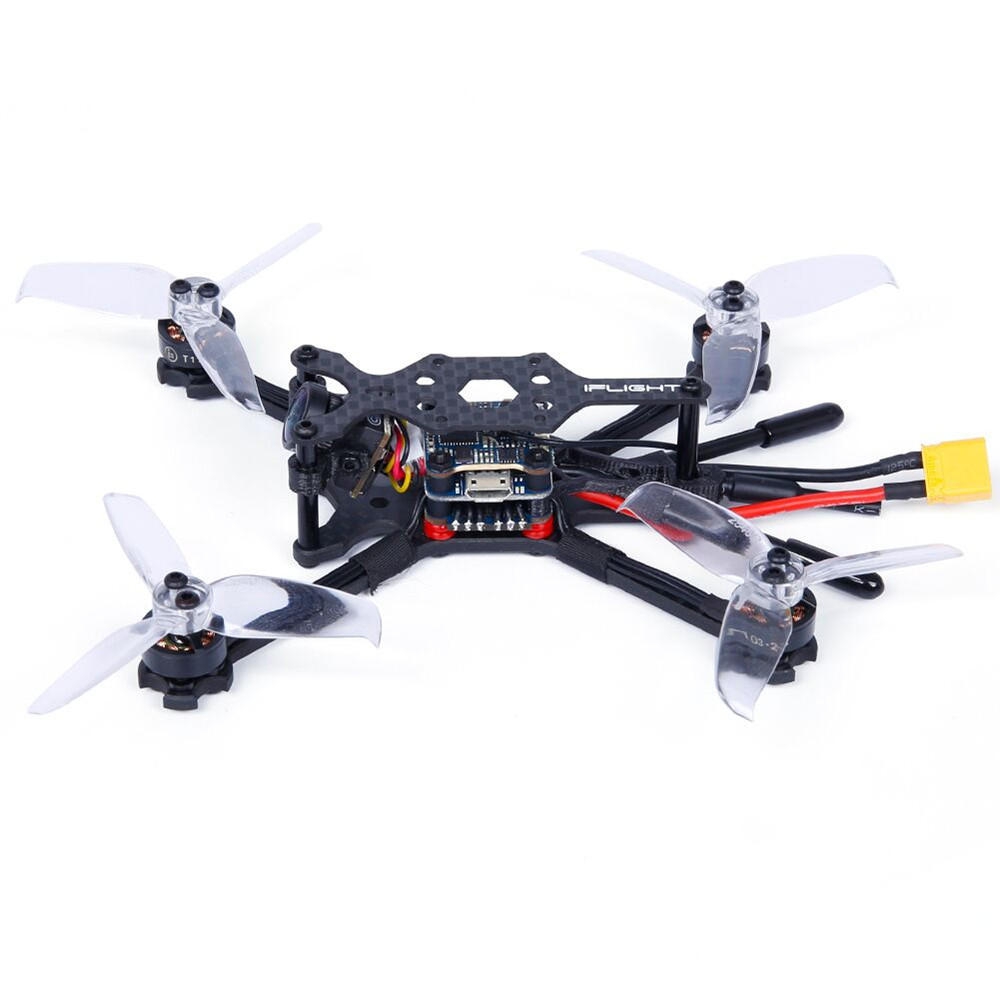

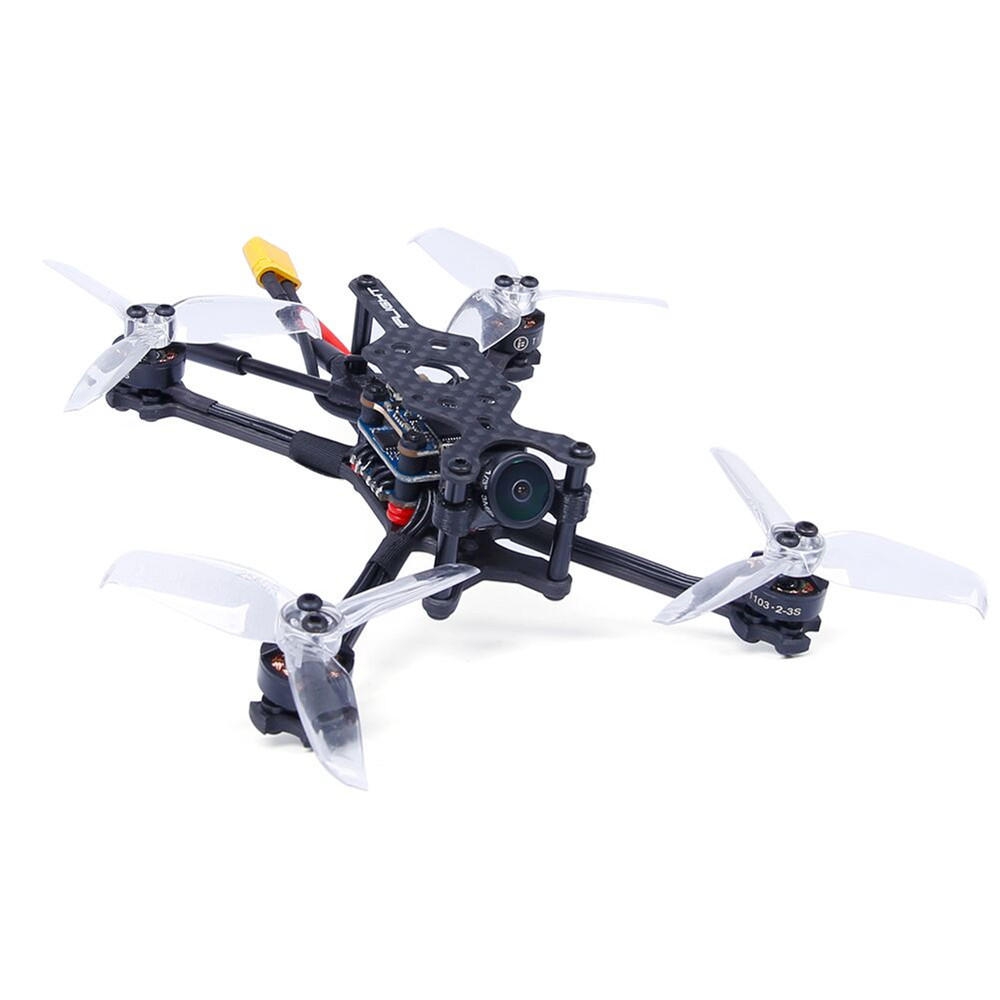

Iflight TurboBee 120RS 2-4s Micro FPV Racing Drone SucceX Micro F4 12A 200mW Turbo Eos2 Cam BNF - TBS NANO RX Receiver

General

Brand: Iflight
Item Name: TurboBee
Item No.: 120RS
Version: BNF

Specification

Frame Kits:
Wheelbase: 121mm
Bottom plate thickness: 2.5mTop plate thickness: 2mm
Arm width: 4mm
Electronic equipment installation height : 22mm (aluminum column height 22mm)
Flight control hole distance: 16mm
Weight: Around 12.2g
Support motor: 11xx
Support propeller: maximum of 2.5 inches, 66MM propeller
SucceX F4 Flight Controller:
STM32F411
Input voltage 2-4S LIPO
Gyro: MPU6000
2x UART ports
4x motor outputs
OSD inbuilt
No Blackbox FLASH
BEC 5V 2A Cont.
Size: 21mm*21mm
Mounting holes: 16*16
Weight: 2.5g
BF target: MATEKF411

SucceX Micro 12A Brushless ESC:
Firmware: BlheliS
Input voltage : 2-4S LIPO
Continuous current: 12A
MCU: BB21F16G
BEC: None
ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Weight: 2.7g

SucceX Micro VTX:
Power: PIT/25/100/200mW
Antenna interface: IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Weight: 1.6g

1103 Motors
Caddx.us Turbo Eos2 Camera
Gemfan 40mm 1.5mm shaft tri-blade propellers

Package Contents

1 X Iflight TurboBee 120RS FPV Racing Drone
