Highlights
Flight control base on Naze32, high current MOS output, convenient according to the personal touch.
Made of high quality carbon fiber material, a full set of take-off weight of 55 grams with battery.
Ready to fly, do not have to assemble and debug
The user only need to be equipped with a remote control and a receiver to experience the indoor FPV flight.
RaceBand, VTX CAM 40CH transmitter, Cmos 1/3 800Tvl HD camera, NTSC/PAL Format can be switch.
Universal remote control
You can choose to add DSM2 DSMX tuner on the remote control.
You can choose Walkera D7 D10 remote control flashing firmware. Related firmware download, please visit the following link.deviationtx.com.
Flight control mode selection: RX-SERIL, serial port options: SPEKTRUM1024, selection conservation, open the remote control, setup menu, model setup, model setup PPM IN Communications Protocol, choose DSMX DSM2, click on the channels of Communications Protocol.
Specification
| General | Brand: JJPRO Model: T1 Quantity:1 Piece |
| Quadcopter | Flight controller: Naze32+DSM2 Brush Flight Controller Motor: MD8520 Brush Motor(4.8g/pcs) Camera: 800TVL HD CMOS 1/4 inch Camera AV Wireless Transmitter: 5.8g 25mw 40ch Batterry: 3.7V 600mah 20C Lipo battery Flight time: 5-6 minutes |
| FPV Camera | Sensor: 1/3 "CMOS Lens: M8 800TVL Lens Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective Format: NTSC / PAL (switchable) Power: 3.6-5.5V |
| Transmitter | Support video format: NTSC / PAL Output Impedance: 75 Ohm Output signal strength: 12 ~ 14dBm Output Power: 25mW Wireless Channel: 40CH Operating voltage: 3.6V ~ 5.5V Current: 100mA Audio carrier: 6.5MHz Weight: 6.8g |
| Frequency Table (MHZ) | Band A : 5865,5845,5825,5805,5785,5765,5745,5725 Band B : 5733,5752,5771,5790,5809,5828,5847,5866 Band E : 5705,5685,5665,5645,5885,5905,5925,5945 Band F : 5740,5760,5780,5800,5820,5840,5860,5880 Band R : 5658,5695,5732,5769,5806,5843,5880,5917 |
| Flight Control Board | NAZE32 flight control is a open-source flight controller, support Cleanflight and Baseflight Using 32bit ARM microprocessor, working in 3.3V/72MHZ Attached gyro, support manual mode, horizontal mode The firmware can be upgraded and adjusted by Micro-USB, the parameter adjustment interface is Baseflight-Configuration and Cleanflight-Configuration |

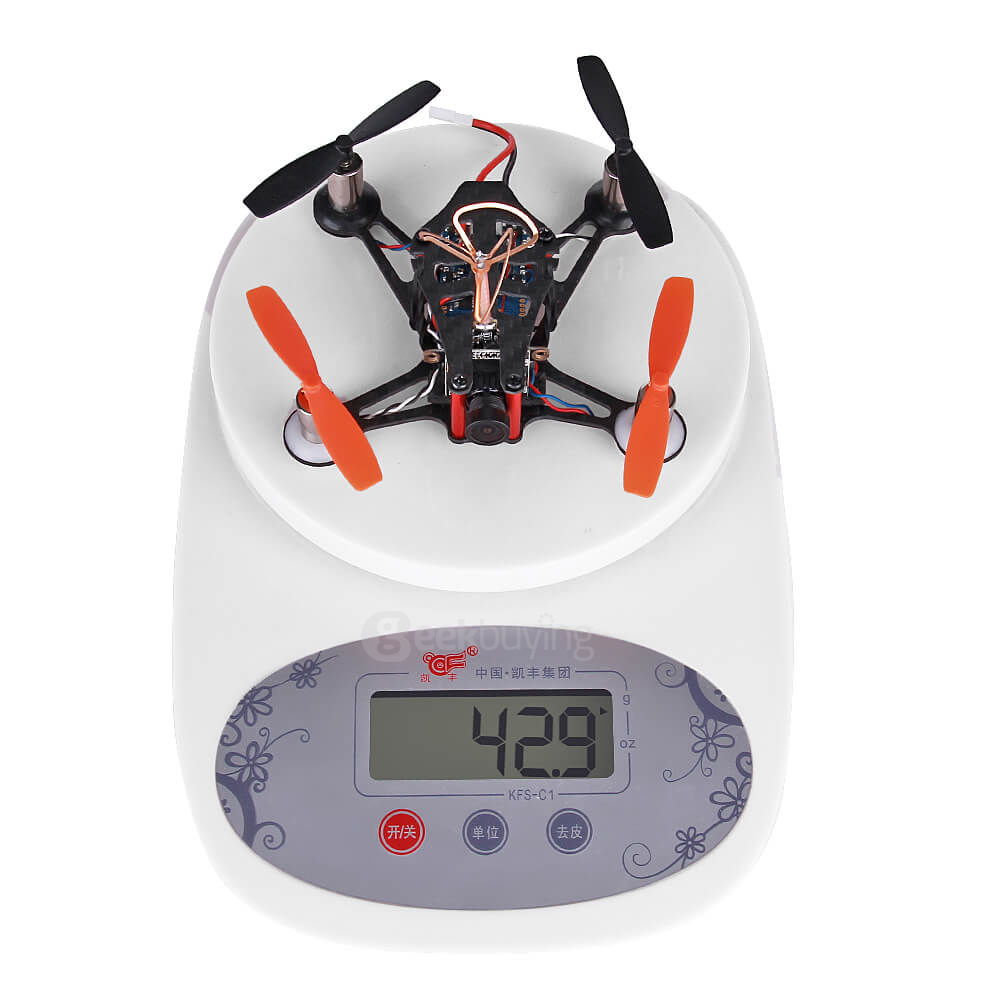

| Dimensions & Weight | Weight: 42.5g (Exclude battery) Size: 82 X 82 X 21mm Wheelbase: 95mm Propeller Size: 55mm |

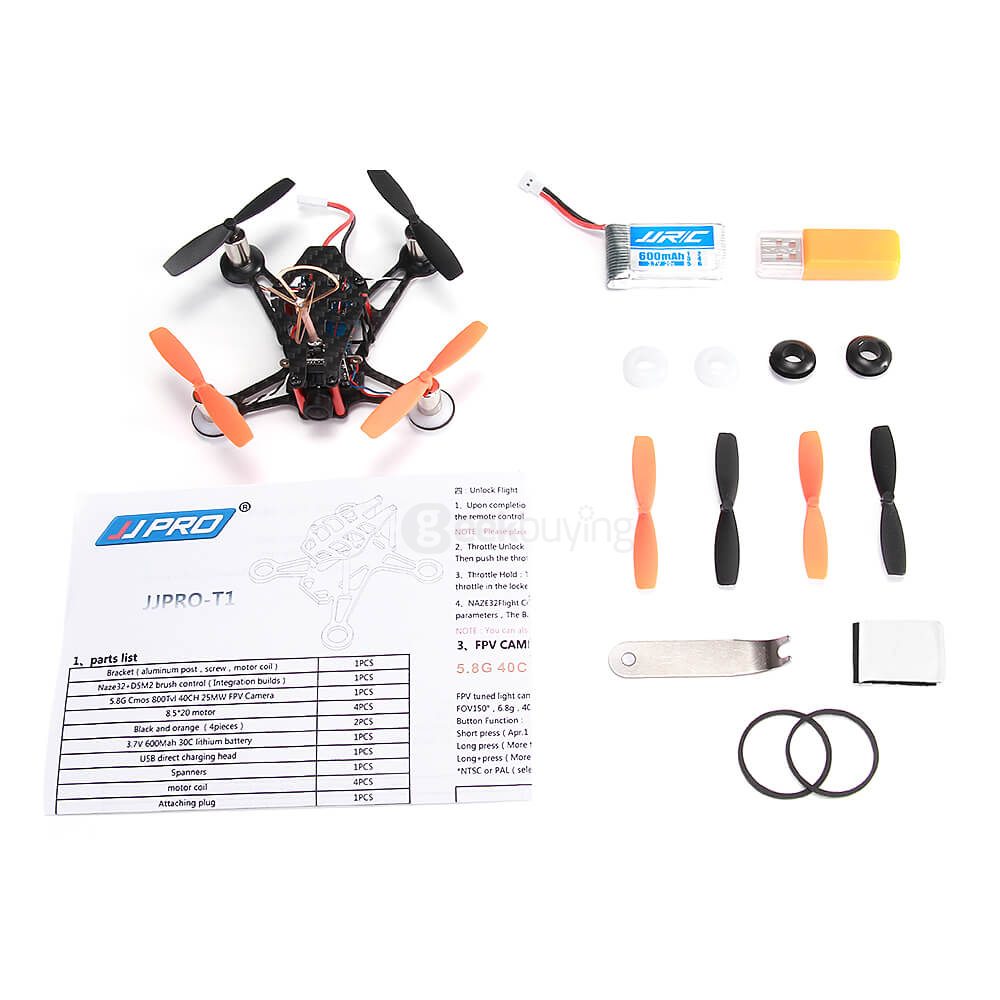

| Package Contents | 1 x Alien Carbon Fibre Frame kit 4 x 8520 Coreless Motor 1 x Naze32 with DSM2 Flight Controller 1 x 5.8G VTX w/Camera antenna 8 x 55mm Propeller 1 x 3.7V 600mah 20C Battery 1 x Charging cable (use with balanced charge) 1 x Paddle propeller 1 x English Manual |
