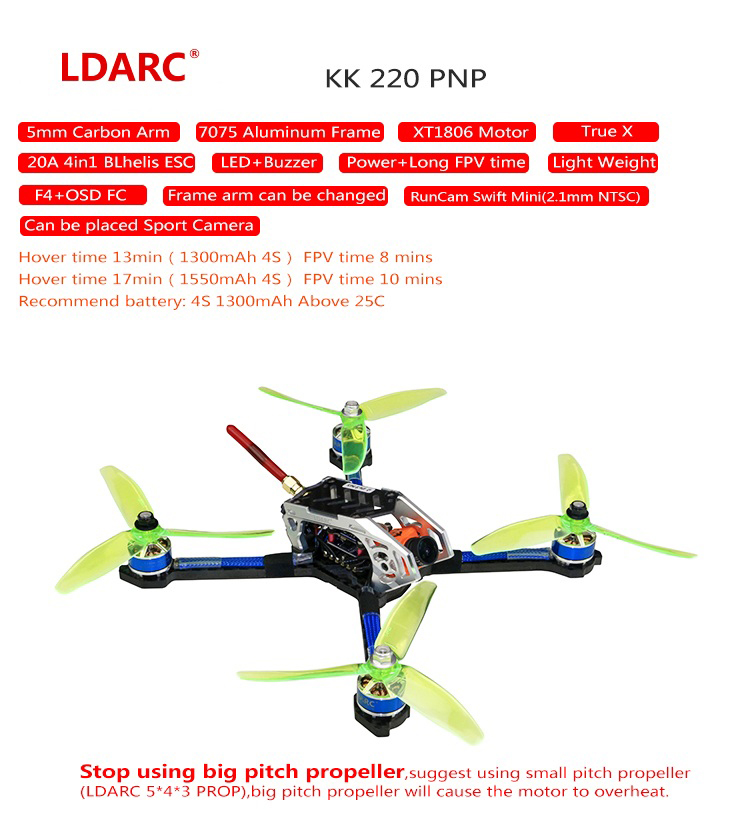

Kingkong/LDARC KK 220 FPV Racing Drone F4 FC OSD 20A 4 In 1 BLheli-S ESC 5.8G 48CH VTX RunCam Swift Mini Camera PNP

Brand: Kingkong/LDARC
Item No: KK 220
Wheelbase: 220mm
Material: Carbon Fiber & 7075 Aluminum Alloy
Input Voltage: 3-4S

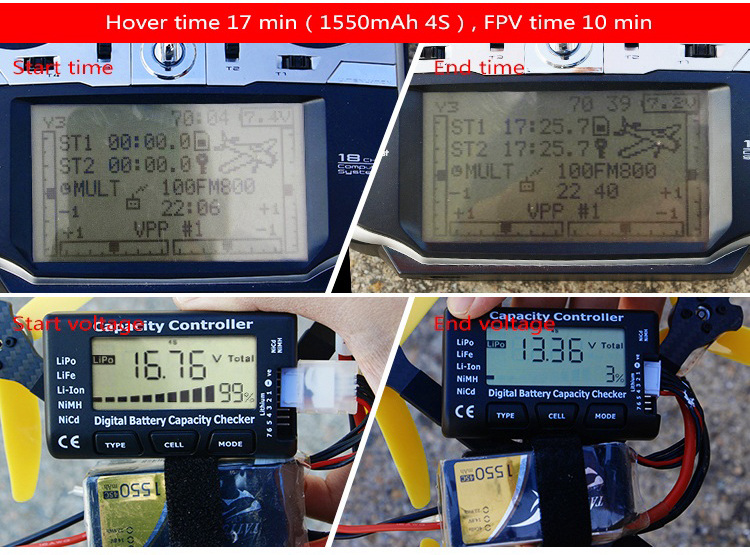

Recommend Battery: 4S 1300mAh  above 25C Lipo

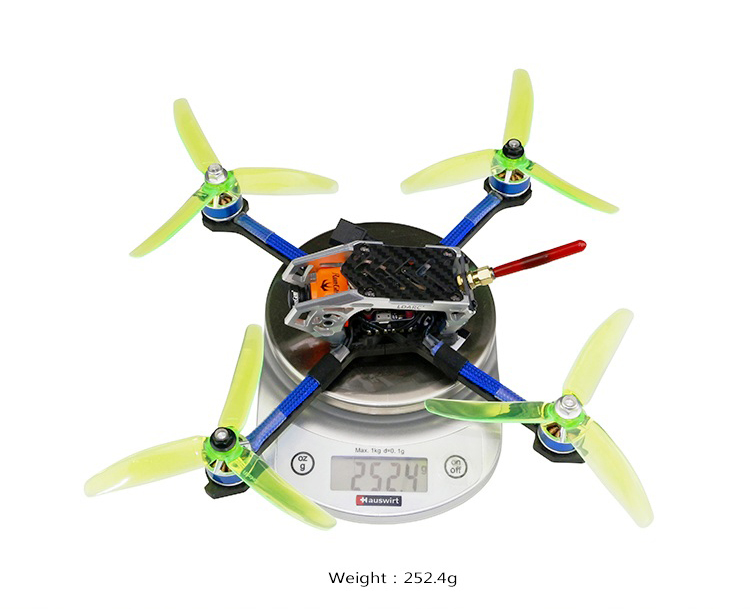

Weight: 244.4g (Without Receiver and Battery)

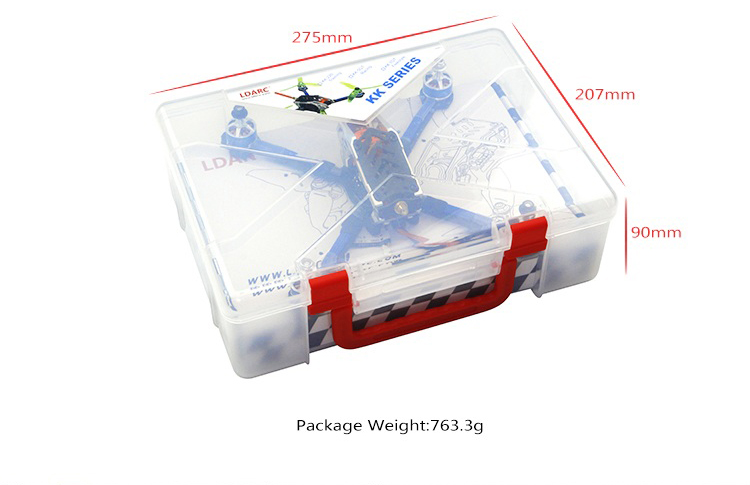

Package Size: 27.5 x 20.7 x 9cm
Package Weight: 0.77kg

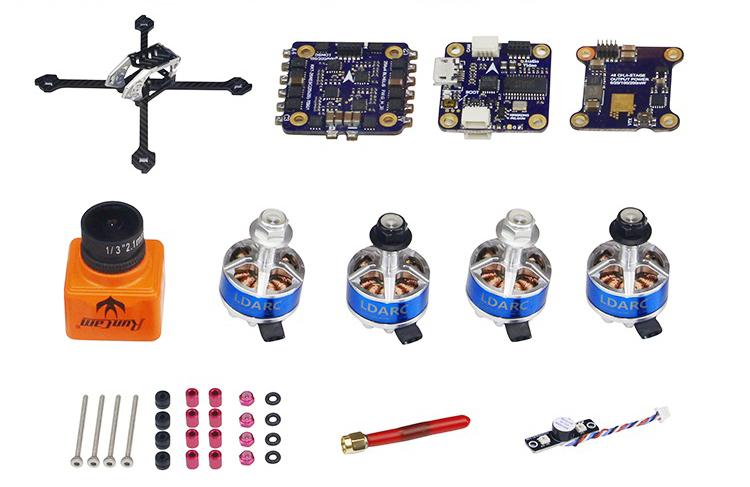

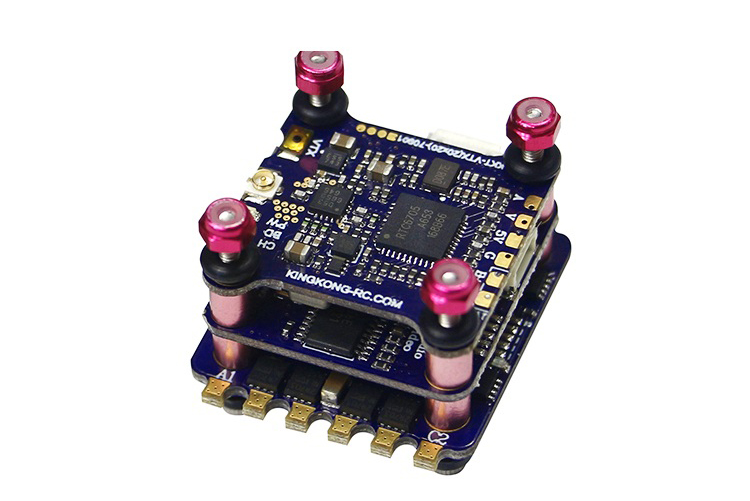

KK Tower(3 layer)
Tower Monting Hole: 20x20mm (M2)
Tower Height: 21mm
Tower Weight: 15.9g

LDARC Omnibus F4 FC
Firmware: OmnibusF4SD

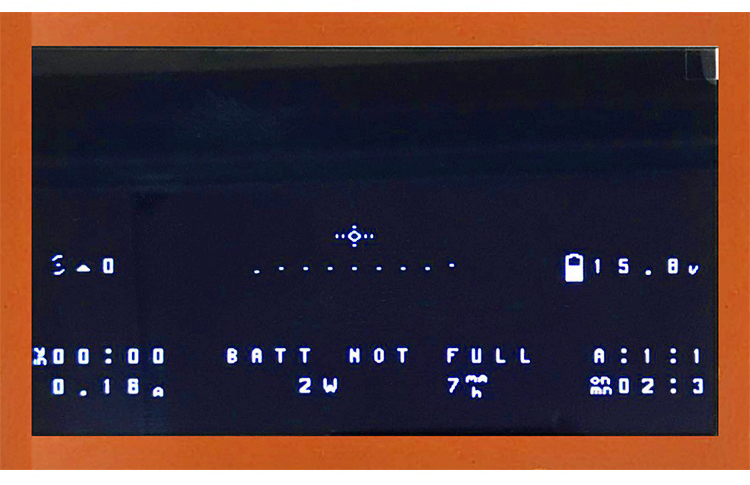

- Built-in Betaflight OSD
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 4g

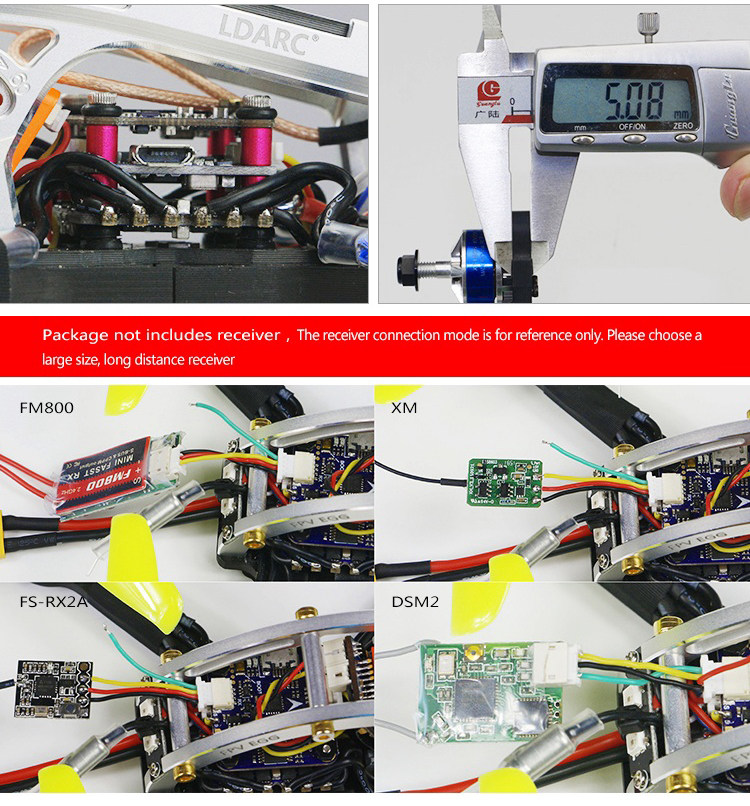

Support DSMX,SBUS and PPM Receiver

20A 4 in 1 ESC
Con. Current: 20A
Peak Current: 25A ( 5s)
Firmware: BLHeli_S
Input Voltage: 2-4S
Size: 29x31mm
Mounting Hole: 20x20mm
Net Weight: 5.3g
Support Oneshot, Multishot, DShot150/300 and DShot600

5.8G 48CH 0/25/100/200mW VTX ( Top Level)
Channel: 25CH
Power: 0/25/100/200mW ( Switchable)
Output Voltage for Camera: 5V
Size: 25x25mm
Mounting Hole: 20x20mm
Weight: 2g
Blue Light points at the CH indicator ( CH1-CH8, flashes 1-8 times)
Green Light points at the Band Indicator ( Band A- Band F, flashes 1-6 times)
Red Light points at the Power Indicator (25-100mW, flashed 1-3 times)

XT1806 2500KV Motor
KV: 2500KV
Input Voltage: 3-4S Lipo
Max. Lipo: 4S
Shaft Diameter: M5
Motor Width: 22.4mm
Motor Height: 30.5mm
Weight: 21.1g

5040 3-Blade Propeller
Quantity: 5 Pairs ( 5 CW & 5 CCW)

FPV Camera
Runcam Swift Mini 600TVL FOV160 CCD Camera NTSC

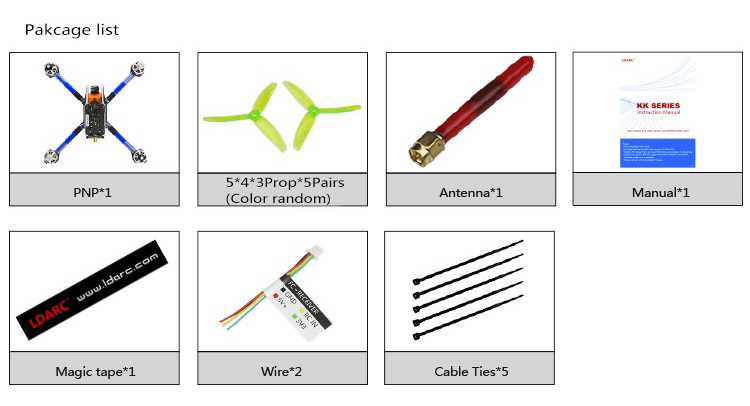

1 x Kingkong/LDARC KK 220 Racing Drone PNP
10 x Propeller (Color Random)
1 x Antenna
5 x Strap
2 x Wire
1 x Manual
