Highlights
Dual MPPT 1600W Input – Capture More Solar Power All Day
Equipped with dual 800W PV inputs and independent MPPT tracking (99.9% efficiency), the LS-H1600 captures more energy from your solar panels throughout the day. With a wide 12V–60V input range, it works efficiently even in changing sunlight conditions.
98% Peak Conversion Efficiency – Turn More Sunlight into Usable Power
With an industry-leading 98% peak conversion efficiency, more of the solar energy you generate is converted into usable electricity instead of being lost, maximizing the performance of your balcony solar system.
1600W Battery Charging & Inverter Output – Store by Day, Power by Night
Supports up to 1600W battery charging and 1600W inverter output. Store excess solar energy during the day and use it at night, reducing reliance on the grid and significantly lowering electricity costs.

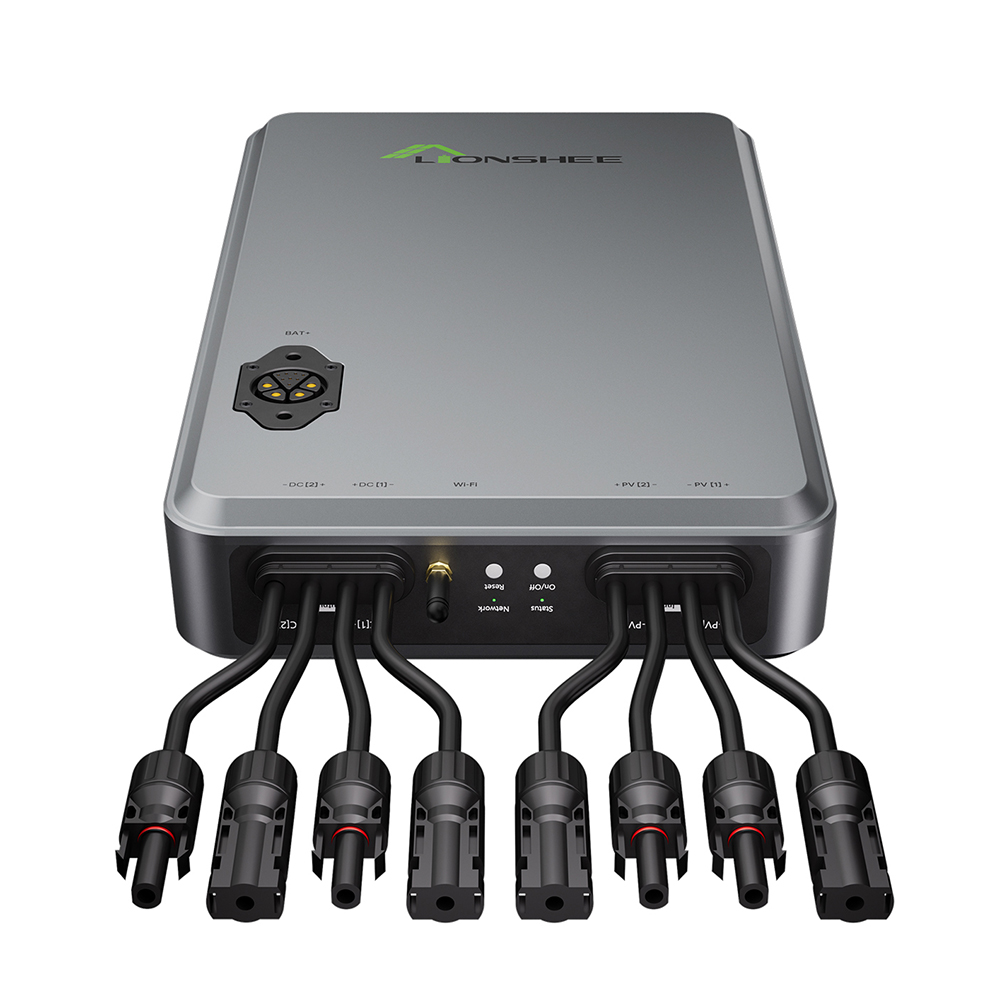

Plug & Play MC4 Design, Compatible with Most Solar Setups
Designed with a universal MC4 interface and simple plug-and-play installation. Works seamlessly with most balcony solar panels and microinverter systems without complicated wiring or technical setup.
IP65 Outdoor Protection with Smart WiFi Monitoring
Built with an IP65 waterproof and dustproof metal housing to withstand harsh outdoor environments. Monitor performance in real time via WiFi, RS485, or CAN communication for smarter and safer energy management.
Specification
| Brand | LIONSHEE |
| Type | Solar Hub |
| Model | LS-H1600 |
| Recommended PV Module Power | 800Wx2 |
| PV Input Voltage | 12V-60V |
| PV Input Current | 25Ax2 |
| PV Input Power | 800Wx2 |
| Battery Charging Power | 1600W |
| Inverter Output Voltage | 18V-55V |
| Inverter Output Current | 28Ax2 |
| Inverter Output Power | 1600W |
| MPPT Start Voltage | 18V |
| MPPT Tracking Efficiency | 99.90% |
| Peak Conversion Efficiency | 98% |
| Working Environment Temperature | -20℃ to 65℃ |
| Protection Level | IP65 |
| Communication Method | RS485 / CAN / WiFi |
| Product Weight | 3.2kg |
| Package Weight | 4.15kg |
| Product Size | 340×213×67mm |
| Package Size | 455×280×150mm |
| Package Contents | 1 x Solar Hub 4 x 1m MC4 Cable 1 x User Manual |
