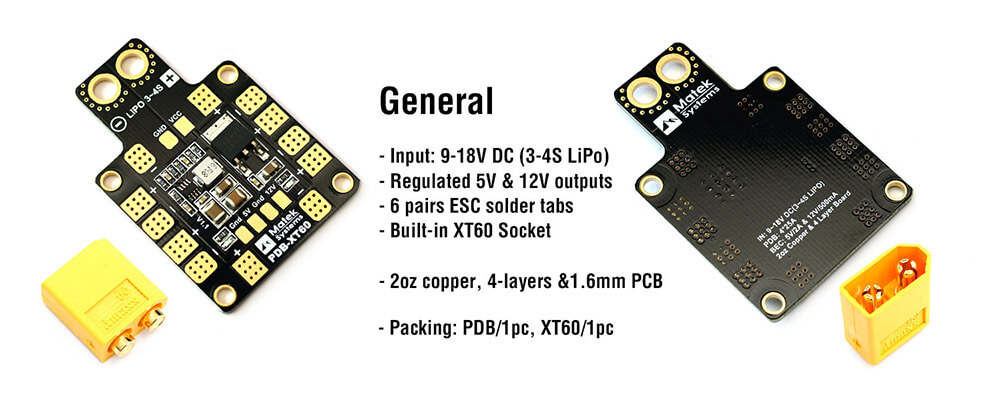

Highlights
- Input voltage range (3S-4S LiPo operation): 9 - 18V DC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )

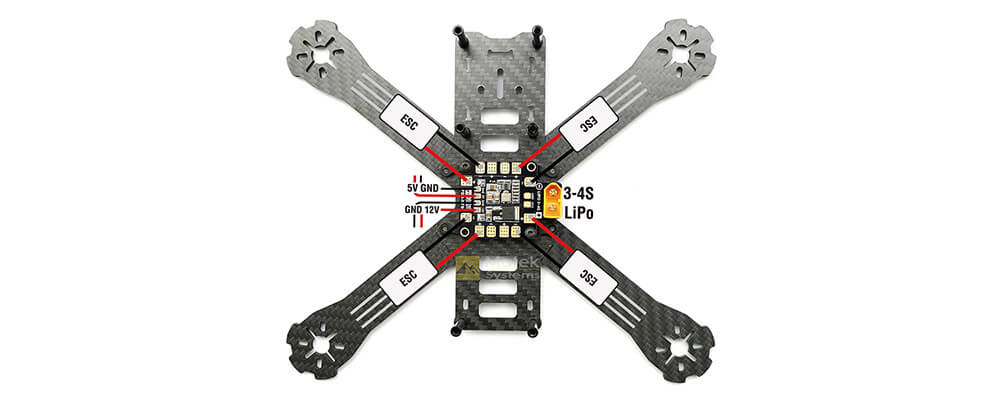

- 6 ESC outputs & 1 pair VCC/GND pads

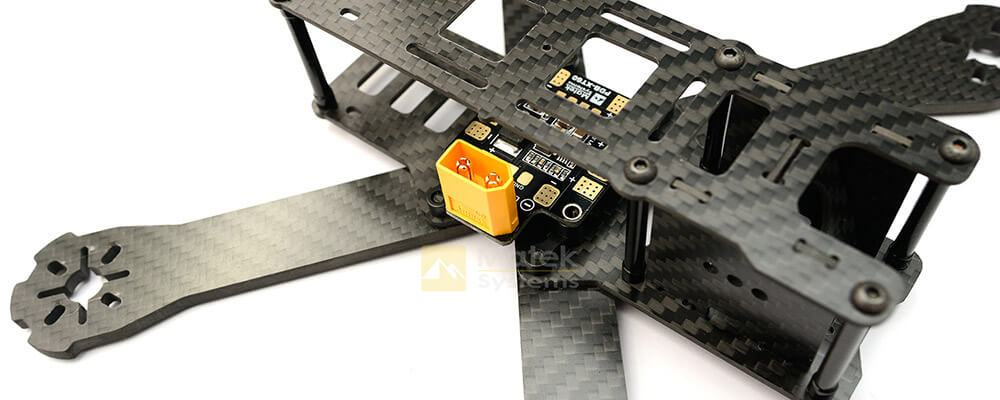

- It offers a XT60 socket to connect the LiPo pack

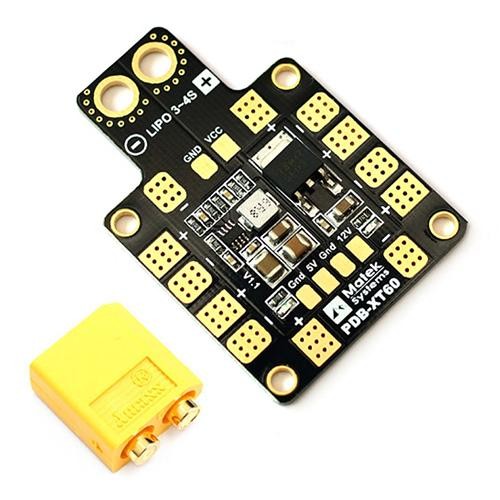

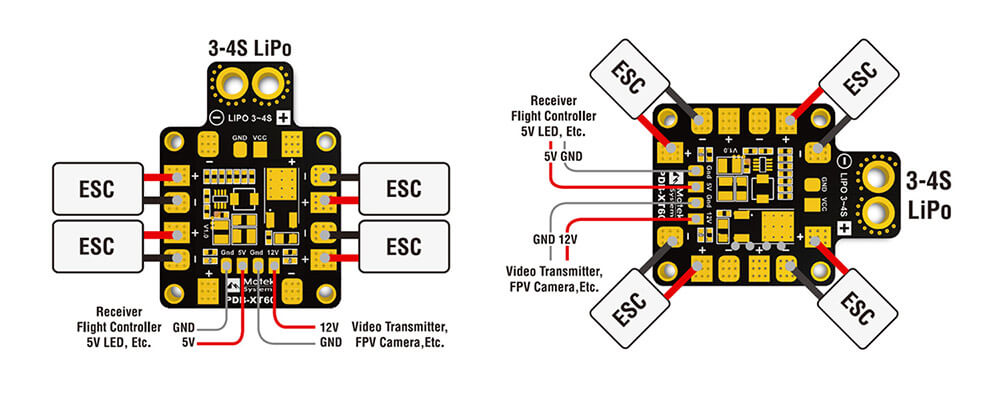

- The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
Specification
| General | |
|---|---|
| Type | Power Distribution Board |
| Model | Matek PDB-XT60 |
| Quantity | 1 Piece |
|
ESC outputs |
Continuous current: 25A*4 or 15A*6 Peak current (10 seconds/minute): 30A*4 or 20A*6 |

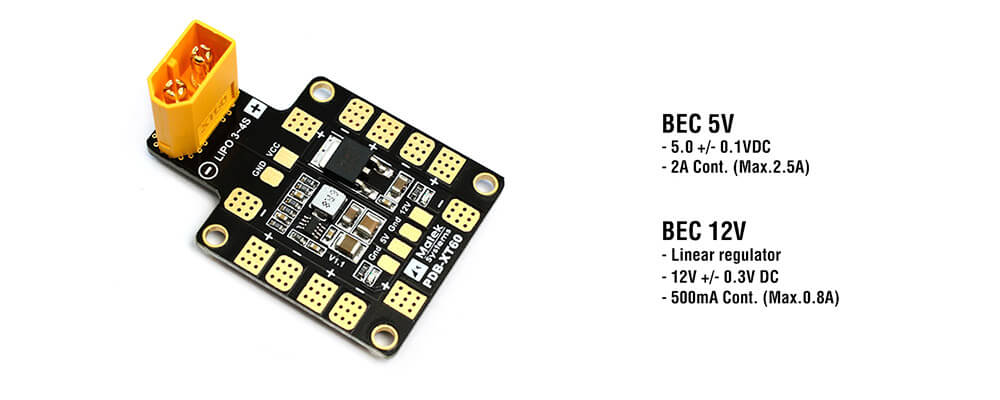

| BEC 5V output | Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator. Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps (Max.2.5A 10s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) Short-circuit tolerant (5 seconds/minute) |
| BEC 12V output |
Designed for Video TX or FPV camera with linear regulator. 12V @ 3S LiPo |
| Features | 2oz copper, 4-layers &1.6mm PCB. Built-in XT60 Socket Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant |

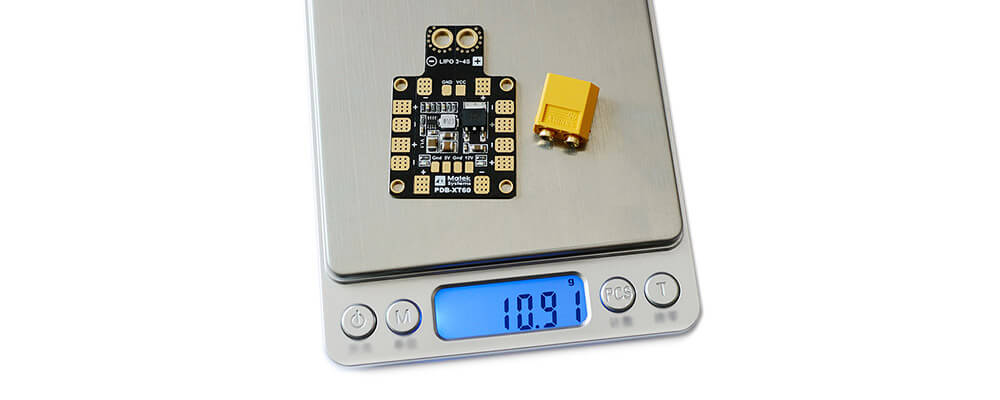

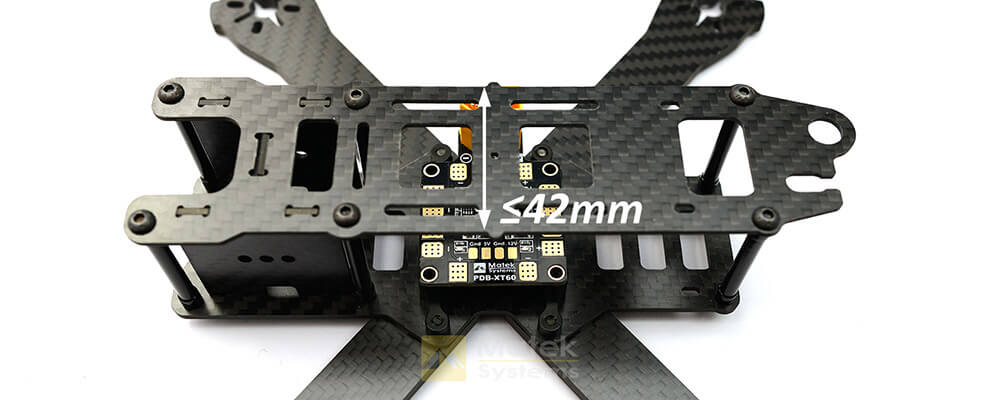

| Physical | Dimensions: 36 x 50 x 4 mm (without XT60) Mounting: 30.5 x 30.5mm, Φ3mm Weight: 7.5g(w/o XT60), 11g(w/ XT60) |
| Package Contents | |
| 1 x Matek Systems PDB-XT60 | |
