Highlights
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
6x PWM / DShot outputs without conflict
5x UARTs
1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
1x pair I2C1 pads
1x Side-press button for BOOT(DFU) mode
Specification

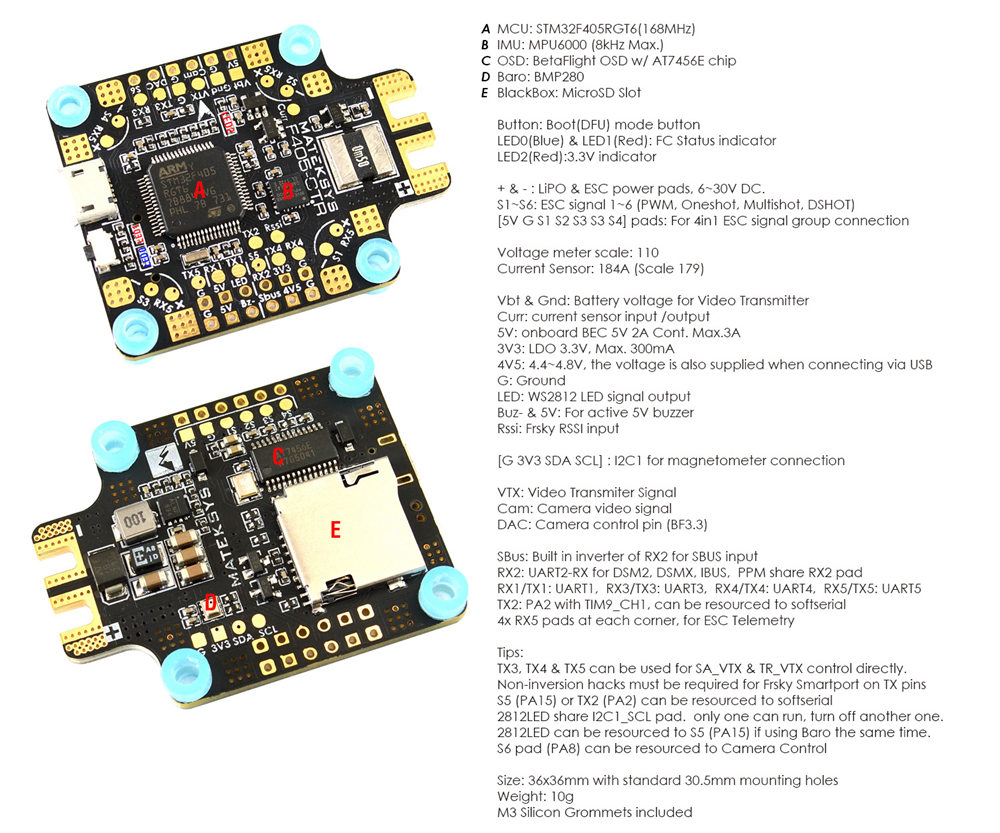

| General | Brand: Matek Systems Item No.: F405-CTR MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes 36x46mm PCB with 30.5mm mounting holes 10g |

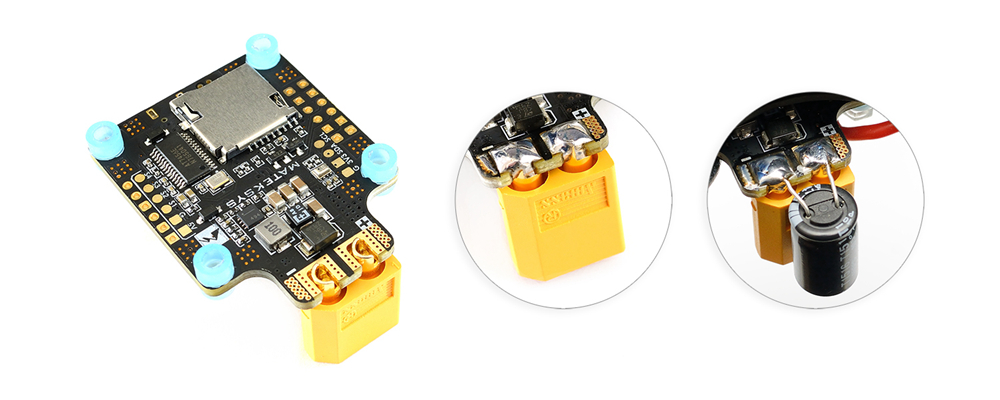

| PDB Specifications | Input: 6-30V (3-6S LiPo) w/TVS protection PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.300mA for Spektrum RX Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110) |

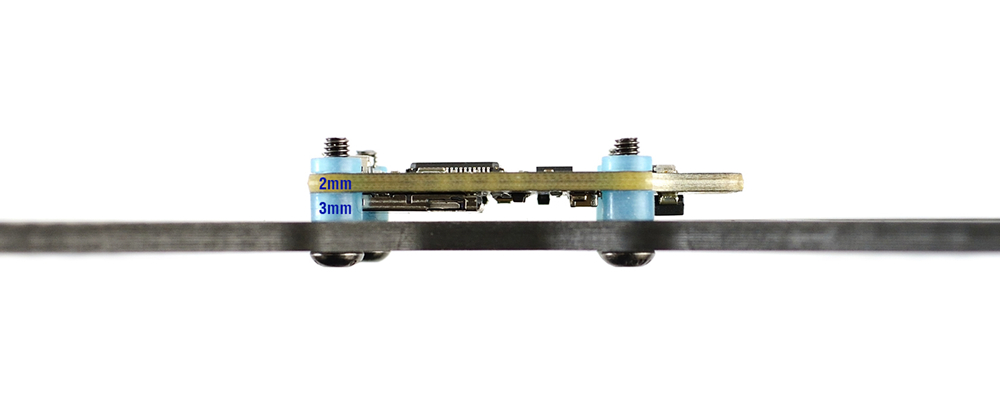

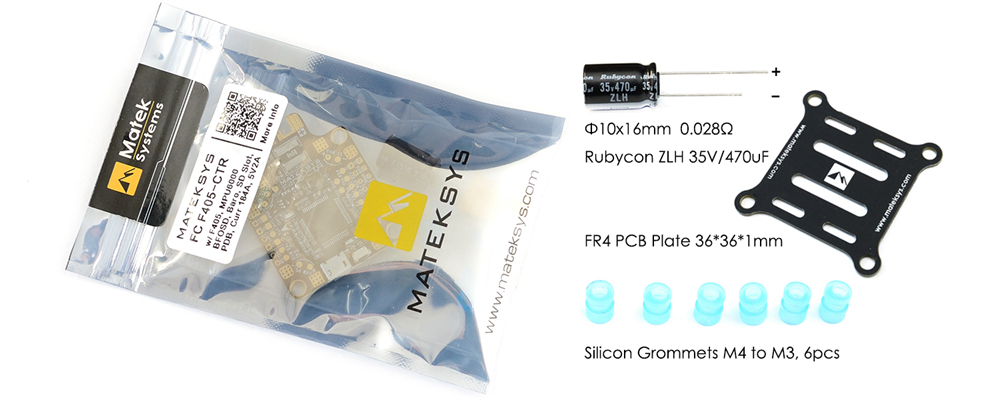

| Package Contents | 1 x Flight Controller 1 x Rubycon ZLH 35V/470uF (Low ESR) 6 x silicon grommets M4 to M3 1 x FR4 PCB Plate 36*36*1mm |
