Specification

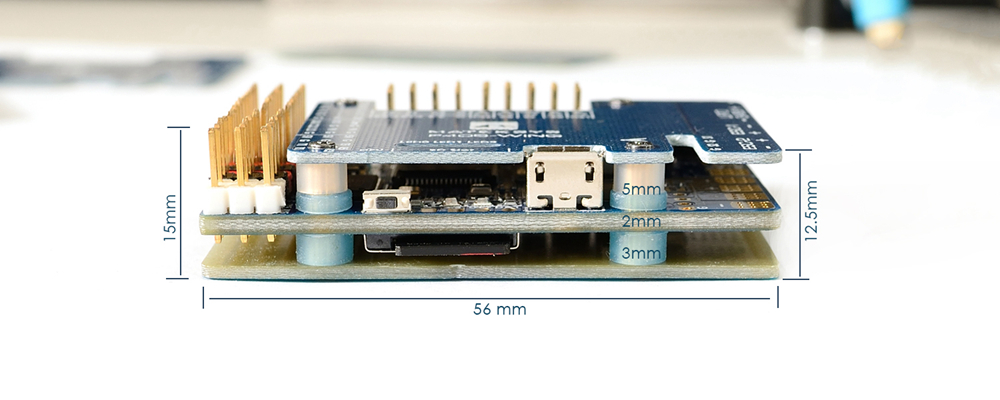

General | Brand: Matek Systems Item No.: F405-WING MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: INAV OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP & 6x UARTs 2 x Motors, 7x Servos outputs 2 x I2C 3 x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2 pad Battery Voltage Sensor: 1:10 (Scale 1100) WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 56 x 36 x 13 mm Weight: 25g |
FC Firmware | INAV Flight Target: MATEKF405SE |
PDB | Input voltage range: 9-30V (3-6S LiPo) w/TVS protection 2x ESC power pads Current Senor: 104A, 3.3V ADC, Scale 317 |
BEC 5V output | Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps, Max.3A |

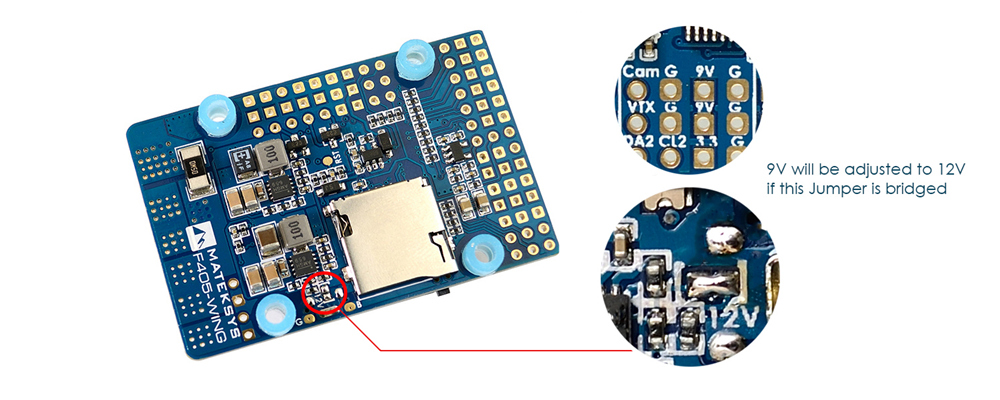

BEC 9V /12V output | Designed for Video Transmitter, Camera, Gimbal ect. Continuous current: 2 Amps, Max.3A 12V option with Jumper pad |

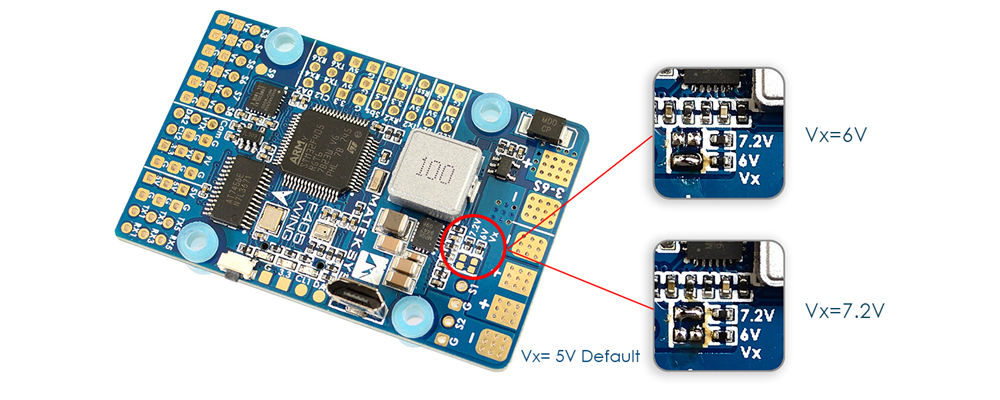

BEC Vx output | Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 5 Amps, Max.6A Output Ripple: 50mV (VIn=24V, VOut=5V@5A load) |
BEC 3.3V output | Designed for Baro / Compass module and Spektrum RX Linear Regulator Continuous current: 500mA |

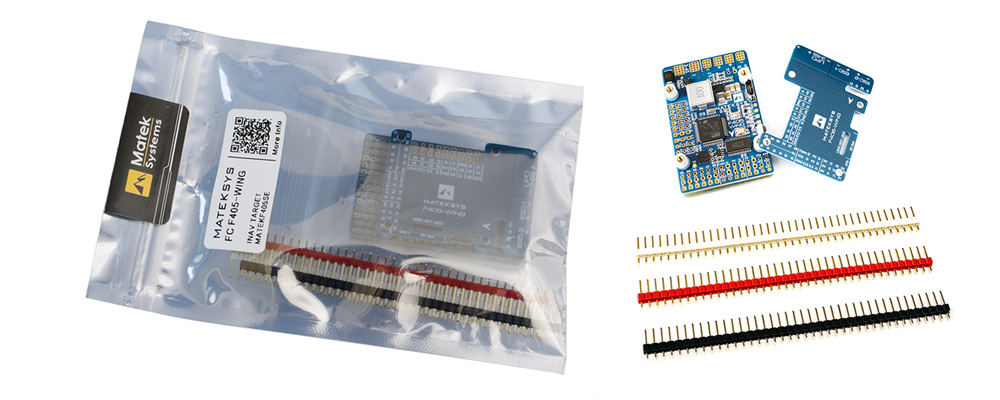

Package Contents | 1 x Matek Systems F405-WING New Flight Controller |
