Highlights
72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
Build-in embedded GNSS patch antenna, low power consumption
The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.
Magnetic sensor QMC5883L integrated
Max navigation update rate
Single GNSS up to 18 Hz
2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
Velocity accuracy 0.05m/s, Cold start 26 s, Aided cold starts: 2 s, Hot start 1 s
Specification

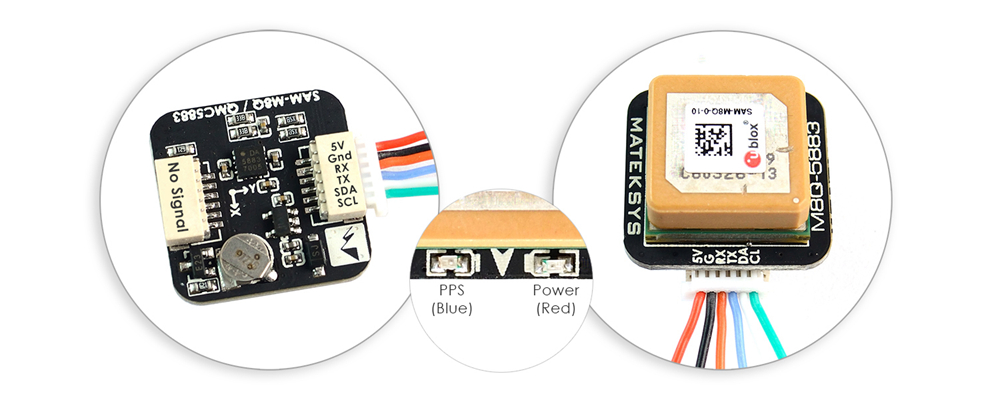

| General | Brand: Matek System Item No.: M8Q-5883 Input voltage range: 4~6V Uart (Tx,Rx) interface for GPS SAM-M8Q I2C (DA,CL) interface for Compass QMC5883L Battery for HOT module start Power LED(Red) & Time pulse LED(Blue) Dimensions: L20 x W20 x H10 mm Weight: 7 gram Supported by INAV/Betaflight/Ardupilot, ect. |
| Sensitivity | Tracking & Navigation: –165 dBm Reacquisition: –158 dBm Cold start: –146 dBm Hot start: –155 dBm |
| Tips | GPS, GLONASS, SBAS, QZSS are enabled by default Blue PPS LED blinking(1Hz) means 3D fixed update rate 1Hz & baudrate 9600 default Baud 9600~115200 supported by INAV/BF/Ardupilot update rate 5Hz with INAV UBLOX Protocol update rate 10Hz with INAV UBLOX7 Protocol Compass Alignment(Arrow forward): INAV/BF: CW 270° Flip Ardupilot/Mission Planner: Rotation None BF doesn't support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last. No need compass for Fixed wings with INAV firmware The scratches on ceramic antenna are the result of tuning the antenna by ublox. |
| Package Contents | 1 x M8Q-5883 module 1 x SH1.0-6P 20cm silicon wire 1 x Transparent PVC Heat-shrink tube |
