Highlights
- "Ti" high-efficiency DC-DC Step up voltage chip
- "BOURNS" precision potentiometers adjust the voltage
- One piece SMD power inductors
- Input reverse connect protection,overcurrent protection, overtemperature protection
Specification
| General | |
|---|---|
| Type | Voltage Module |

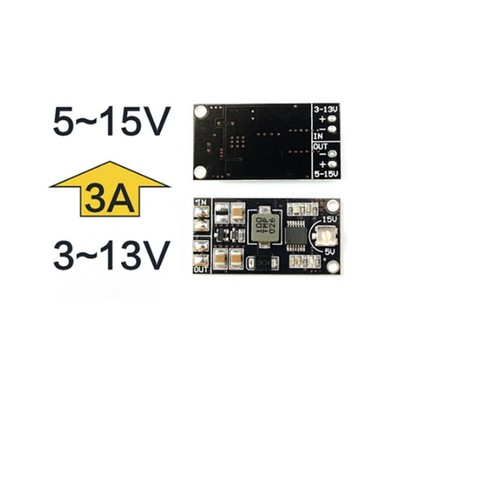

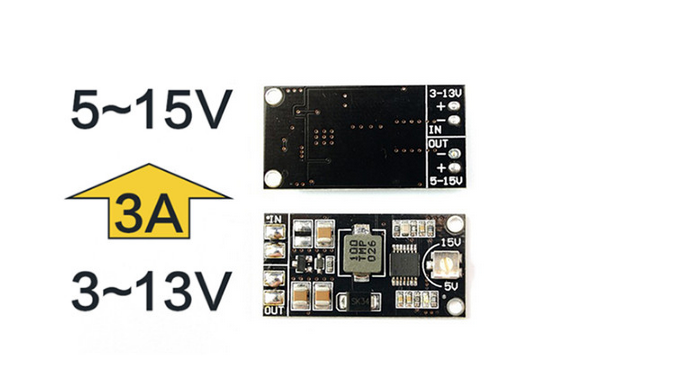

| Model | Matek VB5-15 |
| Input | Input voltage: 3V-13V |
| Output | Output voltage: 5V-15V(adjustable) Maximum output current: 3A |
| Static Power Consumption | <10mA |

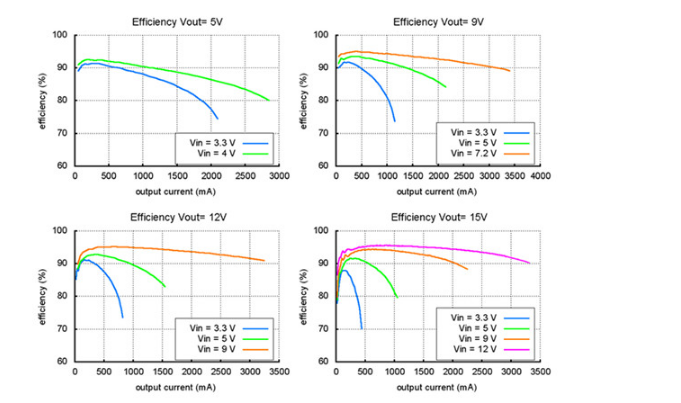

| Typical Efficiency | 90%~95% |

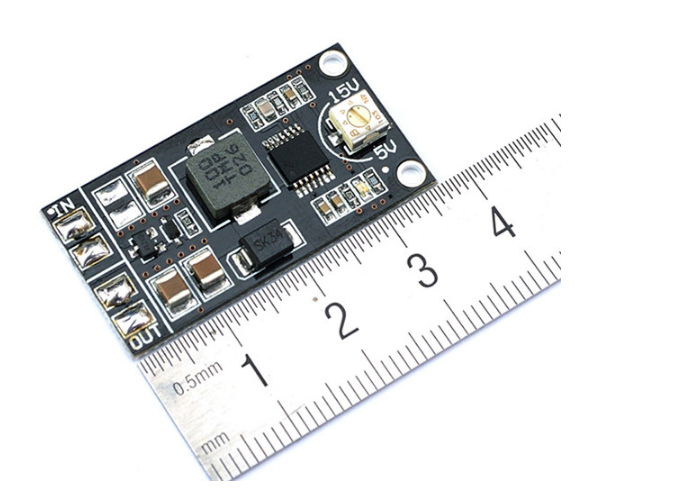

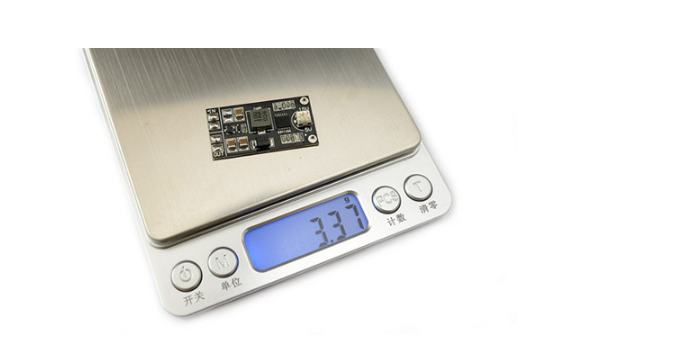

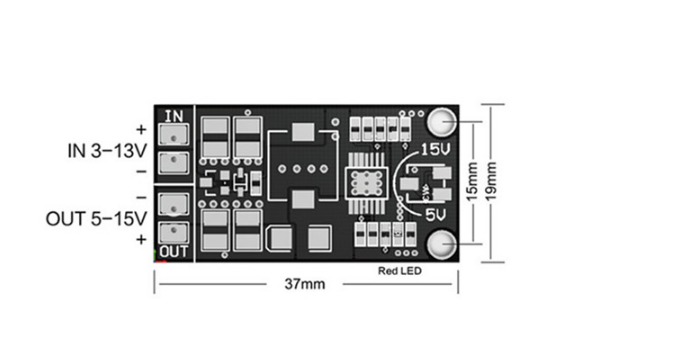

| Size/Weight | Size: 37x19x4mm Weight: 3.5g |
| Note | Input voltage ≤ Output voltage Example 1: To get a stable 12V output, the input voltage must <= 12V Example 2: If the input voltage of 12V, output voltage is adjustable from 12 ~ 15V Example 3: 3S LiPo batteries as an input end.If the regulated output voltage = 12V, the battery voltage exceeds 12V, as the battery voltage drops, the output can be obtained of 12 ~ 12.6V; when the battery voltage is less than 12V, 12V stable output |
| Package Contents | |
| 1x Matek VB5-15 Step UP Voltage Module | |
