Highlights
- With Super Mini size.
- The newly developed wireless scan tool. It supports all OBD-II protocols.
- It adopts the latest version 1.5
- Support Bluetooth connection, no Batteries, Cables, or Switches.
- The Wireless (Bluetooth) 5~10 meter
- Retrieve Fault Codes (DTCs) and clear Check Engine lights.
- The program lets you perform the following operations:
- Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Set the maximum number of responses to obtain
- Remove spaces from ECU responses (to speed data transmission)
- Store a unique identifier in EEPROM
- Set the CAN mask and filter with one command. Easily switch between variable and fixed CAN message lengths
- Send CAN remote frames (RTRs)
Specification
| General | |
|---|---|
| Model | ELM327 E |
| Quantity | 1 |
| Color | White |

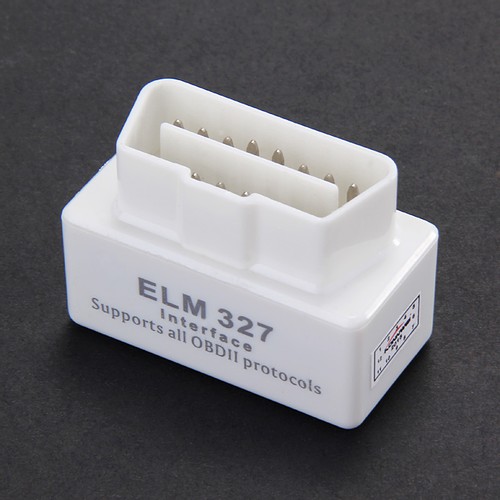

| Function | Pocket-sized Super Mini ELM327 V1.5 Bluetooth OBD2 Car Diagnostic Tool |
| Bluetooth Paircode | 1234 |
| Main Control Chip | PIC18F2480 |
| Vehicle Interface | 16pin (2 x 8) |
| Wireless (Bluetooth) | Software included for Palm, PDA Software included for Windows PC Software included for Windows Smartphone Supports ISO 9141, KWP2000 Supports SAE J1850 Supports CAN bus |
| Software Included | --Scantool_net113win (Full Version) --EasyOBDII V2.2 (Free Version) --OBD2Spy (Demo Version) --ScanMaster-ELM (Demo Version) --WOBDCRAZY (Demo Version) - This hardware can match many other software still. But most of them are not free! - Works for Windows98/ME/2000/XP/Vista, Windows 7. This tool does not match abs and airbag system! (Note: not working for iphone) |
| Vehicle Coverage | --Chrysler '96 ~ Current Year (OBD-II) --Ford '96 ~ Current Year (OBD-II) --GM '96 ~ Current Year (OBD-II) --Honda '96 ~ Current Year (OBD-II) --NISSAN '96 ~ Current Year (OBD-II) --Toyota '96 ~ Current Year (OBD-II) --All other Asian and European '96 - Current Year (OBD-II ) |
| Multi-Protocol Support | --SAE J1850 PWM(41.6Kbaud) --SAE J1850 VPW(10.4Kbaud) --ISO9141-2(5 baud init,10.4Kbaud) --ISO14230-4 KWP(5 baud init,10.4 Kbaud) --ISO14230-4 KWP(fast init,10.4 Kbaud) --ISO15765-4 CAN(11bit ID,500 Kbaud) --ISO15765-4 CAN(29bit ID,500 Kbaud) --ISO15765-4 CAN(11bit ID,250 Kbaud) --ISO15765-4 CAN(29bit ID,250 Kbaud) --A.SAE J1939 CAN(29bit ID,250*Kbaud) --B.USER1 CAN(11*bit ID,125*Kbaud) --C.USER2 CAN(11*bit ID,50*kbaud) |
| Suitable For | AlfaRomeo/Audi/Bentley/BMW/Chevrolet/Chrysler/Citroen/Corvette/Daewoo/Daihatsu/Datsun/Dodge/Ferrari/Fiat /Ford /Honda/Hyundai /Isuzu /Jaguar /Jeep /Kia /Lada /Lamborghini /Lancia /LandRover /Lexus /Lotus /Mazda /Mercedes-Benz/MG /Mini /Mitsubishi /Nissan /Peugeot /Porsche /Proton /Renault /Rover /Saab /Seat /Skoda /Smart /Ssangyong /Subaru /Suzuki /Toyota /Vauxhall/ Opel /Volkswagen /Volvo |
| Display current sensor data | --Engine RPM --Calculated Load Value --Coolant Temperature --Vehicle Speed --Fuel System Status --Short Term Fuel Trim --Long Term Fuel Trim --Intake Air Temperature --Intake Manifold Pressure --Timing Advance --Air Flow Rate --Absolute Throttle Position --Oxygen sensor voltages/associated short term fuel trims --Fuel Pressure and many others... |
What's in the box?
- 1 x Super Mini ELM327 unit
- 1 x CD software
