Highlights

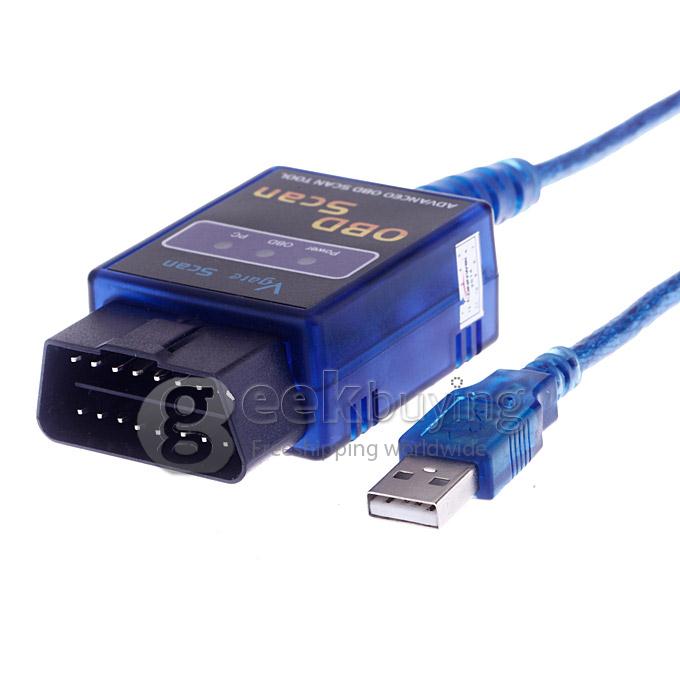

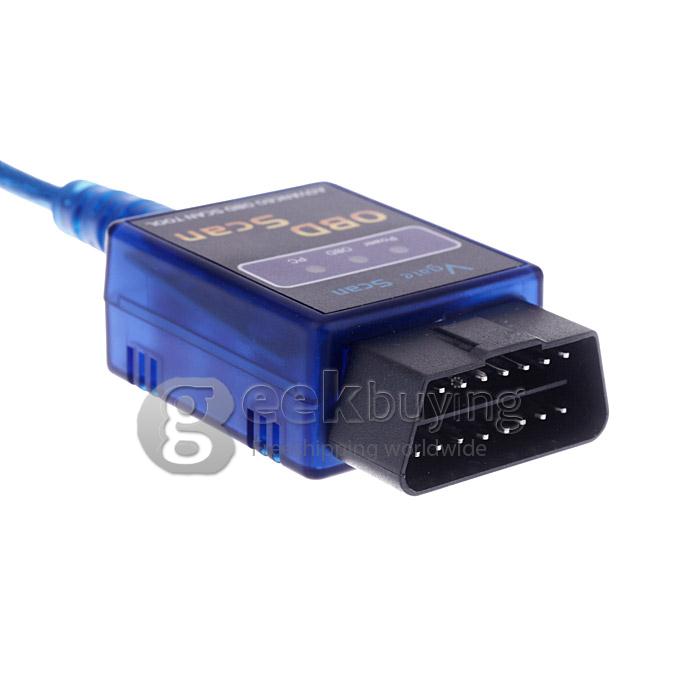

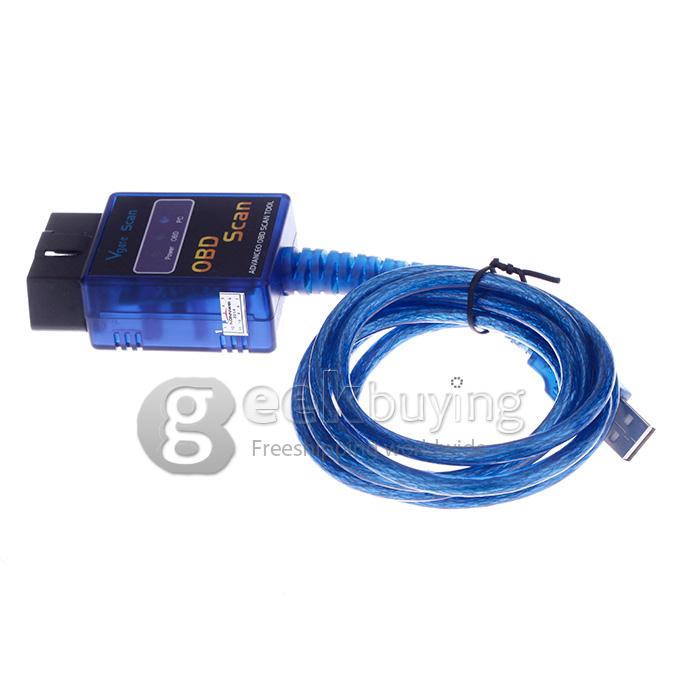

- OBD SCAN is the newly developed wireless scan tool
- Works with all OBD-II compliant vehicles
- Software included for Palm, PDA, and Mobile
- Software included for Windows PC
- Software included for Windows Smartphone
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)
- Clear trouble codes and turn off the MIL ("Check Engine" light)
Specification
| Main Features | |
| Color | Blue |
| Model | ELM327 |
| Material | ABS plastic |
| Display current sensor data | Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure |
| OBD2 protocols | SAE J1850 PWM(41.6Kbaud), SAE J1850 VPW(10.4Kbaud), ISO9141-2(5 baud init,10.4Kbaud), ISO14230-4 KWP(5 baud init,10.4 Kbaud), ISO14230-4 KWP(fast init,10.4 Kbaud), ISO15765-4 CAN(11bit ID,500 Kbaud), ISO15765-4 CAN(29bit ID,500 Kbaud), ISO15765-4 CAN(11bit ID,250 Kbaud), ISO15765-4 CAN(29bit ID,250 Kbaud), SAE J1939 CAN(29bit ID,250*Kbaud), SAE J1939 CAN(29bit ID,250*Kbaud), USER2 CAN(11*bit ID,50*kbaud) |
| Cable length | 130cm |

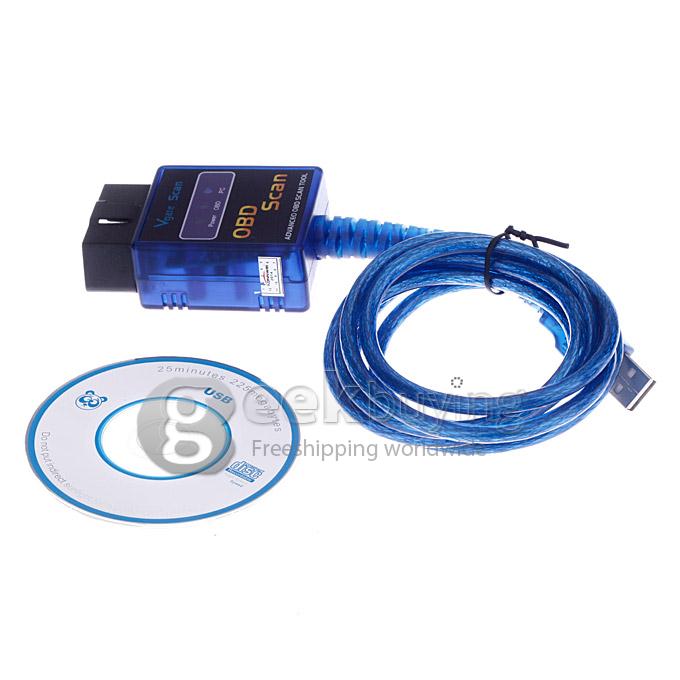

What's in the box?
- 1 x OBD Mini ELM327 USB
- 1 x CD
