Highlights
Mini Size
Small size makes it can fly both indoor and outdoor. Module block design for easy installation and maintenance

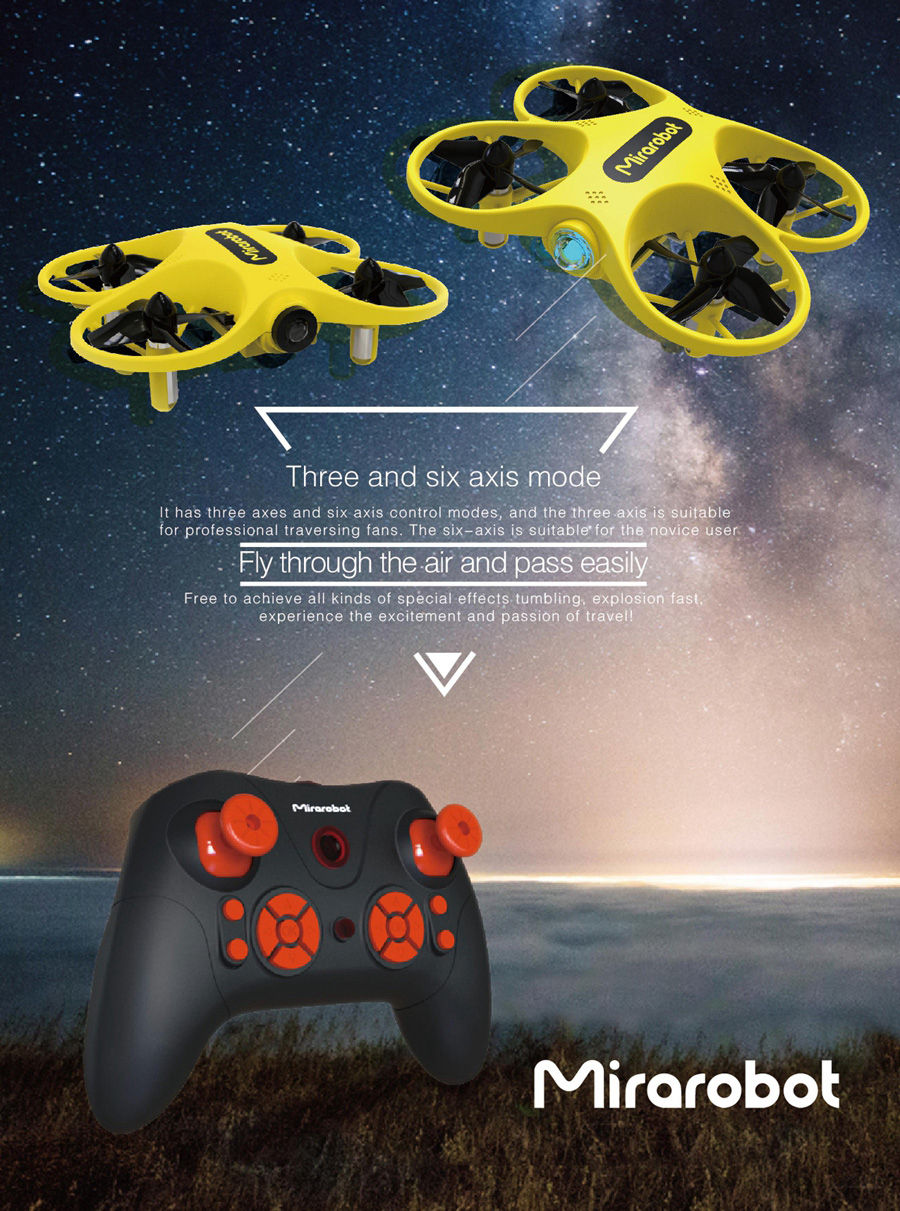

Three and Six Axis Mode
It has 3-axis and 6-axis control modes, and 3-axis Mode is suitable for professional traversing fans. The 6-axis Mode is suitable for the novice user.
5.8G Image Transmission
5.8G 4CH video transmitter offers you clear and smooth real-time FPV
Brush Motor
Coreless motor, lighter but more power

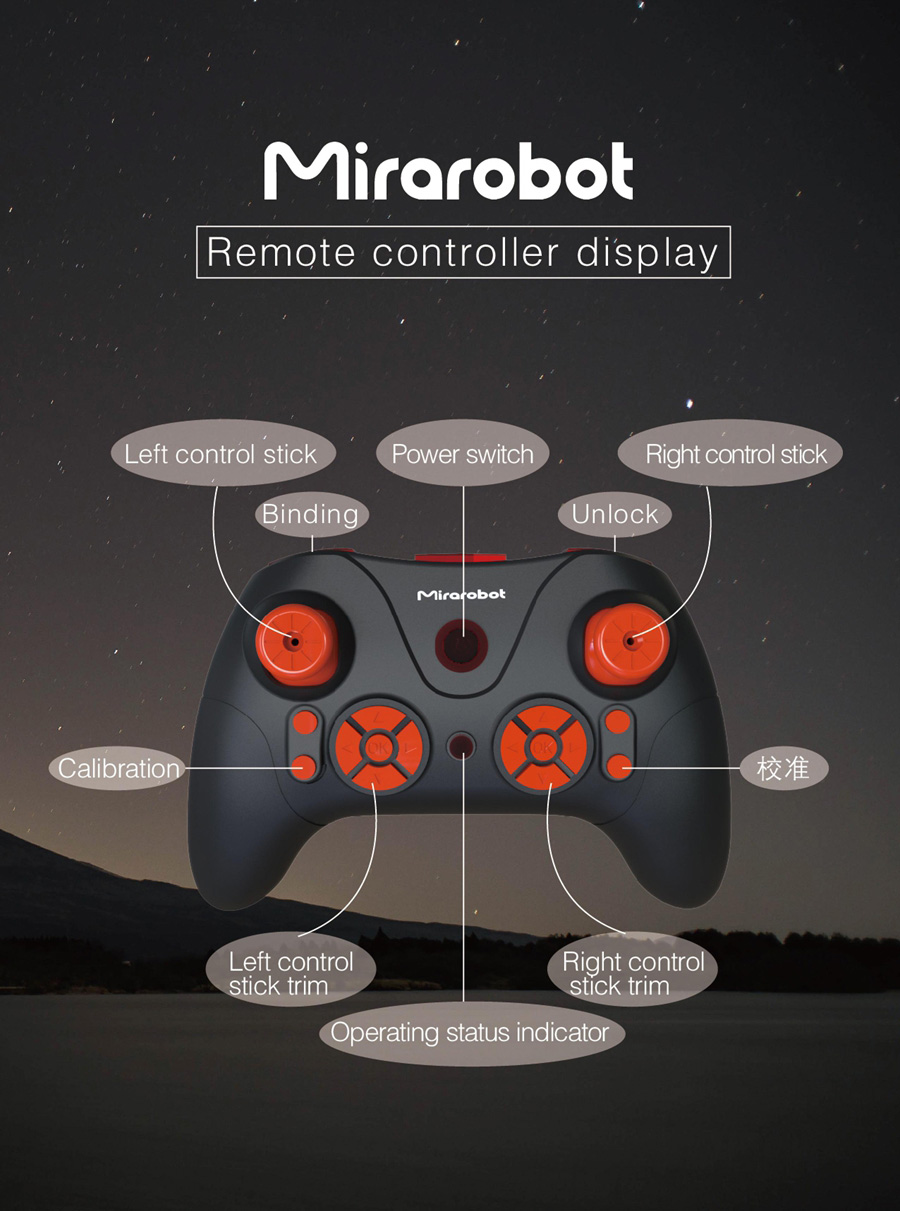

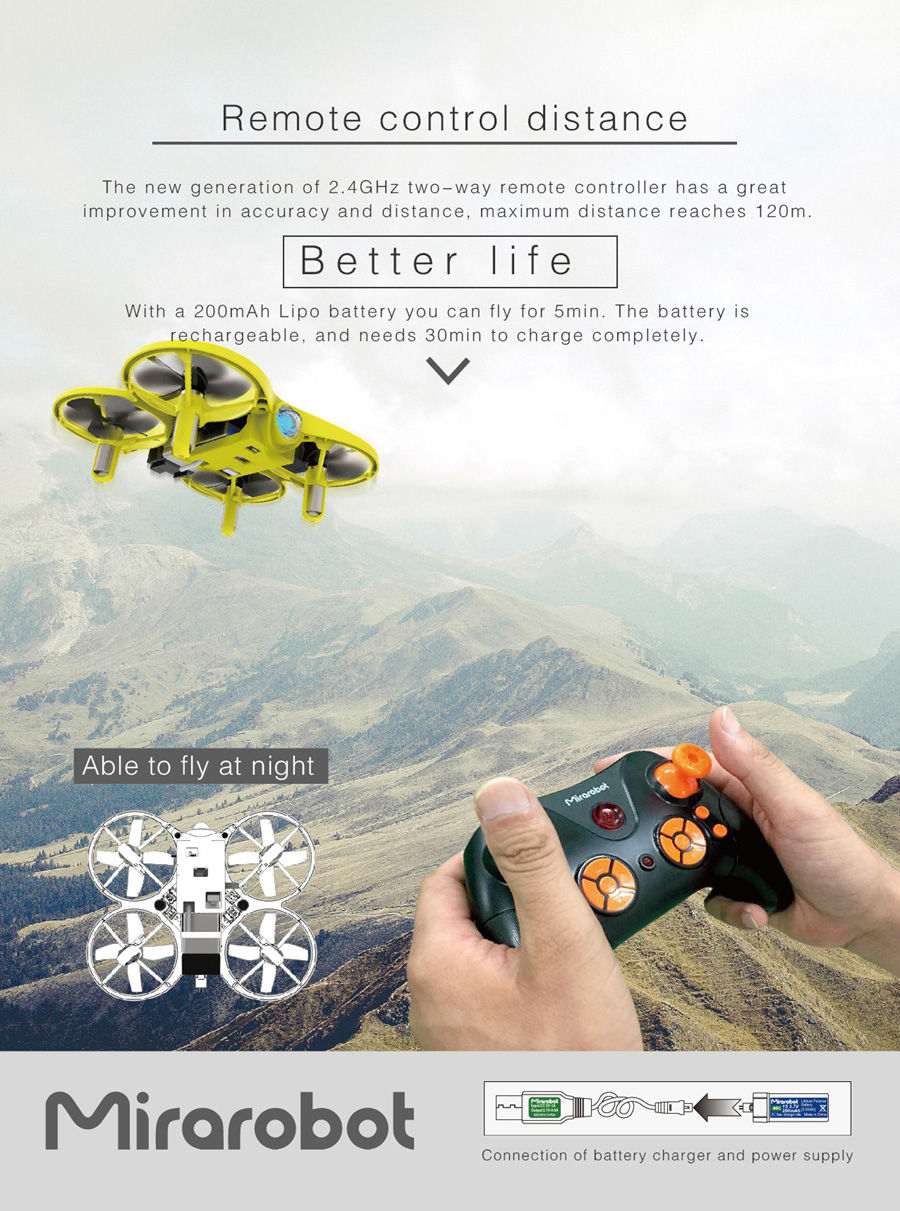

2.4GHz Two-way Remote Controller
2.4GHz two-way remote controller improves the accuracy and distance greatly, maximum distance up to 120m
Low Voltage Alarm Function
The transmitter will alarm if the voltage is under 2.9V until it returns to more than 2.95V.

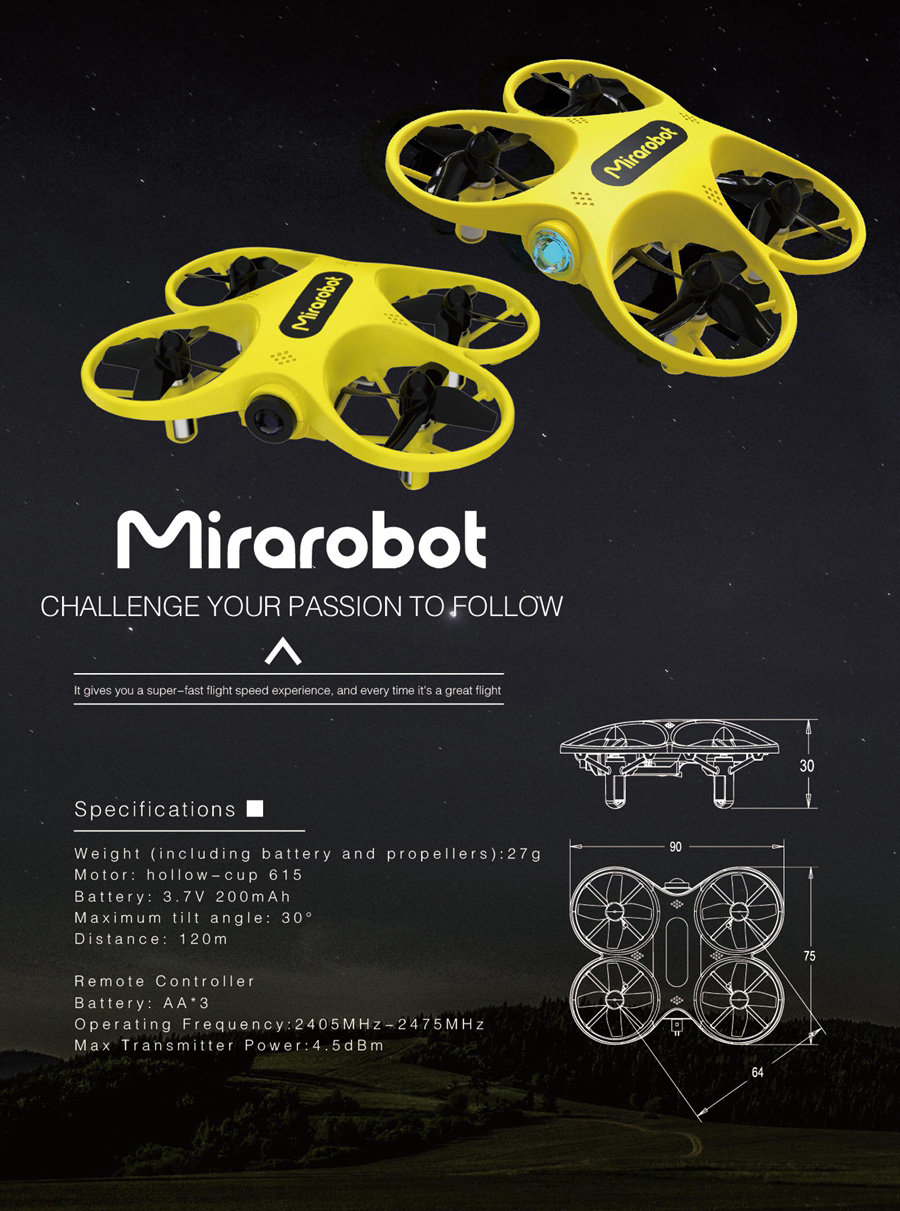

Specification
| General |
Brand: Mirarobot |
| Aircraft |
Aircraft |
| Remote Control | Battery: 1.5V AA*3 Operating Frequency: 2405MHZ-2475MHZ Max Transmitter Power: 4.5dBm Control Distance: 120m |

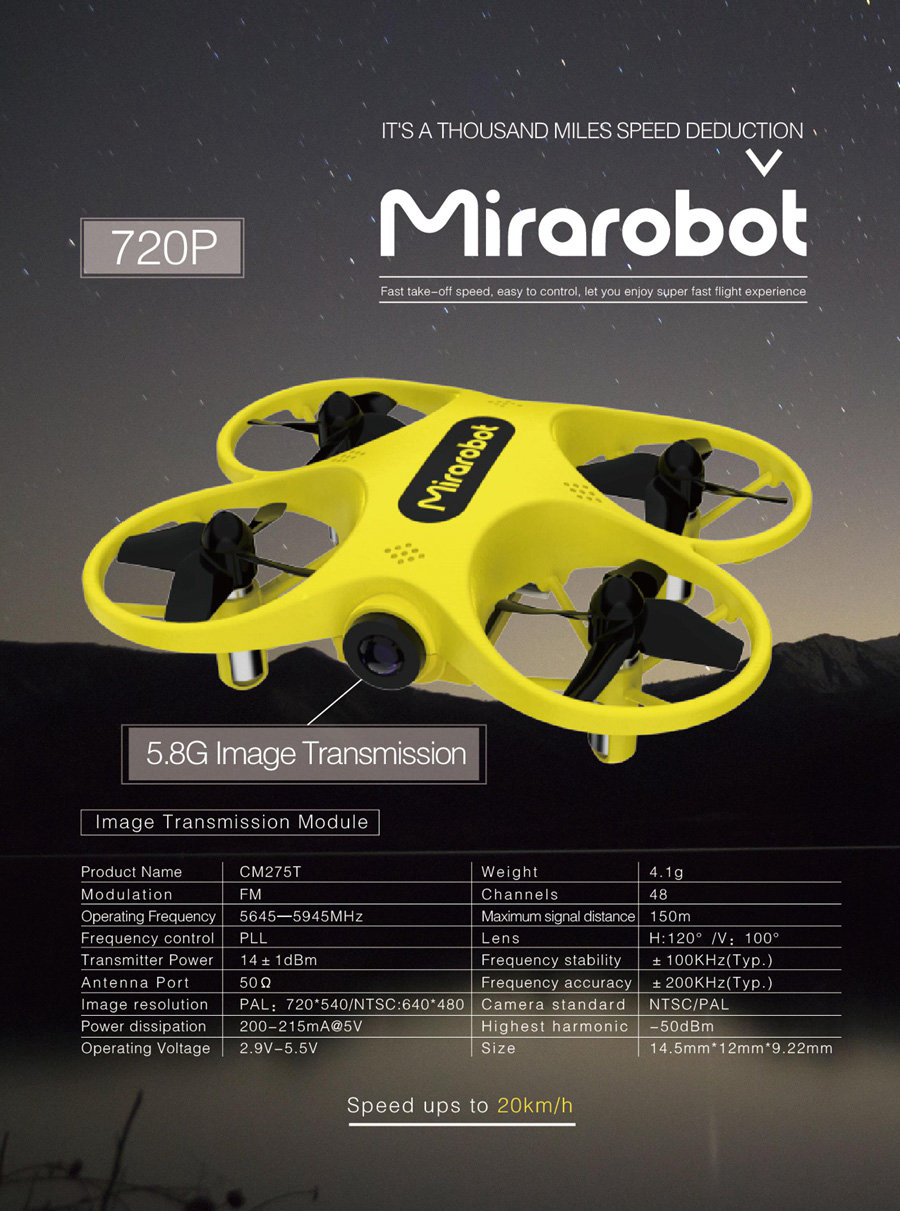

| Image Transmission Module | Product Name: CM275T Modulation: FM Channels: 48 Maximum Signal Distance: 150m Lens: H: 120° V: 100° Image resolution: PAL: 720*540 NTSC: 640*480 Camera Standard: NTSC/PAL Operating Frequency: 5645-5945MHz Frequency Control: PLL Frequency Stability: +/- 100KHz(Typ.) Frequency Accuracy: +/- 200KHz(Typ.) Transmitter Power: 14+/-1dBm Antenna Port: 50Ω Power dissipation :200-215mA@5V Operating Voltage :2.9V-5.5V Highest Harmonic: -50dBm |
| Size & Weight | Size: 14.5*12*9.22mm Weight: 4.1g |

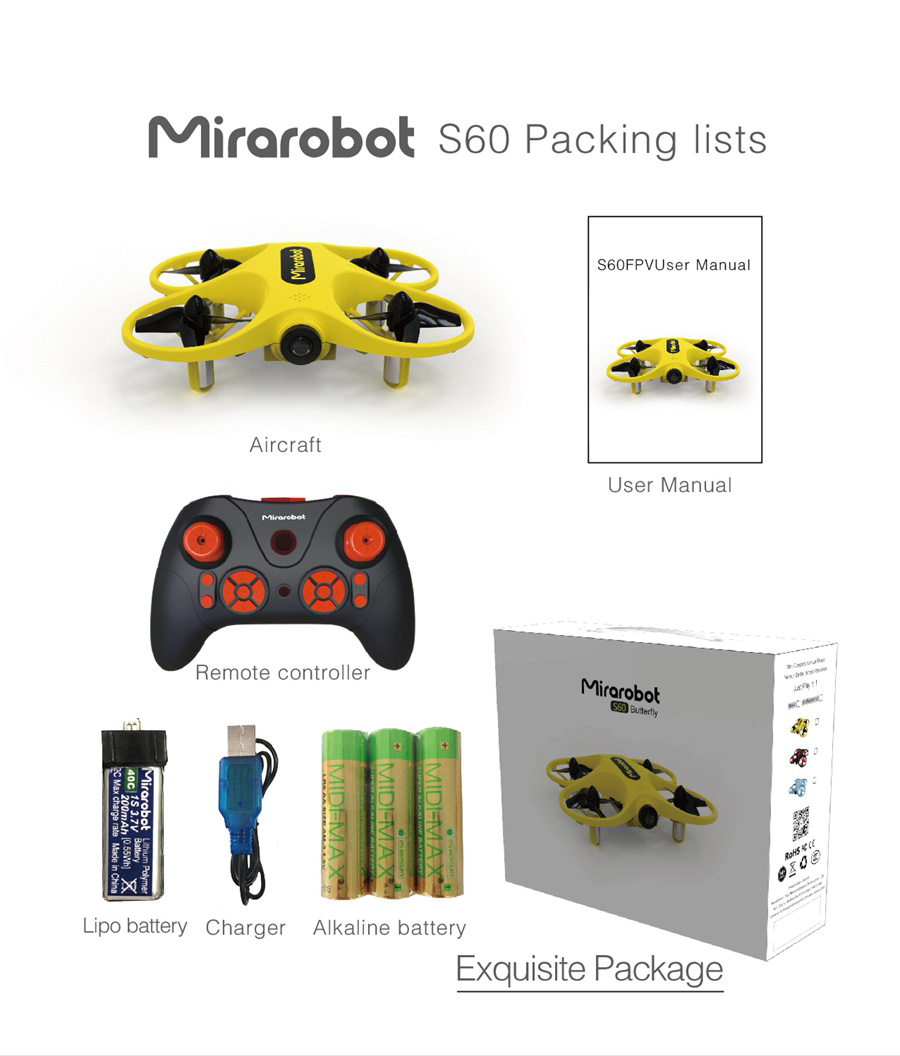

| Package Contents |
1 x Mirarobot S60 FPV Racing Quadcopter |
