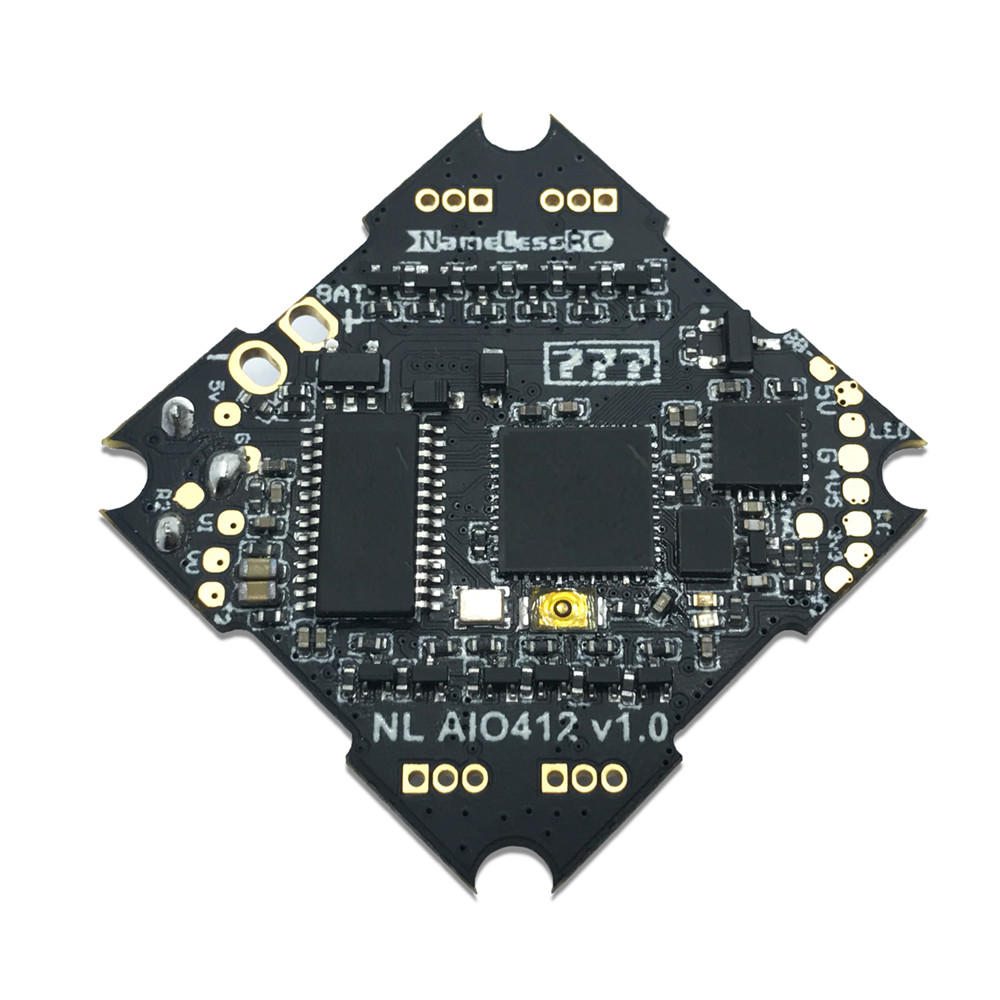

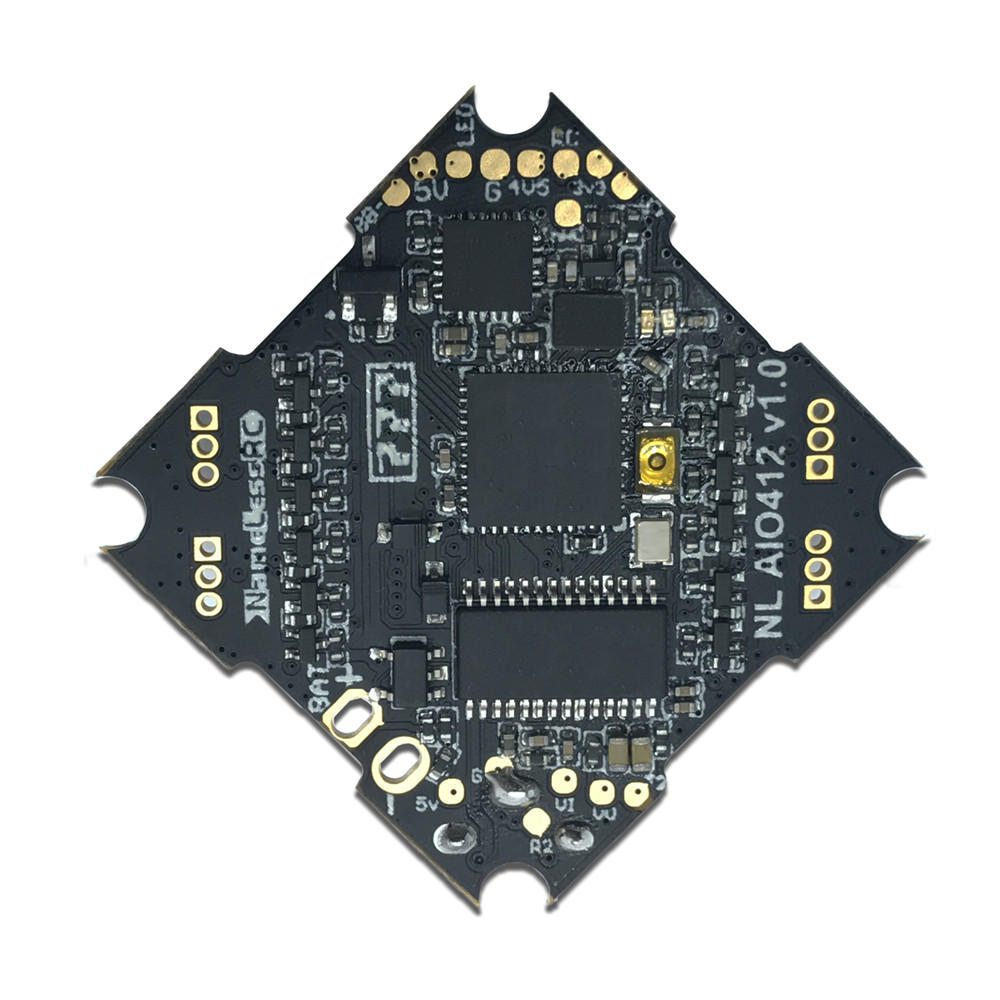

NameLessRC Toothpick AIO412 2-4S Flight Controller AIO OSD 5V/2.5A BEC Built-in 12A BL_S ESC For Cinewhoop Bwhoop FPV Racing Drone

General

Brand: NameLessRC
Item Name: AIO412 Flight Controller
Quantity: 1set

Specification

Processor: STM32F411
Sensor: MPU-6000 (connected by SPI)
Input Voltage: 2-4S Lipo or 2- 4S HV Lipo
Size: 28.5×28.5mm
Weight: 4.2g(W/O battery wire)

Flight Control:
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Size: 28.5×28.5mm board
Built-in 5V 2.5A BEC with LC filter
OSD: Built-in BetaFlight OSD

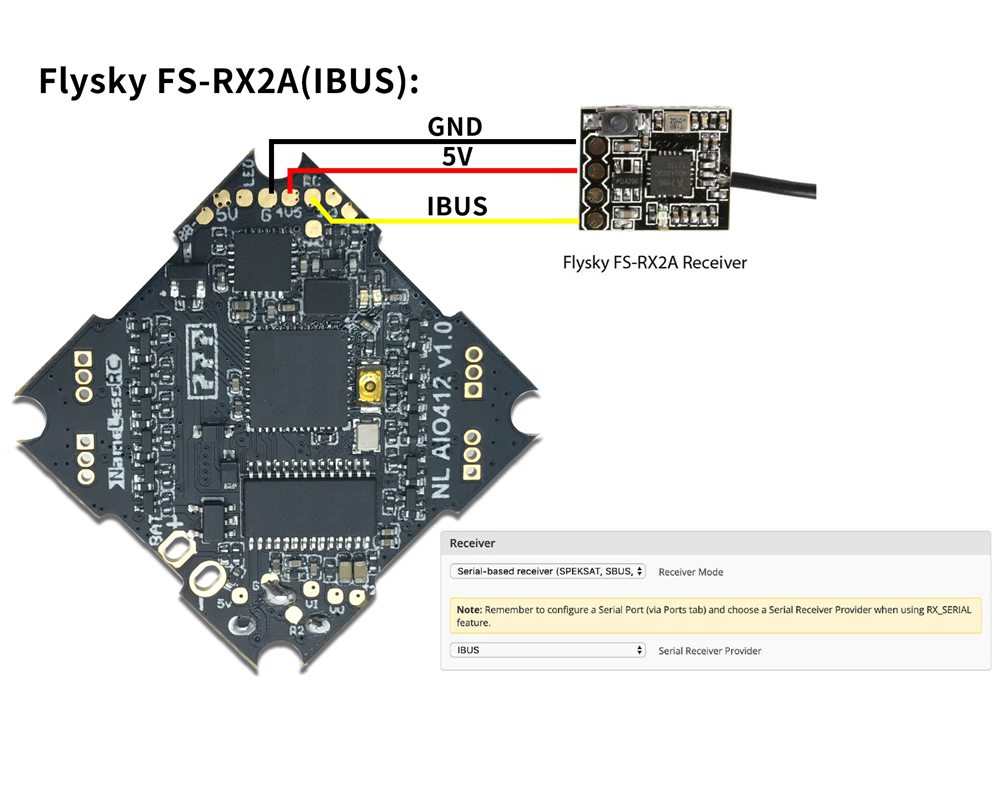

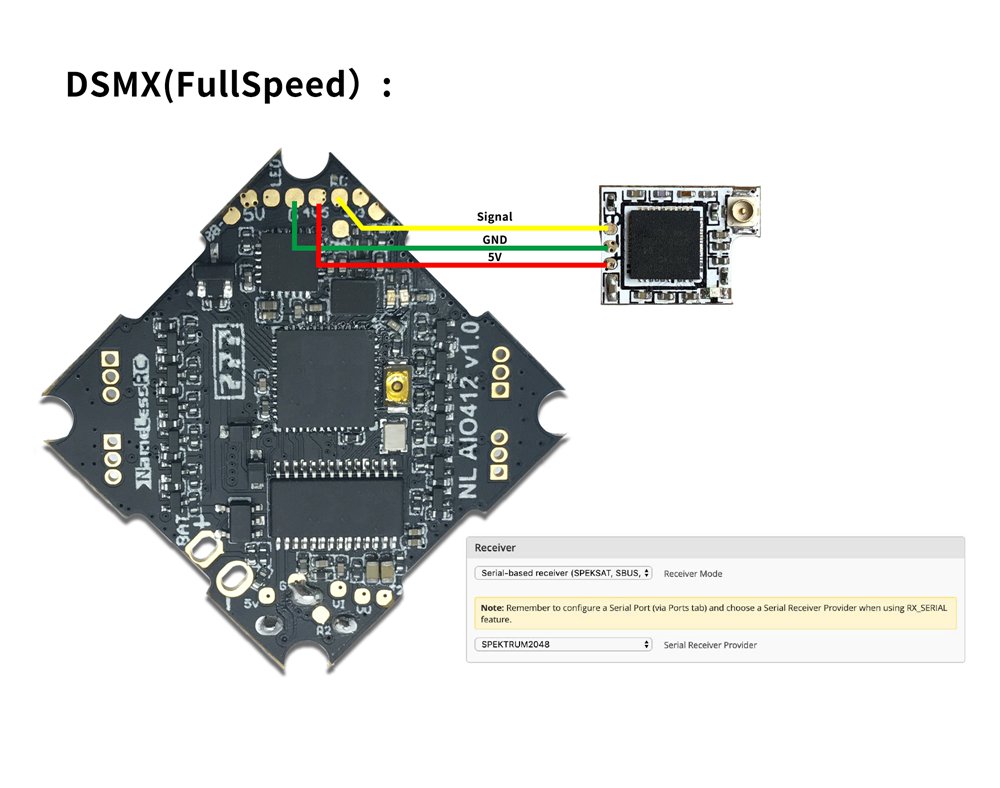

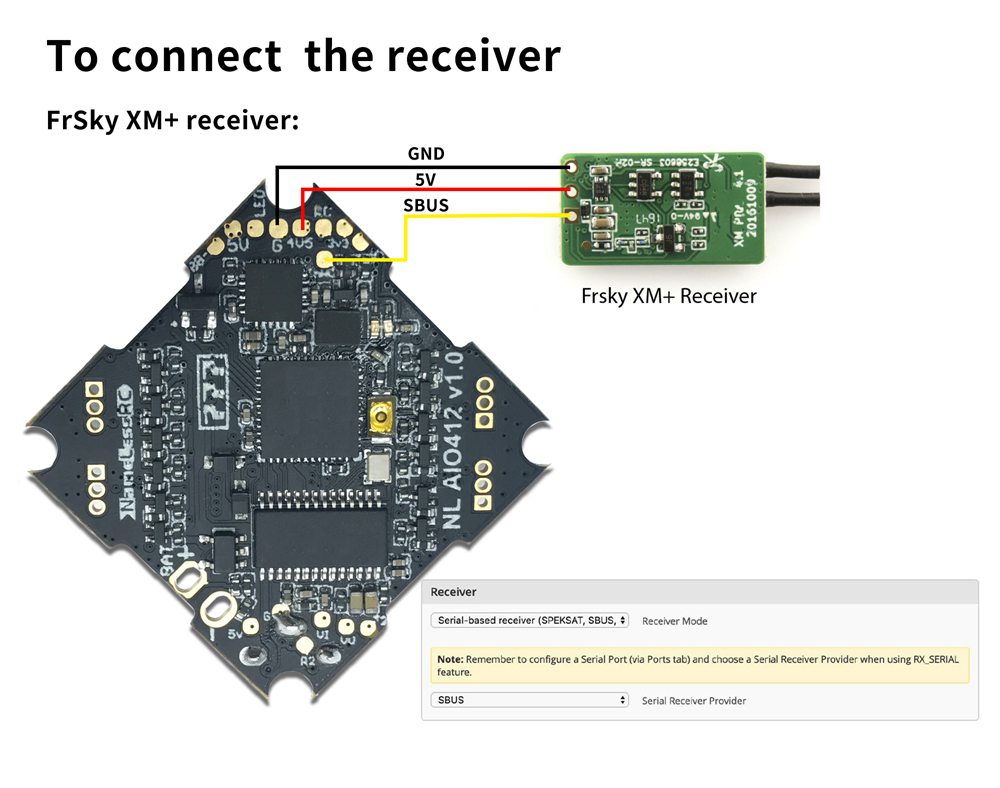

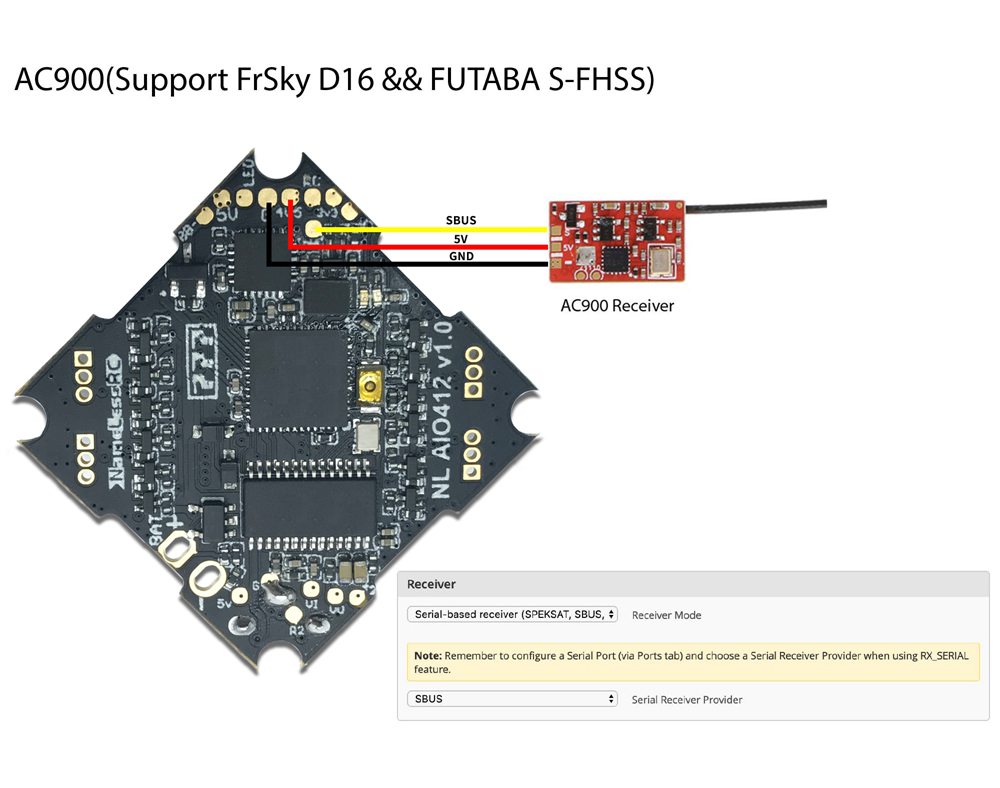

Receiver: Support DSM2/X receiver, Frsky XM/XM+ Receiver, Frsky R9M -Futaba Receiver, Flysky Receiver, TBS Crossfire Receiver
Support programmable LED
Built-in current sensor
Weight: 4.2g(W/O battery wire)

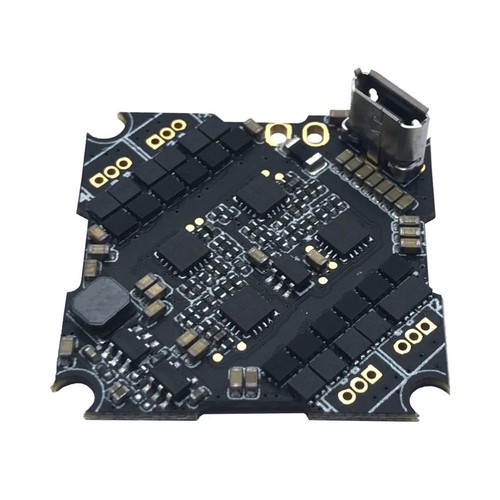

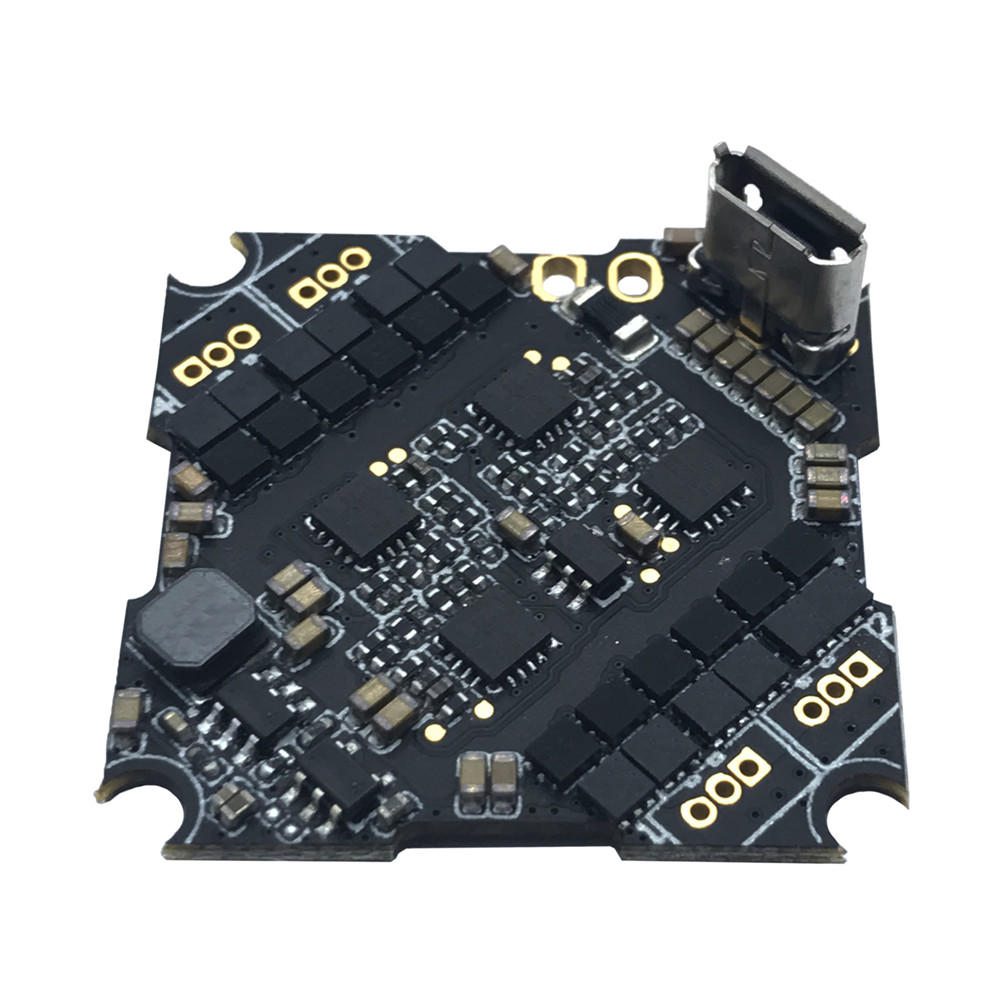

ESC:
Power supply: 2-4S LiPo/LiPo HV (7.4v/17.4v)
Continue current: 12A
Peak current: 15A
Firmware: BLHELI_S
Motor Connectors: 1.25mm header pins connector
Default protocol: DSHOT600

Weight & Dimensions

Product weight: 4.2g
Product size (L x W x H): 28.5×28.5

Package Contents

1 x F4 Flight Controller Built-in 12A ESC Board
1 x XT30 Connector Cable
4 x Anti-vibration Standoffs
1 x bag of Screws
4x Plug Connectors
