Narwal Freo Z10 Ultra Robot Vacuum with Mop Function and Lifting Mop, 18,000Pa Suction, AI Vision, EdgeReach Mop Extension, Tangle-free Brush, 45-75°C Hot Water Wash, All-in-One Dock, Gray

Compare Narwal Robot Cleaners

Product  Summary

The Narwal Freo Z10 Ultra is an enclosed all-in-one robot vacuum and mop for households with pets, mixed hard-floor and carpet layouts, and medium-to-large homes that want daily cleaning to run unattended rather than as a manual chore. It vacuums at up to 18,000 Pa while dual triangular mops spin-scrub at 180 rpm with 8 N of downward pressure, lift 10 mm over carpets, and extend outward so edge cleaning reaches a 0 mm gap along walls and corners, with the zero-tangle roller brush rated at 99% hair removal from carpets under SGS and TÜV certification. The base station handles the service loop itself: mop pads are washed with dynamic hot water at 45–75 °C, dried at 40 °C in as little as 4 hours, detergent is dosed automatically, and debris collects in a 2.5 L dust bag rated for 120 days between changes, while a 6400 mAh / 72 Wh battery covers 120 m² of combined sweep-and-mop or 200 m² mopping-only, climbs thresholds up to 20 mm, and keeps mopping noise at ≤56 dB(A). In Narwal's own range the Freo Z10 Ultra sits as a premium flagship-adjacent model — above the 12,000 Pa Freo Z Ultra on suction, AI dual-camera recognition of 200+ object types and full dock automation, and below the 22,000 Pa Narwal Flow on raw power and 48 mm EdgeReach mop extension.

Key Fact Table

• This robot vacuum pairs a 4.5L clean-water tank with a 4.05L dirty-water tank, keeping fresh and used water separate while reducing refill frequency during mopping.
• With its large 4.5L clean-water capacity, the machine can handle extended mopping sessions across larger floor areas with fewer interruptions for refills.
• A 6400mAh eight-cell lithium-ion battery stores 72Wh of rated energy, powering the drive motors, suction fan, and water pump throughout cleaning cycles between recharges.
• The 800ml onboard dustbin collects dry debris during cleaning, providing ample capacity for everyday whole-home vacuuming before emptying is needed.
• A dual dust collection system combines a 300ml onboard container with a 2.5L base station dust bag, extending the time between manual disposal.
• During mopping, noise levels stay at ≤56dB(A), helping maintain a quieter home environment without excessive disturbance.
• With an IP52 rating, the robot offers protection against limited dust ingress and water splashes, supporting everyday cleaning and maintenance.
• The base station supports a rated input power of 65W, with approximately 40W actual power consumption during operation, balancing power requirements with everyday efficiency.
• Combining large water tanks, a high-capacity battery, and dual-stage dust collection, the system supports extended cleaning sessions with less frequent manual maintenance.

Highlights

AI-Powered Deep Cleaning with NarMind™ Pro

The Narwal Freo Z10 Ultra robot vacuum mop features dual-camera AI that recognizes 200+ objects and adapts cleaning strategies in real time for intelligent, personalized floor care.

18,000Pa Suction + Smart Mopping System

This powerful robot vacuum cleaner delivers intense suction for tough messes while its adaptive hot-water mop (45°C-75°C) sanitizes floors, handling both wet and dry cleaning effortlessly.

Zero-Gap Edge & Corner Cleaning Technology

With smart-extending mops and AI-driven navigation, this robot mop achieves complete wall-to-wall coverage, eliminating blind spots in corners and along edges.

Tangle-Free Design for Effortless Maintenance

The conical brush and 120° V-shaped side brushes prevent hair wrap, making this robot vacuum and mop combo ideal for pet owners and families.

Ultra-Quiet Operation

Intelligently adjusts between whisper-quiet cleaning on clean floors and powerful 18,000Pa suction when encountering stubborn dirt.

Voice Control & Smart Home Integration

Features 30+ voice commands (English/German/Korean) and works with smart home systems for complete hands-free control of your robot vacuum mop.

Self-Emptying & Self-Cleaning Station

The 2.5L dustbin enables 120 days of hands-free operation while the auto hot-air drying (40°C) keeps mops hygienic between uses.

Smart Carpet Detection & Adaptation

Automatically recognizes and adjusts cleaning for different floor types - from low-pile carpets to area rugs - with optimized suction and mopping patterns.

All-in-One Cleaning Solution

Combines the best features of a robot vacuum and mop in one device, with separate waste systems to prevent cross-contamination between dry and wet debris.

The Systematic Technology of Deep Cleaning

With NarMind™ Autonomous System, the Freo Z10 Ultra adapts to your home in real-time, learning and evolving to deliver personalized, hands-free cleaning.

Experience seamless cleaning with your intelligent companion that grows smarter every day.

Meet Narwal NarMind™ Pro: Redefining Intelligent Clean

Dual cameras and chips power NarMind™ Pro's advanced floor awareness. Trained on millions of scenarios, it recognizes 200+ objects and adapts in real-time for intelligent cleaning.

Your AI-powered Deep Cleaning Expert, delivering precision cleaning in every corner.

Zero-Gap Intelligence

Precision-engineered to adapt to every surface contour. From walls to furniture edges and corners, advanced algorithms ensure complete coverage with zero blind spots.

Adaptive Edge

Smart-extending right mop achieves 0 mm gap with dynamic shape conformity

Corner Precision

AI-driven extend-and-reverse technology for complete corner coverage.

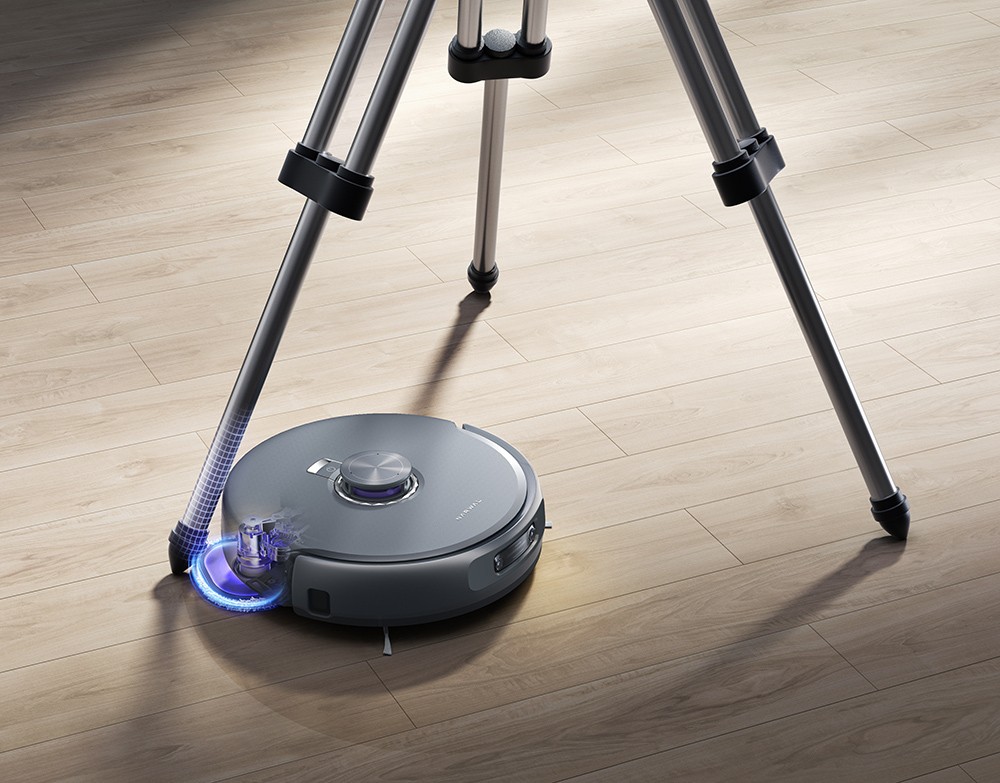

Obstacle Navigation

Zero-distance cleaning with intelligent obstacle tracking.

Quiet on Clean Floors, Power for Tough Messes.

Freo Z10 Ultra intelligently adapts its suction and speed to match floor conditions, operating as quietly as ≤56dB on clean surfaces while delivering up to 18,000Pa of intense suction for stubborn dirt and debris.

Tangle-Free Design, Effortless Maintenance

The conical brush and V-shaped side brushes with a 120° expansion and bidirectional rotation prevent tangling for optimal cleaning.

Adaptive  Hot-Water Mop Washing

Precision thermal control (45°C-75°C) intelligently adapts to surface materials for optimal sanitization.

Custom Care for Every Type

Advanced AI instantly recognizes carpet types and adjusts cleaning power in real-time, delivering optimal results on carpets.

• Low-Pile Carpets: 12mm lift with enhanced suction power
• High-Pile Carpets: Precision avoidance
• Area Rugs: Synchronized sweep-mop operation
• Absorbent Mats: Smart traversal mode

Pros & Considerations

Pros

• NarMind™ Pro uses dual cameras and chips to recognise over 200 object types and adjust cleaning strategies in real time.
• 18,000 Pa suction and 8 N mop pressure tackle dust, debris and dried-on stains, while the patented triangular mop pads provide 10 mm overlap for better edge-to-edge coverage.
• The dock automatically washes mop pads with 45–75°C hot water, dispenses detergent and dries them with 40°C hot air.
• The extendable mop reaches along walls and into corners, while the liftable main brush and dual side brushes help prevent hair tangles.

Considerations

• The 2 cm obstacle-crossing limit may be insufficient for thick rugs and high door thresholds.
• The 430 × 426 × 462 mm base station requires dedicated space, a power outlet and a nearby water connection for automatic refill and drainage.
• AI recognition, NarGPT and remote camera monitoring require the app and Wi-Fi; voice control is limited to English, German and Korean.

FAQ

Will it get stuck on balcony rails or floor transitions?

The robot can cross thresholds up to 20 mm high. Higher thresholds or steep edges may require a ramp. It can handle low-pile carpets up to 12 mm but is not suitable for thick shaggy rugs.

Can it clean under my sofa and cabinets?

The robot measures 355 × 350 mm and is 109.6 mm tall. Make sure your furniture has at least 110 mm of clearance. Its LDS laser navigation works in the dark, so it can map and clean without additional lighting.

Will pet hair get tangled in the brushes?

The main brush and two side brushes feature SGS and TÜV-certified zero-tangle technology. They remove up to 99% of hair from carpets, while Pet Mode provides dedicated settings for homes with shedding pets.

Is it quiet enough to run at night?

Mopping noise is ≤56 dB(A), while silent sweeping and mopping stays at ≤59 dB(A). You can also set a Do Not Disturb schedule to avoid noisy drying cycles. Dust collection at the dock reaches around 70 dB(A), so daytime scheduling is recommended.

How well does it clean edges and corners?

The right mop extends beyond the robot's body, while the movable side brush reverses and reaches into corners. Its 6 mm extended reach helps clean along walls, although it cannot guarantee completely flush wall coverage.

How much maintenance does it need?

The 2.5L dust bag holds up to 120 days of debris, and the robot's 300ml dustbin empties automatically into the dock. Mop pads are washed at 45–75°C and dried at 40°C in approximately 4 hours. The filter should be washed monthly and replaced every 3 months. Replace mop pads after 150 hours and the roller brush after 300 hours.

Do I need to refill the water tank manually?

Yes. The dock has a 4.5L clean water tank and a 4.05L dirty water tank, supporting approximately 180 m² of cleaning per fill. Water needs to be refilled and emptied manually, while detergent is dispensed automatically from the included bottle.

What are the suction power and battery life?

The robot delivers 18,000 Pa suction and uses a 6,400 mAh (72Wh) battery. It can cover up to 120 m² in sweep-and-mop mode or 200 m² in mopping mode per charge. The battery has a 2-year warranty and retains approximately 70% capacity after 500 cycles.

Will it leave my carpets wet?

The robot lifts its mop pads by 10 mm and automatically adjusts its cleaning strategy according to carpet type. It increases suction on low-pile carpets and avoids high-pile rugs. During mopping, the main brush lifts and the side brushes retract to keep wet and dry debris separate.

Can I use it in a bathroom or damp utility room?

Both the robot and dock have an IP52 rating, meaning they offer dust and water splash protection but are not waterproof. Keep the dock away from wet floors and direct water spray. It supports 100–240V, 50/60Hz power input, so no voltage converter is needed within this range.

Final Overview

Bottom Summary

For households with pets, mixed hard floors and rugs, and little time for daily floor care, the Narwal Freo Z10 Ultra is built around genuinely hands-free operation. Vision-based obstacle avoidance and laser mapping let it plan whole-home routes and work around cables, shoes and toys, while the extending mop reaches skirting boards and cabinet fronts that fixed-width robots usually leave dirty. The all-in-one dock handles washing, drying and dust collection, so weekly upkeep is mostly limited to swapping consumables, and hot-water mop cleaning with pad lift-off keeps combined vacuum-and-mop runs more hygienic around carpet edges. This makes it a strong fit for users prioritizing automated daily upkeep over hands-on control of every cleaning step.
