Highlights
- The ORVIBO Smart Home Suit Equipment including ZigBee Mini Hub / Windows Door Sensor / PIR Motion Sensor
- Powered by ZigBee wireless communication technology, highly reliable and stable

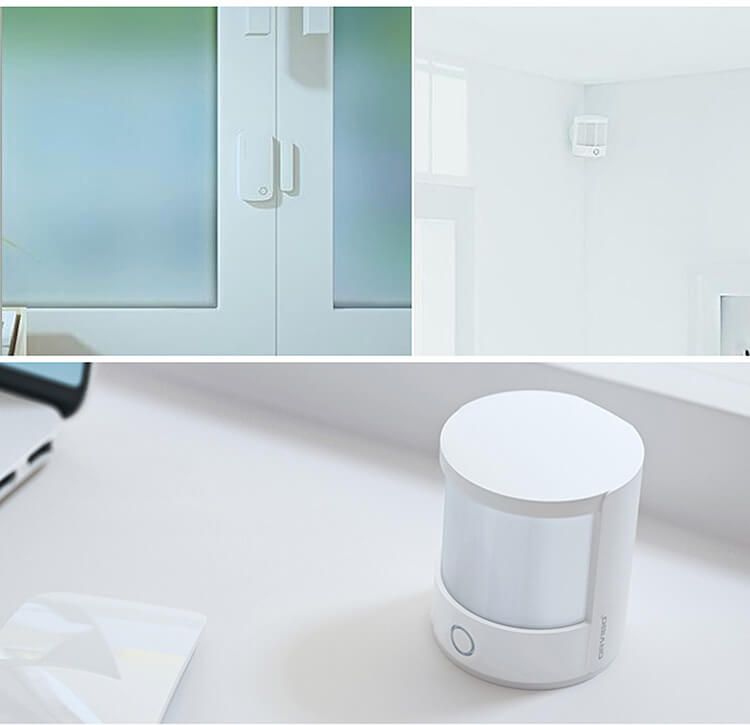

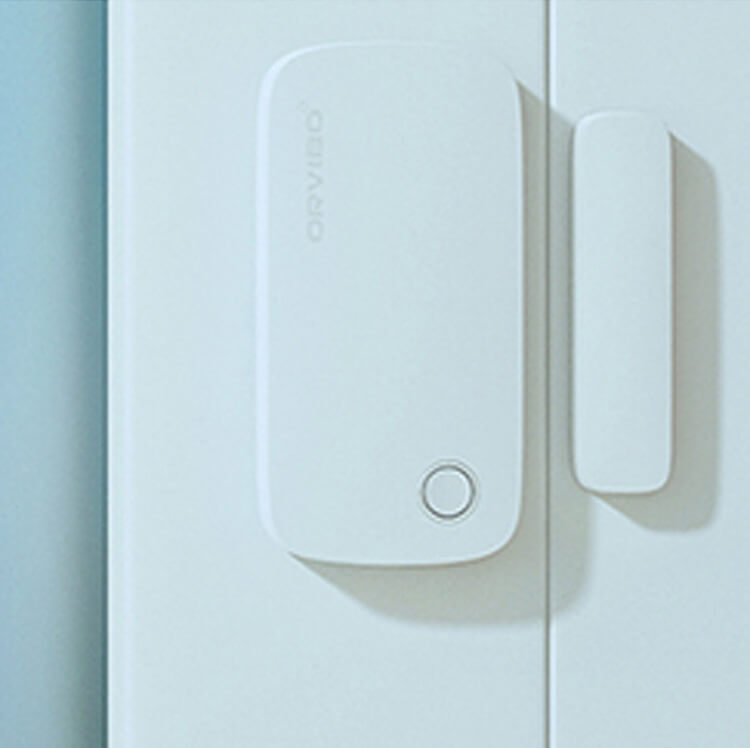

- Door window sensor can be installed on doors, windows or other openable objects
- ORVIBO motion sensor is based on the human infrared spectrum detection technology
- The sensor detects human or pet activity by sensing the infrared heat from the human or pet body

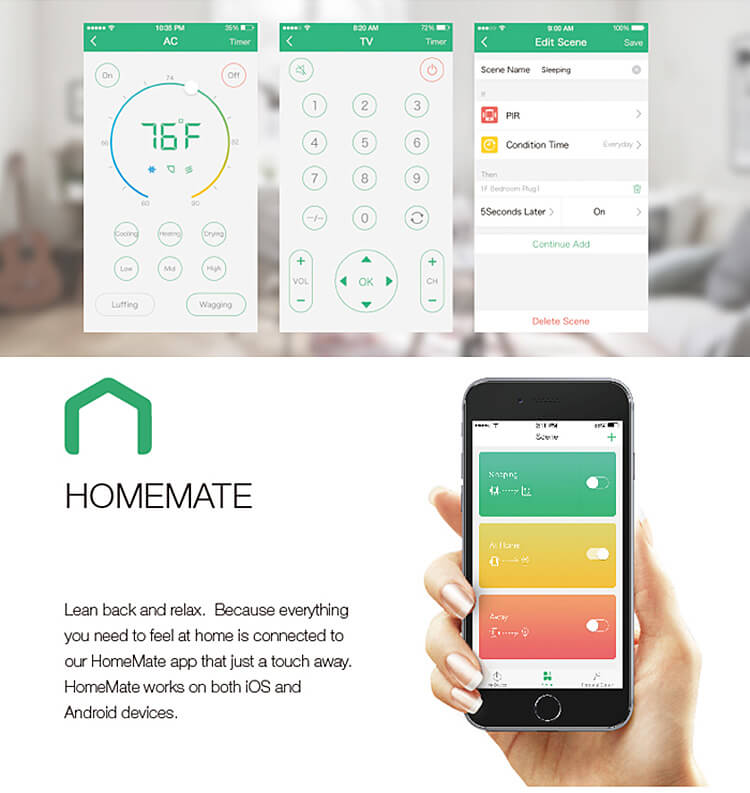

- When used with smart hub and HomeMate APP, it operates as home a security system with customizable equipment linkage function.
- Work with HomeMate App to remind you no matter where you are if someone unwanted break into your house
- Synchronize with other ZigBee devices, can realize if you open the door, then turn on lights scenes
- Ultra low power consumption, the battery can last more than 1 year

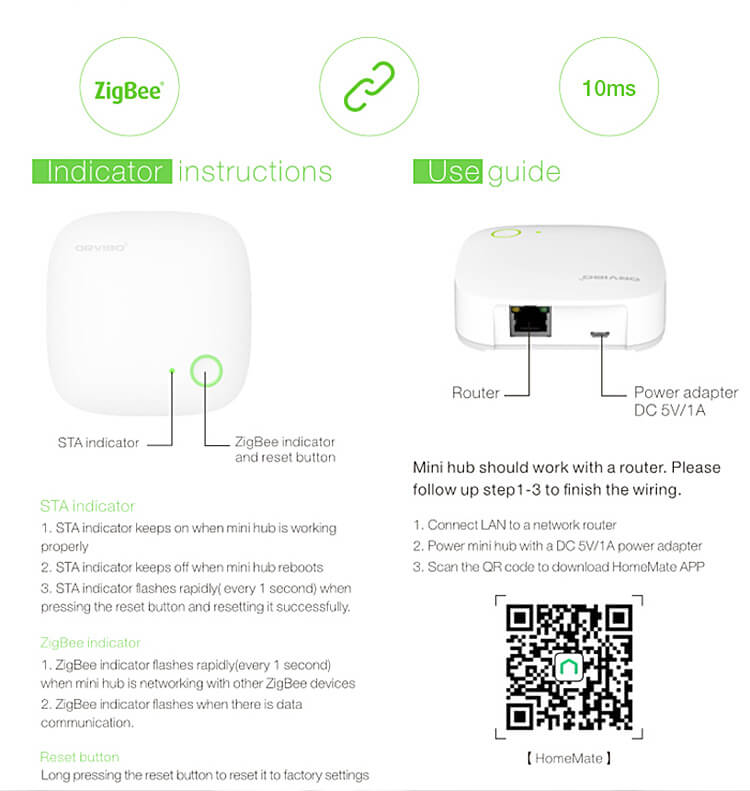

- If it's low battery, the LED of the sensor will blink once every 3 seconds
- Note: please notice that PIR smart sensor / windows door sensor can not use alone, please make sure that you have ORVIBO VS10ZW Alarm Mini ZigBee Hub. They must works with the ORVIBO Mini Hub to use
Specification
| ZigBee Hub | |
|---|---|
| Brand | ORVIBO |
| Size | 88*90*27mm |
| Power Supply | 5V-1A Micro USB |
| Communication Protoco | ZigBee HA |
| Wireless standard | IEEE 802.15.4 |
| Working frequency and channel | Frequency: 2.4GHz |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Wireless transmitting power | ≤18dBm |
| Wireless receiving sensitivity | ≥-90dBm |
| Encryption | AES128 |
| Communication rate | 250Kbps |
| Product List | 1 x Orvibo ZigBee Mini Hub ;1 x English User Manual ; 1 x Warranty Card |
| PIR motion sensor | |
| Model | SN10ZW-1NO |
| Power Supply | Includes batteries |
| Standby current | ≤50uA |
| Alarm current | ≤50mA |
| Communication Protoco | ZigBee HA |
| Working frequency | 2.4GHz |
| Wireless standard | IEEE 802.15.4 |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Encryption | AES-128 |
| Communication speed | 250 Kbps |
| Transmission power | ≤4.5dBm |
| Receiver sensitivity | ≥=90dBm |
| Detaction range | 120 degrees horizontally, |
| Detection distance | 7m |
| Communication distance | 80m(in open area) |
| Casing material | PC+ABS |
| Operating environment | -10-50degree |
| Operating humidity | 10%-90% RH |
| Dimension | 52.6x63mm |
| Product List | 1 x ORVIBO motion PIR sensor ;1 x ORVIBO sensor bracket ;1 x Setting screws pack ;1 x Engligh user manual ;1 x Warranty Card ;1 x Battery |
| Door/window sensor | |
| Model | SM10ZW-1NO |
| Power Supply | Includes CR2032 button battery |
| Standby current | ≤1uA |
| Alarm current | ≤15mA |
| Communication Protoco | ZigBee HA |
| Wireless standard | IEEE 802.15.4 |
| Working frequency | 2.4GHz |
| Channel | 11.14.15.19.20.24.25 |
| Modulation mode | OQPSK |
| Encryption | AES-128 |
| Communication speed | 250 Kbps |
| Transmission power | ≤4.5dBm |
| Receiver sensitivity | ≥-90dBm |
| Communication distance | 80m(in open area) |
| Casing material | PC+ABS |
| Operating environment | -10-50degree |
| Operating humidity | 10%-90% RH |
| Transmitter dimensions | 61x30.3x11.7mm |
| Magnet dimensions | 44.8x140.9x7.9m |
| Product List | 1 x ORVIBO Door/Window sensor ;1 x Double sides tape ;1 x English user manual ;1 x Warranty Card ;1 x CR2032 button battery |
