Highlights
- Dual bands(2.4GHz+5GHz), even though the IOS device can view the files which is stored in the routers after installing the Xiaomi Mini Router App.

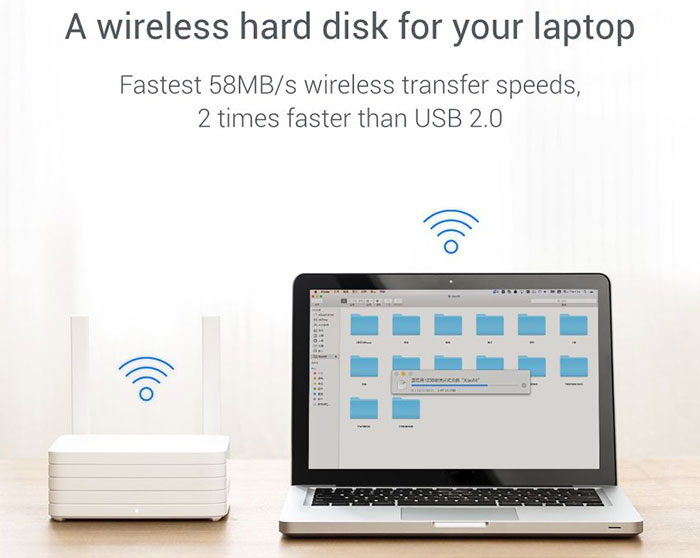

- Built-in wireless 1TB Hard mobile hard disk drive, read files as your will.

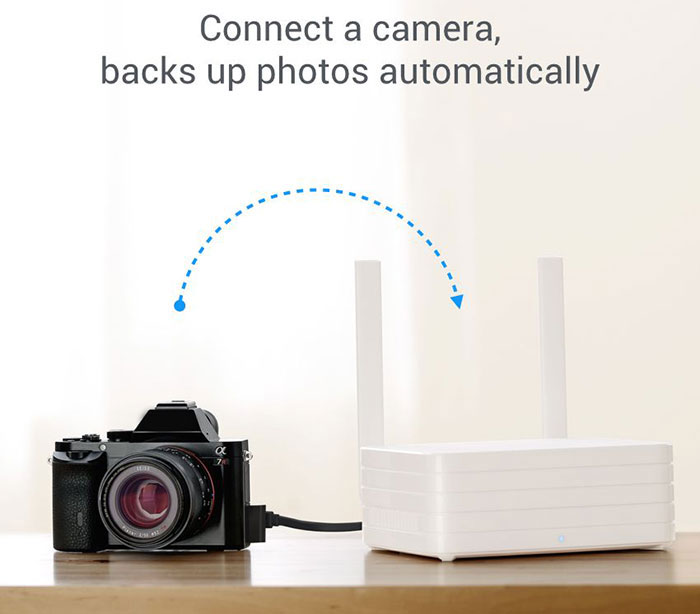

- Can connect your camera with xiaomi Mi router easily and it will copy your files automatically.
Specification
| General | |
|---|---|
| Brand | Xiaomi |
| Model | Mi Wifi |
| Material | ABS + PC |
| Color | White |
| Dimension | 16.9 x 13.1 x 18.4 cm |
| Hardware configuration | |

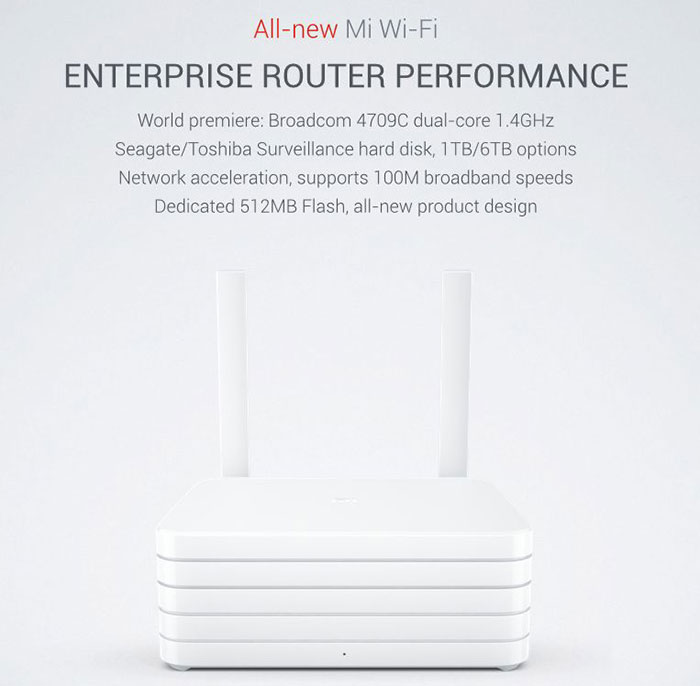

| Processor | BCM4709C Cortex-A9 dual core, 1.4GHz |
| ROM | 512M SLC Nand Flash |
| Internal storage | 256MB DDR3-1600 |
| Hard disk storage | 3.5 inch (Standard 1TB) |
| 2.4G WiFi | 2*2, support 802.11n protocol, max speed up to 300Mbps |
| 5G WiFi | 2*2, support 802.11ac protocol, max speed up to 867Mbps |

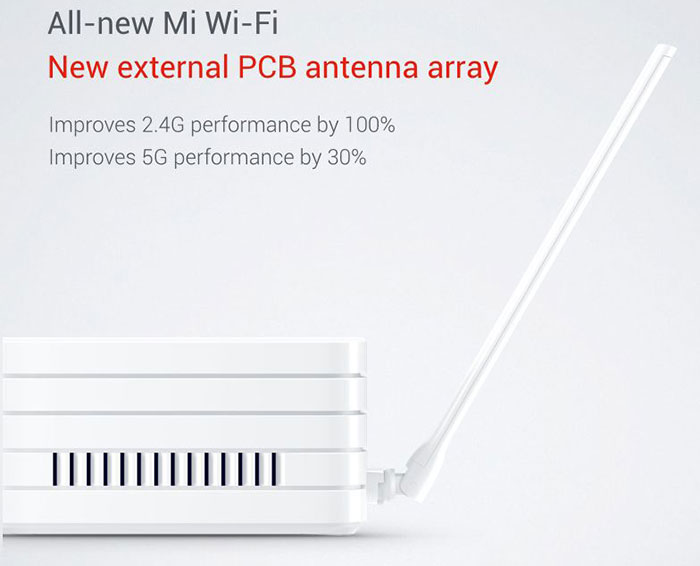

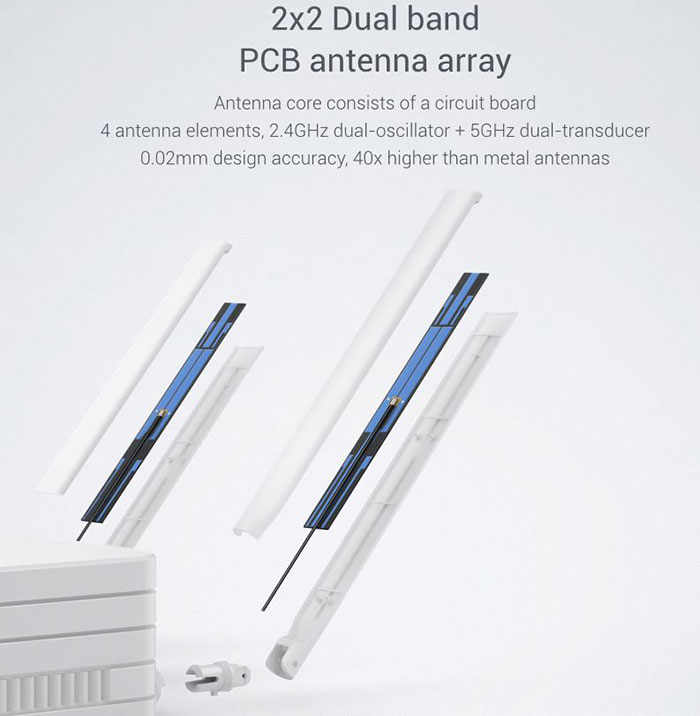

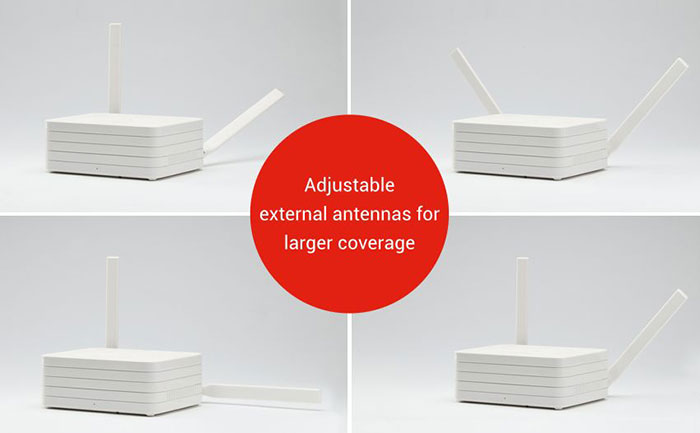

| Max External Card Supported | External dual-bands omni-directional enterprise grade PCB antenna array (2.4G max gain 4dBi, 5G max gain 6dBi) |

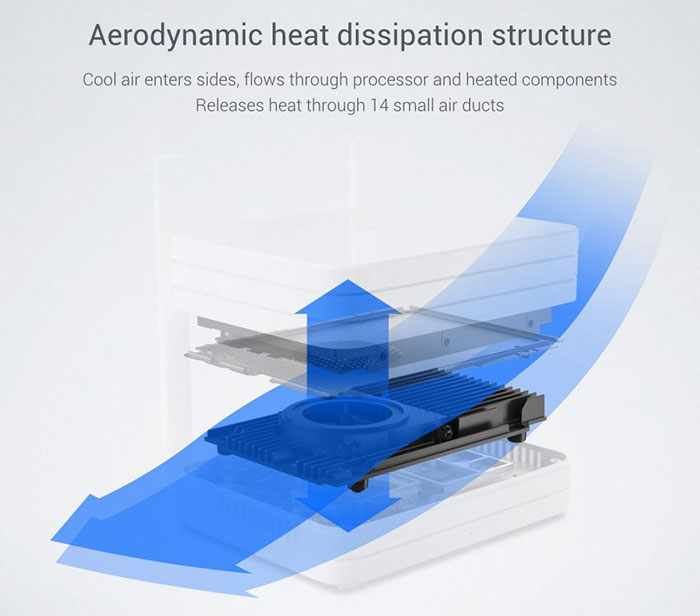

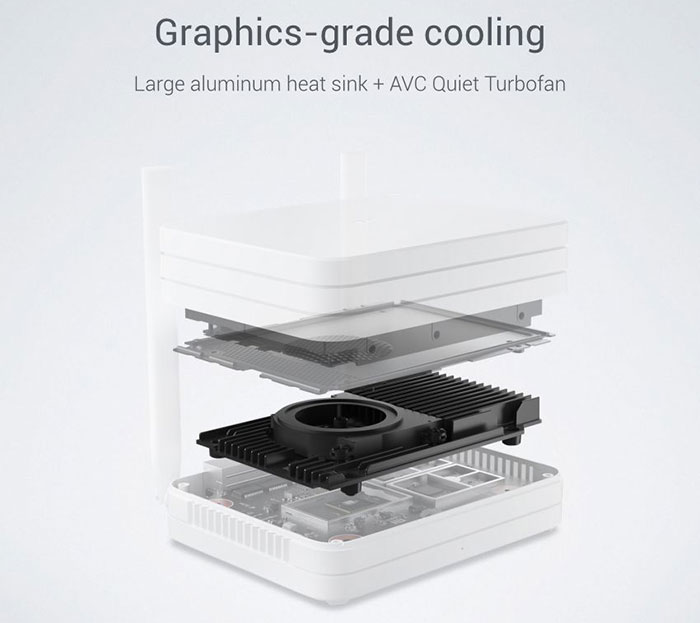

| Heat Removal System | Speacial designed cooling air duct system + intelligent low speed quiet fan |
| Software configuration | |
| OS | Based on OpenWRT deeply customized intelligent WiFi OS, MiWiFi ROM support router management softwares on Web, Android, iOS, Windows, OS X system |
| Language | Simplified Chinese |
| Senior Management | Provide advanced users/developer with router root access, original toolchain and SDK |
| Security | WPA-PSK/WPA2-PSK encryption, wireless access permission (white/black list), SSID hidden |
| Open Platform | Support Thunder, Kingsoft cloud, Sogou, etc, providing third-party developers plug-in development tools |
| Management application | Supporting Web, Windows, Android, MacOS, iOS |
| Wireless Specification | |
| Wireless channels | 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 149,153,157,161,165 5GHz DFS Channel: 36,40,44,48,52,56,60,64 |
| Modulation system | 11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) 11a/g: OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), Q64QAM(48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Q rate set: MCS0~MCS15 11ac: MIMO-OFDM: BPSK, QQPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0~MCS9 (support 2 flows) |
| Receiving accuracy | 11Mbps: ≤-90dBm, 54 Mbps: ≤-72dBm, HT20 QMCS7: ≤-69dBm, QHT40 MCS7: ≤-66dBm, VHT20 MCS8: ≤-65dBm, Q VHT40 MCS9: ≤-60dBm, QVHT80 MCS9: ≤-58 dBm |
| Working condition | |
| Working temperature | 0-40°C |
| Working humidity | 10%-90%RH noncondensing |
| Storage temperature | -40-70°C |
| Storage humidity | 5%-90%RH noncondensing |
| Power consumption | 36W |
| Working noise | 22dB, 28dB max |
| Standard | |
| Protocol | IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u/3ab |
| Certification | GB9254-2008 YD/T993-1998 GB4943.1-2011 |
| Interfaces | 1 x USB 2.0 interface (DC output:5V/1A) 3 x 10/100/1000M self-adaptive LAN port (Auto MDI/MDIX) 1 x 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX) 1 x Red/blue/yellow LED indicator 1 x System restore factory settings button 1 x Power on/off button 1 x Power input port (12V 3A) |
| Package contents | |
| 1 x Mi WiFi | |
| 1 x User manual | |
| 1 x Power adapter(12V 3A) | |
