Highlights
- Plug-and-play, remote P2P(Peer to Peer) connection, no need for port mapping
- H.264 Main profile level 3.0 coding, real time H.264 dual-stream encoding, resolution, frame rate and bit rate are adjustable
- Integrated ONVIF standard, compatible with third-party ONVIF platform software
- 1/4" 1.0 Megapixel CMOS Sensor, maximum image resolution is up to 1280*720@25fps
- Supports monitoring via computer, iPhone, and most Android smartphones on the market
- PC surveillance software and mobile phone client are included, very easy remote network surveillance
- Support Color/BW mode converting, IR-CUT Filter

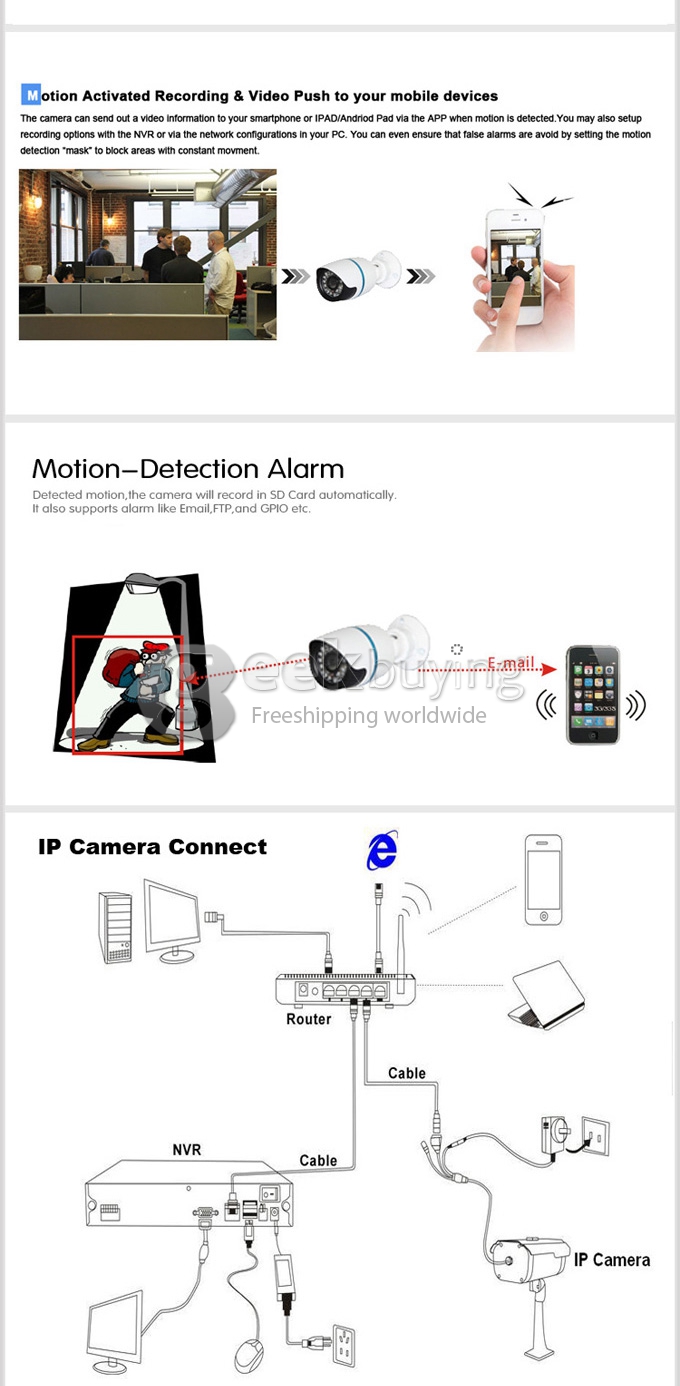

- Support motion detection
- Auto-retrieve function and auto-connection network
- IP66 rated waterproof
- Automatic IR LED illumination for night vision (up to 30 metres)
- Mobile view allows you to realize remote view & recording anywhere & anytime
- Support two-dimension barcode(QR code) scanning
|
|
|
|

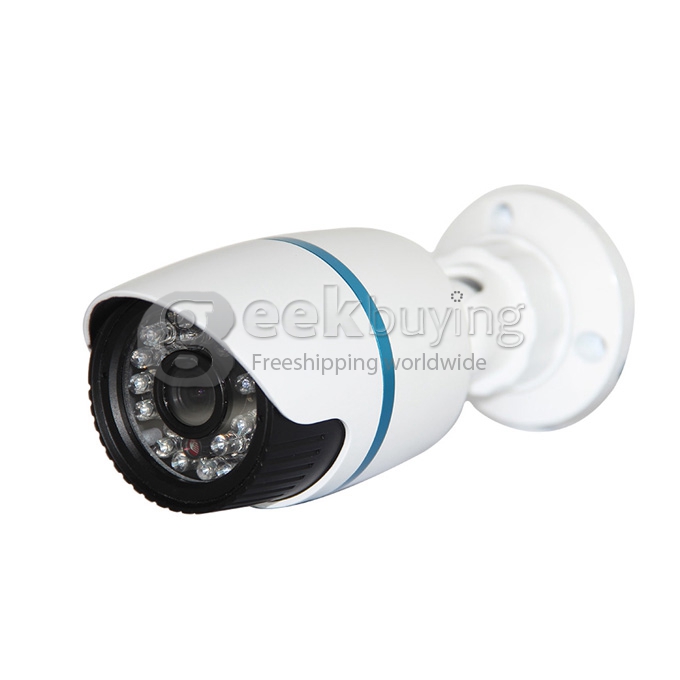

Model |
IPCC-B10 |
|
Hardware |
|
|
Processor |
HI3518C |
|
Sensor |
1/4" 1.0 Megapixel CMOS Sensor |
|
Lens |
3.6mm fixed lens |
|

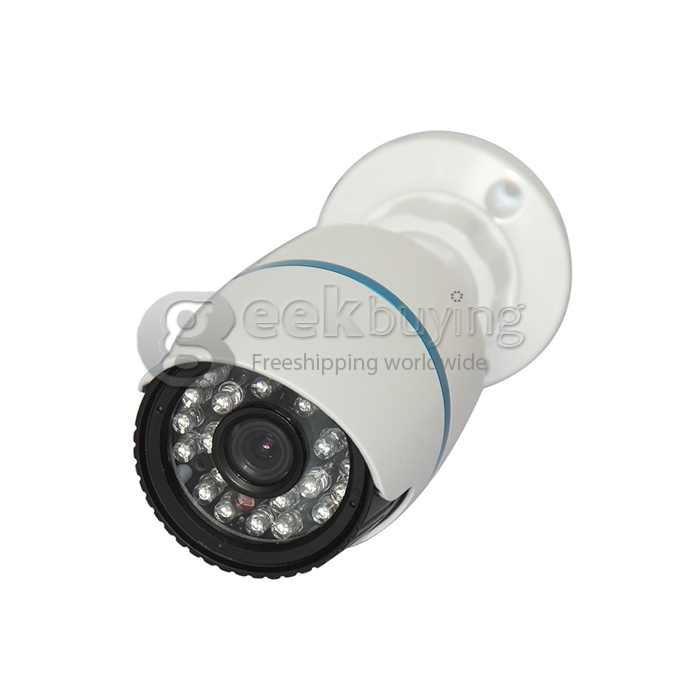

IR LED |
24 IR LEDs, IR Distance 5~15m |
|
Day/Night |
IR-CUT |
|
Min. Illumination |
0.5lux; 0 lux with IR on |
|
Max S/N Ratio |
50dB |
|
Video |
|
|
Compression |
H.264 |
|
image |
main stream: 1280x720@1-25fps sub stream: 640x360@1-25fps 320x180@1-25fps |
|
Bit Rate |
128~4096kbps, Supports CBR/VBR |
|
Image Control |
|
|
Auto Image Control |
AE, AWB |
|
Audio |
|
|
Compression |
G.711-A |
|
Bit Rate |
64kbps/128kbps |
|
Talkback |
support |
|
Network |
|
|
Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
|
Compliance |
ONVIF 2.1(1.02 backward compatible) |
|
PC Client and Browser |
ISS, IE6.0 and above |
|
Mobile phone |
Iphone, ipad, Android |
|
Interface |
|
|
Power Input |
1 CH DC 12V1A power input interface |
|
LAN |
1 RJ45 10M/100M Ethernet port |
|
General |
|
|
Working Temperature |
-10℃~ +55℃ |
|
Working Humidity |
0% - 90% |
|
Protection Level |
IP66 Rated Waterproof |
|
Power Supply |
DC 12 V/1A |
|
Power Consumption |
Maximum 5w |
|
Dimensions |
60*60*165mm |
|
Weight |
1kg |
|
Approvals |
CE , FCC, RoHS |

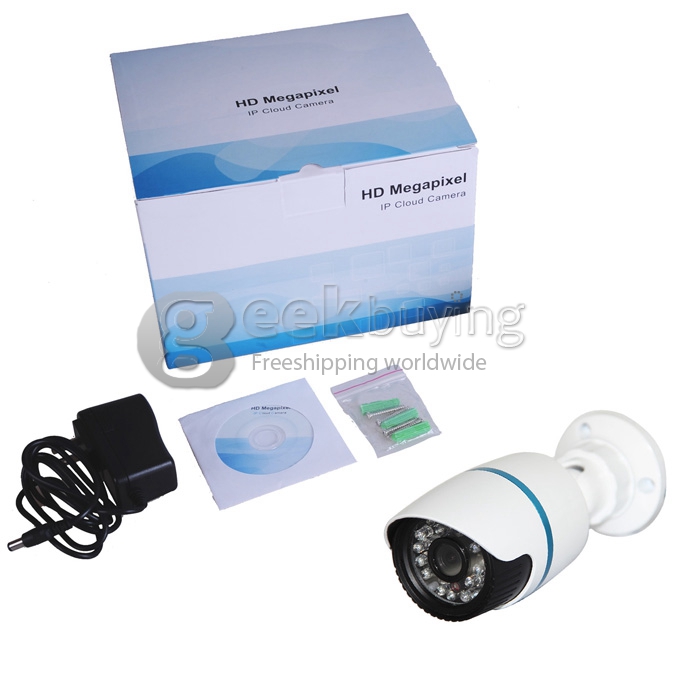

What's in the box?
- 1 * IP Camera with Bracket
- 1 * Power Adapter
- 1 * CD
- 1 * Set of Mounting Screws
- 1 * User Manual
