Highlights
- Full 720P HD video technology
- Dark environments perfectly clear imaging technology
- Two-way audio intercom technology
- Automatically device ID No. searching while shaking
- Plug and play technology
- Alarm Push Technology
- Network auto-adaptive technology
- Silent packet dropping technology
- Globally servers distributed and automatic shunted technology
Specification
|
Model |
CN-PT100C |
|
|
Video Compression |
Operation System |
H.264 Baseline profile |
|
Video |
Image Sensor |
1.0MP HD CMOS Sensor |
|
|
Core Chipset |
Hi3518E Chipset |
|
|
Resolution |
720P HD images, resolution up to 1280x720,1.0MP |
|
|
Resolution Variable |
720P(1280 x 720),VGA(640 x 360), QVGA(320 x 180) |
|
|
Frame Rate |
1~30fps |
|
|
Min. Illumination |
Color: 1.5 Lux; W/B: 0 Lux with IR LED ON |
|
|
IR Distance |
Dual IR cut filter with auto switch, 14pcs LED, night vision at 5 meters |
|
|
S/N Ratio |
≥38dB |
|
|
CMOS Features |
Support AWB,AGC,BLC |
|
|
Lens/Visual Angel |
3.6mm mega-pixel lens@F1.4/56.14 |
|
System Feature |
Security |
Account, password two level user authentication |
|
|
Adaptive dynamic IP domain name system(Free) |
No need domain name, support dynamic IP, no application of “peanut shells”, completely solve the problem of frequently dropped calls, connection with high speed |
|
|
Mobile phone monitor |
Support megapixel HD mobile phone monitor, dedicated IPHONE software, Android software(Software version required IOS4.3,Android 2.3 and above) |
|
|
On-board storage |
Support external 128GB TF card,24 hours recording, More than 32GB need to be formatted as FAT32 |
|
|
Plug and Play |
Adopting advanced Cloud-link P2P (Plug and play) technology, network penetration up to 99%, applicable to all kinds of complex networks, installation takes only three steps: 1. Connecting power supply and network, 2. Installing mobile phone software; 3. Viewing CCTV images. |
|
|
Server Clusters |
P2P intelligent clusters of servers throughout the world, protect the pan-tilt home IP camera works stable and efficient |
|
Audio |
Audio Compression: |
G.711A |
|
|
Audio Input |
1CH built-in 38dB microphone |
|
|
Audio Output |
Built-in speaker(8Ω1W) |
|
PTZ Control |
Pan & Tilt |
Horizontal 355º,vertical 120º |
|
Video Management |
Recording Mode |
Manual recording, timing recording and alarm recording |
|
|
Video Storage |
TF Card (support Max.128G) |
|
Network |

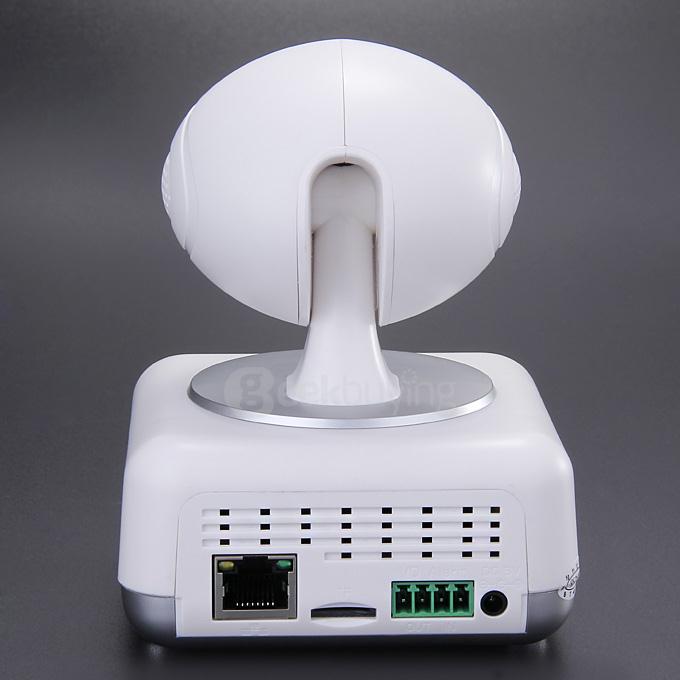

Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
|
|
Protocols |
TCP/IP,HTTP,TCP,UDP,SMTP, DHCP,DNS,DDNS,NTP,UPnP,P2P etc |
|
|
Wireless |
WiFi 802.11b/g/n wireless network |
|
Alarm |
Alarm Input |
Wired alarm input all the way |
|
|
Alarm output |
Wired alarm output all the way |
|
|
Motion Detection |
Support |
|
|
Alarm Action 1 |
Speaker alarm and call 5 different mobile phones |
|
|
Alarm Action 2 |
Capture photos and send by E-mail |
|
System Requirement |
System Configuration |
Software version IOS4.3,Android 2.3 and above |
|
General |
Material |
Cartoon robot/engineering plastics |
|
|
Working Environment |
Indoor |
|
|
Power Supply |
DC5V 2A |
|
|
Working Temperature |
-10~50 ºC |
|
|
Working Humidity |
95% RH |
|
|
Dimensions |
104x102x117mm (L x W x H) |
|
|
Weight |
N.W:300g/pcs;G.W:740g/pcs;8.8kg/1 CTN; 10pcs/1CTN |
|
|
Package Dimensions |
1pcs:215mm x 150mm x 115mm(L×W×H) 1CTN:500mm x 390mm x 255mm(L×W×H) |
|
|
Standard Accessories |

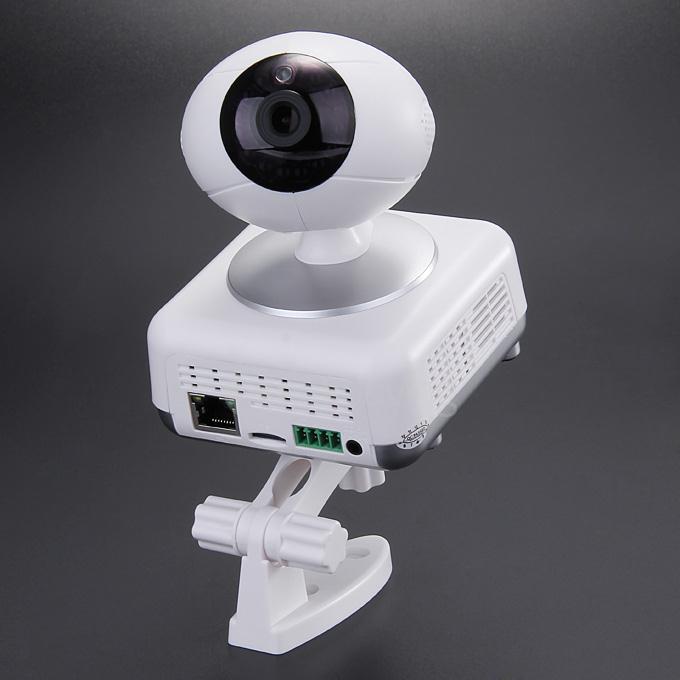

Power adaptor, Bracket and Operation guide |
|
|

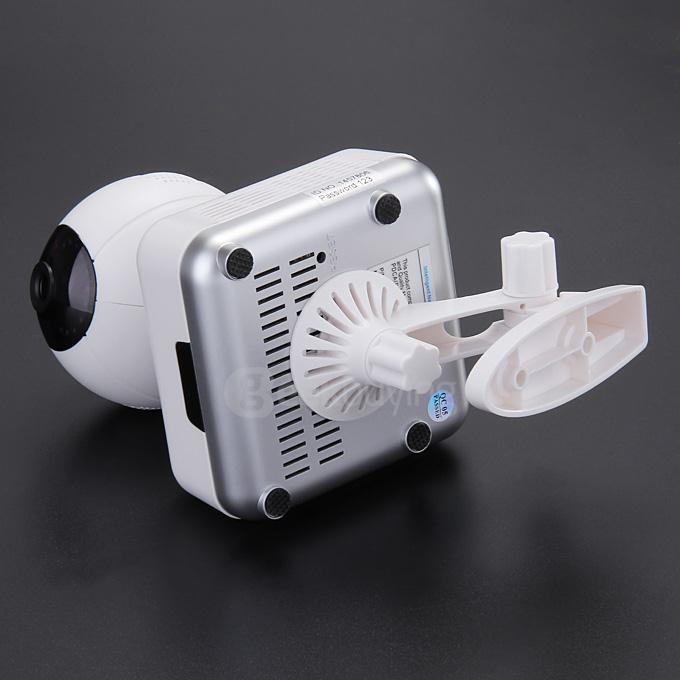

Installation Method
|
Mounted on bracket or Flat type |
What's in the box?
- 1 x Wireless camera
- 1 x AC charger
- 1 x Mounting bracket
- 1 x User manual
