Highlights
- External LED -Dual Size full angle LED
- Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX
- Real time operation system
- 14 PWM/ Servo Output
- Bus interface(UART,I2C,SPI,CAN)
- Intergrated back up power and lose efficacy controller, main controller lose
- Efficacy can safely alter to back up control
- Providing automatic and manual mode
- Providing redundant power supply input and failover
- Multicolor LED light
- Providing multi sound buzzer interface
- Micro SD records flying data
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
Specification
Specification| General | |
|---|---|
| Type | Flight Controller |
| Model | Pixhawk PX4 |
| Processor | 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point |
| Processing Unit | Main frequency: 168MHZ,256K RAM 32 bit STM32F103 back up processor |
| Sensor | L3GD20 3 axis digital 16 bit gyroscope LSM303D 3 axis 14 acceleration/magnetometer MPU6000 6 axis acceleration/magnetometer MS5611 high precision barometer |
| Interface | 5 UART, one compatible high voltage, two have hardware flow control Two CAN Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input Futaba SBUS compatible input and output PPM signal input RSSI(PWM or voltage) output I2C SPI 3.3 and 6.6VADC input External MICRO USB interface |

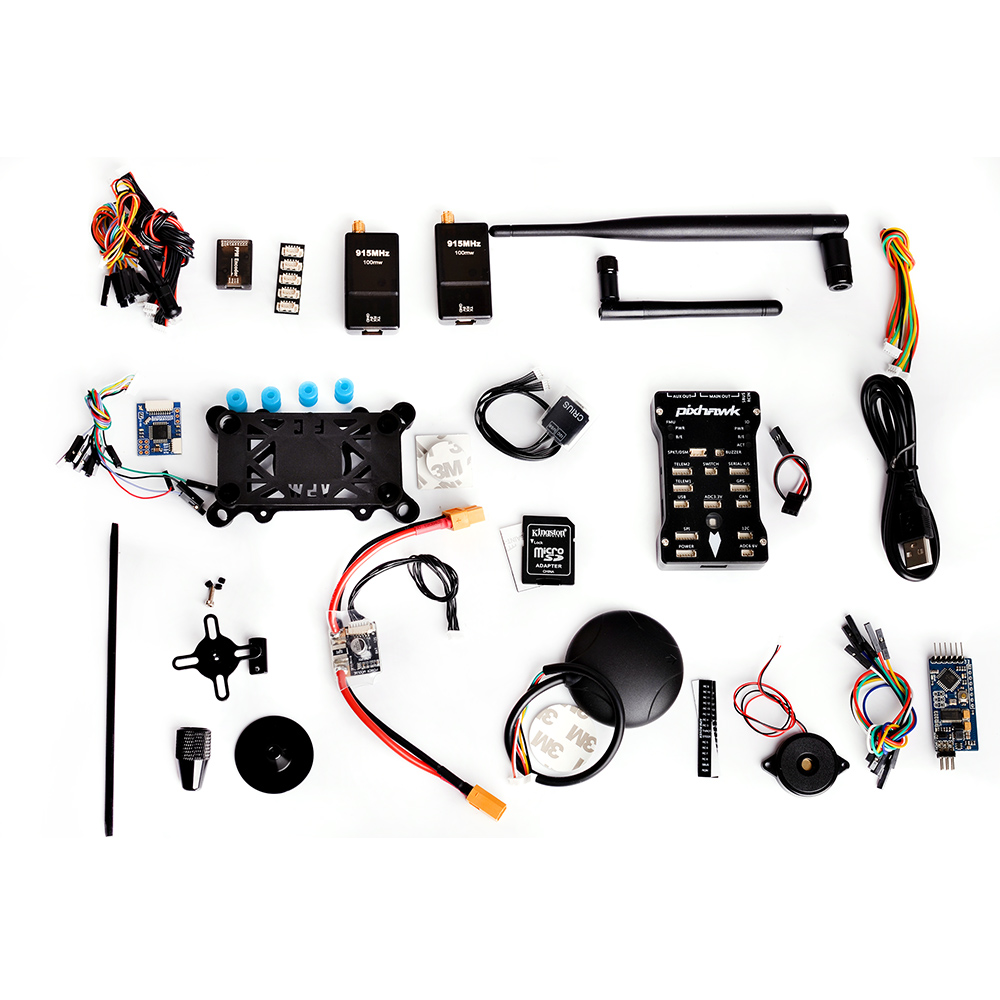

| Package Contents | |
| 1 x Pixhawk px4 2.4.6 32 bit ARM Flight Controller with shell | |
| 1 x Buzzer module | |
| 1 x Safety button | |
| 1 x Anti-vibration set for pix board | |
| 1 x PPM module | |
| 1 x External LED light board(not included) | |
| 1 x NEO-M8N GPS | |
| 1 x Power Module T-plug type | |
| 1 x Pixhawk-I2C Splitter Expand board | |
| 1 x 3DR radio 915Mhz Data Transmission Module | |
| 1 x mini USB cable | |
| 1 x mini mosd | |
