Highlights
Racing F3 Deluxe flight controller
The Racing F3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect. Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.
The Racing F3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information.
The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.
36x36mm board with 30.5mm mounting holes
Weight ~6 grams
MS5611 barometer
HMC5883 compass
STM32F303 CPU, 72Mhz inc FPU
High-Capacity Flash (Acro and Deluxe)
MPU6050 accelerometer/gyro
MicroUSB socket
2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
8x 3pin though-holes for pin headers for ESC/Servo connections
2x 4pin though-holes for pin headers for 2x serial ports
1x 2pin though-holes for pin headers for battery voltage
1x 2pin though-holes for pin headers for buzzer
1x 4pin JST-SH socket for I2C
1x 4pin JST-SH socket for SWD debuggin
Features
Practical - Easy to access connectors and solder pads.
Configurable - Choose to use connectors, solder pads or pins.
Stackable - Mount to your PDB or OSD.
Compact - Only 36x36mm.
Professional - Symmetrical, Neat and Tidy.
8 Dedicated PWM outputs
8 PWM Inputs
36 I/O Connections
72Mhz Clock Speed
3 Hardware Serial Ports
64Mb Flash Storage
Ublox-M8N GPS
A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
Features
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS

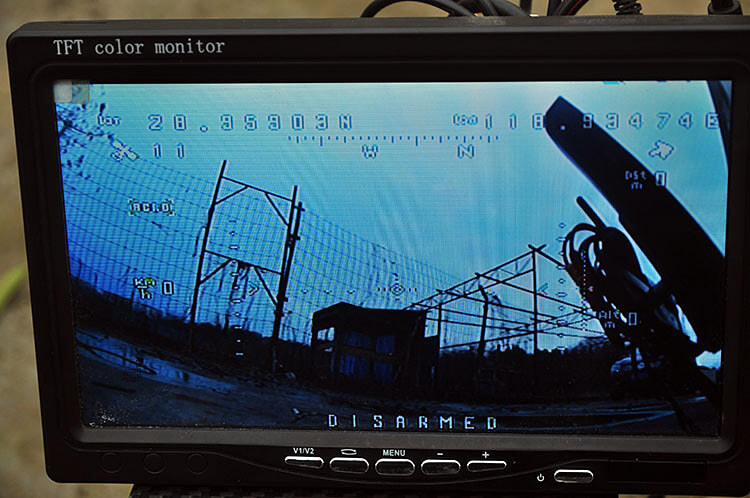

CF-OSD
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS
Specification
| General | |
|---|---|
| Type | Flight Controller |
| Compatible | QAV250 Multirotor |

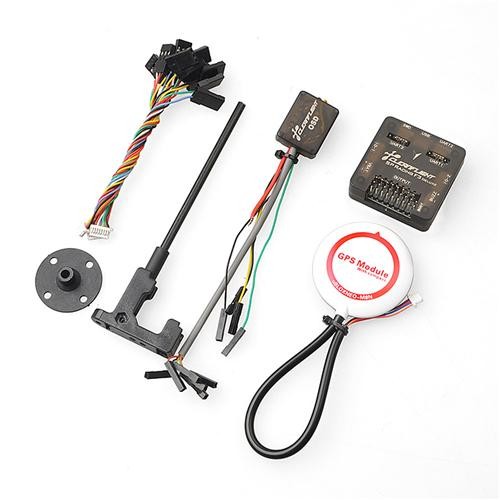

| Package Contents | |
| 1 x Racing F3 flight controller | |
| 1 x M8N GPS | |
| 1 x CF-OSD | |
